CPU:- 1 x M.2 connector (Socket 3, M-key, Type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)- 1 x M.2 connector (Socket 3, M-key, Type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)Chipset:- 1 x M.2 connector (Socket 3, M-key, Type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)- 1 x M.2 connector (Socket 3, M-key, Type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)- 1 x M.2 connector (Socket 3, M Key, Type 2280 SATA and PCIe 4.0 x4/x2 SSD support (M2M_SB)- 4 x SATA 6Gb/s connectorsSupport for RAID 0, RAID 1, RAID 5, and RAID 10 for NVMe SSD storage devicesSupport for RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
Graphics
Integrated Graphics Processor - Intel HD Graphics support:- 1 x Intel Thunderbolt 4 connector (USB4 USB Type-C port), supporting DisplayPort and Thunderbolt video outputWhen a Thunderbolt monitor is installed, the maximum supported resolution is 5120x2880@60 Hz with 24 bpp (single display output).When a USB4 USB Type-C monitor is installed, the maximum supported resolution is 3840x2160@240 Hz (single display output).* Due to the limited I/O resources of the computer architecture, the number of Thunderbolt devices that can be used depends on the number of PCI Express devices installed. (For more information, refer to 2-6 Back Panel Connectors.)* Support for DisplayPort 2.1 and HDCP 2.3- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 and HDCP 2.3.- 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30Hz* Support HDMI version 1.4.(Graphics specification may vary depending on CPU support.)Support up to three displays simultaneously
Sound card
Realtek ALC1220 CODEC* The line-out jack on the rear panel supports DSD audio.High-Resolution Audio2/4/5.1/7.1-channel* The audio jack functionality can be changed via audio software. To configure 7.1-channel audio, you must access the audio software for audio settings.S/PDIF output support
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface
2 x 10/100/1000/2500 Mbit/s
Network interface
Bluetooth
Network interface
LAN 2 x Intel 2.5GbE LAN (2.5Gbps/1Gbps/100Mbps) Wireless communication module Intel Wi-Fi 7 BE202 (BE200NGW M) 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Supports 11be 160MHz wireless standard
USB ports at back panel
9
USB ports on motherboard
8
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
5
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No

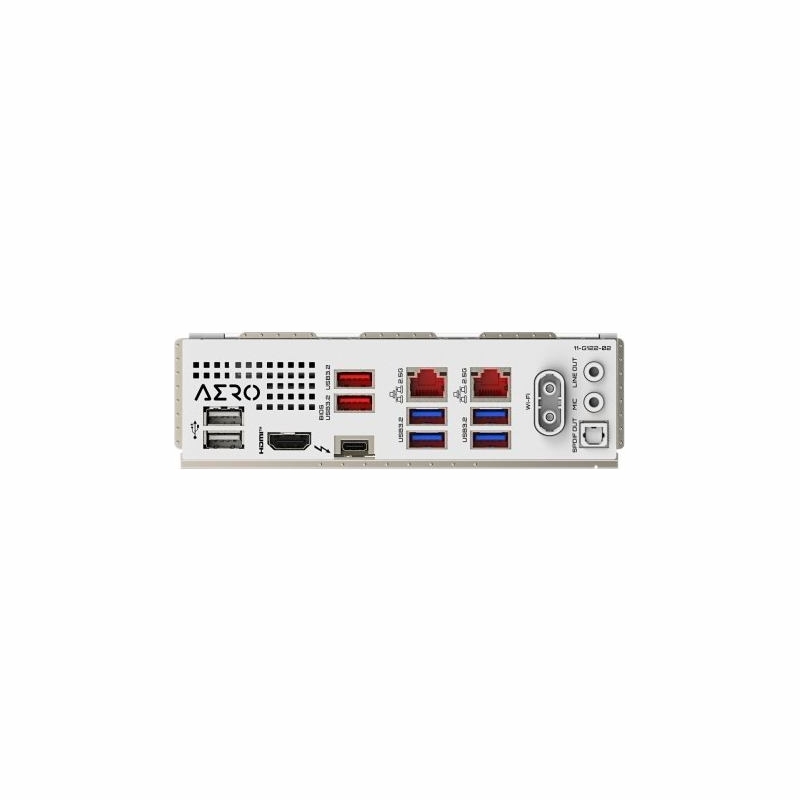

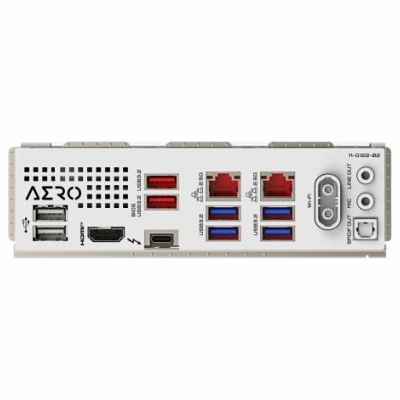

External connectors
2 x USB 2.0
External connectors
1 x S/PDIF
External connectors
2 x RJ-45
External connectors
1 x Thunderbolt 4
External connectors
2 x USB 3.2 Gen 2 Type-A
External connectors
1 x HDMI
External connectors
1 x Line Out
External connectors
4 x USB 3.2 Gen 1 Type-A
External connectors
1 x MIC
External connectors
2 x SMA
Onboard connectors
1 x Clear CMOS jumper
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x Reset button
Onboard connectors
1 x Reset jumper
Onboard connectors
1 x Power button
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
5 x M.2
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
1 x USB 3.2 Gen 1 Type-A
Onboard connectors
1 x USB C
Onboard connectors
1 x HDMI
Onboard connectors
1 x TPM header
Onboard connectors
1 x System panel header
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors
3 x 4pin Chassis fan
Onboard connectors
1 x 4-pin water-pump-fan
Onboard connectors
2 x 8pin 12V
Onboard connectors
1 x Q-Flash Plus button
Onboard connectors
1 x RGB LED strip header
Onboard connectors
3 x Addressable LED
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
ATX
Dimensions
30.5 cm x 24.4 cm
Supported operating systems
Windows 11
Software
Norton Internet Security (OEM version) LAN bandwidth management software
