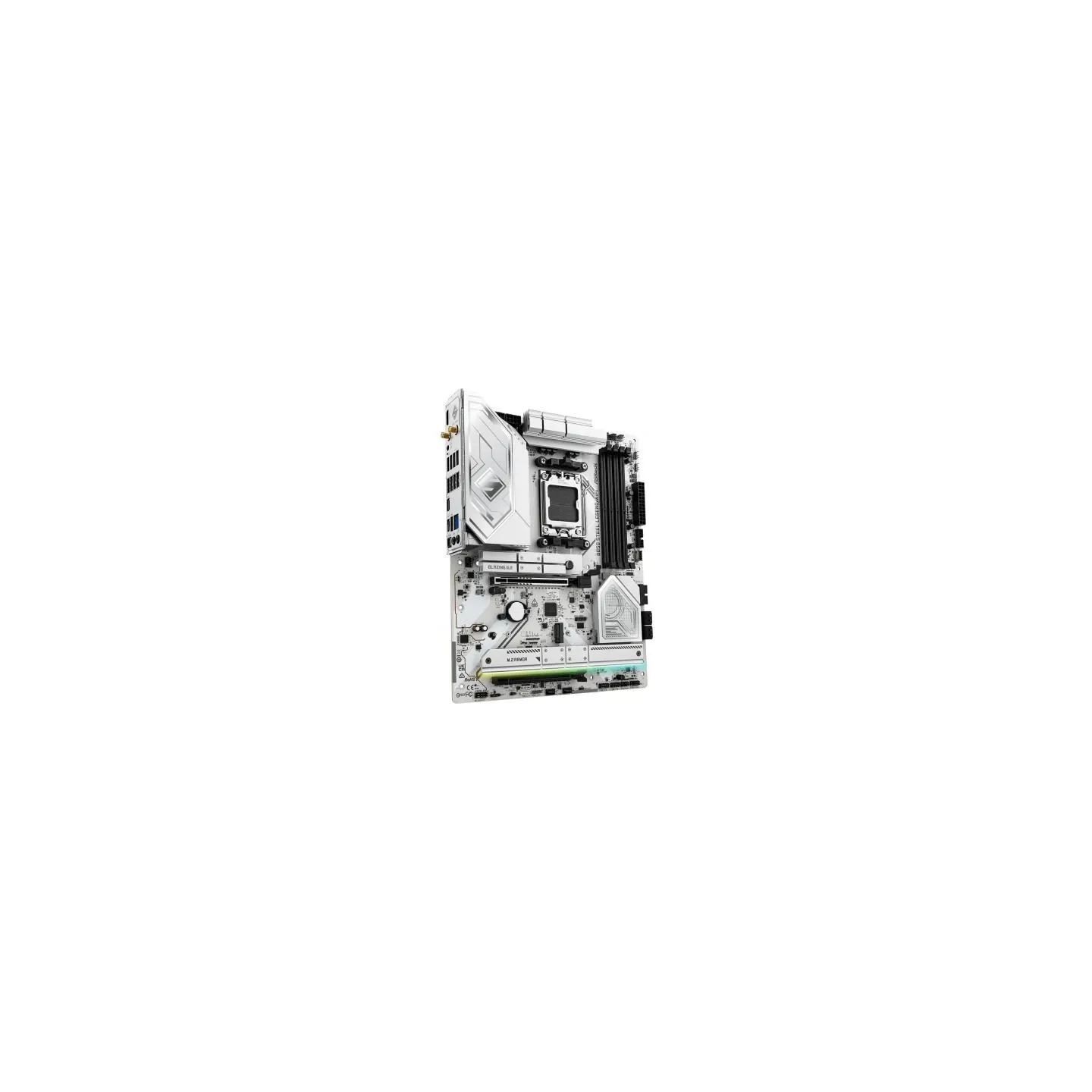

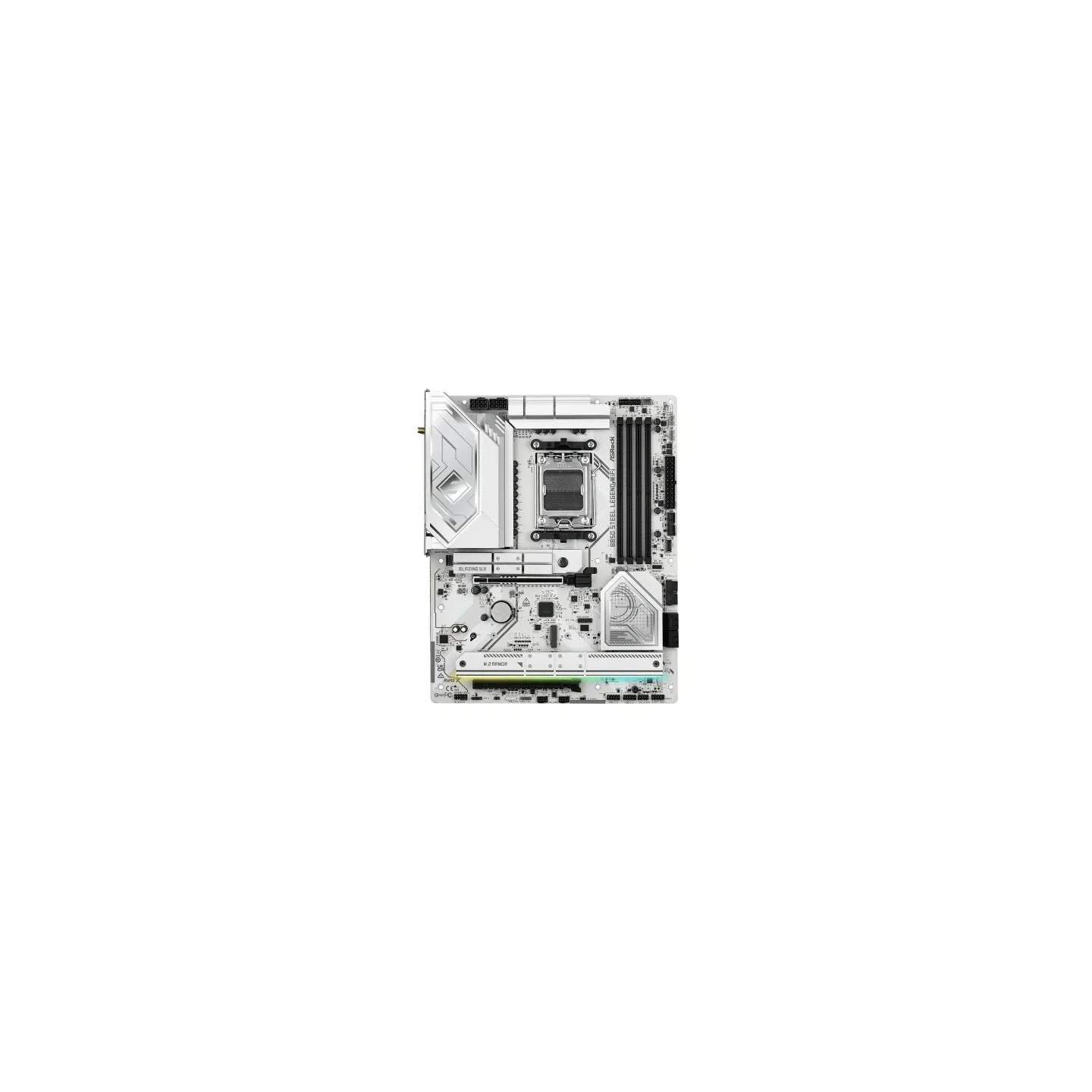

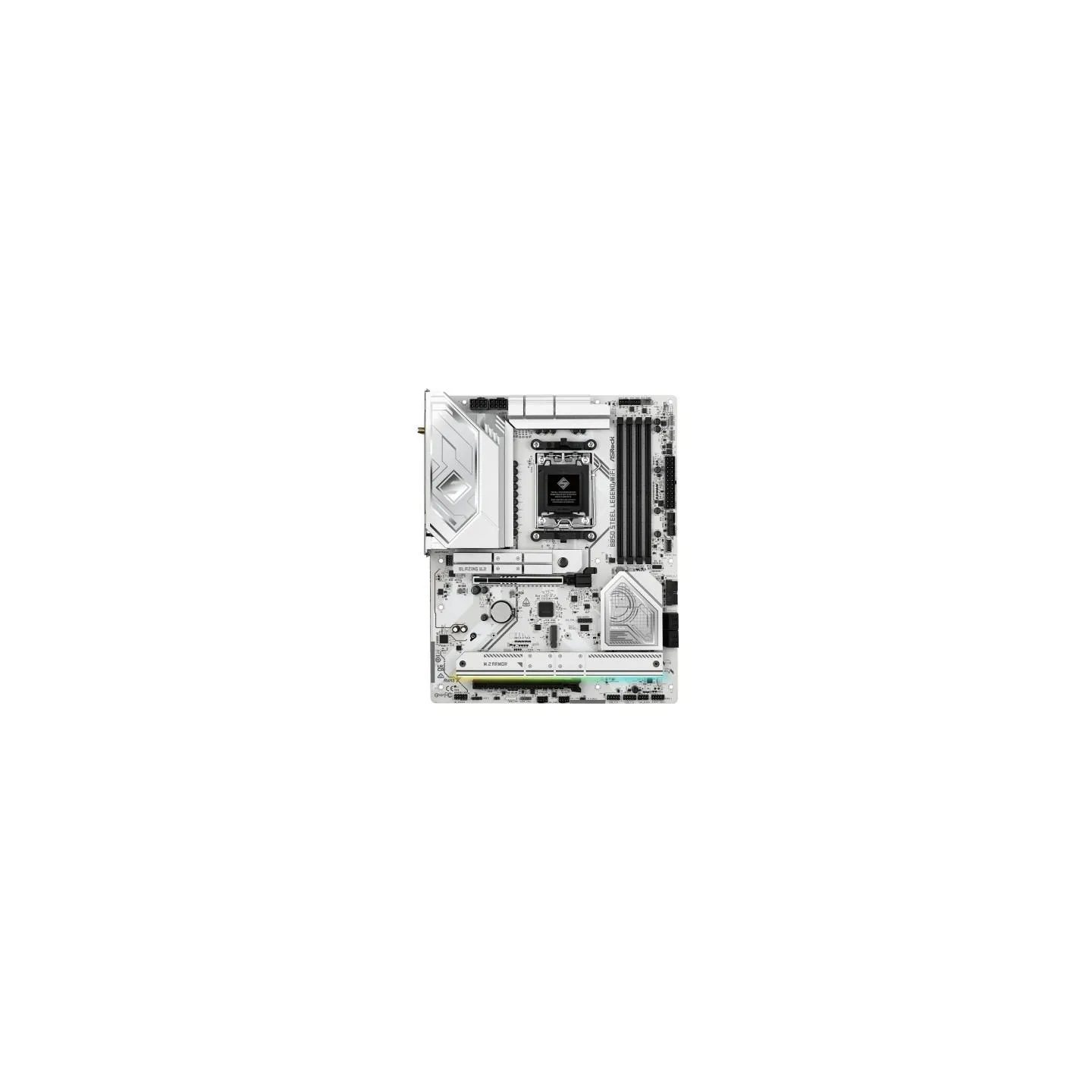

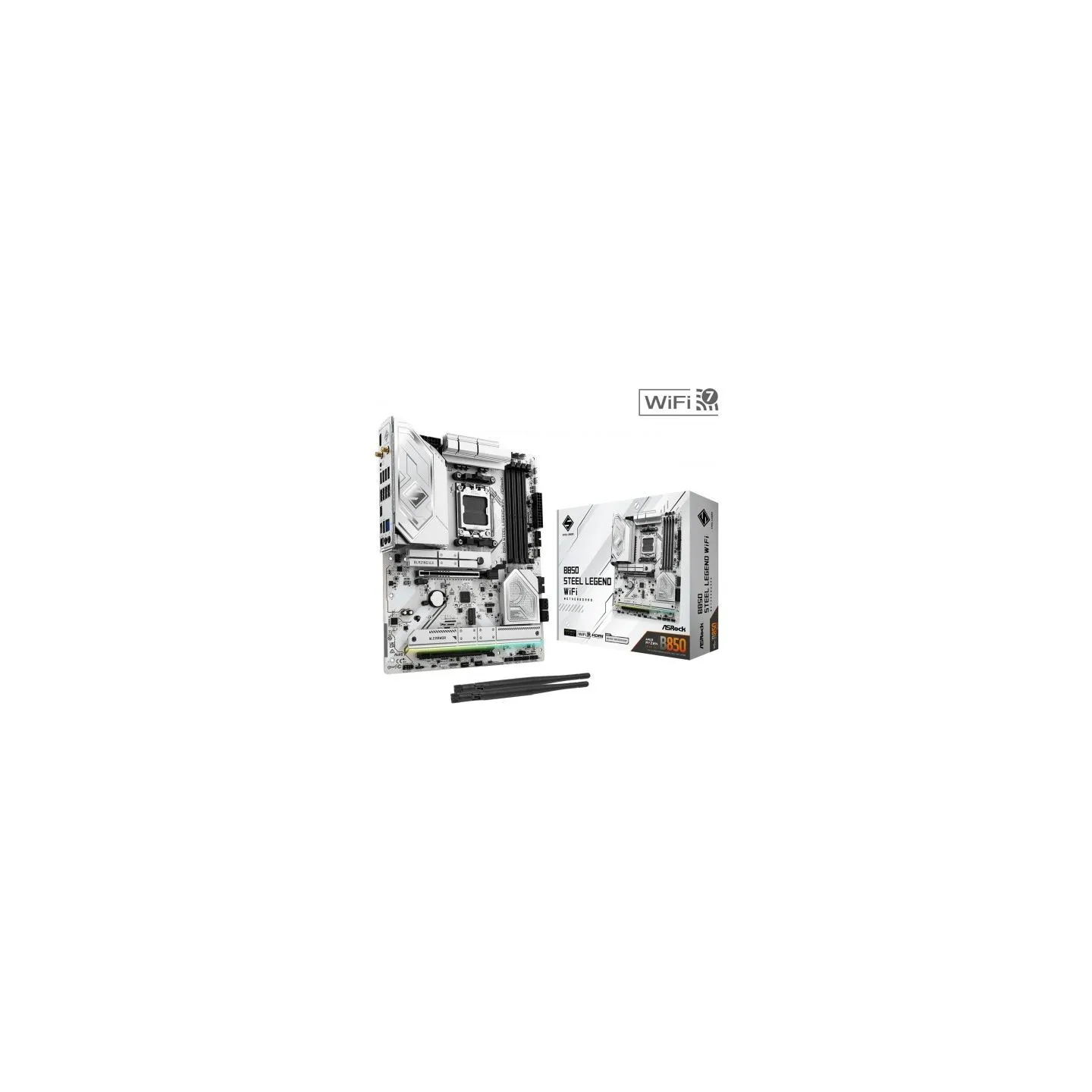

Asrock Motherboard B850 Steel Legend WiFi AM5 4DDR5 ATX
- Write a review
€238.85
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
- SKU
- KBASRAA8B850A02
- Barcode
- 4711581490062
- Model
- B850 STEEL LEGEND WIFI
- CPU socket
- Socket AM5
- Processor family
- AMD Ryzen 9
- Processor family
- AMD Ryzen 5
- Processor family
- AMD Ryzen 7
- Integrated CPU
- No
- Chipset manufacturer
- AMD
- Chipset type
- AMD B850
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 8000 MHz
- Max memory size
- 256
- Expansion slots
- 1 x M.2
- Expansion slots
- 1 x PCIe 4.0 x 16
- Expansion slots
- 1 x PCIe 5.0 x 16
- Max. number of ATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- CPU:- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*Chipset:- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*ASMedia ASM1061:- 4 x SATA3 6.0 Gb/s Connectors
- Graphics
- Integrated AMD RDNA graphics (actual support may vary by processor)- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3, and max resolution up to 4K 120Hz
- Sound card
- 7.1 CH HD Audio with Content Protection (Realtek ALC4082 audio codec) Separate PCB layers for R/L audio channels Direct Drive technology on the front headphone port (supports headsets up to 600 ohms) Nahimic Audio
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax/be
- Network interface
- Bluetooth
- Network interface
- LAN 2.5 Gigabit LAN 10/100/1000/2500 Mbps Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control Wireless LAN 802.11be 2x2 Wi-Fi 7 Module Supports IEEE 802.11a/b/g/n/ac/ax/axe/be Supports 2.4GHz/5GHz/6GHz* frequency band Supports 160MHz channel bandwidth with 6GHz* frequency band 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology SupportsBluetooth 5.4 Supports MU-MIMO
- USB ports at back panel
- 11
- USB ports on motherboard
- 9
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 7
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 5
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No
- External connectors
- 1 x S/PDIF
- External connectors
- 1 x MIC
- External connectors
- 1 x HDMI
- External connectors
- 1 x RJ-45
- External connectors
- 2 x USB 3.2 Gen 2 Type-C
- External connectors
- 2 x SMA
- External connectors
- 1 x Flash BIOS Button
- External connectors
- 4 x USB 2.0
- External connectors
- 3 x USB 3.2 Gen 1 Type-A
- External connectors
- 2 x USB 3.2 Gen 2 Type-A
- External connectors
- 1 x Line Out
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 2 x 8pin 12V
- Onboard connectors
- 1 x Power LED and Speaker Header
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 3 x 4pin Chassis fan
- Onboard connectors
- 2 x 4pin wentylator CPU
- Onboard connectors
- 3 x Addressable LED
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 2 x USB 3.2 Gen 1 Type-A
- Onboard connectors
- 1 x USB 3.2 Gen 2 Type-C
- Onboard connectors
- 1 x Thermistor Cable Header
- Onboard connectors
- 1 x RGB LED strip header
- Onboard connectors
- 1 x 4-pin water-pump-fan
- BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
- Form factor
- ATX
- Dimensions
- 30.5 cm x 24.4 cm
- Accessories included
- 2 x SATA data cables 2 x ASRock 2.4/5/6 GHz WiFi antennas ARGB splitter cable Thermistor cable
- Supported operating systems
- Windows 11
- Supported operating systems
- Windows 10
- Software
- Software ASRock Motherboard Utility (Phantom Gaming Tuning) Killer Control Center ASRock Polychrome SYNC* UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock Auto Driver Installer ASRock Instant Flash
- Designation
- CE+WEEE
B850 STEEL LEGEND WIFI
5 Items
Specific References
- EAN13
- 4711581490062
- MPN
- B850 STEEL LEGEND WIFI
