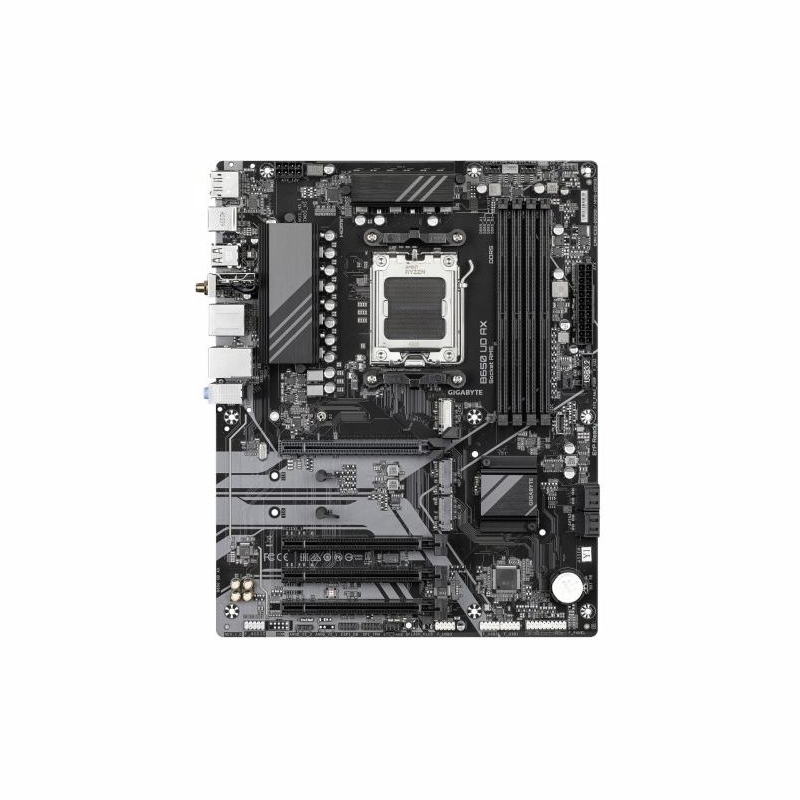

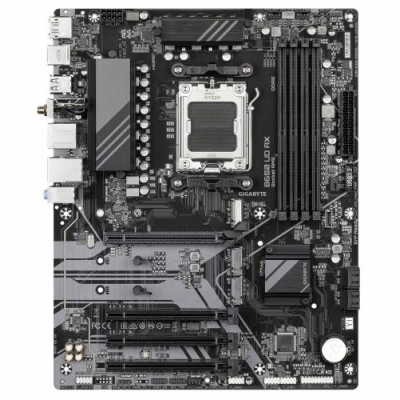

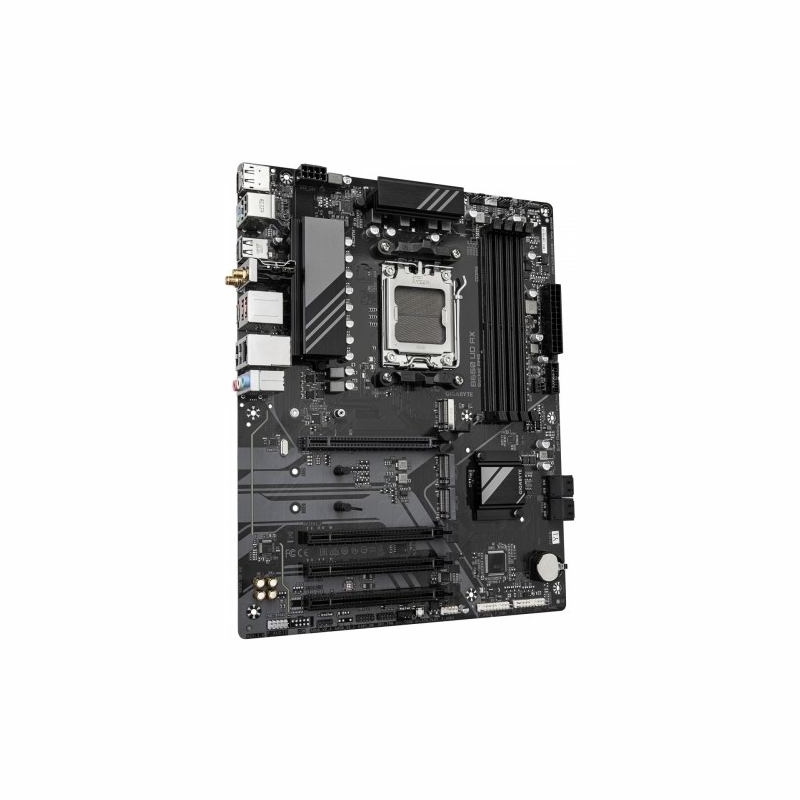

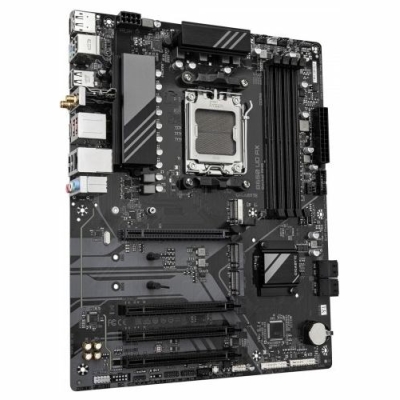

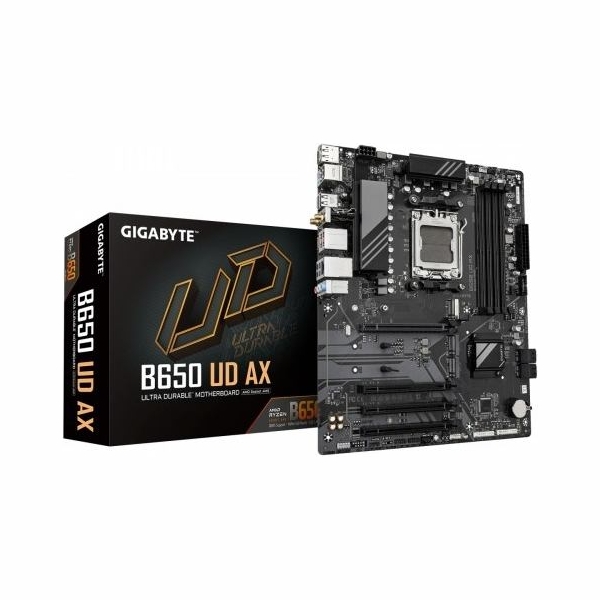

Gigabyte Motherboard B650 UD AX AM5 4DDR5 HDMI/DP ATX
- Write a review
€154.49
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
- SKU
- KBGBAAA8B650A08
- Barcode
- 4719331863944
- Model
- B650 UD AX
- CPU socket
- Socket AM5
- Processor family
- AMD Ryzen
- Integrated CPU
- No
- Chipset manufacturer
- AMD
- Chipset type
- AMD B650 Chipset
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 8000 MHz
- Memory bus frequency
- 7800 MHz
- Memory bus frequency
- 7600 MHz
- Memory bus frequency
- 7200 MHz
- Memory bus frequency
- 5200 MHz
- Memory bus frequency
- 5600 MHz
- Memory bus frequency
- 6000 MHz
- Memory bus frequency
- 6200 MHz
- Memory bus frequency
- 6400 MHz
- Memory bus frequency
- 6600 MHz
- Memory bus frequency
- 6800 MHz
- Memory bus frequency
- 7000 MHz
- Memory bus frequency
- 4800 MHz
- Max memory size
- 256
- Expansion slots
- 1 x PCIe x 16
- Expansion slots
- 3 x PCIe 3.0 x 16
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 4.0 x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
- Graphics
- LAN: Realtek RTL8111H GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) Wireless Communication module: Realtek RTL8851 WIFI 6 module WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands Support for 11ax wireless standard (Actual data rate may vary depending on environment and equipment.
- Sound card
- Realtek Audio CODEC ALC897 High Definition Audio 2/4/5.1/7.1-channe
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax
- Network interface
- 1 x 10/100/1000 Mbit/s
- Network interface
- LAN: Realtek RTL8111H GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) Wireless Communication module Realtek RTL8851 WIFI 6 module WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands Support for 11ax wireless standard (Actual data rate may vary depending on environment and equipment.)
- USB ports at back panel
- 8
- USB ports on motherboard
- 7
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 4
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 2
- FireWire (IEEE 1394)
- No
- COM connector / port
- Yes
- LPT connector / port
- No

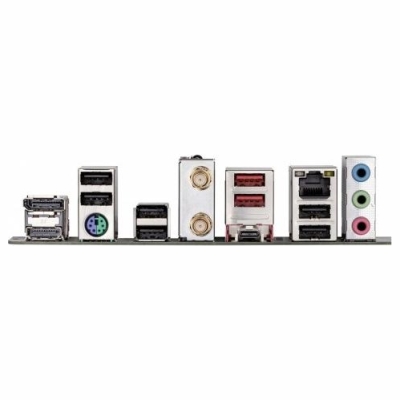

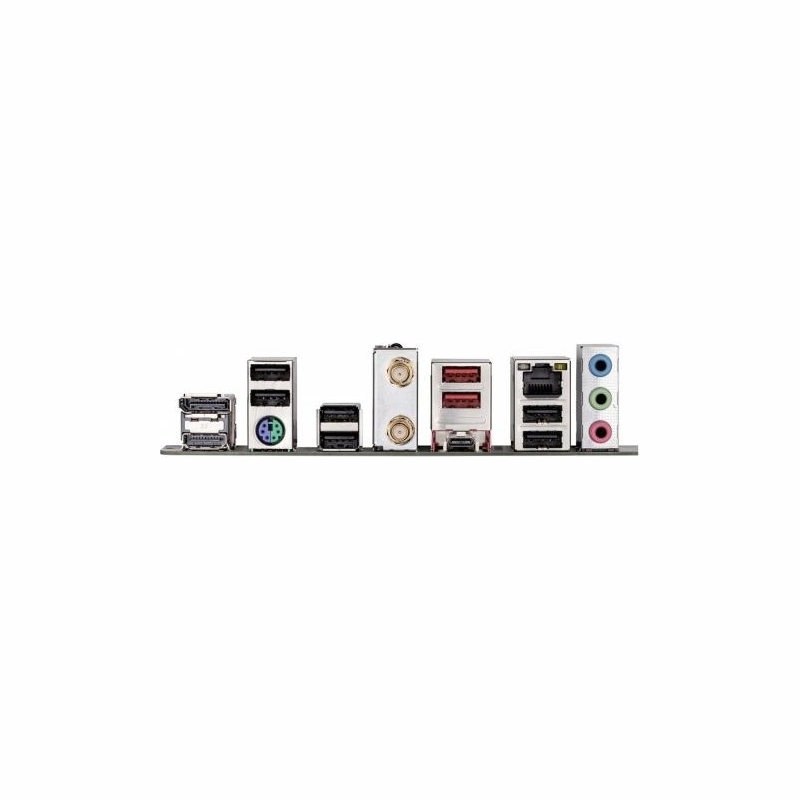

- External connectors
- 1 x DisplayPort
- External connectors
- 1 x Line In
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 1 x RJ-45
- External connectors
- 6 x USB 2.0
- External connectors
- 2 x USB 3.2 Gen 2 Type-A
- External connectors
- 1 x USB 3.2 Gen 1 Type-C
- External connectors
- 1 x HDMI
- External connectors
- 1 x PS/2 Keyboard/MouseCombo
- External connectors
- 2 x SMA
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 3 x M.2
- Onboard connectors
- 3 x Addressable LED
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 6 x USB 2.0/1.1
- Onboard connectors
- 2 x USB 3.2 Gen 1 Type-A
- Onboard connectors
- 1 x USB 3.2 Gen 1 Type-C
- Onboard connectors
- 1 x Serial port header
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x 4pin CPU/Water Pump Fan Connector
- Onboard connectors
- 2 x 4pin Chassis fan
- Onboard connectors
- 1 x 4-pin water-pump-fan
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 1 x Clear CMOS jumper
- Onboard connectors
- 1 x Q-Flash Plus button
- Onboard connectors
- 1 x RGB LED strip header
- BIOS
- 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Form factor
- ATX
- Dimensions
- 30.5 x 24.4 cm
- Supported operating systems
- Windows 11
- Supported operating systems
- Windows 10
- Software
- Norton Internet Security (OEM version) LAN bandwidth management software
- Designation
- CE+WEEE
B650 UD AX
30 Items
Specific References
- EAN13
- 4719331863944
- MPN
- B650 UD AX
