Supports a total of 2 M.2 slots and 4 SATA 6 Gb/s ports* AMD Ryzen 9000 and 7000 Series Desktop Processors M.2_1 (M-Key) socket, type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 (M-Key) socket, type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset M.2_2 (M-Key) socket, type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 SATA 6 Gb/s ports * AMD RAIDXpert2 technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Graphics
1 x DisplayPort** 1 x VGA port 1 x HDMI port*** ** Supports up to 8K@60Hz according to the DisplayPort 1.4 specification.*** Supports 4K@60Hz according to the HDMI 2.1 specification.
Sound card

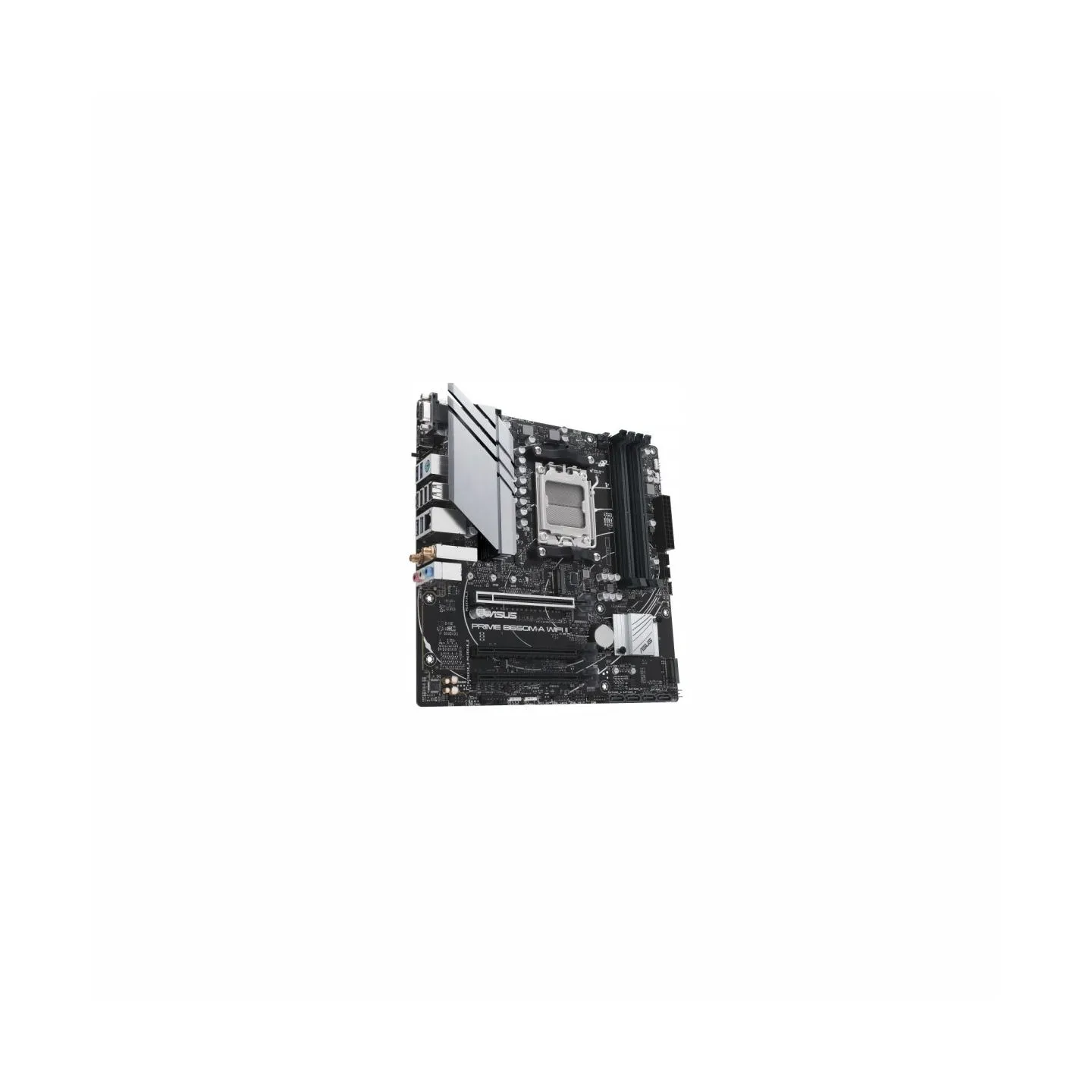

Realtek 7.1 Surround Sound High Definition Audio CODEC* Supports: jack detection, streaming, and front panel jack remapping Supports playback up to 24-bit/192 kHz Audio Features Audio Shielding Premium Audio Capacitors Dedicated PCB Audio Layers *7.1 Surround Sound audio output requires a chassis with an HD audio module on the front panel.Prime B650M-A
Network interface
Bluetooth
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax
Network interface
1 x Realtek 2.5Gb Ethernet
USB ports at back panel
8
USB ports on motherboard
6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
2
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No
External connectors
1 x D-Sub
External connectors
2 x USB 3.0
External connectors
2 x USB 3.1
External connectors
1 x Line Out
External connectors
1 x MIC
External connectors
2 x SMA
External connectors
1 x DisplayPort
External connectors
4 x USB 2.0
External connectors
1 x Flash BIOS Button
External connectors
1 x PS/2 Keyboard/MouseCombo
External connectors
1 x HDMI
External connectors
1 x Line In
External connectors
1 x RJ-45
Onboard connectors
1 x 4pin wentylator OPT CPU
Onboard connectors
1 x USB 3.2 Gen 1 Type-C
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
3 x 4pin Chassis fan
Onboard connectors
1 x 4pin 12V power
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x 8pin 12V power
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
2 x M.2
Onboard connectors
1 x USB 3.0 header
BIOS
256 Mb Flash ROM, UEFI AMI
Form factor
micro ATX
Dimensions
24.4 x 24.4 cm
Accessories included

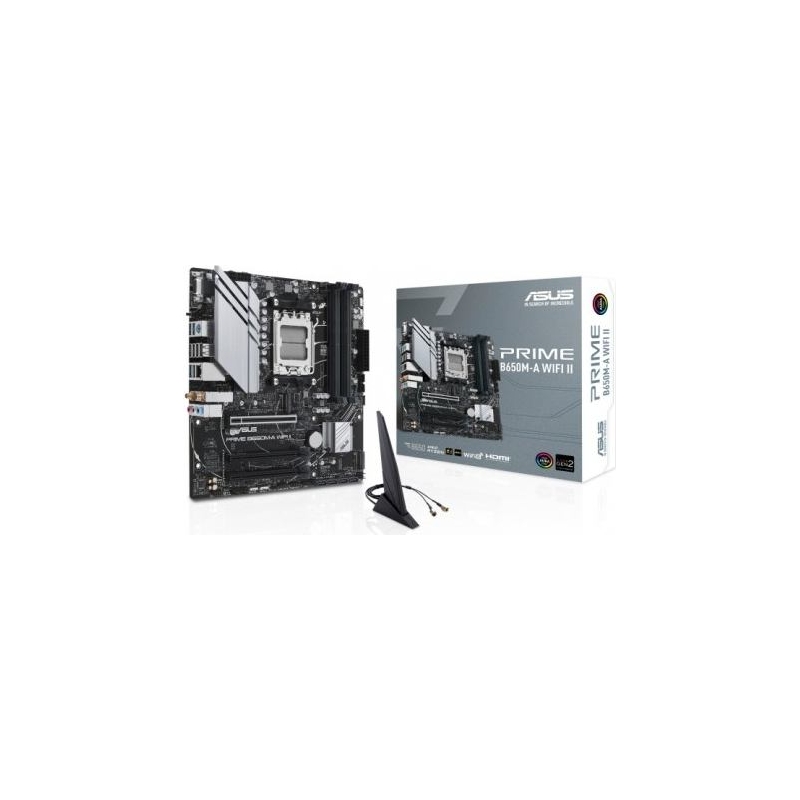

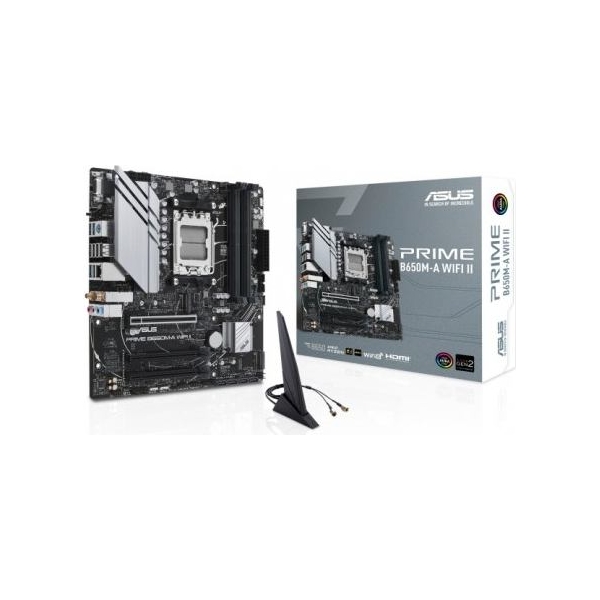

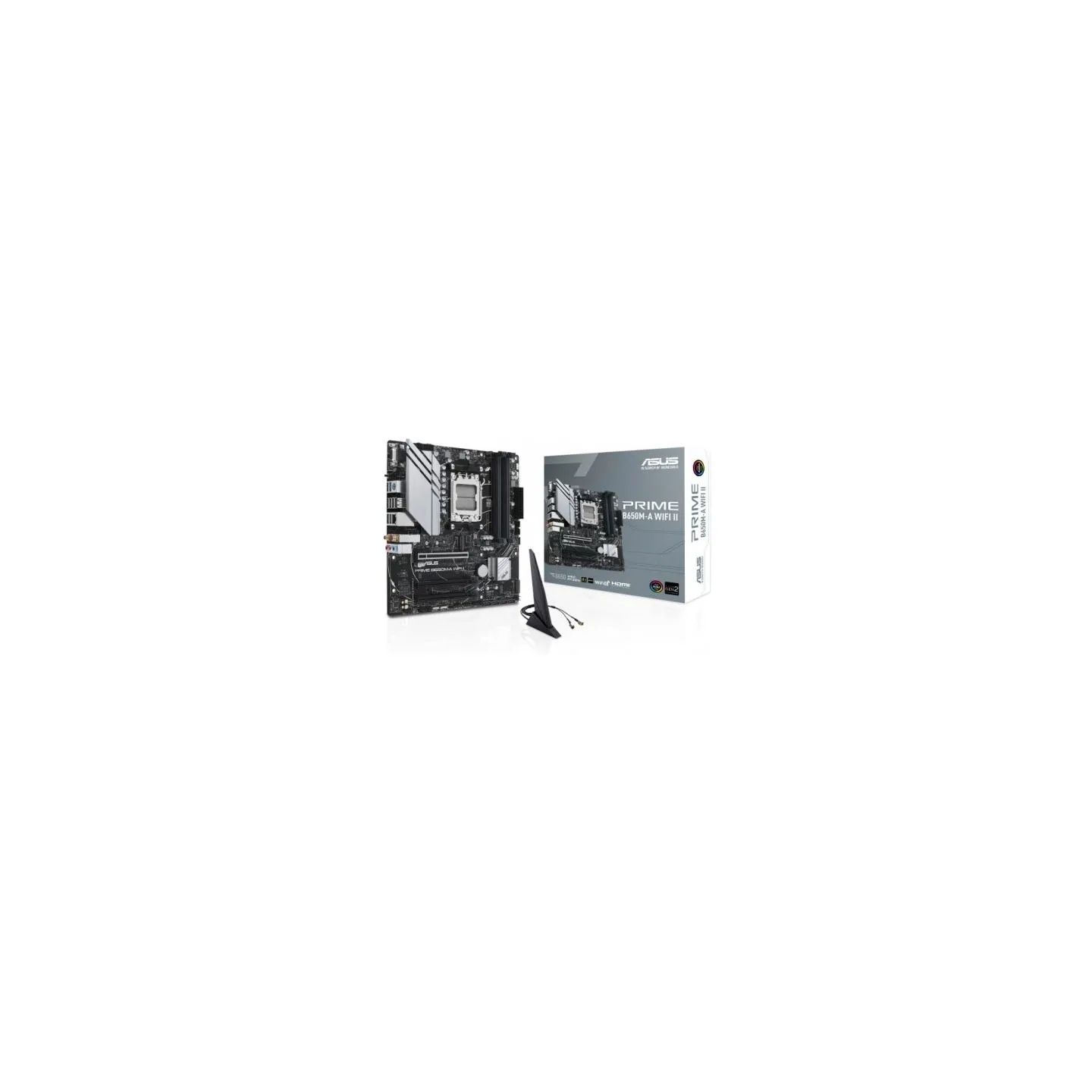

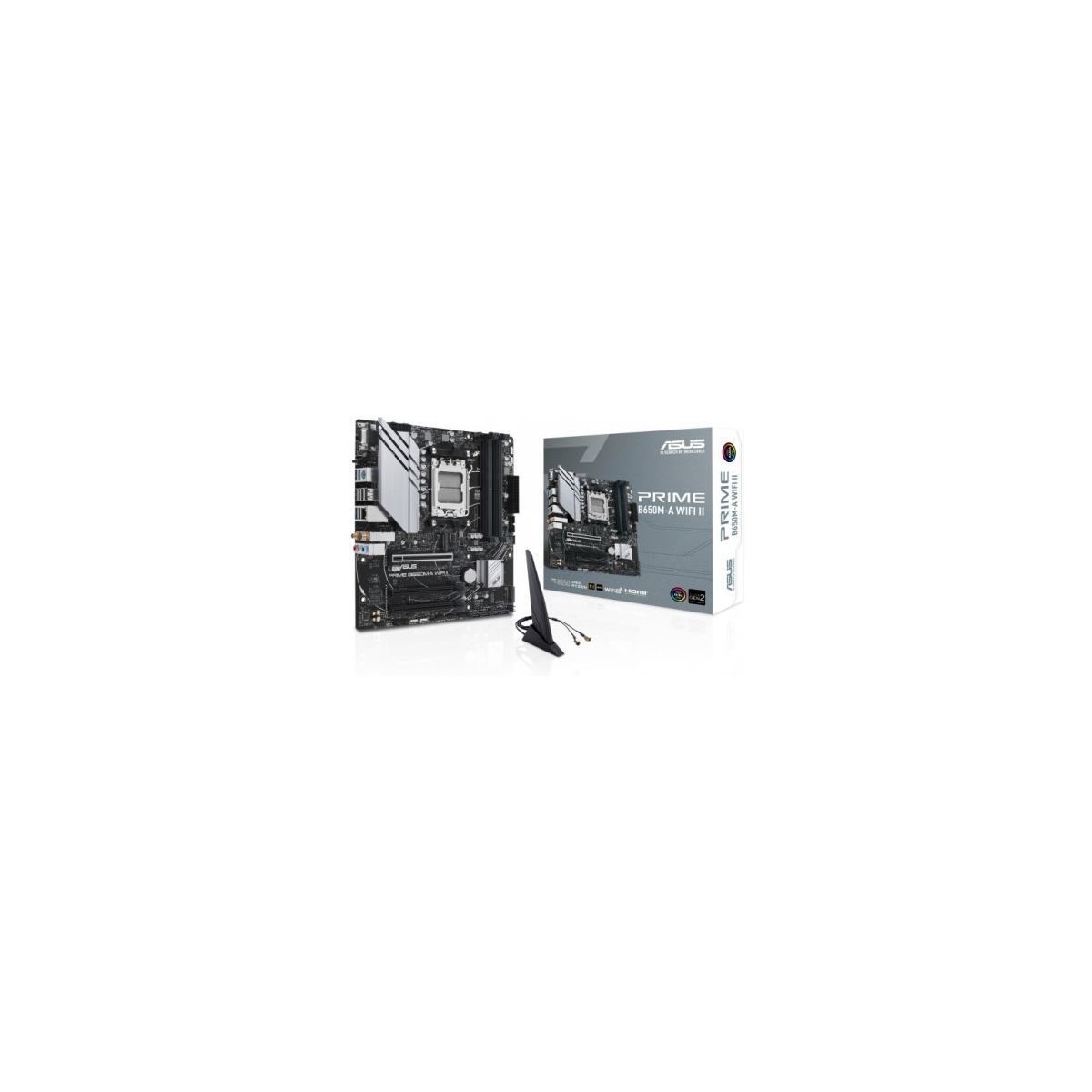

2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi movable antennas 1 x I/O shield 1 x M.2 SSD screw set 1 x User manual
