3x M.2 Source M.2_1 (from the CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices Source M.2_2 (from the CPU) supports up to PCIe 4.0 x4, supports 22110/2280 devices Source M.2_3 (from the chipset) supports up to PCIe 4.0 x2, supports 2280/2260 devices 4x SATA 6G Socket M2_1 Supports up to PCIe 5.0 x4 (for Ryzen 9000/7000 series processors) Supports up to PCIe 4.0 x4 (for Ryzen 8000 series processors) Socket M2_2 Supports up to PCIe 4.0 x4 (for Ryzen 8000 series processors) 9000/7000) Supports up to PCIe 3.0 x4 (for Ryzen 8700/8600/8400 series processors) Supports up to PCIe 3.0 x2 (for Ryzen 8500/8300 series processors) RAID 0 and RAID 1 for M.2 NVMe storage devices
Graphics
1x HDMI Supports HDMI 2.1, maximum resolution 4K 60Hz* *Available only on processors with integrated graphics. Graphics specifications may vary depending on the installed processor.
Sound card
Realtek ALC897 7.1-Channel High Definition Audio
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface
1 x 10/100/1000/2500/5000 Mbit/s
Network interface
Bluetooth
Network interface
LAN Realtek 8126VB 5G LAN WIRELESS LAN AND BLUETOOTH Wi-Fi 7 Wireless module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX, 2.4 GHz/5 GHz/6 GHz* (320 MHz) up to 5.8 Gbps. Supports 802.11 a/b/g/n/ac/ax/be. Supports Bluetooth 5.4**, MLO, 4KQAM. *6 GHz band support may vary depending on country regulations. Wi-Fi 7 will be ready in Windows 11 24H2. **Bluetooth version may be updated; please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 will be ready in Windows 11 24H2.

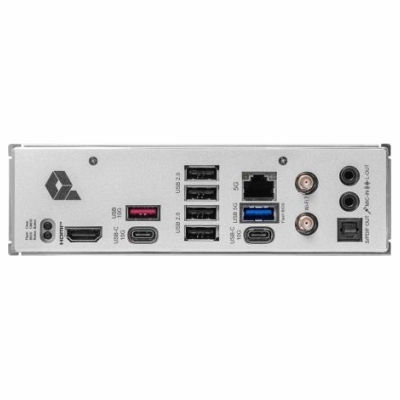

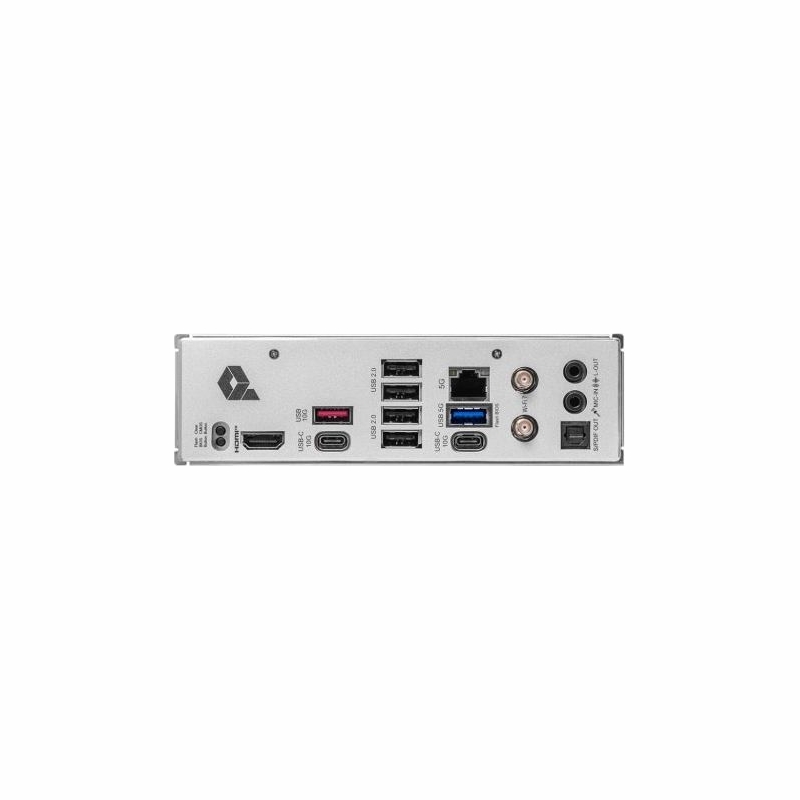

USB ports at back panel
8
USB ports on motherboard
9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
