CPU: 1 x M.2 connector (Socket 3, M-key, supports PCIe 5.0 x4/x2 type 25110/22110/2580/2280 SSDs) (M2A_CPU) 1 x M.2 connector (Socket 3, M-key, supports PCIe 4.0 x4/x2 type 22110/2280 SSDs) (M2B_CPU) Chipset: 1 x M.2 connector (Socket 3, M-key, supports PCIe 4.0 x4/x2 type 22110/2280 SSDs) (M2Q_SB) 1 x M.2 connector (Socket 3, M-key, supports PCIe 4.0 x4/x2 type 22110/2280 SSDs and PCIe 4.0 x4/x2) (M2M_SB) 4 x SATA connectors 6Gb/sSupport for RAID 0, RAID 1, RAID 5, and RAID 10 for NVMe SSD storage devicesSupport for RAID 0 and RAID 1 for SATA storage devices
Graphics
Integrated graphics processor - Intel HD Graphics support 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video output and a maximum resolution of 3840x2160@144 Hz. Support DisplayPort 2.1 version 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz. Support DisplayPort 2.1 version. (Graphics specifications may vary depending on CPU support.)
Sound card
Realtek audio codec High Definition Audio Support Number of audio channels 2/4/5.1/7.1
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface
Bluetooth
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
LAN: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)Wireless communicationMediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Supports 11be 160MHz wireless standard Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1) 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Supports 11be 160MHz wireless standard
USB ports at back panel
10
USB ports on motherboard
7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
3
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No

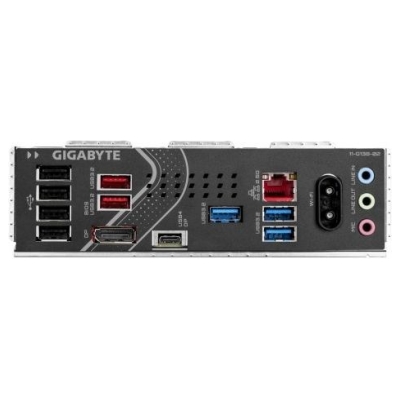

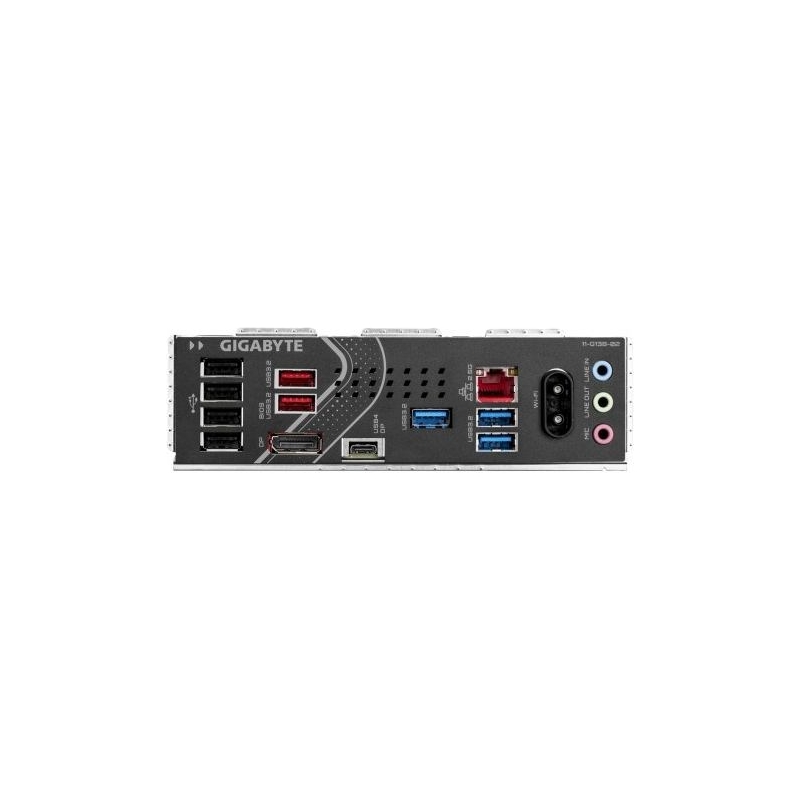

External connectors
3 x USB 3.2 Gen 1 Type-A
External connectors
2 x USB 3.2 Gen 2 Type-A
External connectors
4 x USB 2.0
External connectors
1 x Line Out
External connectors
1 x DisplayPort
External connectors
1 x Line In
External connectors
1 x MIC
External connectors
1 x RJ-45
External connectors
1 x USB4 Type-C
External connectors
2 x SMA
Onboard connectors
1 x System panel header
Onboard connectors
1 x Reset button
Onboard connectors
1 x Power button
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x Clear CMOS jumper
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors
3 x 4pin Chassis fan
Onboard connectors
1 x 4-pin water-pump-fan
Onboard connectors
2 x 8pin 12V
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
4 x M.2
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
4 x USB 2.0/1.1
Onboard connectors
2 x USB 3.2 Gen 1 Type-A
Onboard connectors
1 x USB 3.2 Gen 2 Type-C
Onboard connectors
2 x Thunderbolt
Onboard connectors
1 x TPM header
Onboard connectors
1 x Reset jumper
Onboard connectors
1 x Q-Flash Plus button
Onboard connectors
1 x RGB LED strip header
Onboard connectors
3 x Addressable LED
BIOS
1 x 256 Mbit flash Using licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
ATX
Dimensions
30.5 x 24.4 cm
Supported operating systems
Windows 11
Software
Norton Internet Security (OEM version) LAN bandwidth management software
