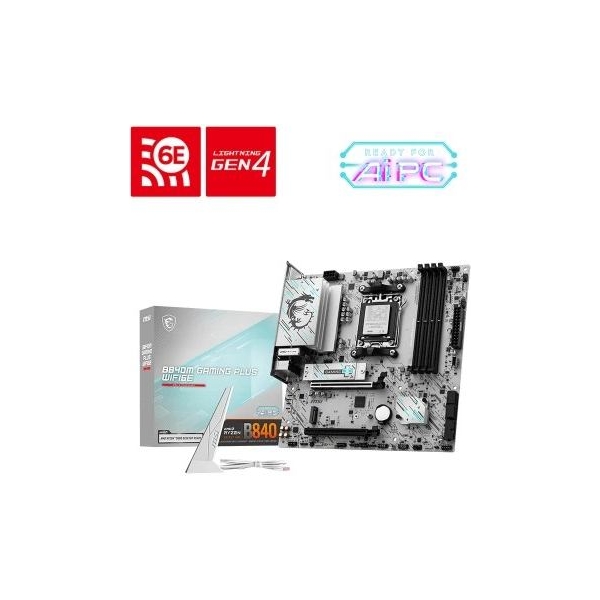

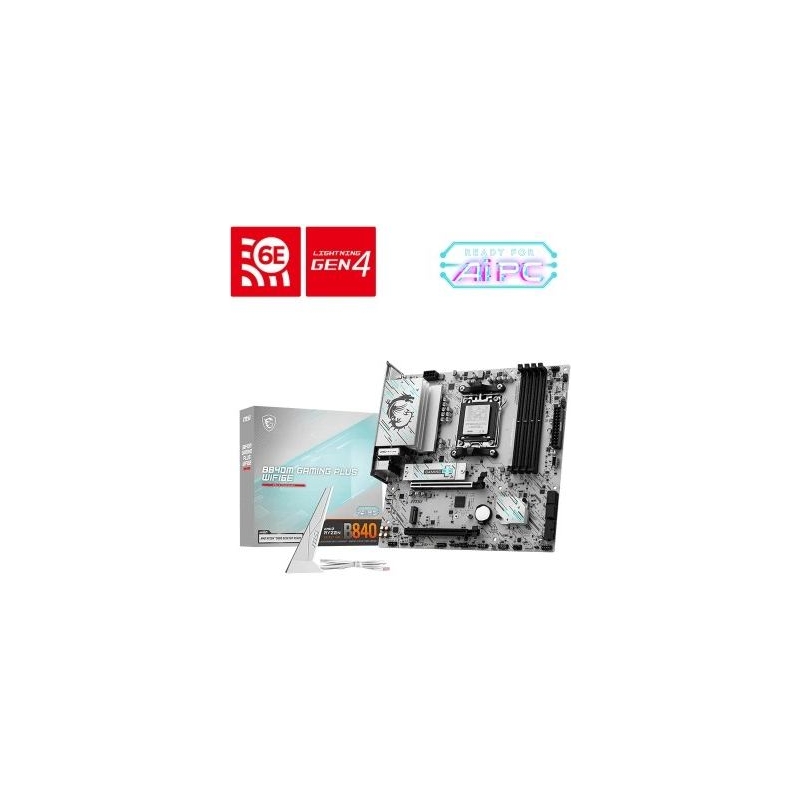

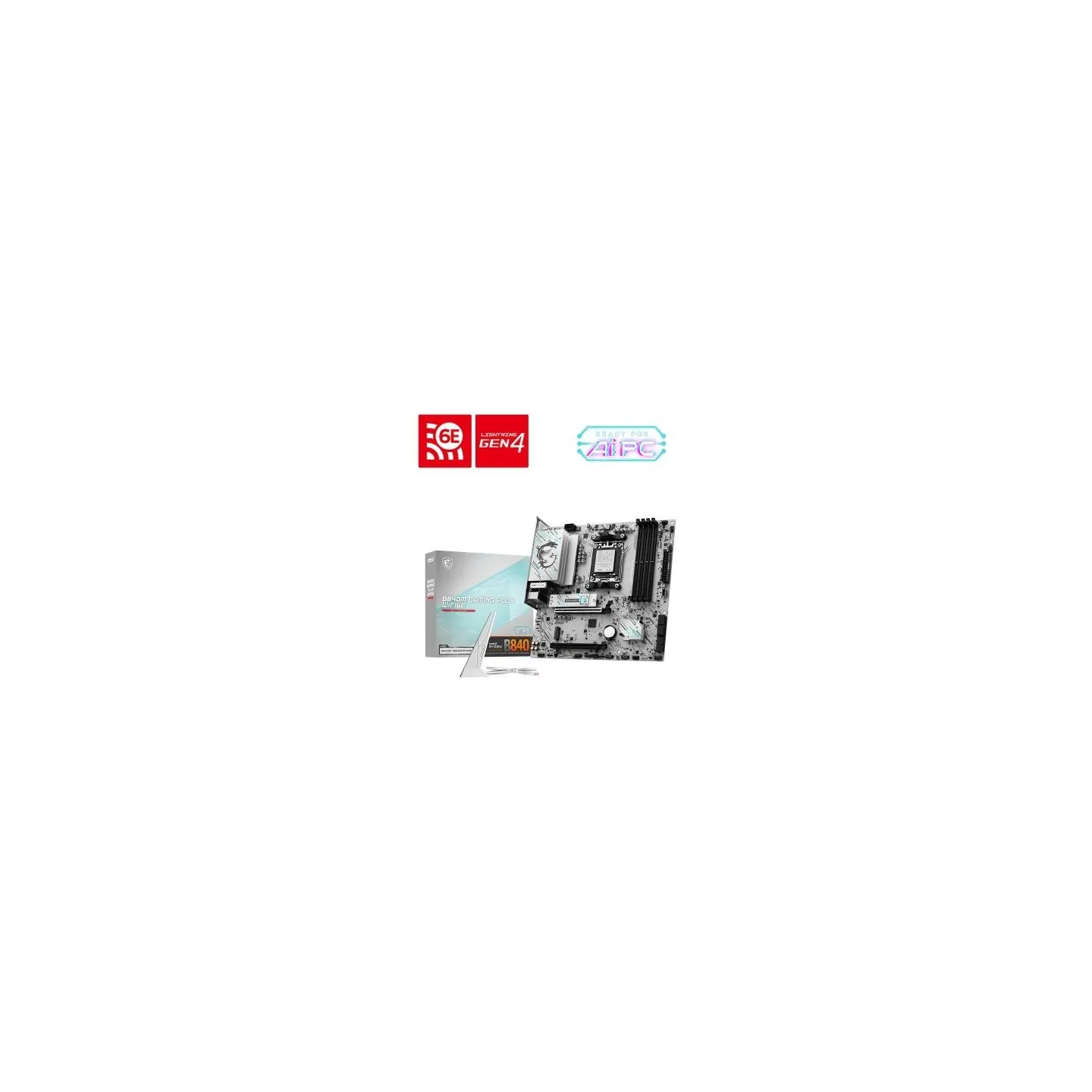

MSI Motherboard B840M GAMING PLUS WIFI6 am5 4DDR5 mATX

MSI Motherboard B840M GAMING PLUS WIFI6 am5 4DDR5 mATX

Write a review

€142.76

Tax included

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

SKU: KBMSIAA8B840U01
Barcode: 4711377361811
Model: B840M GAMING PLUS WIFI6E
CPU socket: Socket AM5
Processor family: AMD Ryzen 5
Processor family: AMD Ryzen 7
Processor family: AMD Ryzen 9
Integrated CPU: No
Chipset manufacturer: AMD
Chipset type: AMD B840
Memory type: DDR5
Number of DDR5 slots: 4
Memory bus frequency: 4800 MHz
Memory bus frequency: 8000 MHz
Memory bus frequency: 5600 MHz
Memory bus frequency: 6400 MHz
Max memory size: 256
Expansion slots: 2 x M.2
Expansion slots: 1 x PCIe 4.0 x 16
Expansion slots: 1 x PCIe 3.0 x 4
Max. number of SATA devices: 4
RAID: Yes
Detailed data on disk/drive interfaces: 2x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset) PCI_E1 slot Supports PCIe 4.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor) 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Graphics: 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz
Sound card: Realtek ALC897 Codec 7.1-Channel High Definition Audio
Network interface: 1 x 10/100/1000/2500 Mbit/s
Network interface: Bluetooth
Network interface: Wi-Fi 802.11a/b/g/n/ac/ax
Network interface: Realtek 8125D 2.5G LAN Wi-Fi 6E Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
USB ports at back panel: 8
USB ports on motherboard: 7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports: 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports: 2
FireWire (IEEE 1394): No
COM connector / port: Yes
LPT connector / port: No
External connectors: 1 x HDMI
External connectors: 1 x USB 3.2 Gen 2 Type-A
External connectors: 1 x Flash BIOS Button
External connectors: 1 x RJ-45
External connectors: 1 x MIC
External connectors: 1 x Line In
External connectors: 1 x Line Out
External connectors: 2 x SMA
External connectors: 4 x USB 2.0
External connectors: 1 x Przycisk Clear CMOS
External connectors: 1 x USB 3.2 Gen 2 Type-C
External connectors: 2 x USB 3.2 Gen 1 Type-A
Onboard connectors: 1 x Tuning Controller connector
Onboard connectors: 3 x 4pin Chassis fan
Onboard connectors: 1 x 4pin CPU fan
Onboard connectors: 1 x 8pin 12V power
Onboard connectors: 1 x Chassis intrusion header
Onboard connectors: 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors: 4 x USB 2.0/1.1
Onboard connectors: 1 x Serial port header
Onboard connectors: 1 x RGB LED strip header
Onboard connectors: 3 x Addressable LED
Onboard connectors: 2 x System panel header
Onboard connectors: 2 x USB 3.2 Gen 1 Type-A
Onboard connectors: 1 x USB 3.2 Gen 1 Type-C
Onboard connectors: 4 x EZ Debug LED
Onboard connectors: 1 x EZ Memory Detection LED
Onboard connectors: 1 x EZ Conn-header
Onboard connectors: 1 x 24pin ATX zasilanie
Onboard connectors: 1 x Front panel audio header
Onboard connectors: 1 x TPM header
Form factor: micro ATX
Dimensions: 243.84 mm x 243.84 mm
Accessories included: EZ Wi-Fi Antenna EZ M.2 Clip II Quick Installation Guide EZ M.2 Clip II Remover European Union Regulatory Notice SATA Cable 1 to 2 EZ Conn-Cable (V1)
Supported operating systems: Windows 11
Designation: CE+WEEE
