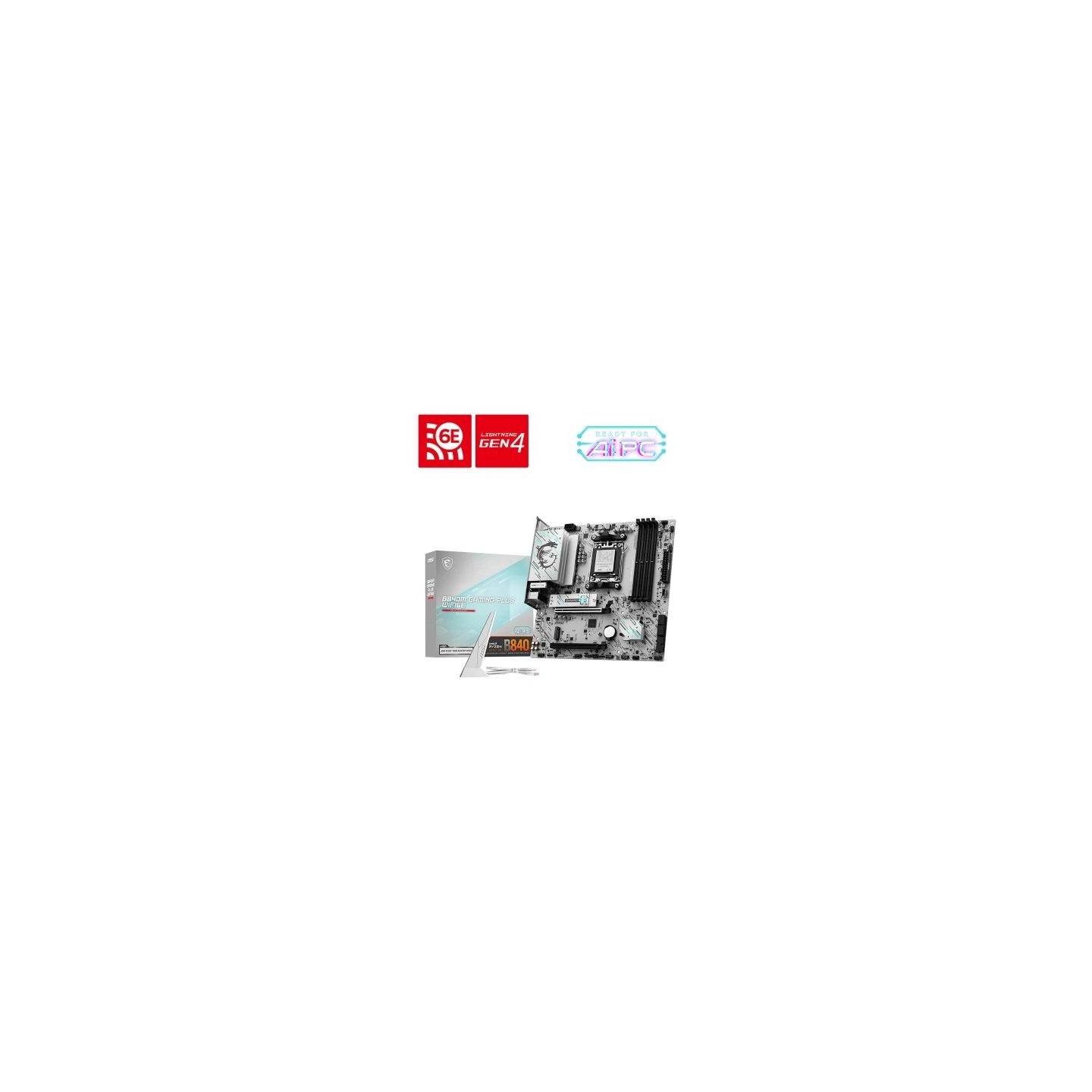

MSI Motherboard B840M GAMING PLUS WIFI6 am5 4DDR5 mATX
Price:
€141.31
Tax included
Share on
- SKU
- KBMSIAA8B840U01
- Barcode
- 4711377361811
- Model
- B840M GAMING PLUS WIFI6E
- CPU socket
- Socket AM5
- Processor family
- AMD Ryzen 5
- Processor family
- AMD Ryzen 7
- Processor family
- AMD Ryzen 9
- Integrated CPU
- No
- Chipset manufacturer
- AMD
- Chipset type
- AMD B840
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 4800 MHz
- Memory bus frequency
- 8000 MHz
- Memory bus frequency
- 5600 MHz
- Memory bus frequency
- 6400 MHz
- Max memory size
- 256
- Expansion slots
- 2 x M.2
- Expansion slots
- 1 x PCIe 4.0 x 16
- Expansion slots
- 1 x PCIe 3.0 x 4
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- 2x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset) PCI_E1 slot Supports PCIe 4.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor) 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Graphics
- 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz
- Sound card
- Realtek ALC897 Codec 7.1-Channel High Definition Audio
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- Bluetooth
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax
- Network interface
- Realtek 8125D 2.5G LAN Wi-Fi 6E Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
- USB ports at back panel
- 8
- USB ports on motherboard
- 7
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 5
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 2
- FireWire (IEEE 1394)
- No
- COM connector / port
- Yes
- LPT connector / port
- No
- External connectors
- 1 x HDMI
- External connectors
- 1 x USB 3.2 Gen 2 Type-A
- External connectors
- 1 x Flash BIOS Button
- External connectors
- 1 x RJ-45
- External connectors
- 1 x MIC
- External connectors
- 1 x Line In
- External connectors
- 1 x Line Out
- External connectors
- 2 x SMA
- External connectors
- 4 x USB 2.0
- External connectors
- 1 x Przycisk Clear CMOS
- External connectors
- 1 x USB 3.2 Gen 2 Type-C
- External connectors
- 2 x USB 3.2 Gen 1 Type-A
- Onboard connectors
- 1 x Tuning Controller connector
- Onboard connectors
- 3 x 4pin Chassis fan
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x Chassis intrusion header
- Onboard connectors
- 1 x 4pin CPU/Water Pump Fan Connector
- Onboard connectors
- 4 x USB 2.0/1.1
- Onboard connectors
- 1 x Serial port header
- Onboard connectors
- 1 x RGB LED strip header
- Onboard connectors
- 3 x Addressable LED
- Onboard connectors
- 2 x System panel header
- Onboard connectors
- 2 x USB 3.2 Gen 1 Type-A
- Onboard connectors
- 1 x USB 3.2 Gen 1 Type-C
- Onboard connectors
- 4 x EZ Debug LED
- Onboard connectors
- 1 x EZ Memory Detection LED
- Onboard connectors
- 1 x EZ Conn-header
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x TPM header
- Form factor
- micro ATX
- Dimensions
- 243.84 mm x 243.84 mm
- Accessories included
- EZ Wi-Fi Antenna EZ M.2 Clip II Quick Installation Guide EZ M.2 Clip II Remover European Union Regulatory Notice SATA Cable 1 to 2 EZ Conn-Cable (V1)
- Supported operating systems
- Windows 11
- Designation
- CE+WEEE
