CPU:- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*Chipset:- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_6, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*- 4 x SATA3 6.0 Gb/s Connectors
Graphics
Intel Xe LPG Graphics Architecture 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 2 x Intel Thunderbolt 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Sound card
5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) WIMA Audio Capacitors (For Rear Outputs) ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR) Individual PCB Layers for R/L Audio Channel Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets) Nahimic Audio
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface
1 x 10/100/1000/2500/5000 Mbit/s
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
Bluetooth
Network interface
LAN 1 x 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s (Realtek RTL8126) 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control Wireless LAN 802.11be 2x2 Wi-Fi 7 Module Supports IEEE 802.11a/b/g/n/ac/ax/axe/be Supports 2.4GHz/5GHz/6GHz* frequency band Supports 320MHz channel bandwidth with 6GHz* frequency band 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.4 Supports MU-MIMO
USB ports at back panel
12
USB ports on motherboard
9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
8
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
7
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No
External connectors
2 x SMA
External connectors
4 x USB 3.2 Gen 1 Type-A
External connectors
2 x Thunderbolt 4
External connectors
1 x Przycisk Clear CMOS
External connectors
2 x USB 2.0
External connectors
1 x HDMI
External connectors
1 x Line Out
External connectors
1 x MIC
External connectors
2 x RJ-45
External connectors
1 x S/PDIF
External connectors
4 x USB 3.2 Gen 2 Type-A
External connectors
1 x Flash BIOS Button
Onboard connectors
1 x USB 3.2 Gen 2 Type-C
Onboard connectors
2 x USB 3.2 Gen 1 Type-A
Onboard connectors
1 x Reset button
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
1 x Power button
Onboard connectors
1 x Power led header
Onboard connectors
1 x TPM header
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x Debug card header
Onboard connectors
2 x 4pin wentylator CPU
Onboard connectors
1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors
4 x 4pin Chassis fan
Onboard connectors
1 x 4-pin water-pump-fan
Onboard connectors
2 x 8pin 12V
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
3 x Thermistor Cable Header
Onboard connectors
1 x RGB LED strip header
Onboard connectors
3 x Addressable LED
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
Form factor
ATX
Dimensions
30.5 cm x 24.4 cm
Accessories included

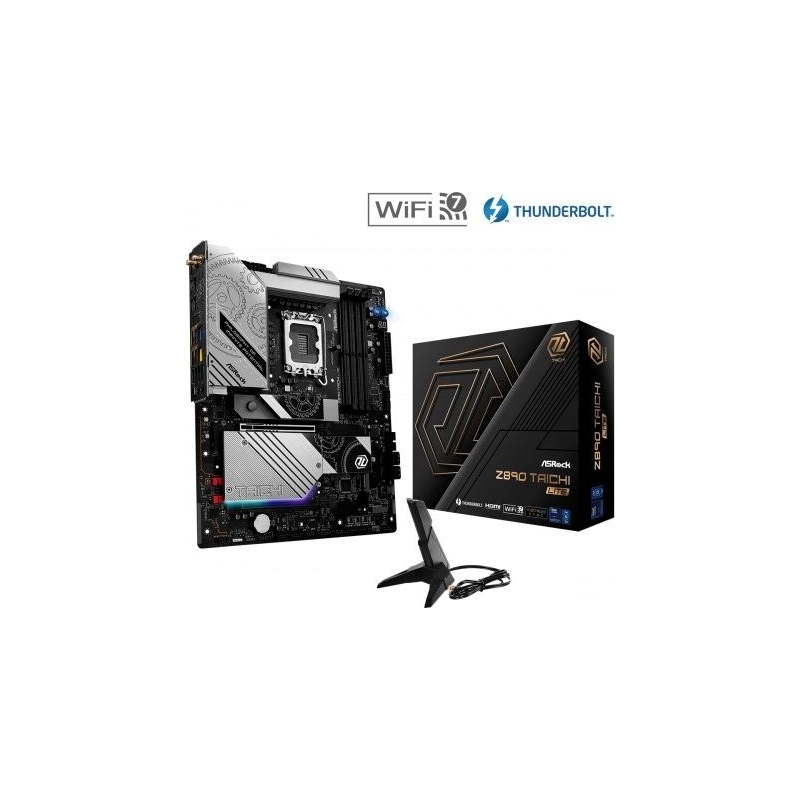

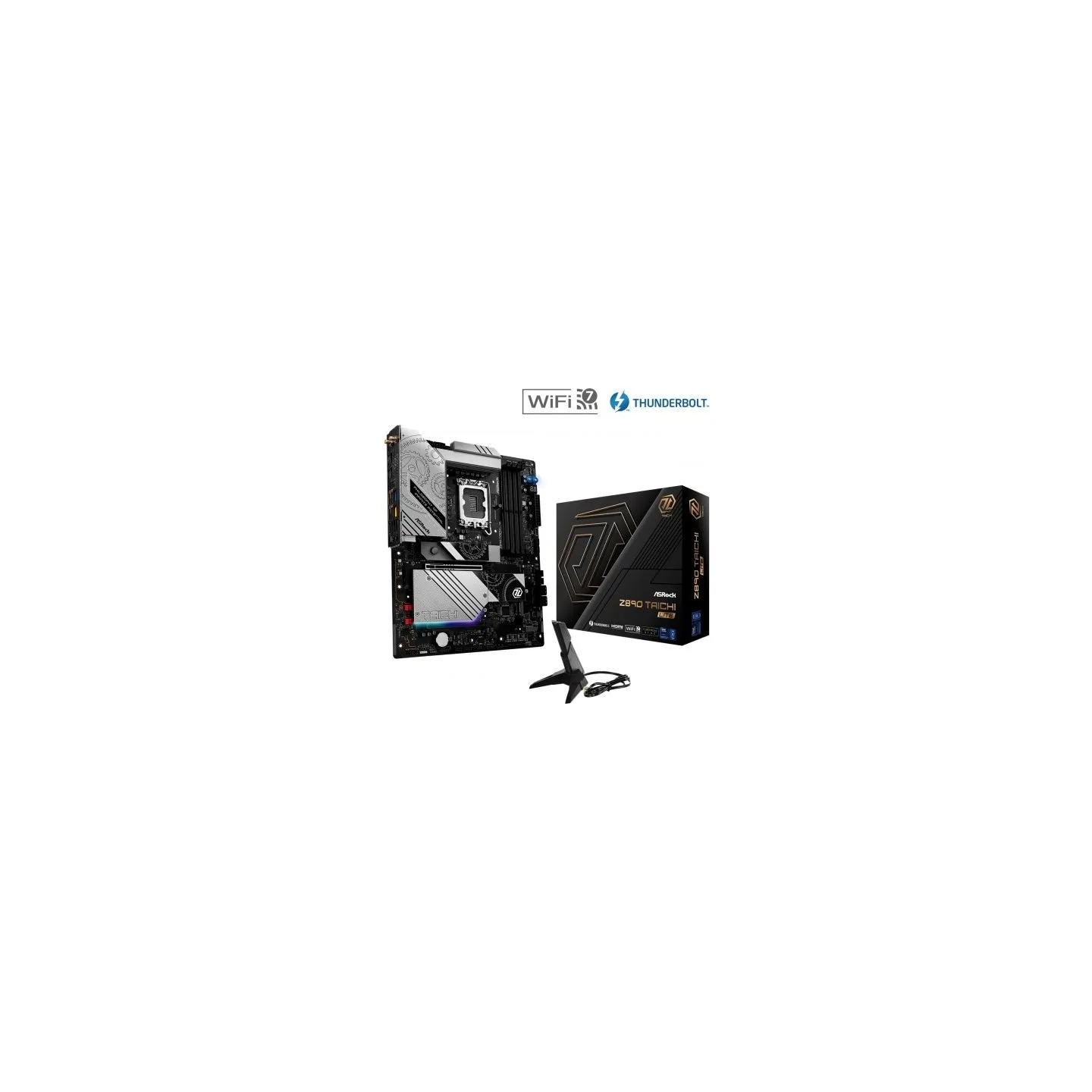

4 x SATA Data Cable ASRock WiFi 2.4/5/6 GHz Antenna ARGB Splitter Cable 3 x Thermistor Cable 2 x M.2 Screws 2 x M.2 Spacers
Supported operating systems
Windows 11
Software
Software ASRock Motherboard Utility (A-Tuning) ASRock Polychrome SYNC ASRock Dragon 2.5G LAN Software UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash
Other information
Certifications FCC, CE ErP/EuP Ready (ErP/EuP ready power supply required) CEC Tier II Ready
