Expansion connectors CPU 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) *The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) SATA connectors CPU 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Graphics
Integrated graphics processor - Intel HD Graphics support 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz *Supports DisplayPort 2.1 1 x DisplayPort port, supporting a maximum resolution of 3840x2160@144 Hz *Supports DisplayPort 2.1 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz *Supports HDMI 2.1 and HDCP 2.3 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz *Supports HDMI 1.4
Sound card
Realtek audio codec High Definition Audio Support 2/4/5.1/7.1 audio channels S/PDIF Out Support
Network interface
Bluetooth
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface

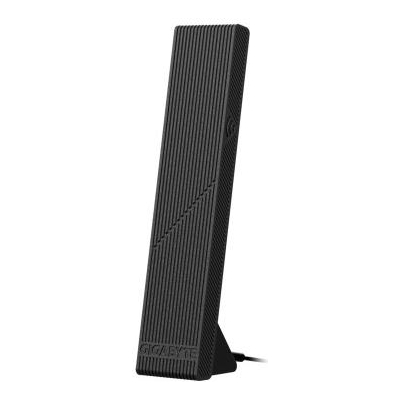

Wi-Fi 802.11a/b/g/n/ac/ax
Network interface
LAN Realtek 2.5GbE LAN chip (2.5Gbps/1Gbps/100Mbps) Wireless communication module Intel Wi-Fi 6E AX211 (For PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Realtek Wi-Fi 6E RTL8852CE (For PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
USB ports at back panel
11
USB ports on motherboard
7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
4
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No

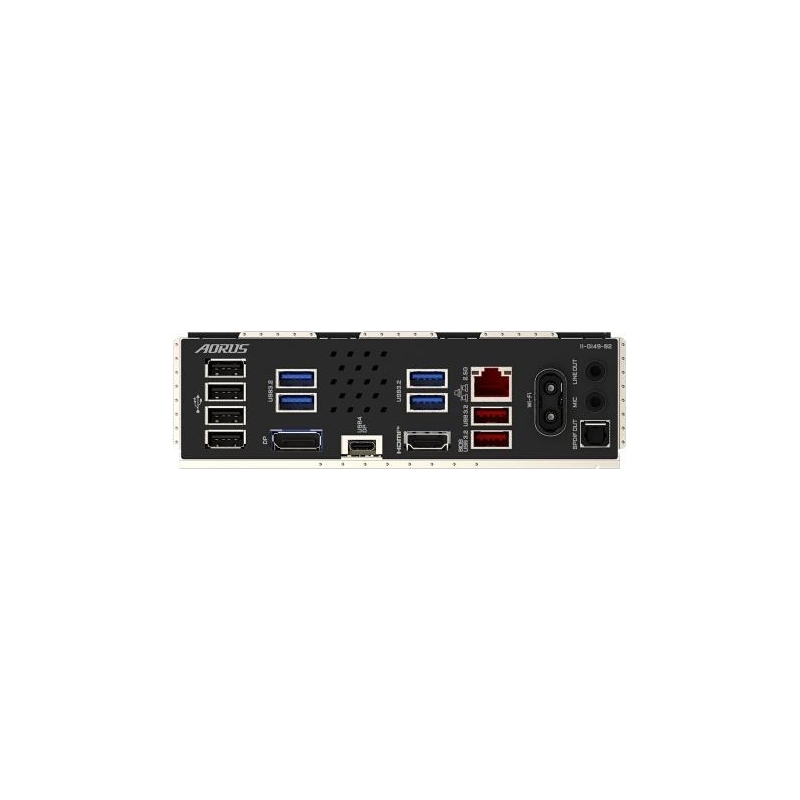

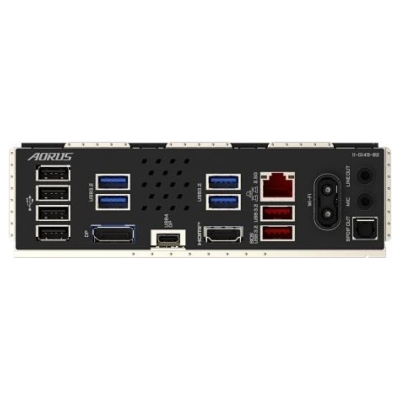

External connectors
2 x USB 3.2 Gen 2 Type-A
External connectors
2 x SMA
External connectors
1 x USB4 Type-C
External connectors
1 x RJ-45
External connectors
1 x S/PDIF
External connectors
4 x USB 2.0
External connectors
4 x USB 3.2 Gen 1 Type-A
External connectors
1 x Line Out
External connectors
1 x DisplayPort
External connectors
1 x HDMI
External connectors
1 x MIC
Onboard connectors
1 x RGB LED strip header
Onboard connectors
1 x HDMI
Onboard connectors
2 x Thunderbolt
Onboard connectors
1 x TPM header
Onboard connectors
1 x System panel header
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x Clear CMOS jumper
Onboard connectors
1 x Power button
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors
3 x 4pin Chassis fan
Onboard connectors
1 x 4-pin water-pump-fan
Onboard connectors
2 x 8pin 12V
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
3 x M.2
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
1 x USB 3.2 Gen 1 Type-A
Onboard connectors
1 x USB 3.2 Gen 2 Type-C
Onboard connectors
1 x Reset button
Onboard connectors
1 x Reset jumper
Onboard connectors
1 x Q-Flash Plus button
Onboard connectors
3 x Addressable LED
Form factor
micro ATX
Supported operating systems
Windows 11
Software
Norton Internet Security (OEM version) LAN bandwidth management software
