CPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen3x4 (32 Gb/s) mode* 2 x SATA3 6.0 Gb/s connectors *Supports booting from NVMe SSD drives
Graphics
Integrated AMD RDNA graphics (Support may vary depending on the CPU): 1 x HDMI 2.1 TMDS/FRL compatible with 8G, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Sound card
7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax/axe
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
Bluetooth
Network interface
Wi-Fi 6E module 802.11axe Supports IEEE 802.11a/b/g/n/ac/ax/axe standards Supports dual-band 2x2 with extended 6 GHz band 2 antennas support 2 (transmit) x 2 (receive) diversity technology Supports Bluetooth 5.2 + High Speed Class II Supports MU-MIMO
USB ports at back panel
8
USB ports on motherboard
6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
6
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No

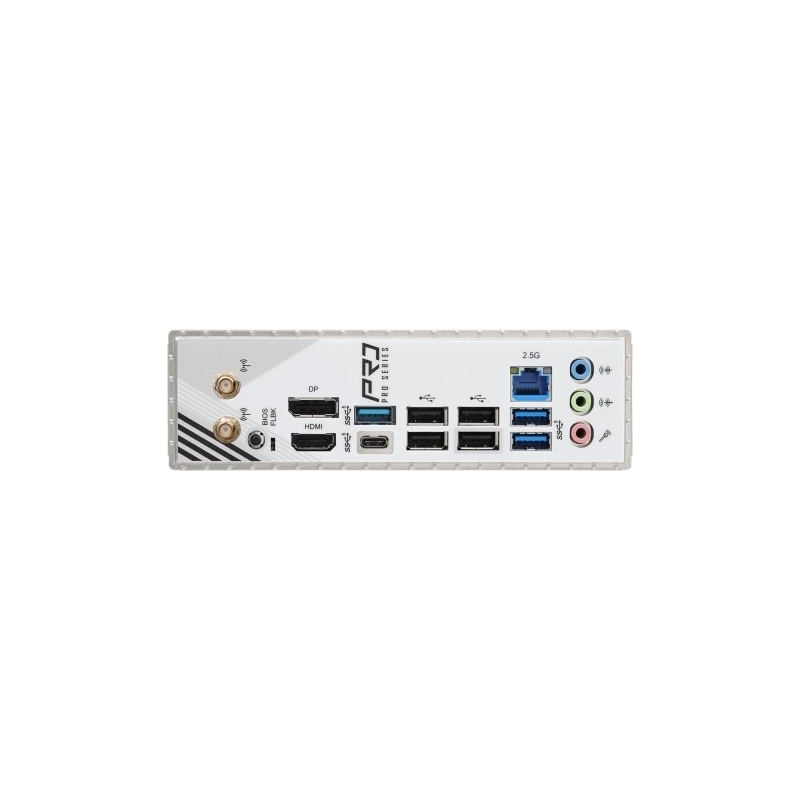

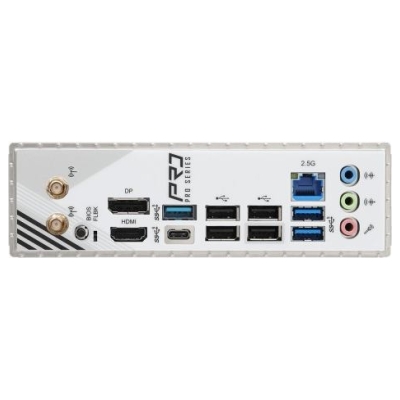

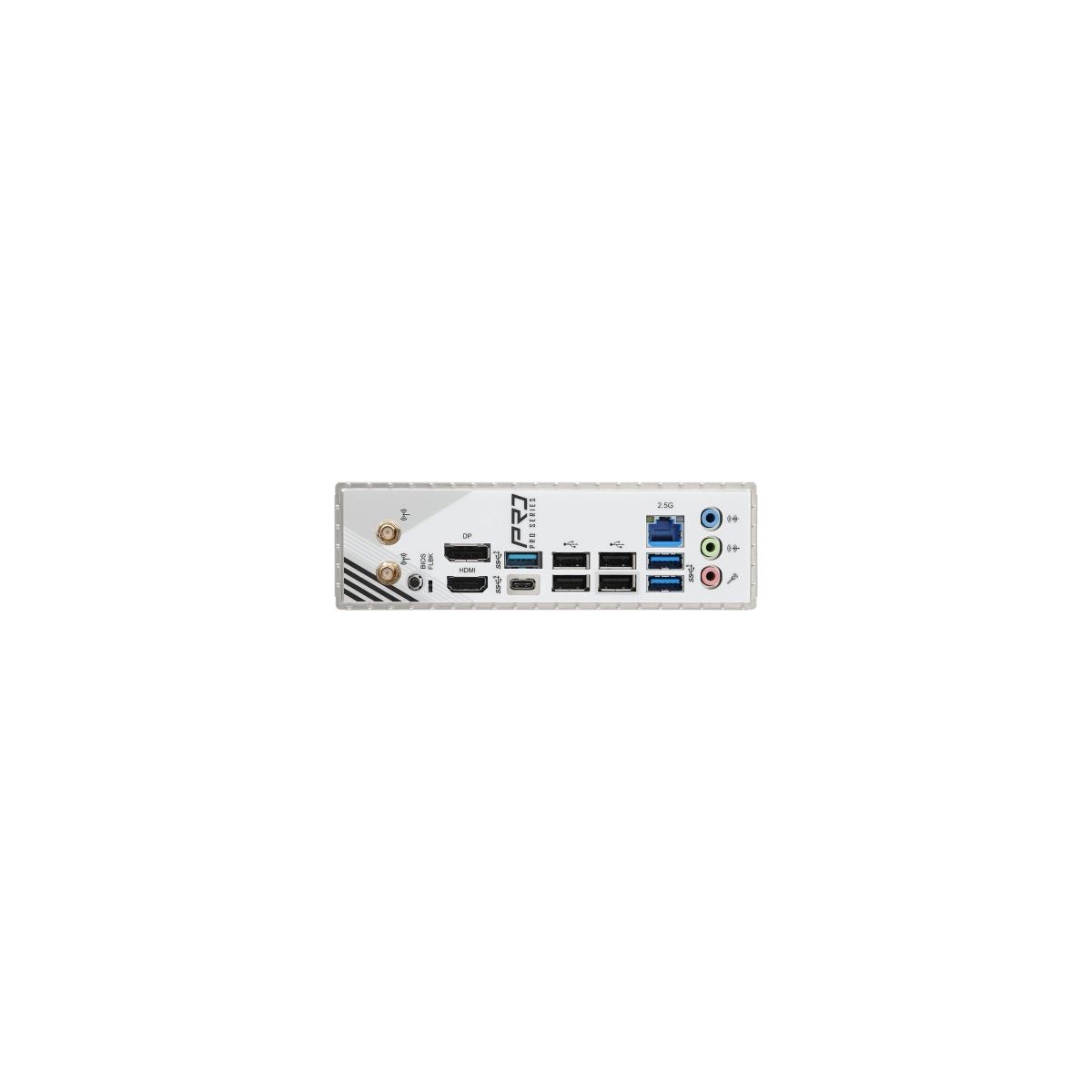

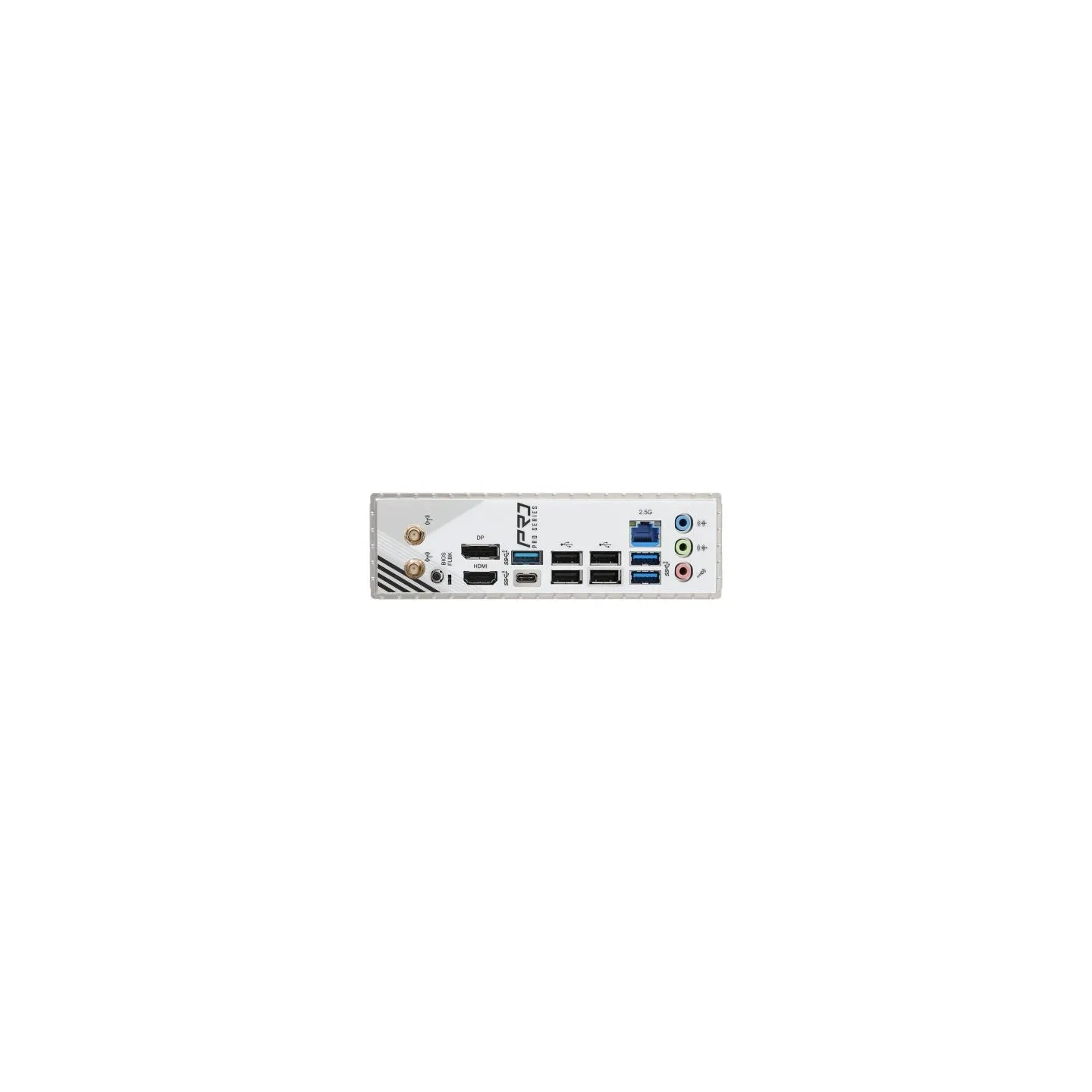

External connectors
2 x SMA
External connectors
1 x RJ-45
External connectors
1 x HDMI
External connectors
1 x Line In
External connectors
1 x Line Out
External connectors
1 x MIC
External connectors
1 x DisplayPort
External connectors
3 x USB 3.0
External connectors
1 x Flash BIOS Button
External connectors
4 x USB 2.0
External connectors
1 x USB 3.0 Type-C
Onboard connectors
1 x USB 3.0 header
Onboard connectors
1 x USB 3.2 Gen 1 Type-C
Onboard connectors
1 x 4-pin water-pump-fan
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x TPM header
Onboard connectors
1 x 8pin 12V power
Onboard connectors
1 x System panel header
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
Form factor
micro ATX
Dimensions
24.4 x 24.4 cm
Accessories included

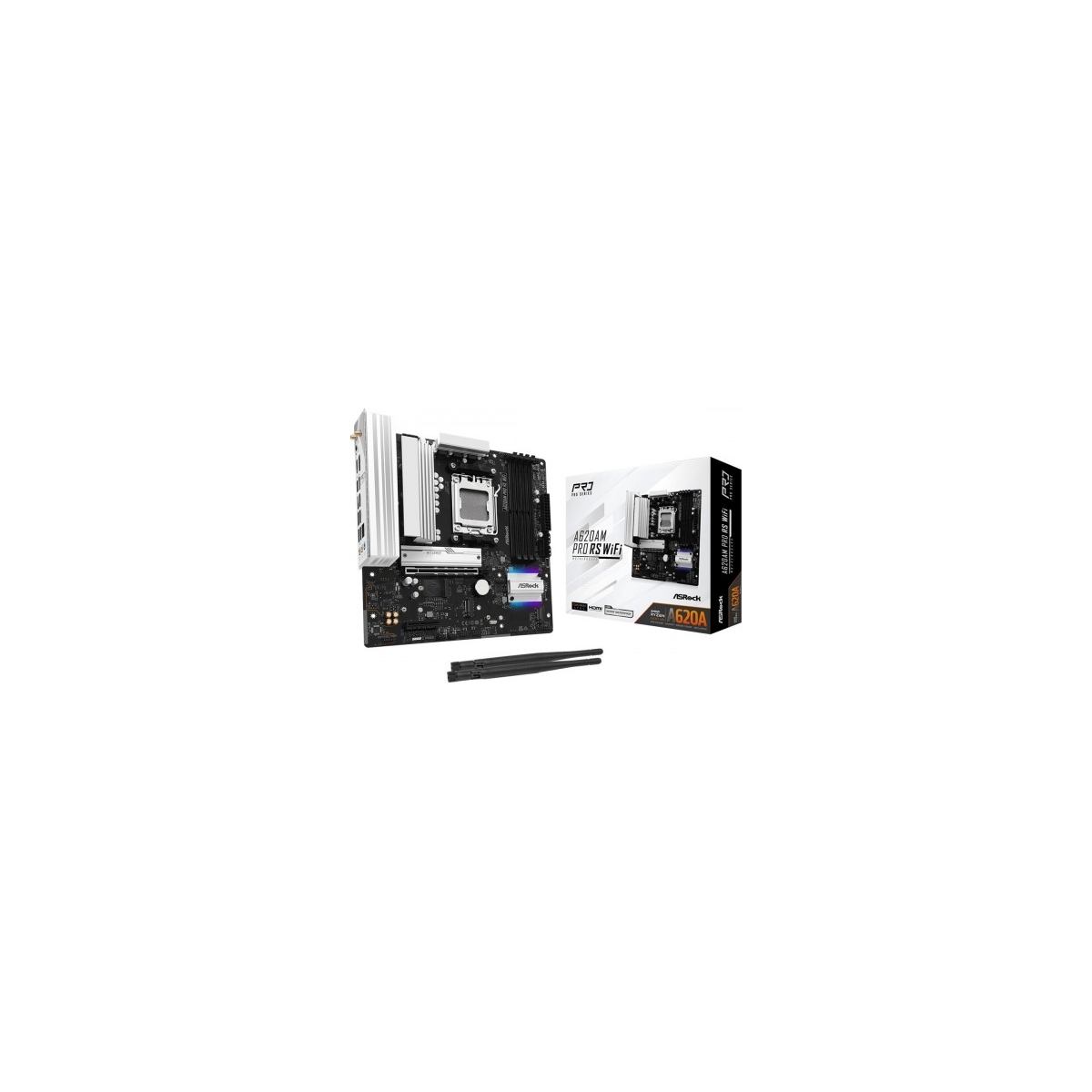

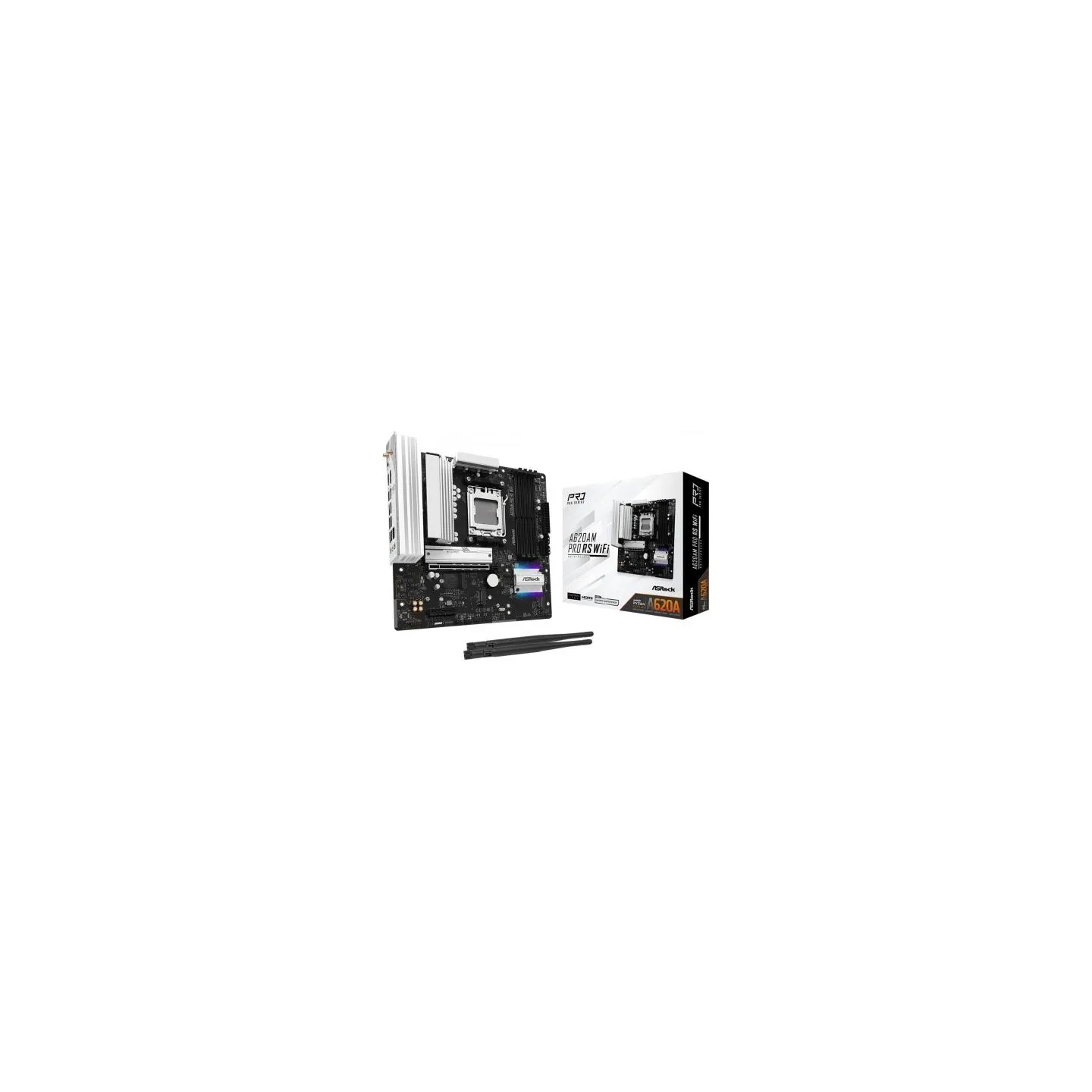

User Manual 2 x SATA Data Cable 2 x ASRock WiFi 2.4/5/6 GHz Antenna 3 x M.2 Screws M.2 Spacer
Supported operating systems
Windows 11
Supported operating systems
Windows 10
Software
Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC UEFI ASRock Full HD UEFI ASRock Auto Driver Installer ASRock Instant Flash
