Support Intel Core Ultra Processors(series 2)*M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)**M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)**Intel Z890 ChipsetDIMM.2_1 slot (Key M) via ROG DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.**M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled.
Graphics
2 x Intel Thunderbolt 4 (USB Type-C) ports support DisplayPort and Thunderbolt video output*** Graphics specifications may vary depending on processor type. For updates, visit www.intel.com.**Supports up to 8K@60Hz x1 with DSC or 4K@60Hz x2, with a maximum total bandwidth of up to 23.8 Gbps or 16 Gbps/16 Gbps. For supported resolutions, see DisplayPort 2.1 specifications.*** VGA resolution support depends on processor or graphics card resolutions.
Sound card
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* Impedance sensing for front and rear headphone outputs Supports: jack detection, streaming, and front-panel microphone jack remapping High-quality stereo playback output with a 120 dB SNR and recording input with a 110 dB SNR Supports playback up to 32-bit/384 kHz on the front panel Audio Features SupremeFX Shielding Technology Savitech SV3H712 Amplifier Gold-plated audio jacks Rear optical S/PDIF output Premium audio capacitors Audio shield *A chassis with an HD audio module on the front panel is required for 7.1 Surround Sound audio output.**The rear-panel LINE OUT port does not support surround sound. If you want to enjoy surround sound, connect your audio output device to the audio jack on the front panel of the case or use a USB audio device.
Network interface
Bluetooth
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface
1 x 10/100/1000/2500/5000 Mbit/s
Network interface
Ethernet 1 x Realtek 5Gb Ethernet ASUS LANGuard Wireless and Bluetooth Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6 GHz frequency bands** Supports Wi-Fi 7 320 MHz band, up to 5.8 Gbps transfer speeds. Bluetooth v5.4*** *Wi-Fi features may vary by operating system.For Windows 11, Wi-Fi 7 will require version 24H2 or later for full functionality. Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.For Windows 10, only Wi-Fi 6 is supported.**The Wi-Fi 6 GHz frequency band and bandwidth regulations may vary by country.***Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB ports at back panel
11
USB ports on motherboard
10
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
9
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No
External connectors
2 x Thunderbolt 4
External connectors
4 x USB 3.1
External connectors
1 x USB 3.1 Type-C
External connectors
1 x Line Out
External connectors
1 x MIC
External connectors
1 x RJ-45
External connectors
1 x S/PDIF
External connectors
4 x USB 3.0
External connectors
1 x PS/2 Keyboard/MouseCombo
External connectors
1 x Przycisk Clear CMOS
External connectors
1 x USB BIOS Flashback button
External connectors
1 x Wi-Fi Module
Onboard connectors
1 x USB BIOS Flashback button
Onboard connectors
1 x OC PCIe switch
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x Power button
Onboard connectors
2 x USB C
Onboard connectors
1 x Thunderbolt header
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
2 x USB 3.0 header
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
1 x System panel header
Onboard connectors
1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors
1 x Reset button
Onboard connectors
1 x 4pin wentylator OPT CPU
Onboard connectors
2 x 4pin Chassis fan
Onboard connectors
1 x 4-pin water-pump-fan
Onboard connectors
1 x 8pin 12V power
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
4 x M.2
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x Thermal sensor connector
Onboard connectors
1 x LN2 Mode jumper
Onboard connectors
1 x ReTry button
Onboard connectors
3 x Addressable LED
Onboard connectors
1 x Flex Key pin
BIOS
2 x 256 Mb Flash ROM, UEFI AMI BIOS
Form factor
ATX
Dimensions
30.5 cm x 24.4 cm
Accessories included

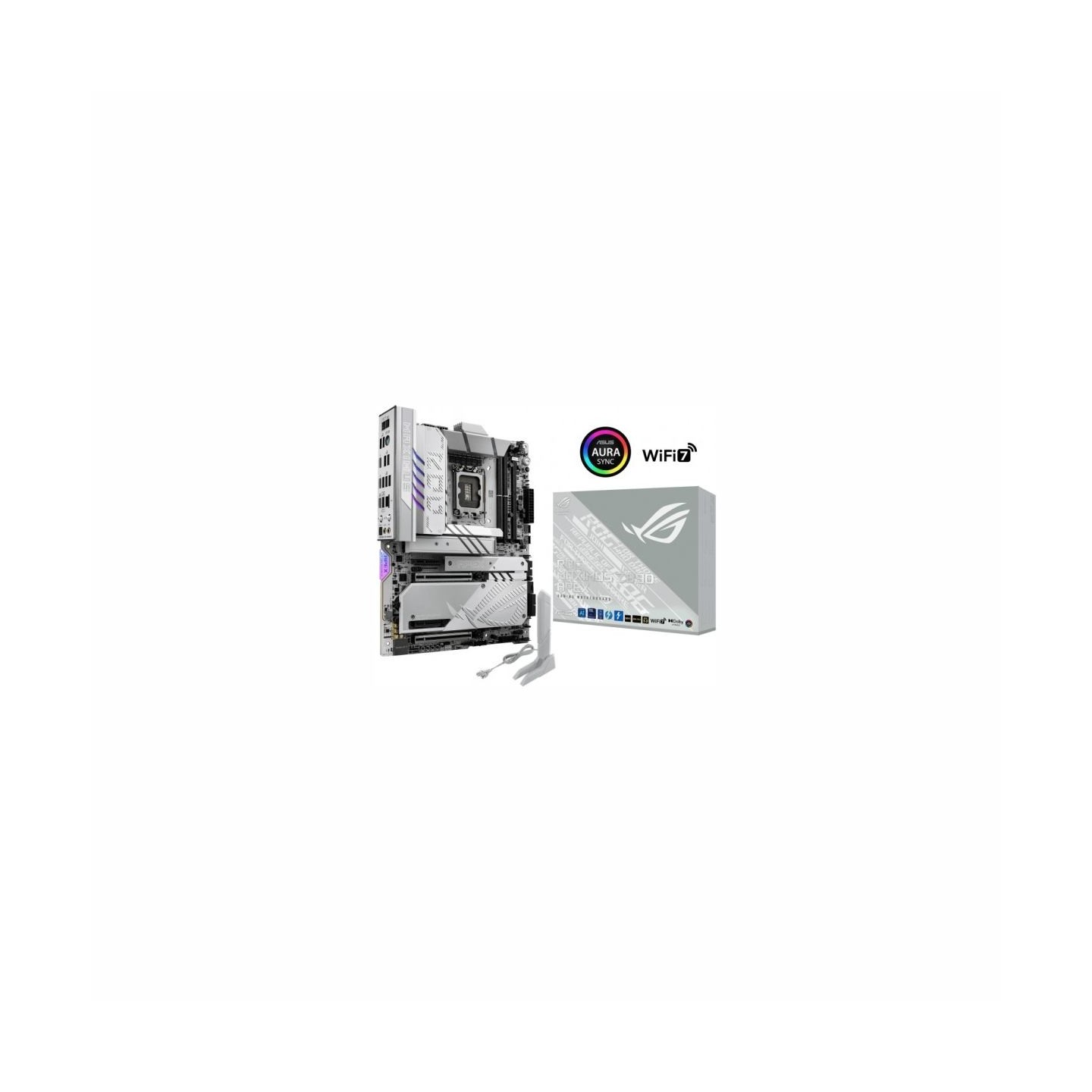

ROG DIMM.2 with Heatsink M.2 Spacer for ROG DIMM.2 2 x M.2 Screw Packs for ROG DIMM.2 Thermal Pad for M.2 22110 ROG Memory Fan Kit ASUS Q-Slide WiFi Antenna Q-Connector ROG VIP Card 3 x M.2 Q-Slide Packs 5 x M.2 Backplate Rubber Packs ROG Bottle Opener USB Drive with Tools and Drivers Quick Start Guide
