Latvija
- New
Availability:
4 In Stock

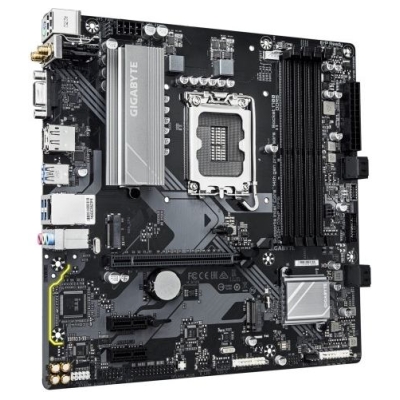

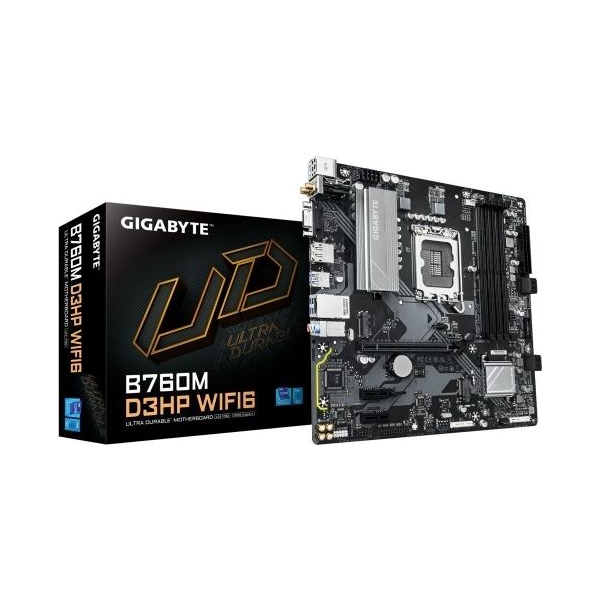

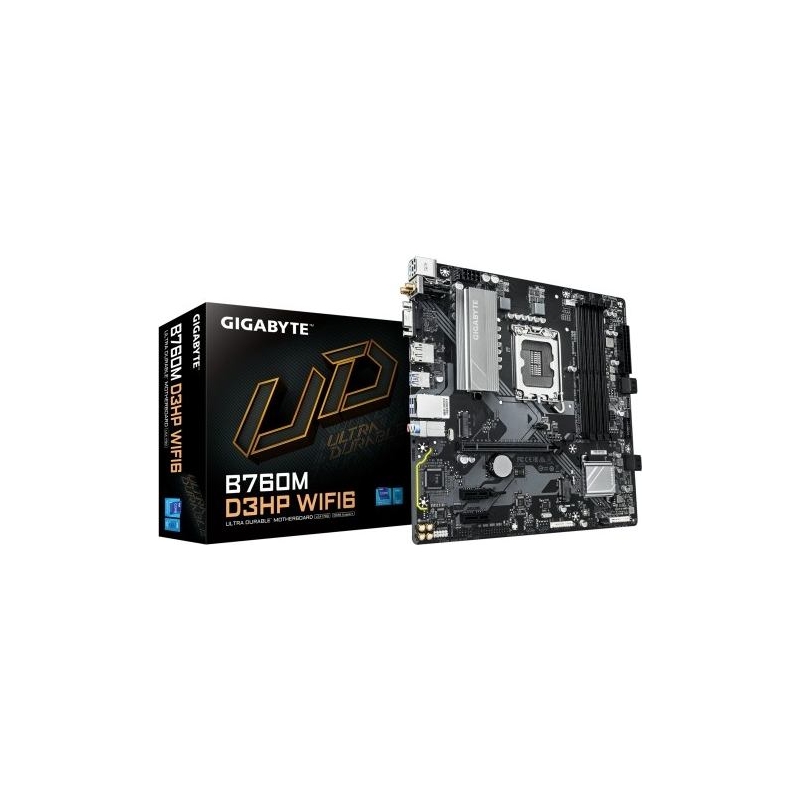

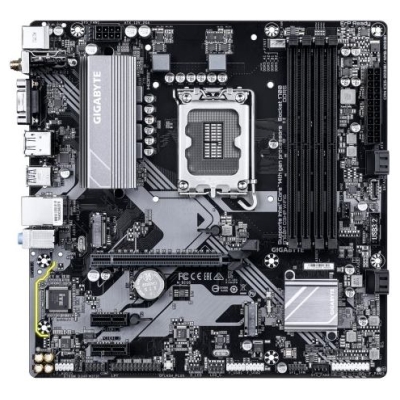

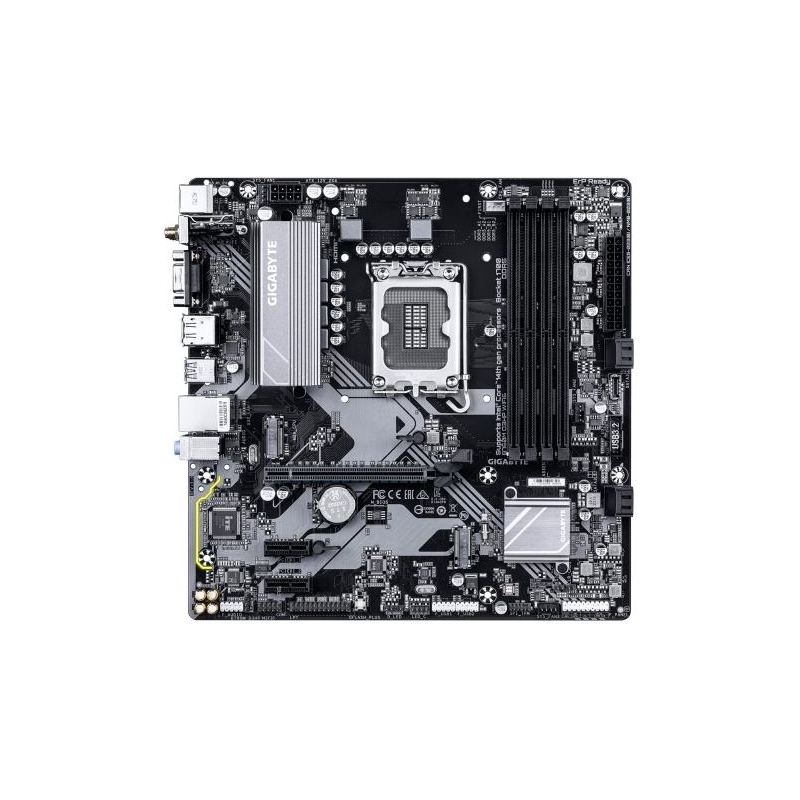

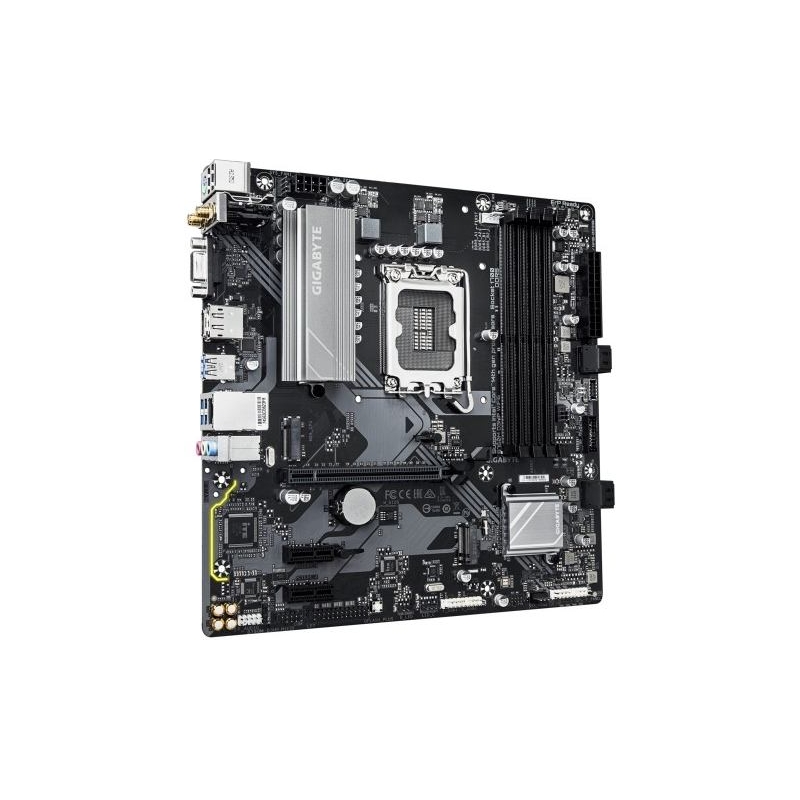

Gigabyte Motherboard B760M D3HP WIFI6 mATX
- Write a review
€140.69
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
- SKU
- KBGBAIIEB760U18
- Barcode
- 4719331867638
- Model
- B760M D3HP WIFI6
- CPU socket
- LGA1700
- Processor family
- Intel Pentium Gold
- Processor family
- Intel Core
- Processor family
- Intel Celeron
- Generation
- Fourteenth
- Generation
- Thirteenth
- Generation
- Twelve
- Integrated CPU
- No
- Chipset manufacturer
- Intel
- Chipset type
- Intel B760 Express Chipset
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 5200 MHz
- Memory bus frequency
- 4800 MHz
- Memory bus frequency
- 5600 MHz
- Memory bus frequency
- 4400 MHz
- Max memory size
- 192
- Expansion slots
- 1 x PCIe 4.0 x 16
- Expansion slots
- 2 x PCIe 3.0 x 1
- Expansion slots
- 2 x M.2
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- CPU 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 *The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 SATA connectorsCPU 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
- Graphics
- Integrated graphics processor - Intel HD Graphics support 1 x D-Sub port, supporting a maximum resolution of 1920x1200 @ 60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160 @ 60 Hz * Supports HDMI 2.1 and HDCP 2.3. ** Supports native HDMI 2.1 TMDS-compliant ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304 @ 60 Hz * Supports DisplayPort 1.2 and HDCP 2.3.
- Sound card
- Realtek audio codec High Definition Audio Support 2/4/5.1/7.1 audio channels S/PDIF Out Support
- Network interface
- Bluetooth
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax
- Network interface
- 1 x 10/100/1000 Mbit/s
- Network interface
- LAN Realtek GbE LAN chip (1Gbps/100Mbps/10Mbps) Wireless communication module Realtek Wi-Fi 6 RTL8851BE WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 80MHz wireless standard
- USB ports at back panel
- 5
- USB ports on motherboard
- 7
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 6
- FireWire (IEEE 1394)
- No
- COM connector / port
- Yes
- LPT connector / port
- No

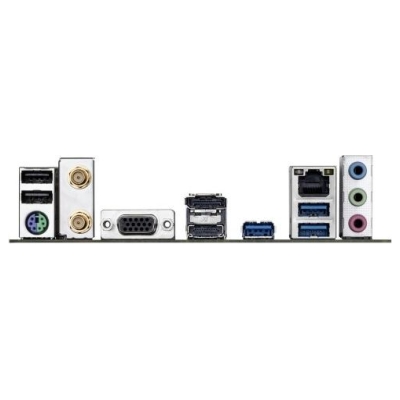

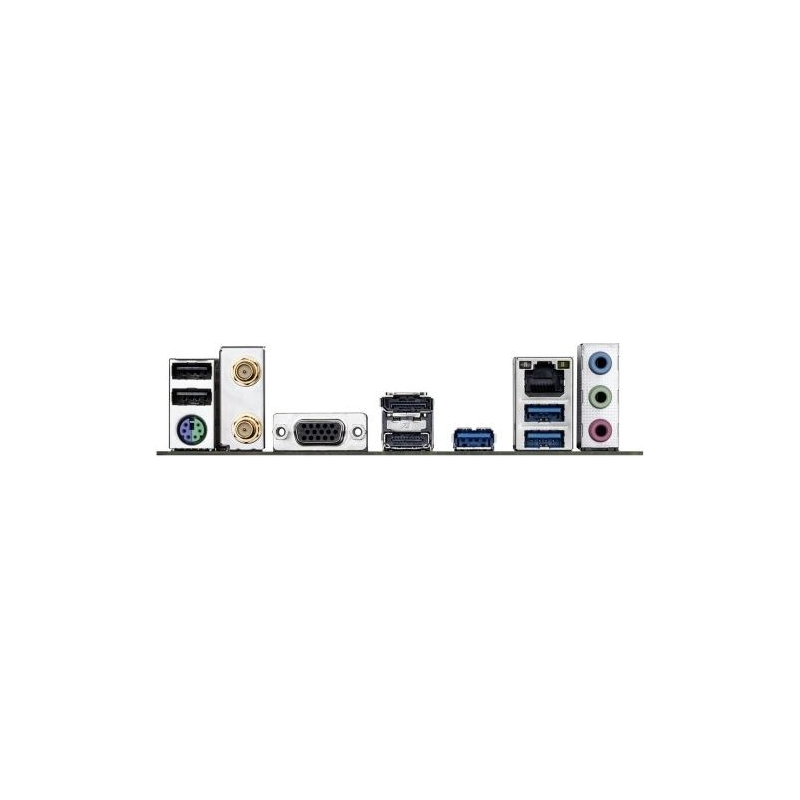

- External connectors
- 3 x USB 3.2 Gen 1 Type-A
- External connectors
- 2 x SMA
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 1 x RJ-45
- External connectors
- 1 x PS/2 Keyboard/MouseCombo
- External connectors
- 1 x D-Sub
- External connectors
- 1 x DisplayPort
- External connectors
- 1 x HDMI
- External connectors
- 1 x Line In
- External connectors
- 2 x USB 2.0
- Onboard connectors
- 1 x Addressable LED
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 1 x USB 3.2 Gen 1 Type-A
- Onboard connectors
- 1 x USB 3.2 Gen 1 Type-C
- Onboard connectors
- 1 x Serial port header
- Onboard connectors
- 1 x Parallel port header
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x S/PDIF Out header
- Onboard connectors
- 1 x Clear CMOS jumper
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 3 x 4pin Chassis fan
- Onboard connectors
- 1 x Reset jumper
- Onboard connectors
- 1 x RGB LED strip header
- Onboard connectors
- 1 x Q-Flash Plus button
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 2 x M.2
- Onboard connectors
- 4 x SATA III 6Gb/s
- BIOS
- 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Form factor
- micro ATX
- Dimensions
- 24.4 x 17.4 cm
- Supported operating systems
- Windows 10
- Supported operating systems
- Windows 11
- Software
- Norton Internet Security (OEM version) LAN bandwidth management software
- Designation
- CE+WEEE
B760M D3HP WIFI6
30 Items
Specific References
- EAN13
- 4719331867638
- MPN
- B760M D3HP WIFI6
New
