Total supports 3 x M.2 slots and 4 x SATA 6Gb/s portsAMD Ryzen 9000 & 7000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)AMD Ryzen 8000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)*AMD B850 ChipsetM.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports* Specifications vary by CPU types.AMD RAIDXpert2 TechnologyRyzen 9000 Series Processors: RAID 0/1/5/10Ryzen 8000 Series Processors: RAID 0/1Ryzen 7000 Series Processors: RAID 0/1/10
Graphics
1 x DisplayPort** 1 x HDMI port*** ** Supports up to 8K@30Hz as per DisplayPort 1.4 specification. *** Supports 4K@60Hz as per HDMI 2.1 specification.
Sound card
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC Impedance sensing for front and rear headphone outputs Internal audio amplifier to enhance premium sound quality for headphones and speakers Supports: jack detection, streaming, and front panel jack remapping High-quality stereo playback output with a SNR of 120 dB and recording input with a SNR of 113 dB (line-in) Supports playback up to 32-bit/192 kHz* Audio Features Audio Shielding Premium audio capacitors Dedicated audio PCB layers Audio Cover Unique De-Pop Circuit *Due to HDA bandwidth limitations, 32-bit/192 kHz is not supported for 7.1 Surround Sound.
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax
Network interface
Bluetooth
Network interface
Ethernet 1 x Realtek 2.5Gb Ethernet TUF LANGuard Wireless and Bluetooth Wi-Fi 6E 2x2 Wi-Fi 6E (802.11ax) Supports 2.4/5/6 GHz frequency bands* Bluetooth v5.3** *Wi-Fi 6E 6GHz regulations may vary by country, supported only on Windows 11 or later. **Bluetooth version may vary; please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB ports at back panel
12
USB ports on motherboard
6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
5
FireWire (IEEE 1394)
No
COM connector / port
Yes
LPT connector / port
No
External connectors
3 x USB 3.2 Gen 2 Type-A
External connectors
1 x Line Out
External connectors
1 x USB 3.2 Gen 2x2 Type-C
External connectors
1 x Flash BIOS Button
External connectors
4 x USB 3.2 Gen 1 Type-A
External connectors
1 x RJ-45
External connectors
4 x USB 2.0
External connectors
1 x Rear Speaker
External connectors
1 x DisplayPort
External connectors
1 x HDMI
External connectors
1 x Central Speaker / Subwoofer
External connectors
1 x Wi-Fi Module
External connectors
1 x Line In
External connectors
1 x MIC
Onboard connectors
1 x 4pin wentylator OPT CPU
Onboard connectors
1 x Clear CMOS jumper
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x USB 3.2 Gen 2 Type-C
Onboard connectors
2 x 8pin 12V
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
3 x M.2
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
1 x USB 3.2 Gen 1 Type-A
Onboard connectors
1 x System panel header
Onboard connectors
3 x 4pin Chassis fan
Onboard connectors
1 x 4-pin water-pump-fan
Onboard connectors
1 x Chassis intrusion header
Onboard connectors
1 x Front panel audio header
Onboard connectors
3 x Addressable LED
Onboard connectors
1 x Serial port header
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form factor
micro ATX
Dimensions
24.4 cm x 24.4 cm
Accessories included

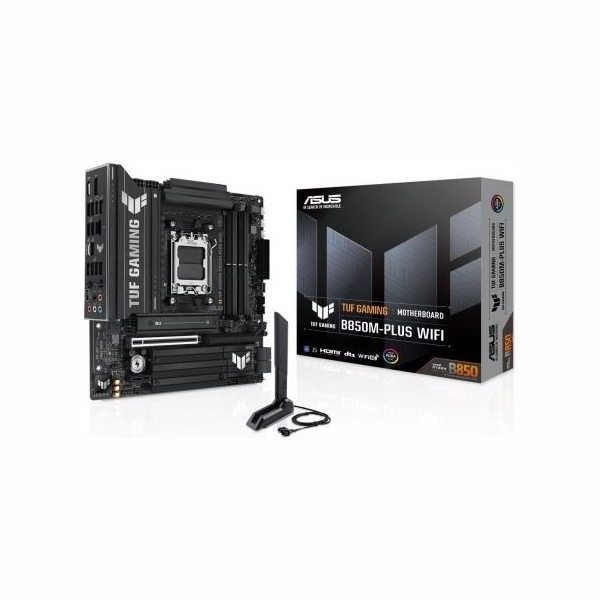

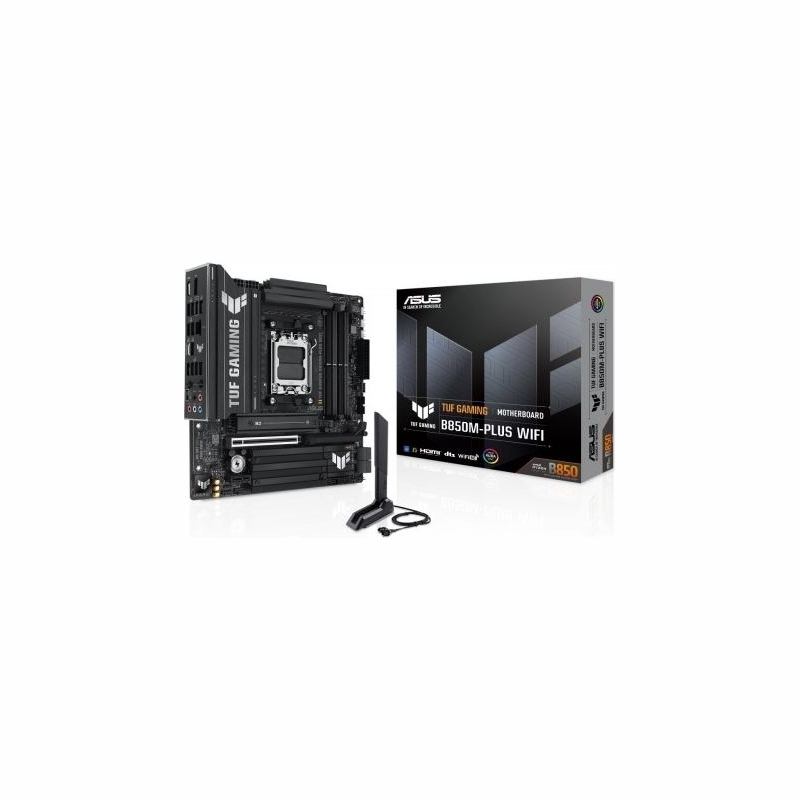

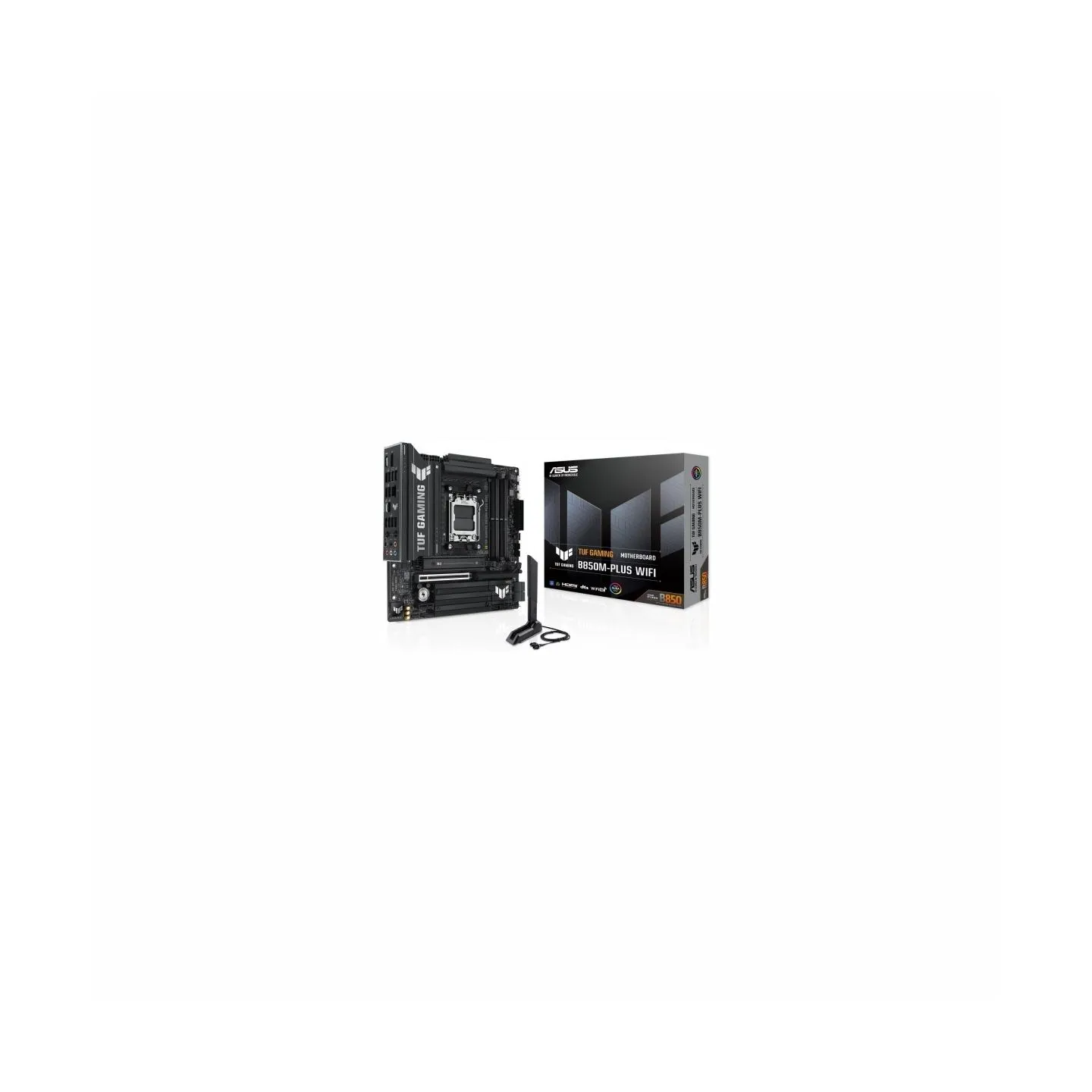

2 x SATA 6Gb/s cables ASUS WiFi Q-Antenna TUF GAMING sticker 2 x M.2 rubber covers M.2 SSD screw cover Quick start guide
Supported operating systems
Windows 10
Supported operating systems
Windows 11
Software
ASUS Exclusive Software Armoury Crate Aura Creator Aura Sync Fan Xpert 4 Energy Saving ASUS DriverHub ASUS GlideX TurboV Core TUF GAMING CPU-Z DTS Audio Processing Adobe Creative Cloud (free trial) Norton 360 for Gamers (60-day free trial) WinRAR (40-day free trial) UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode ASUS MyHotkey
