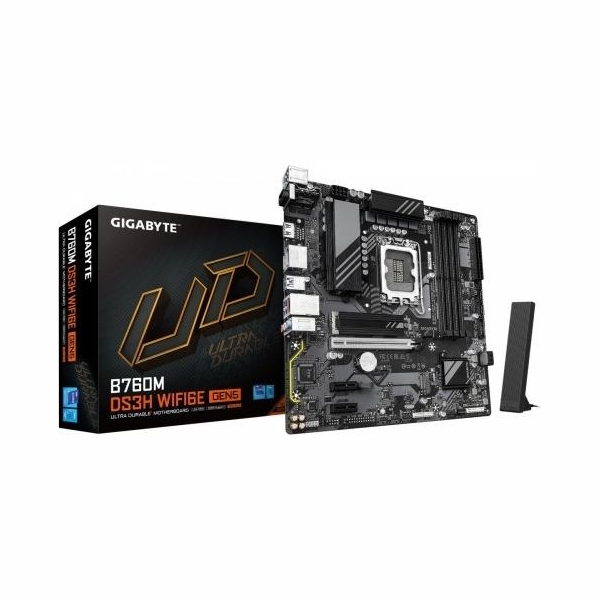

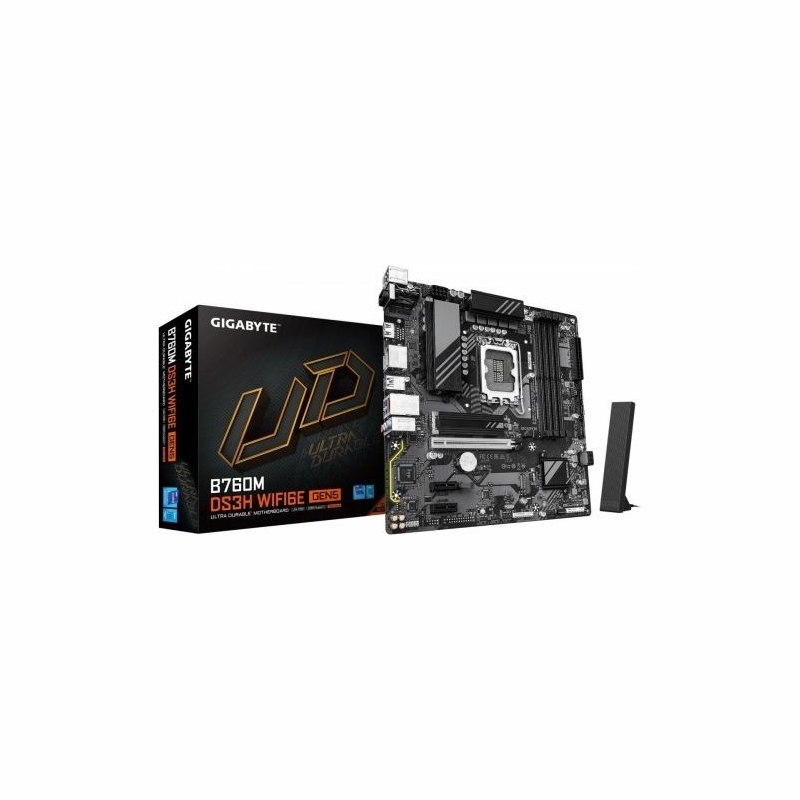

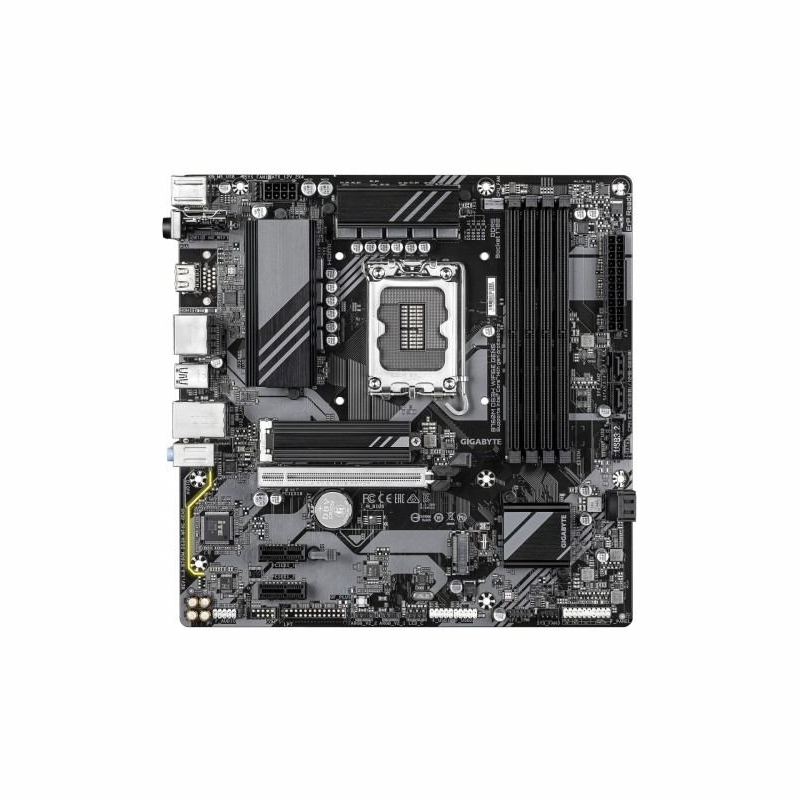

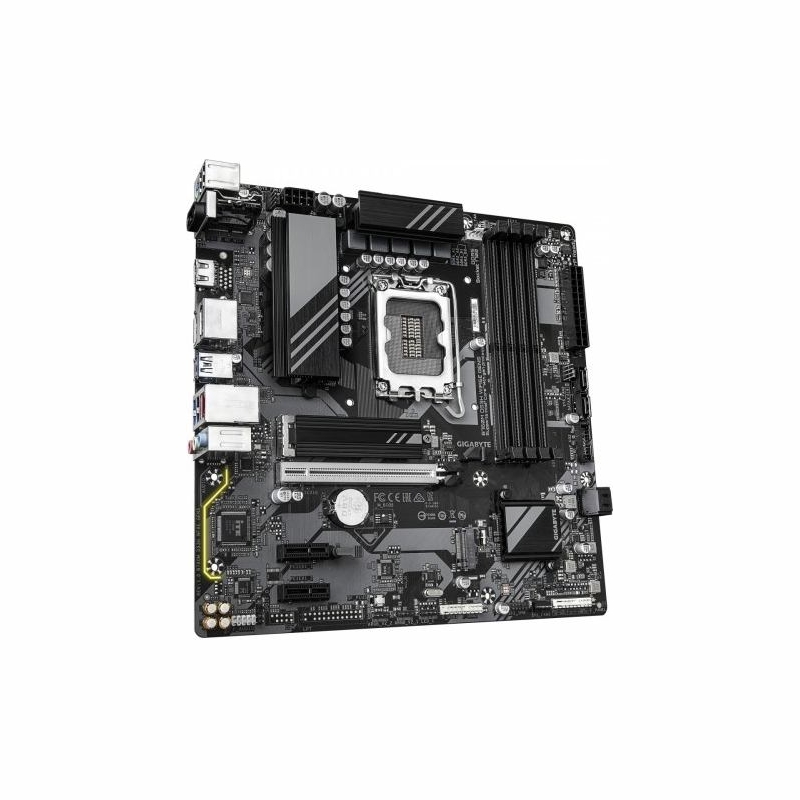

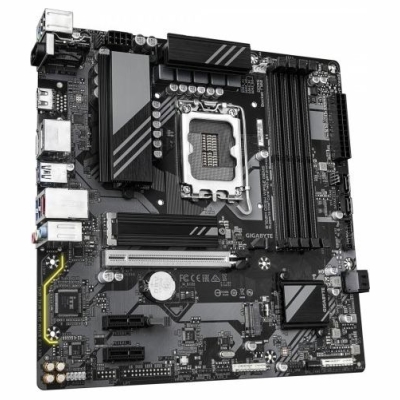

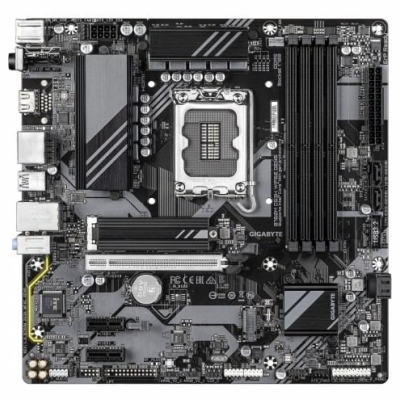

Gigabyte B760M DS3H WF6E GEN5 s1 700 4DDR5 HDMI/DP mATX
- Write a review
€116.80
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
- SKU
- KBGBAIIEB760U14
- Barcode
- 4719331872809
- Model
- B760M DS3H WF6E
- CPU socket
- LGA1700
- Processor family
- Intel Core
- Processor family
- Intel Celeron
- Processor family
- Intel Pentium
- Processor family
- Intel Pentium Gold
- Integrated CPU
- No
- Chipset manufacturer
- Intel
- Chipset type
- Intel B760 Express Chipset
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 4800 MHz
- Memory bus frequency
- 6200 MHz
- Memory bus frequency
- 6400 MHz
- Memory bus frequency
- 5800 MHz
- Memory bus frequency
- 5600 MHz
- Memory bus frequency
- 7600 MHz
- Memory bus frequency
- 5200 MHz
- Memory bus frequency
- 7200 MHz
- Memory bus frequency
- 7000 MHz
- Memory bus frequency
- 6800 MHz
- Memory bus frequency
- 6600 MHz
- Memory bus frequency
- 6000 MHz
- Memory bus frequency
- 7400 MHz
- Memory bus frequency
- 4400 MHz
- Max memory size
- 256
- Expansion slots
- 1 x PCIe 5.0 x 16
- Expansion slots
- 2 x PCIe 3.0 x 1
- Max. number of SATA devices
- 4
- RAID
- Yes
- Sound card
- Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
- Network interface
- Wi-Fi 802.11a/b/g/n/ax
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Intel Wi-Fi 6E AX210 Wi-Fi a, b, g, n, ac, and ax, supporting 2.4/5/6 GHz carrier frequency bands Bluetooth 5.3 Supports the 11ax 160 MHz wireless standard
- USB ports at back panel
- 6
- USB ports on motherboard
- 2
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 3
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 1
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No

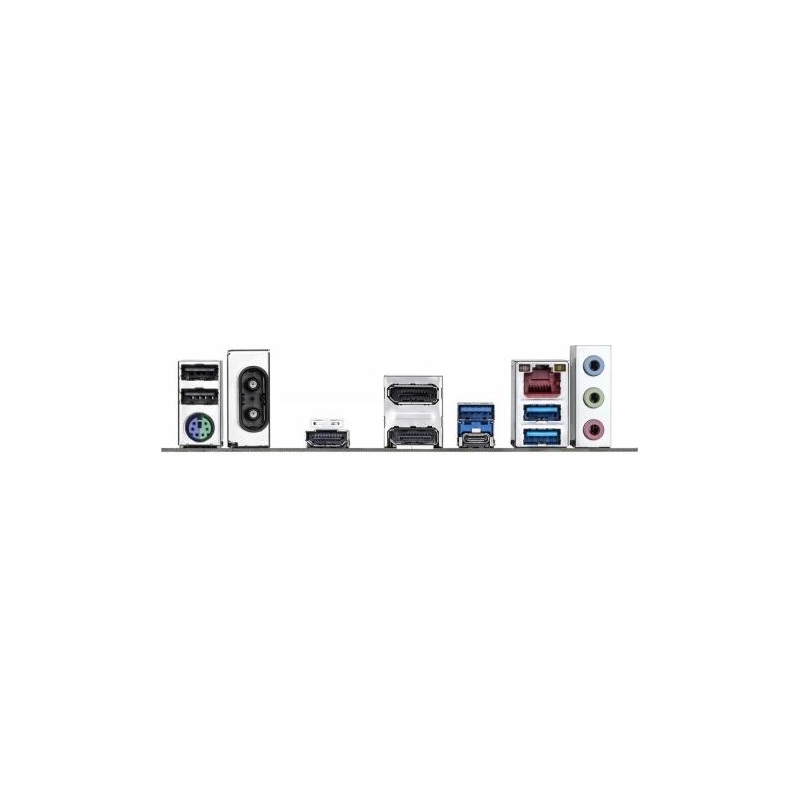

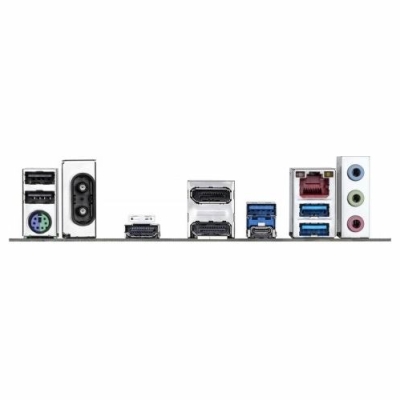

- External connectors
- 2 x USB 2.0
- External connectors
- 2 x SMA
- External connectors
- 1 x USB 3.1 Type-C
- External connectors
- 3 x USB 3.0
- External connectors
- 1 x PS/2 Keyboard/MouseCombo
- External connectors
- 2 x DisplayPort
- External connectors
- 1 x HDMI
- External connectors
- 1 x Line In
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 1 x RJ-45
- Onboard connectors
- 1 x Q-Flash Plus button
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 2 x M.2
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 1 x USB 3.0 header
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x S/PDIF Out header
- Onboard connectors
- 2 x Addressable LED
- Onboard connectors
- 1 x Clear CMOS jumper
- BIOS
- 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Form factor
- micro ATX
- Supported operating systems
- Windows 10
- Supported operating systems
- Windows 11
- Software
- Norton Internet Security (OEM)
- Designation
- CE+WEEE
B760M DS3H WF6E GEN5
1 Item
Specific References
- EAN13
- 4719331872809
- MPN
- B760M DS3H WF6E GEN5
