- SKU
- KBASRIIEB760M02
- Barcode
- 4710483942242
- Model

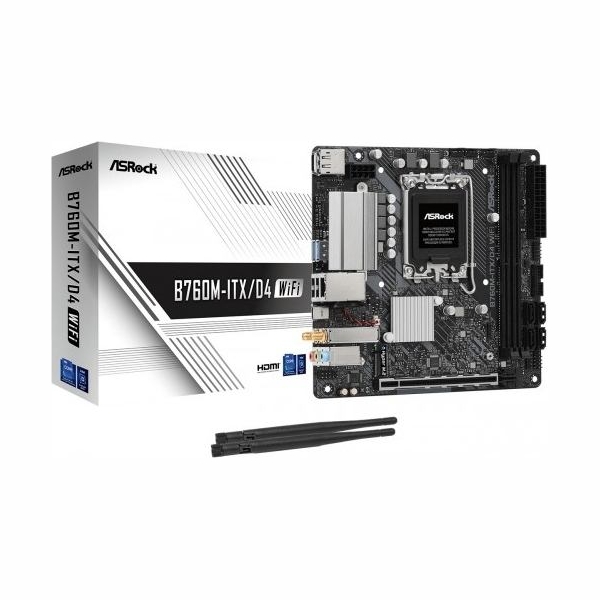

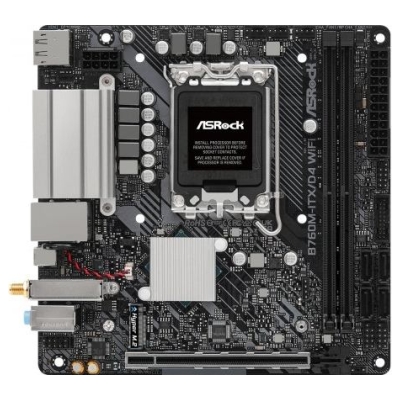

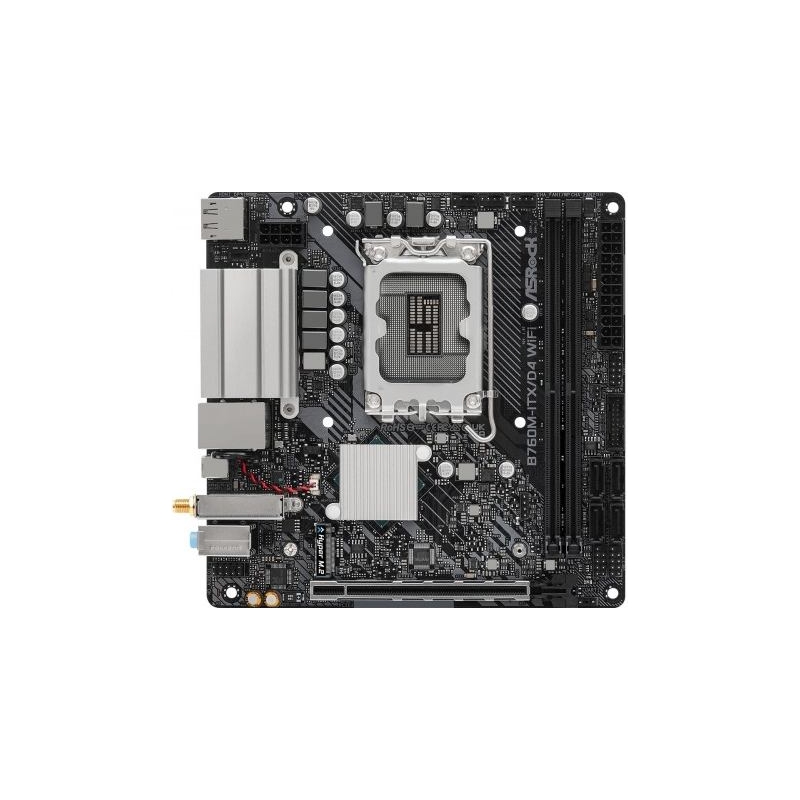

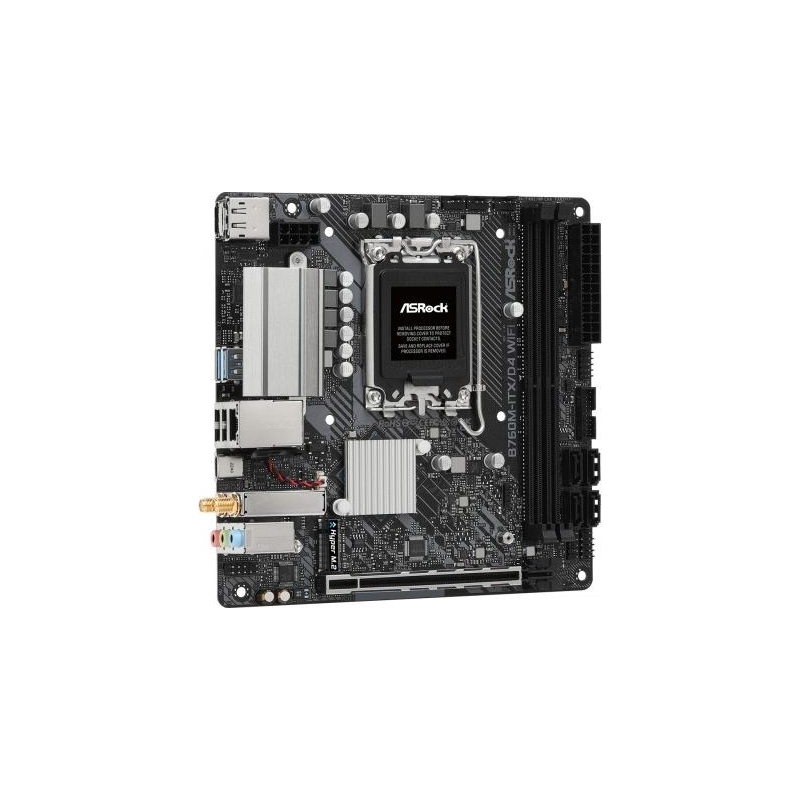

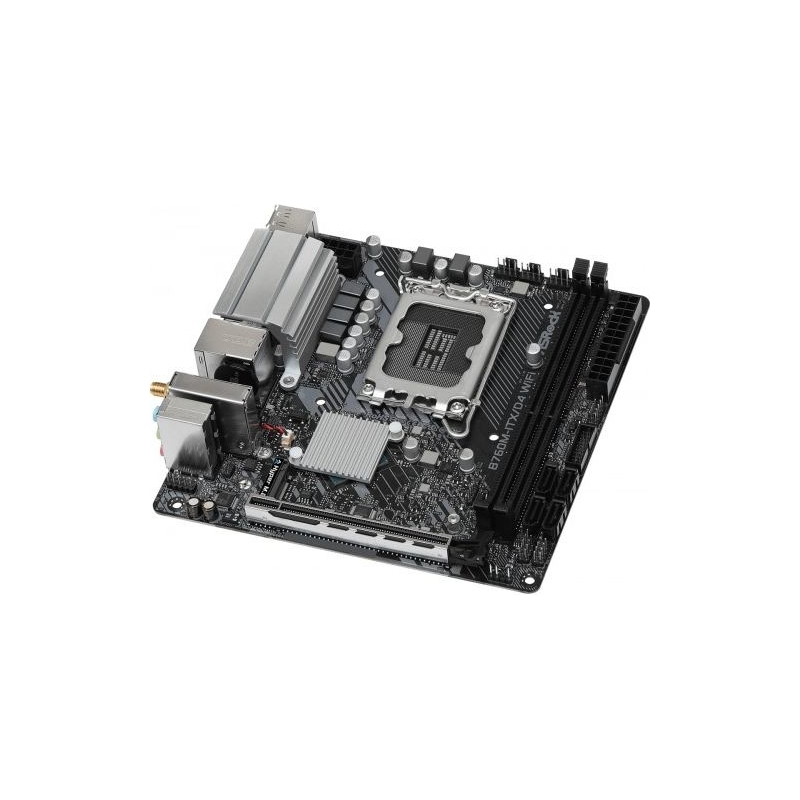

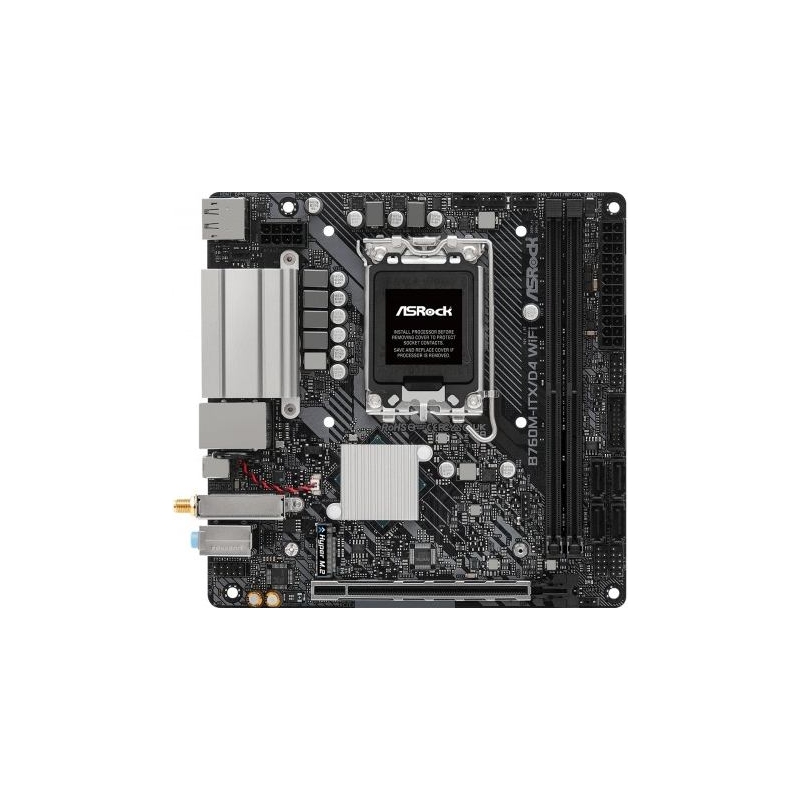

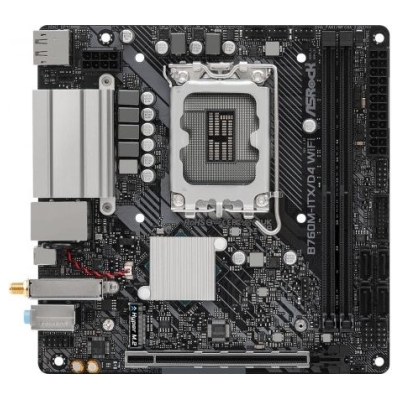

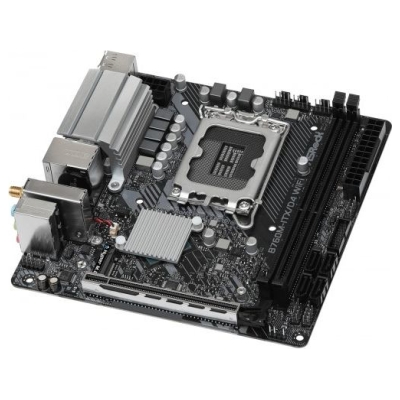

- B760M-ITX/D4 WIFI
- CPU socket
- LGA1700
- Processor family
- Intel Core i3
- Processor family
- Intel Core i5
- Processor family
- Intel Core i7
- Processor family
- Intel Core i9
- Integrated CPU
- No
- Chipset manufacturer
- Intel
- Chipset type
- Intel B760
- Memory type
- DDR4
- Number of DDR4 slots
- 2
- Memory bus frequency
- 5333 MHz
- Max memory size
- 64
- Expansion slots
- 1 x M.2
- Expansion slots
- 1 x PCIe 4.0 x 16
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- CPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: 4 x SATA3 6.0 Gb/s Connectors
- Sound card
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
- Network interface
- 1 x 10/100/1000 Mbit/s
- Network interface
- Bluetooth
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax
- USB ports at back panel
- 5
- USB ports on motherboard
- 6
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 4
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 1
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No
- External connectors
- 1 x HDMI
- External connectors
- 1 x DisplayPort
- External connectors
- 2 x SMA
- External connectors
- 1 x USB 3.2 Gen 2x2 Type-C
- External connectors
- 1 x Line Out (front)
- External connectors
- 1 x MIC
- External connectors
- 1 x RJ-45
- External connectors
- 2 x USB 2.0
- External connectors
- 1 x Line In
- External connectors
- 2 x USB 3.2 Gen 1 Type-A
- Onboard connectors
- 4 x USB 2.0/1.1
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 2 x USB 3.2 Gen 1 Type-A
- Onboard connectors
- 1 x M.2
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 1 x 4pin Chassis fan
- Onboard connectors
- 1 x 4-pin water-pump-fan
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x 24pin ATX zasilanie
- BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
- Form factor
- mini ITX
- Dimensions
- 17 x 17 cm
- Supported operating systems
- Windows 10
- Supported operating systems
- Windows 11
- Software
- Software ASRock Motherboard Utility (A-Tuning) UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI Automatyczny Instalator Sterowników ASRock ASRock Funkcja Instant Flash ASRock Easy RAID Installer
- Designation
- CE+WEEE

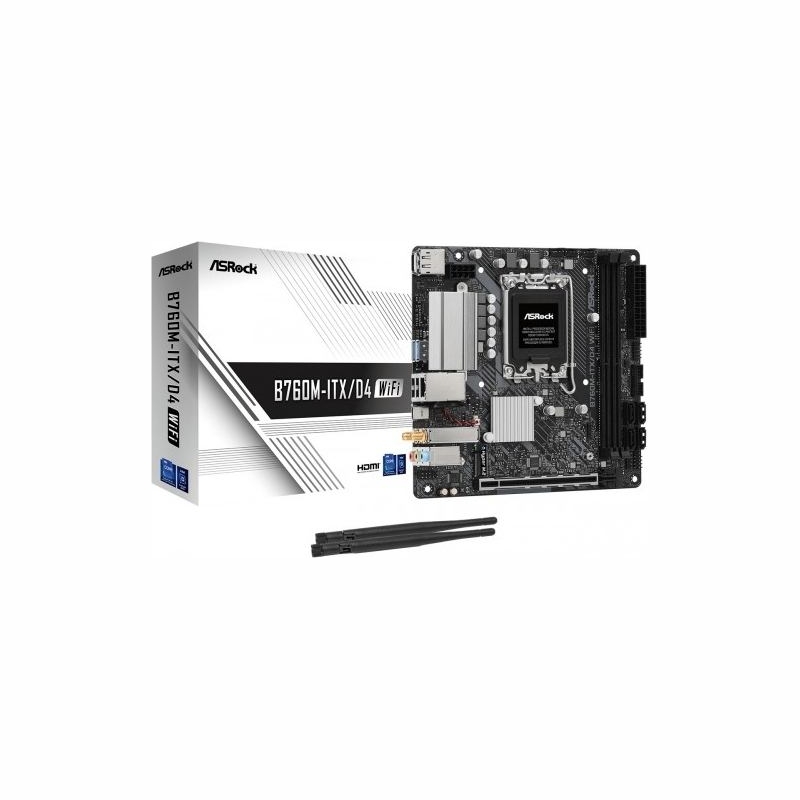

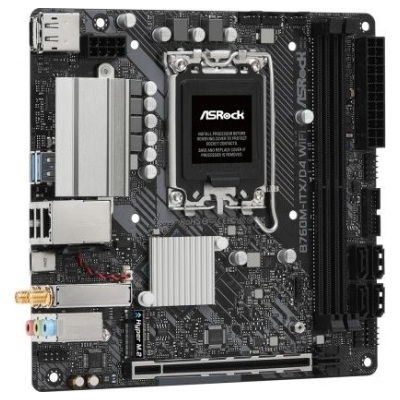

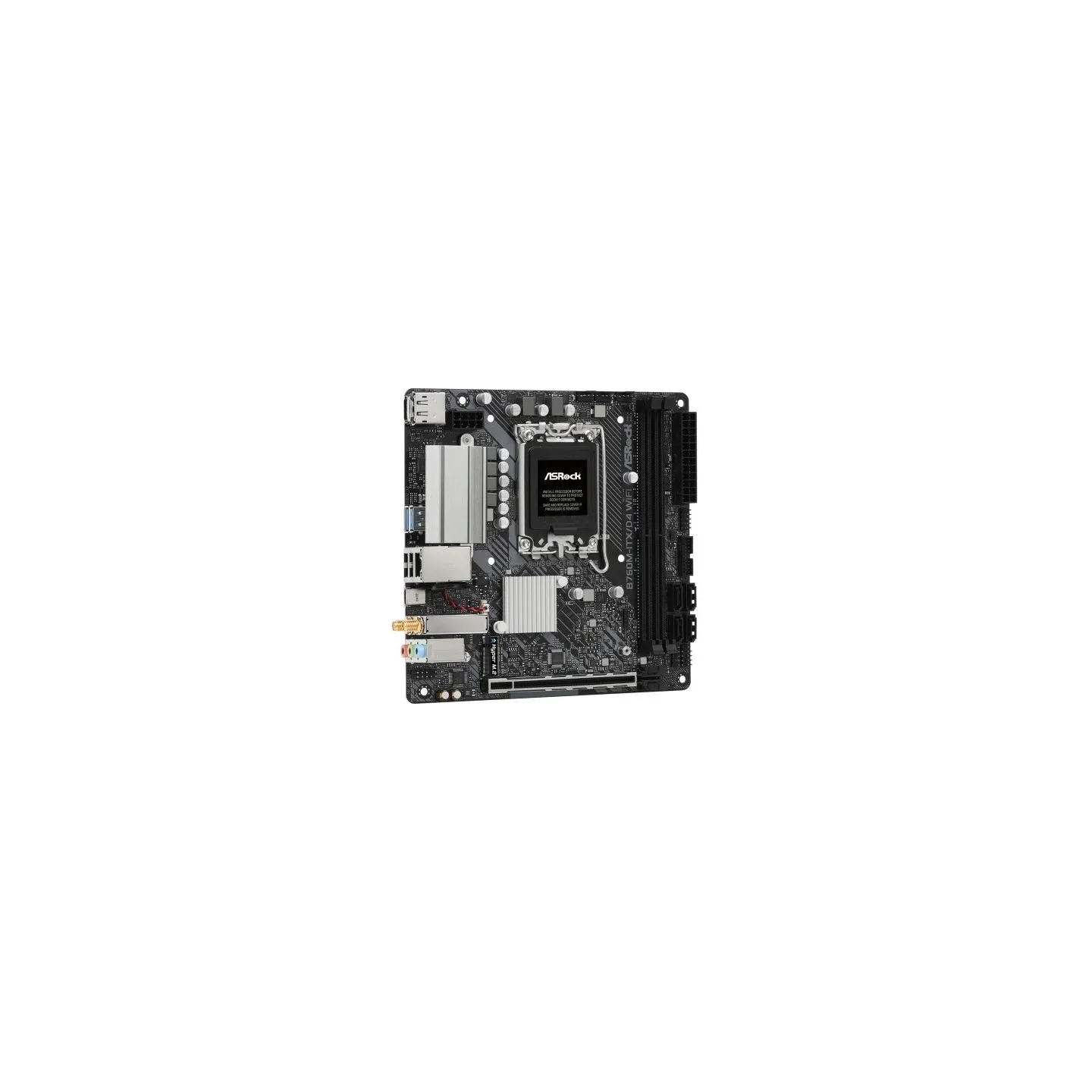

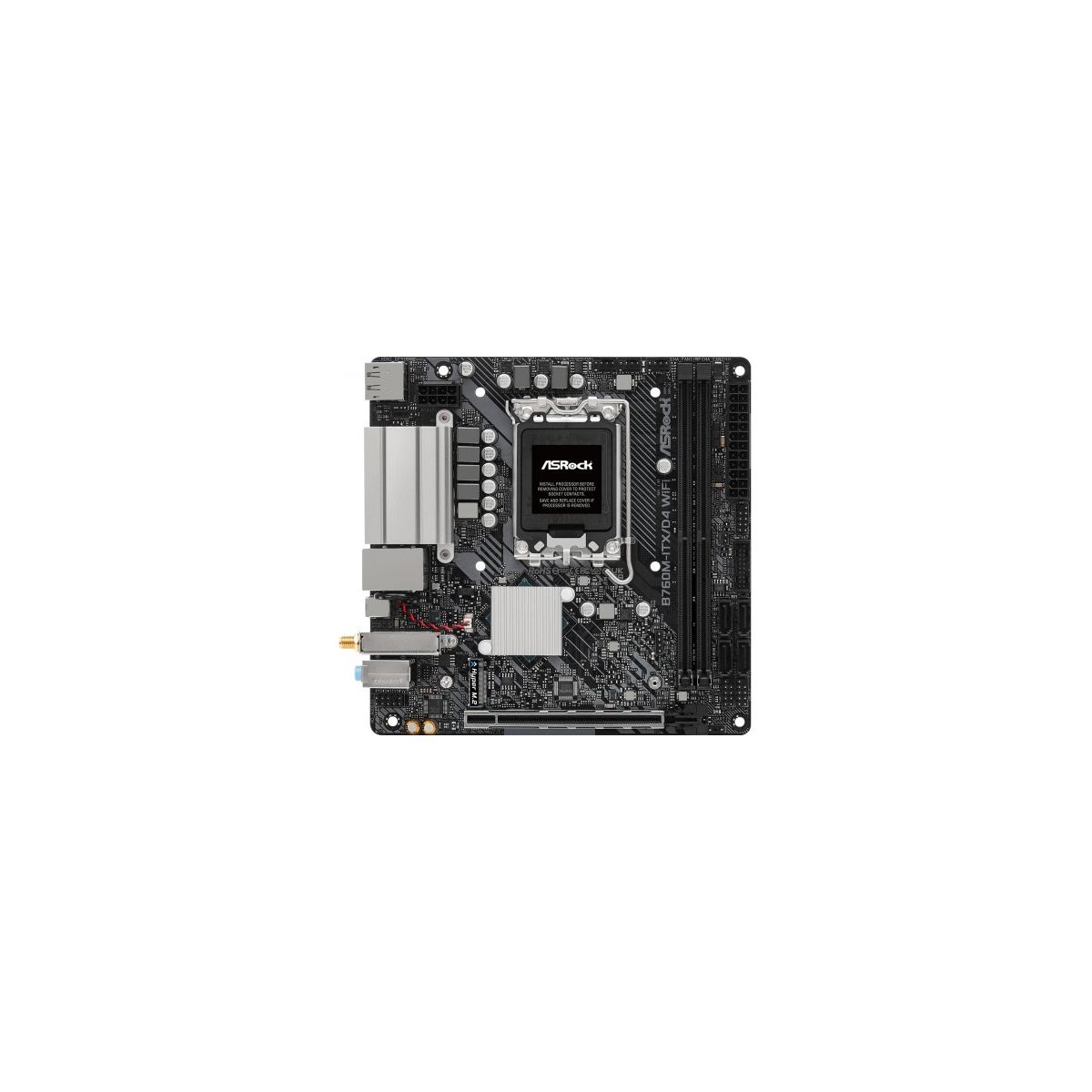

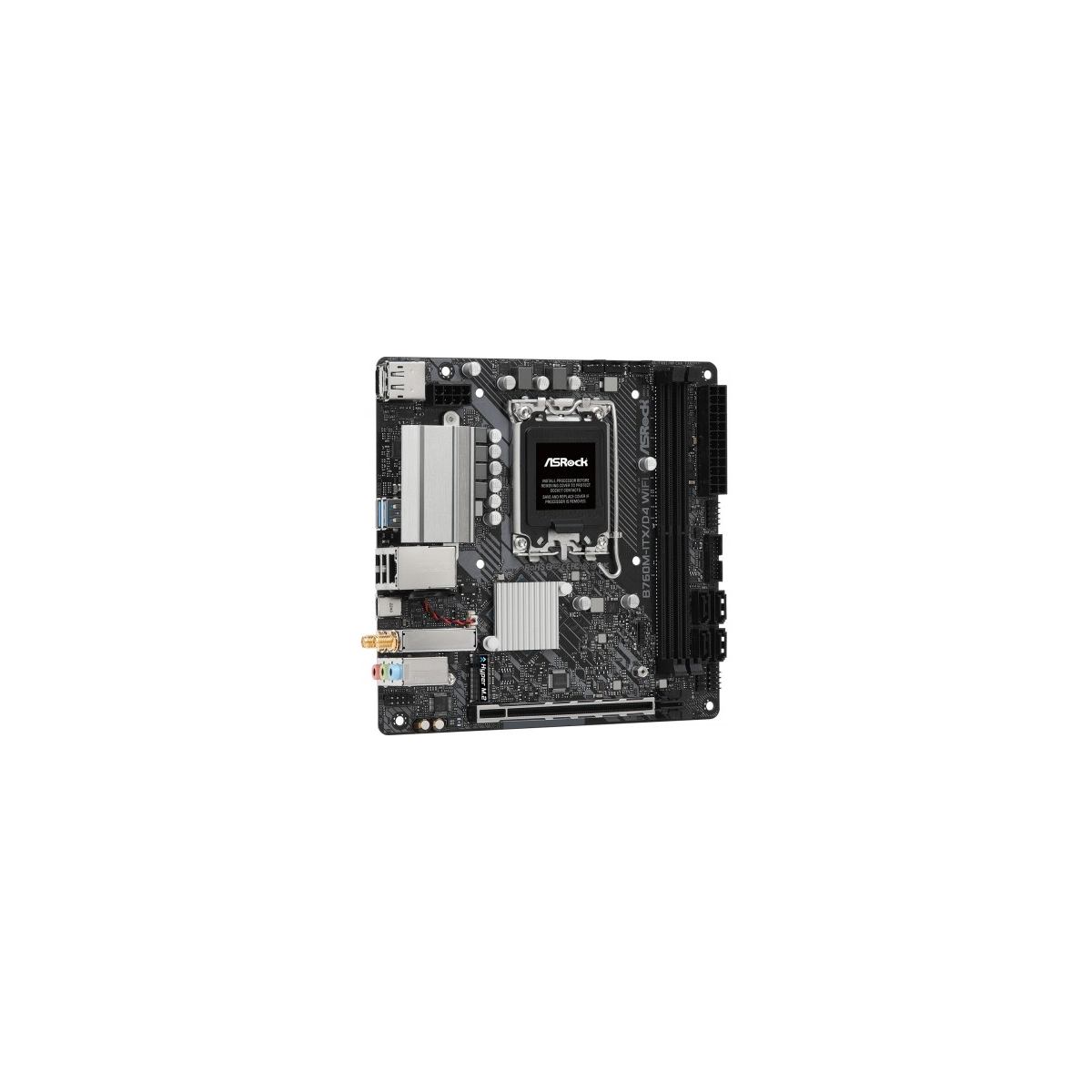

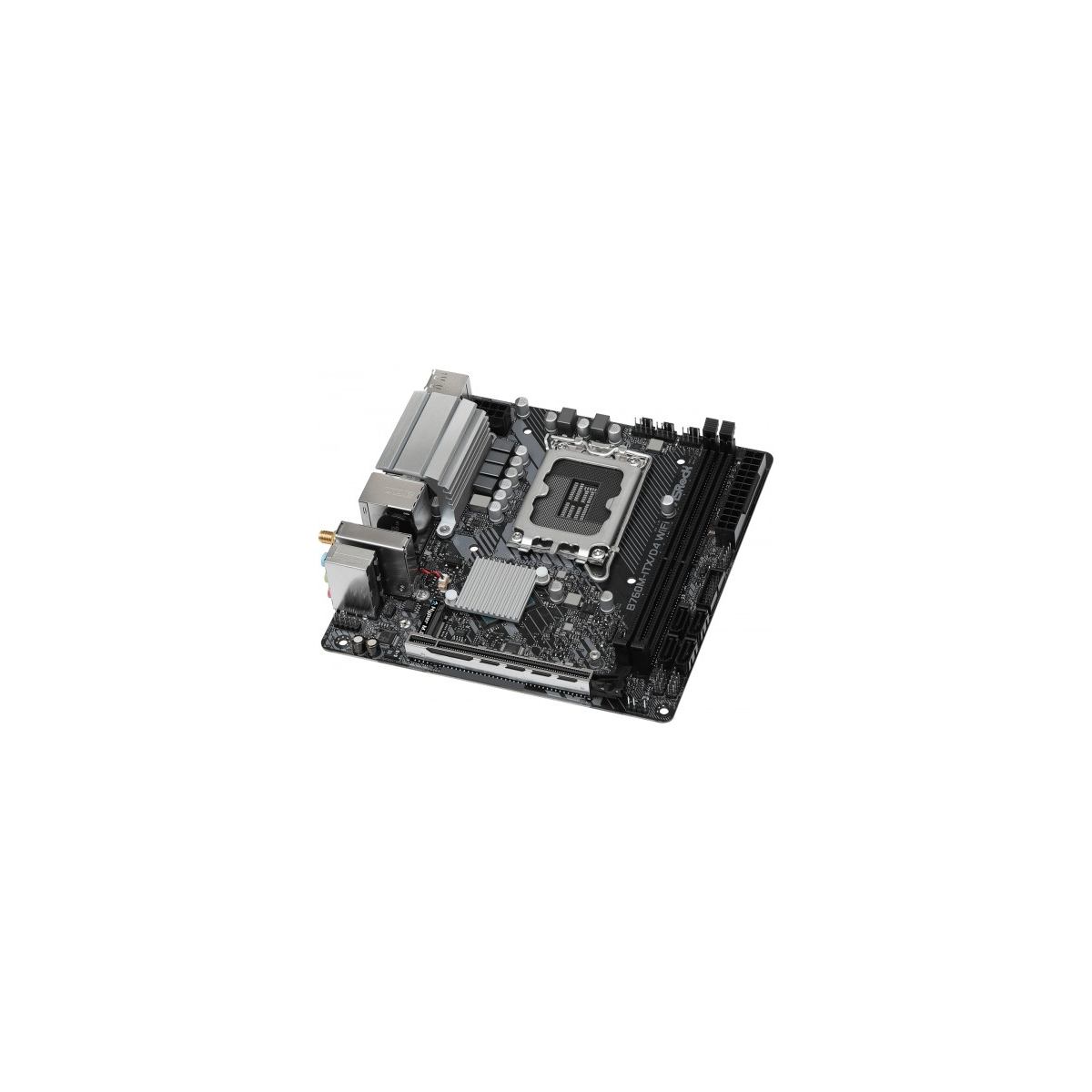

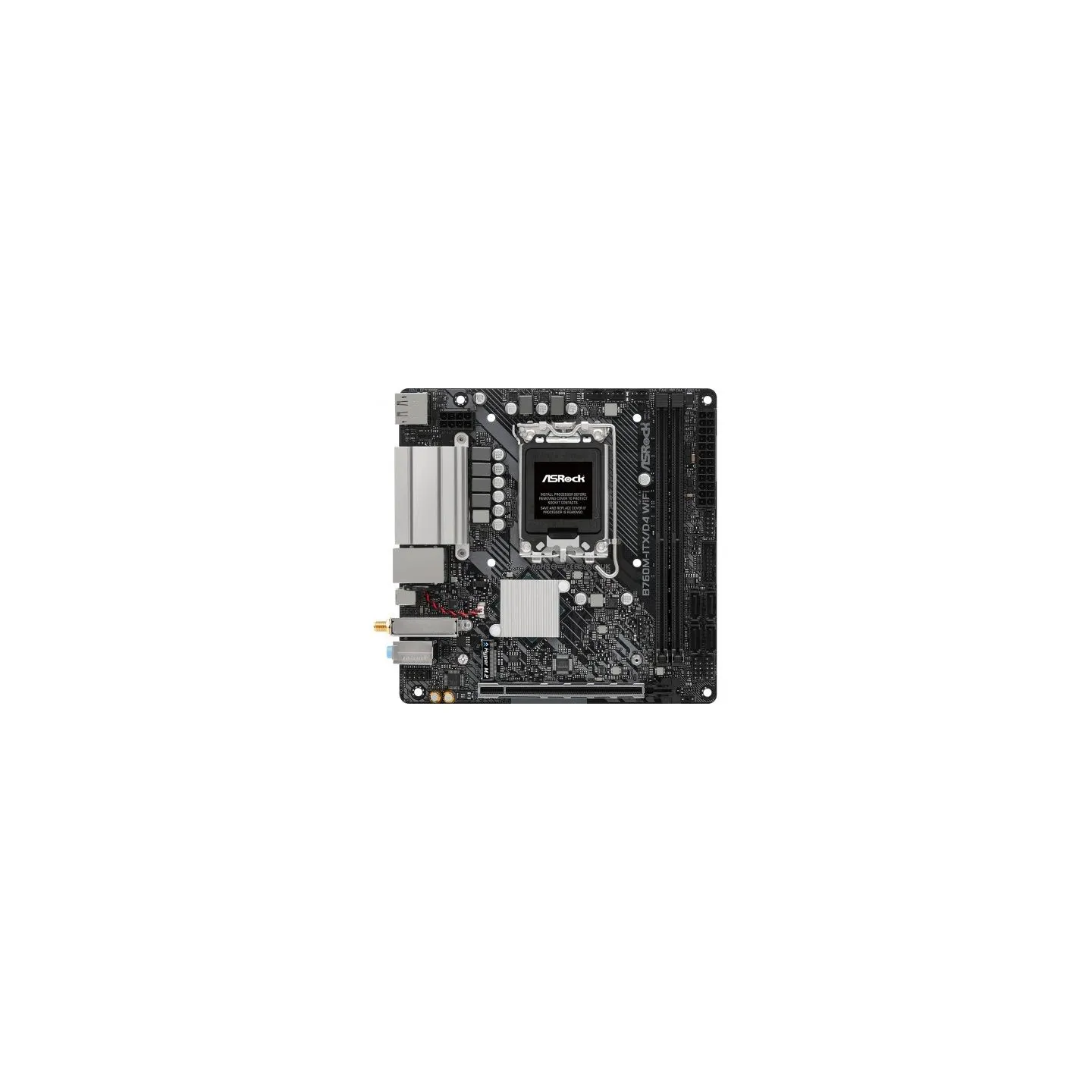

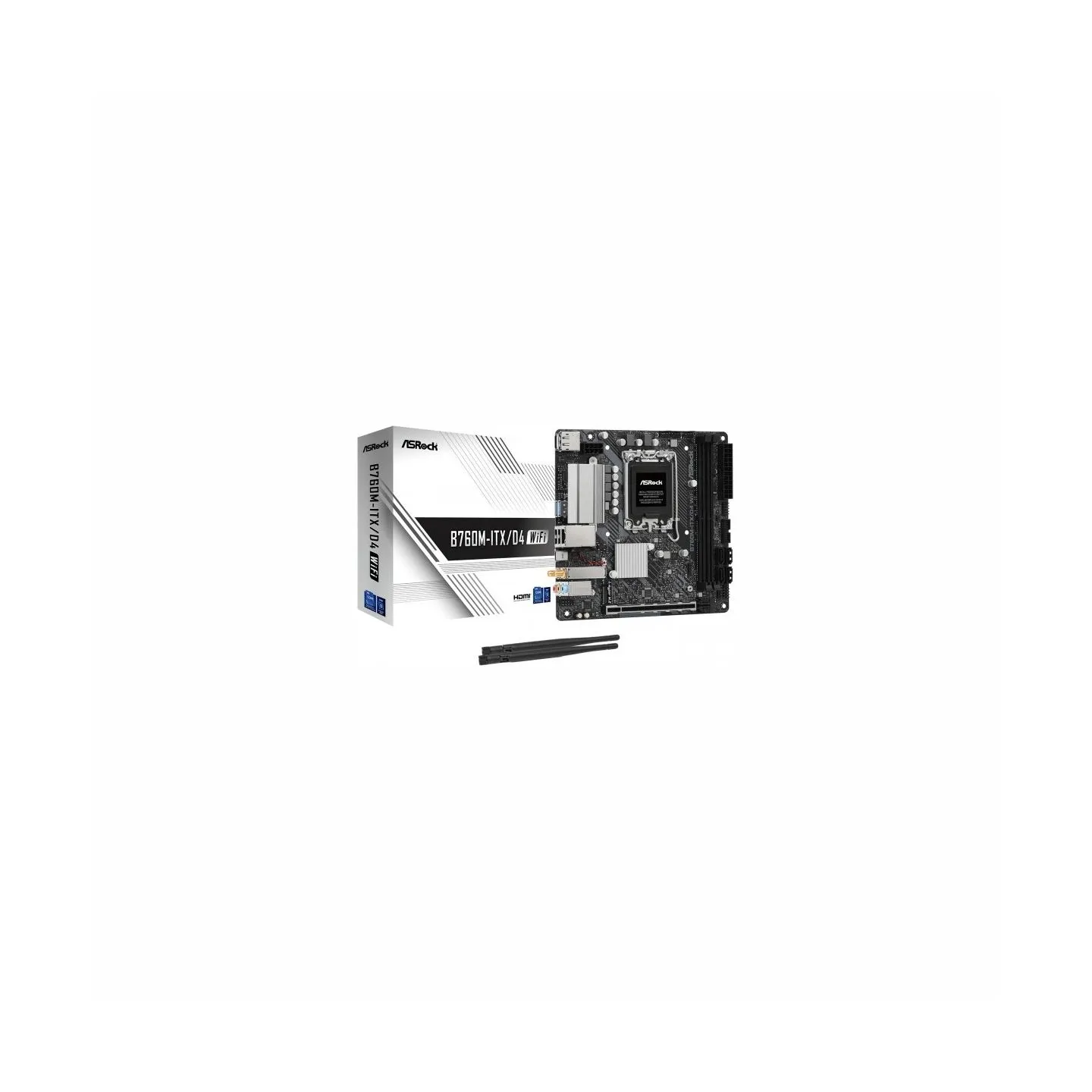

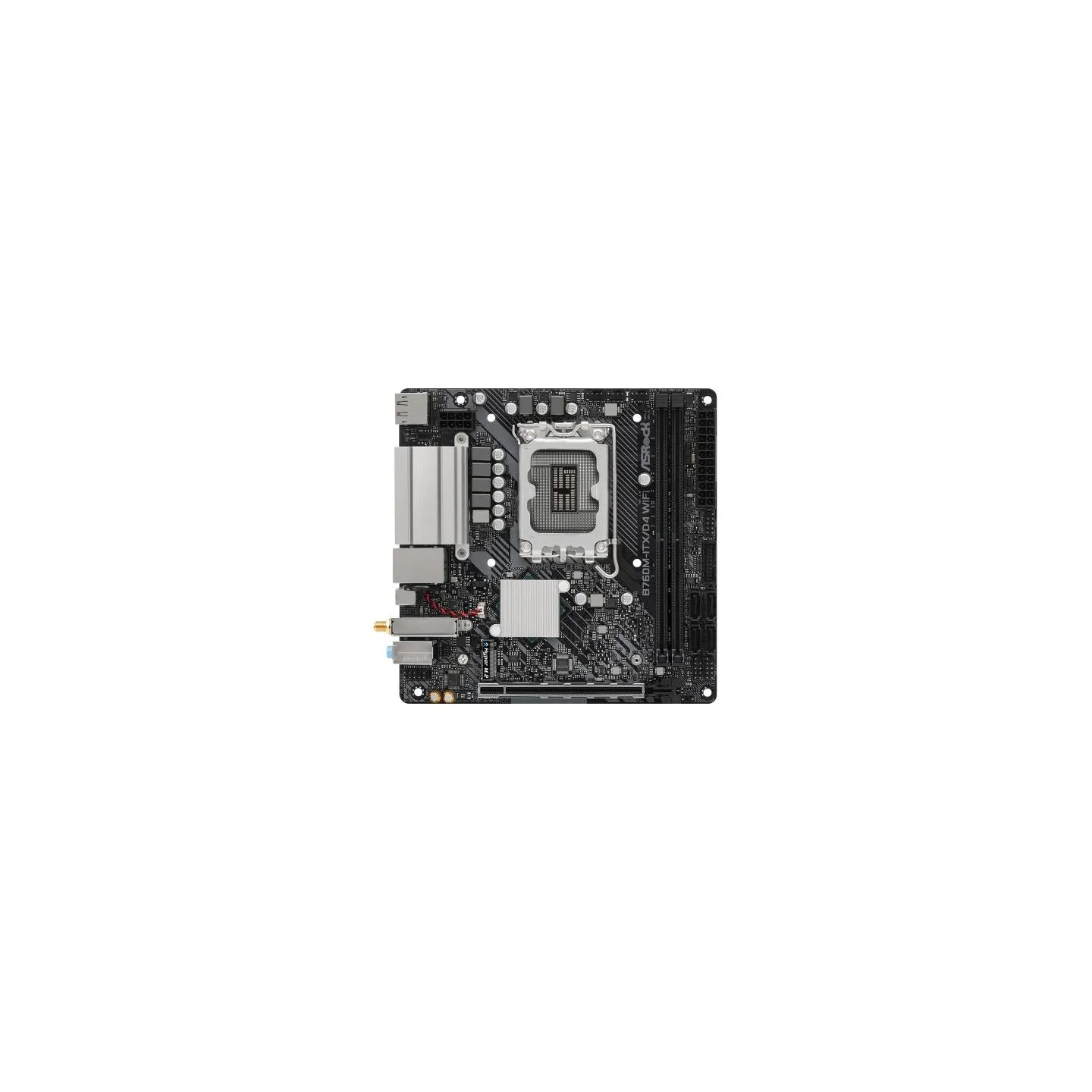

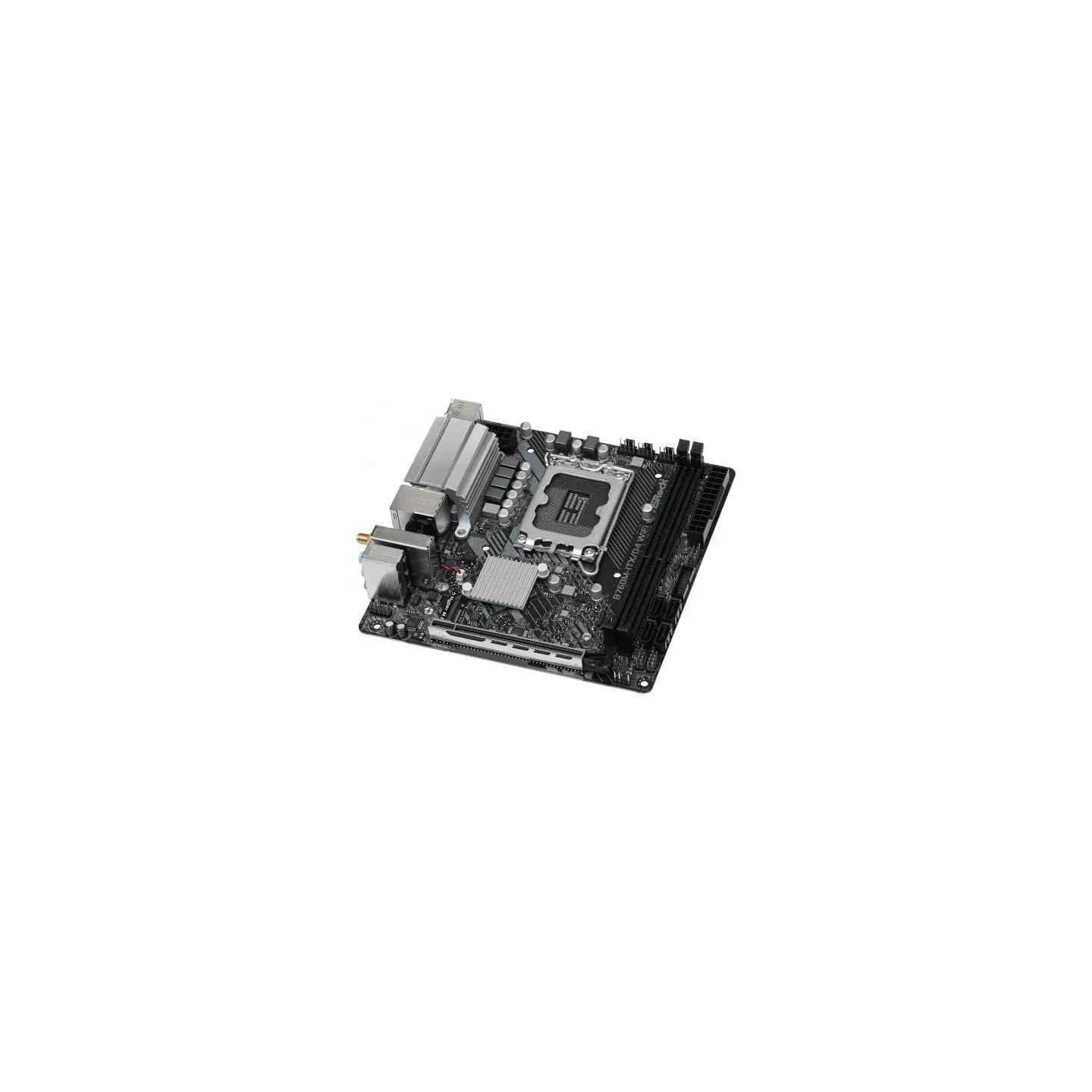

B760M-ITX/D4 WIFI
3 Items
Specific References
- EAN13
- 4710483942242
- MPN
- B760M-ITX/D4 WIFI
