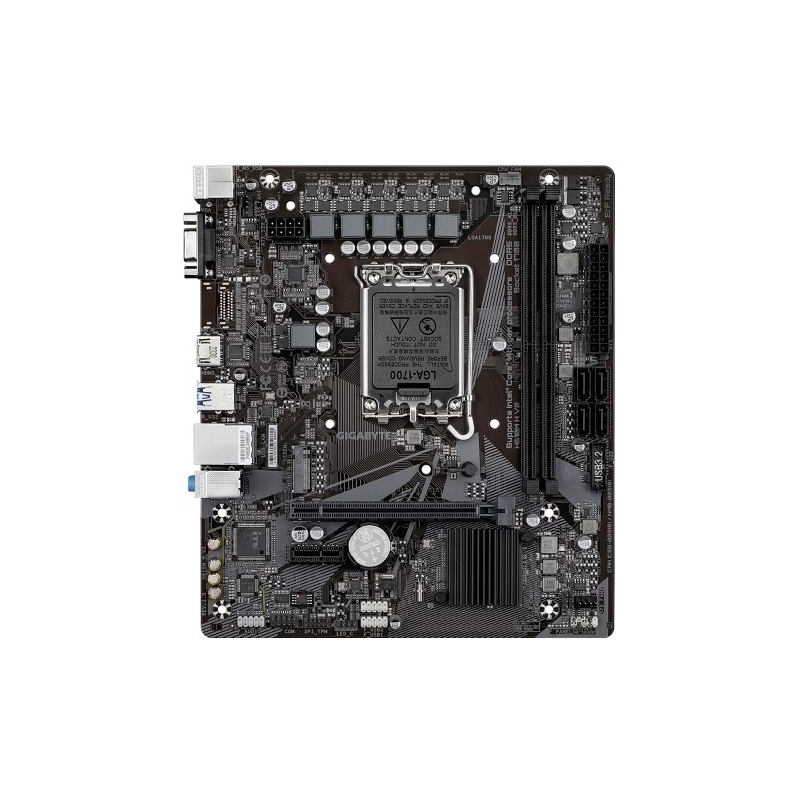

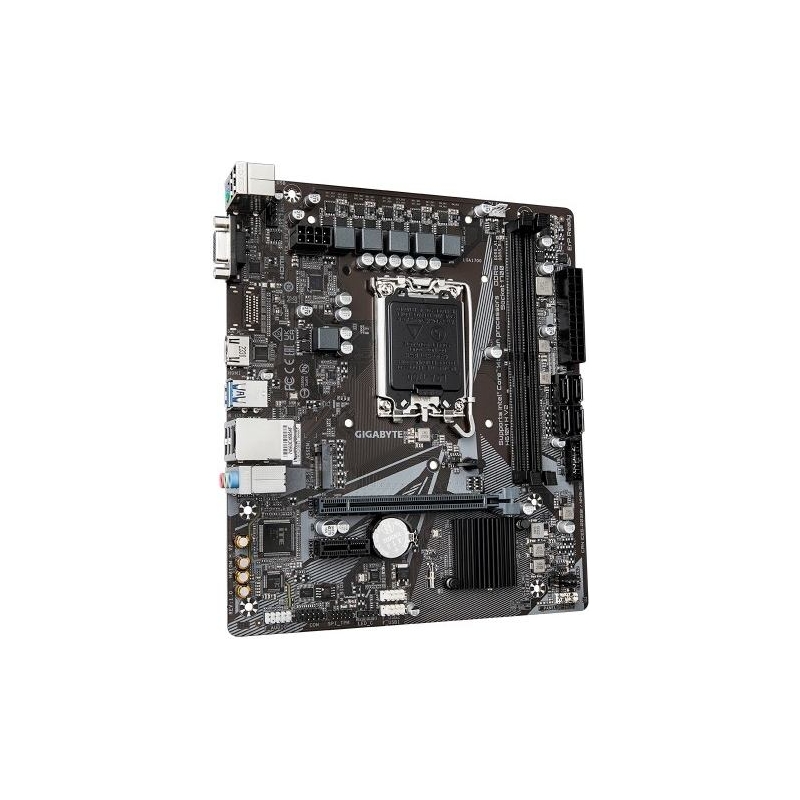

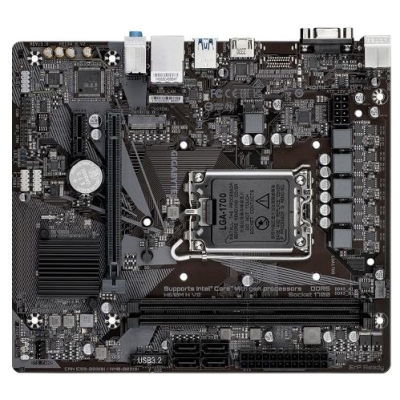

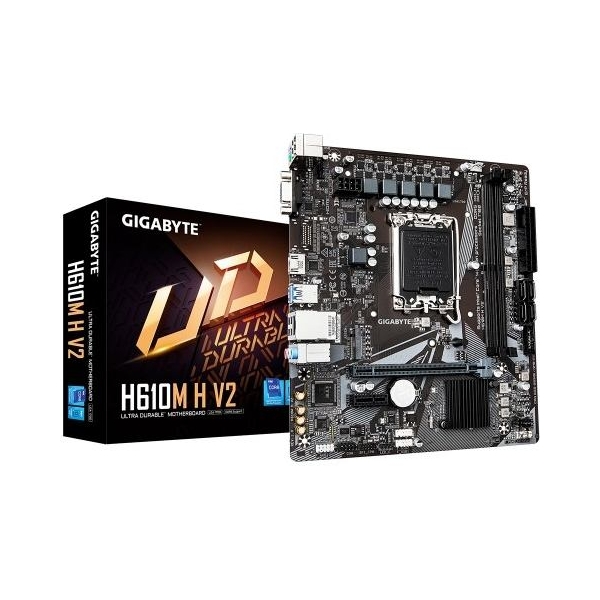

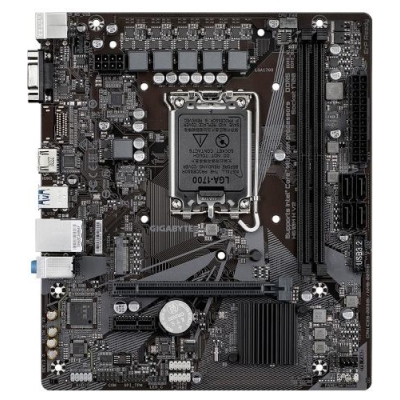

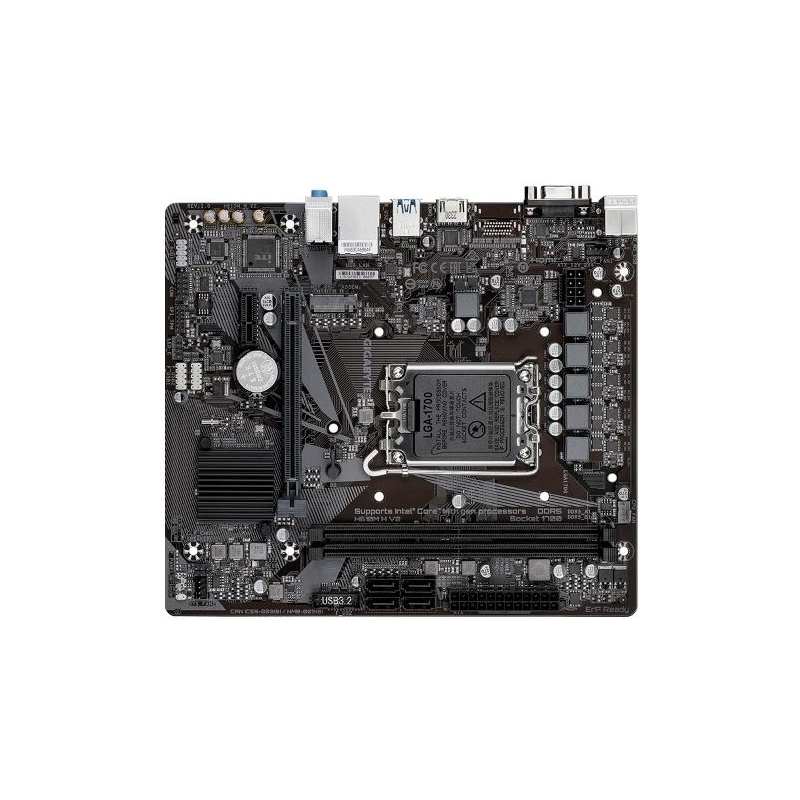

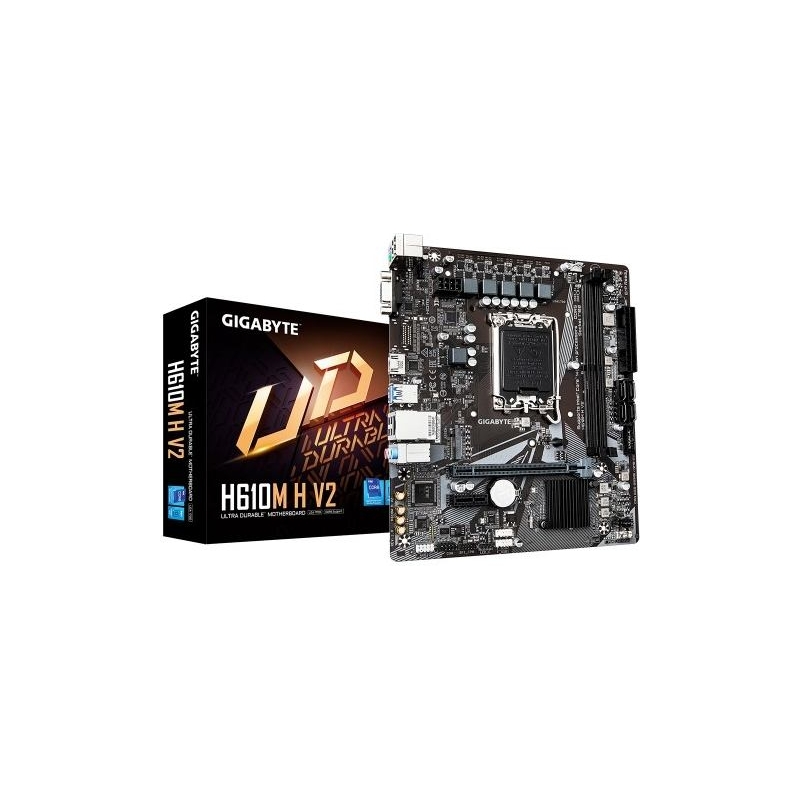

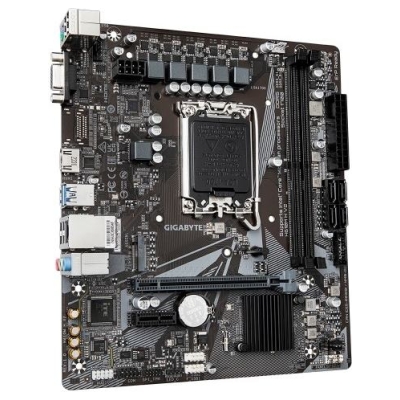

Gigabyte Motherboard H610M H V2 s1700 2DDR5 HDMI/DSUB M.2 mATX
- Write a review
€99.99
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
- SKU
- KBGBAIIEH610U07
- Barcode
- 4719331859985
- Model
- H610M H V2
- CPU socket
- LGA1700
- Processor family
- Intel Pentium Gold
- Processor family
- Intel Celeron
- Processor family
- Intel Pentium
- Processor family
- Intel Core
- Generation
- Thirteenth
- Generation
- Fourteenth
- Generation
- Twelve
- Integrated CPU
- No
- Chipset manufacturer
- Intel
- Chipset type
- Intel H610 Express Chipset
- Memory type
- DDR5
- Number of DDR5 slots
- 2
- Memory bus frequency
- 5600 MHz
- Memory bus frequency
- 5200 MHz
- Memory bus frequency
- 4800 MHz
- Memory bus frequency
- 4400 MHz
- Max memory size
- 128
- Expansion slots
- 1 x PCIe 4.0 x 16
- Expansion slots
- 1 x PCIe 3.0 x 1
- Expansion slots
- 1 x M.2
- Max. number of SATA devices
- 4
- RAID
- No
- Detailed data on disk/drive interfaces
- Expansion Slots: 1 × PCI Express x16 slot - Supports PCIe 4.0, running at x16 1 × PCI Express x1 slot - Supports PCIe 3.0, running at x1 Chipset Storage Connectors: 1 × M.2 connector (Socket 3, M key, supports 2280/2260 PCIe 3.0 x4/x2 SSDs) 4 × SATA 6Gb/s connectors
- Graphics
- Integrated Graphics Support: Intel HD Graphics Video Outputs: 1 × D-Sub port - Supports up to 1920×1200 @ 60 Hz 1 × HDMI port - Supports up to 4096×2160 @ 60 Hz Supports HDMI 2.1 and HDCP 2.3 Supports native HDMI 2.1 TMDS ports
- Sound card
- Audio Codec: Realtek High Definition Audio support Audio Channels: 2 / 4 / 5.1 / 7.1 The functionality of the audio jacks can be changed via audio software. To configure 7.1-channel audio, adjust the settings in the audio software.
- Network interface
- 1 x 10/100/1000 Mbit/s
- Network interface
- Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
- USB ports at back panel
- 6
- USB ports on motherboard
- 6
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 4
- FireWire (IEEE 1394)
- No
- COM connector / port
- Yes
- LPT connector / port
- No

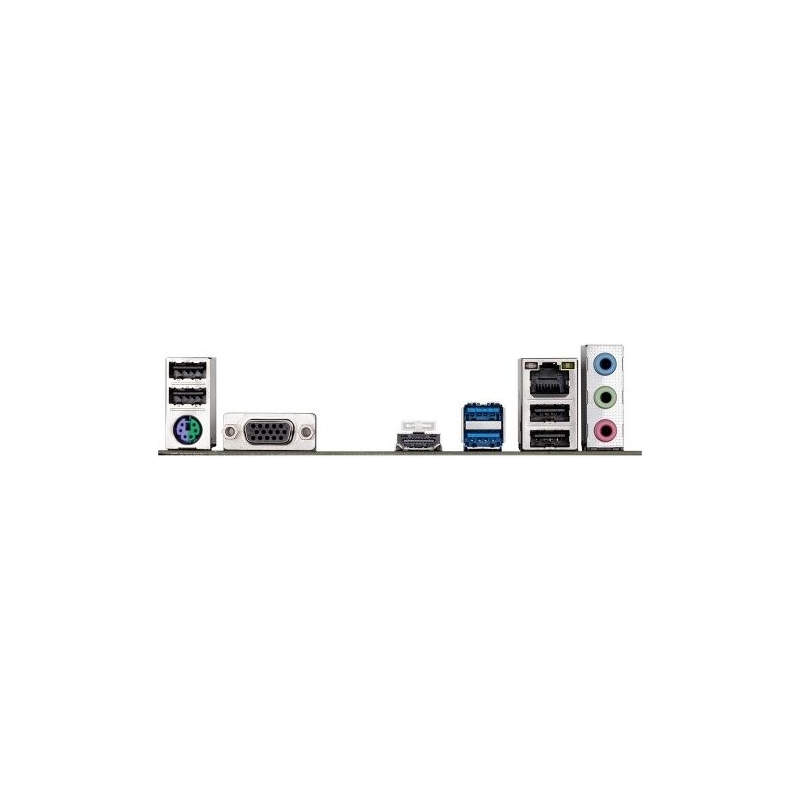

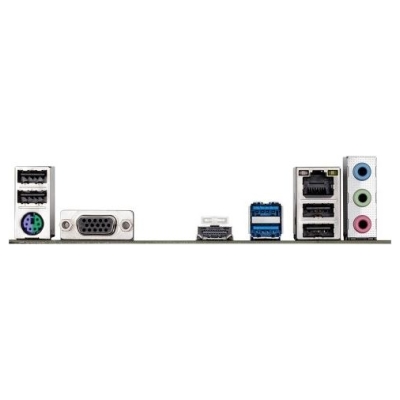

- External connectors
- 2 x USB 3.2 Gen 1 Type-A
- External connectors
- 1 x PS/2 Keyboard/MouseCombo
- External connectors
- 1 x D-Sub
- External connectors
- 1 x HDMI
- External connectors
- 1 x Line In
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 1 x RJ-45
- External connectors
- 4 x USB 2.0
- Onboard connectors
- 1 x Speaker header
- Onboard connectors
- 1 x RGB LED strip header
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x Clear CMOS jumper
- Onboard connectors
- 1 x Chassis intrusion header
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 1 x M.2
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 1 x USB 3.2 Gen 1 Type-A
- Onboard connectors
- 1 x Serial port header
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 2 x 4pin Chassis fan
- Onboard connectors
- 1 x System panel header
- BIOS
- 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Form factor
- micro ATX
- Dimensions
- 22.3 x 19.6 cm
- Supported operating systems
- Windows 11
- Supported operating systems
- Windows 10
- Software
- Norton Internet Security (OEM version) LAN bandwidth management software Service has been discontinued due to termination of the software provider agreement.
- Designation
- CE+WEEE
H610M H V2
7 Items
Specific References
- EAN13
- 4719331859985
- MPN
- H610M H V2
