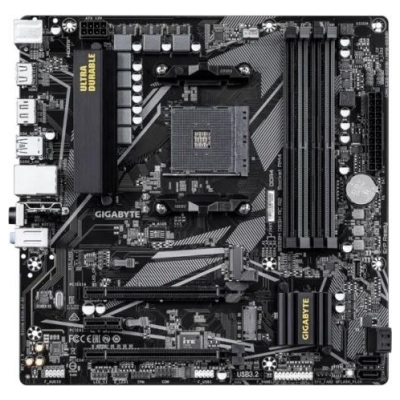

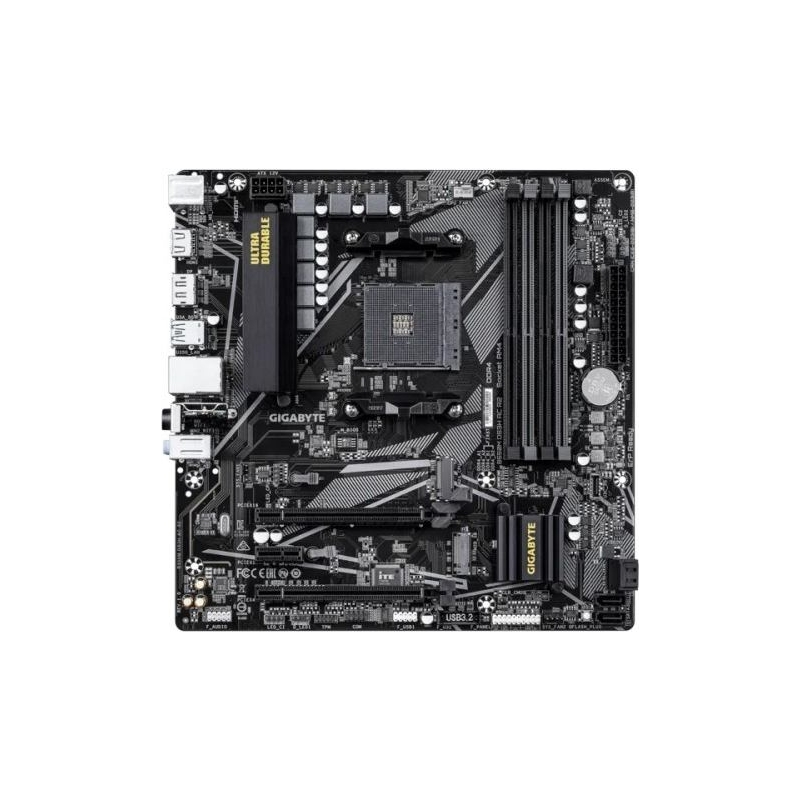

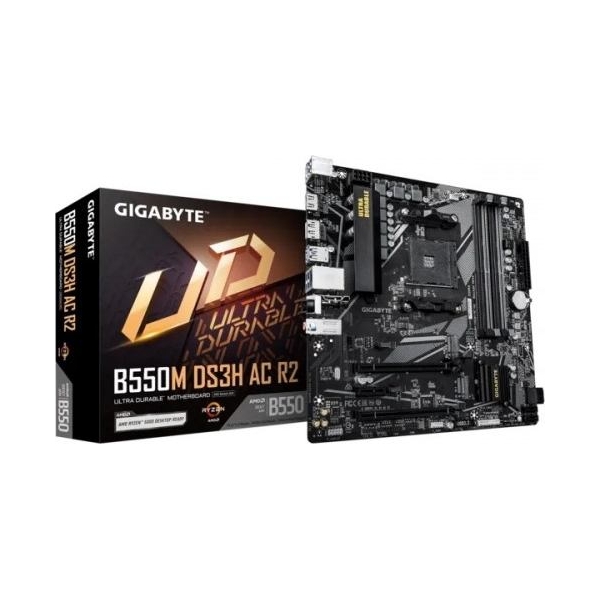

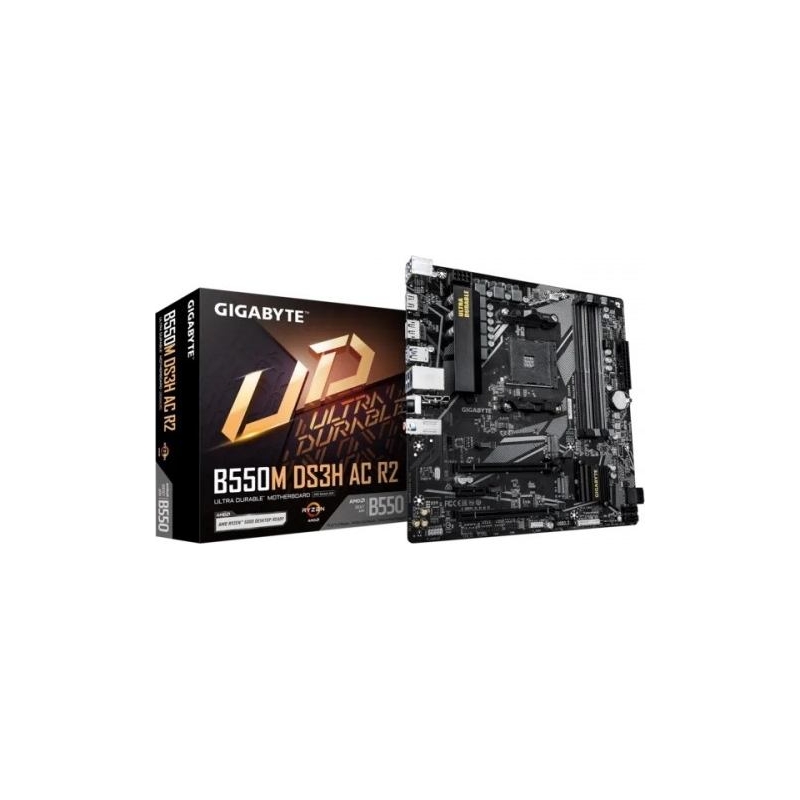

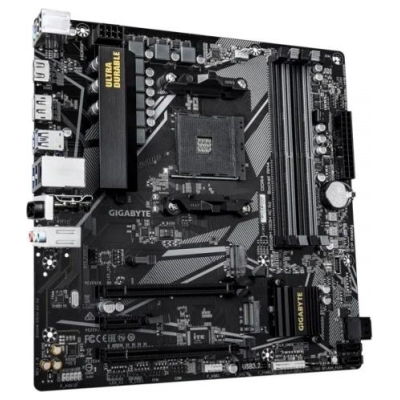

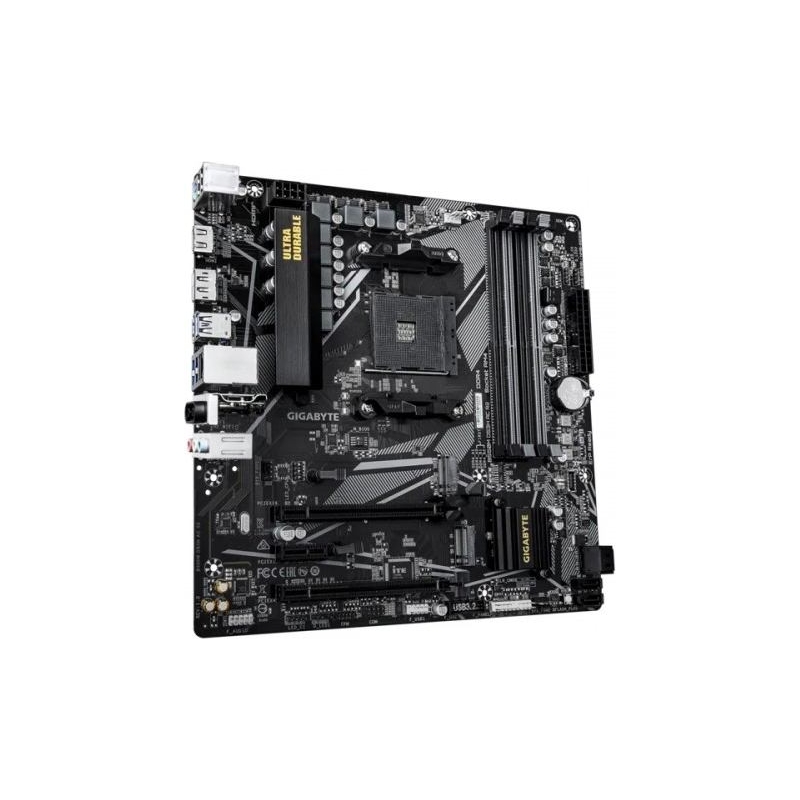

Gigabyte B550M DS3H AC R2 AM4 4DDR4 HDMI/DVI mATX
- Write a review
€122.76
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
- SKU
- KBGBAAA7B550U04
- Barcode
- 4719331869908
- CPU socket
- Socket AM4
- Processor family
- AMD Ryzen
- Integrated CPU
- No
- Chipset manufacturer
- AMD
- Chipset type
- AMD B550
- Memory type
- DDR4
- Number of DDR4 slots
- 4
- Memory bus frequency
- 2133 MHz
- Memory bus frequency
- 2667 MHz
- Memory bus frequency
- 2933 MHz
- Memory bus frequency
- 2400 MHz
- Memory bus frequency
- 3200 MHz
- Max memory size
- 128
- Expansion slots
- 1 x PCIe 3.0 x 16
- Expansion slots
- 1 x PCIe 4.0 x 16
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- 1 M.2 connector (M2A_CPU), integrated into the processor, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen 5000/3000 series processors support SATA and PCIe 4.0 x4/x2 SSDs. AMD Ryzen 5000 G/4000 G/3000 G series processors support SATA and PCIe 3.0 x4/x2 SSDs. 1 M.2 connector (M2B_SB), integrated into the chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs.
- Graphics
- Integrated graphics processor, AMD Radeon graphics card support 1 x DisplayPort, supporting a maximum resolution of 5120 x 2880 at 60 Hz Supports DisplayPort version 1.4, HDCP 2.3, and HDR. 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 at 60 Hz
- Sound card
- Realtek ALC1220 codec The rear panel output port supports DSD audio. High Definition Audio Support 2/4/5.1/7.1 audio channels
- Network interface
- 1 x 10/100/1000 Mbit/s
- Network interface
- Wi-Fi 802.11a/b/g/n/ac
- Network interface
- Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps). Wi-Fi 802.11 a, b, g, n, ac, dual-band 2.4/5 GHz support Bluetooth 5.0 11ac wireless standard support Realtek Wi-Fi RTL8821CE
- USB ports at back panel
- 6
- USB ports on motherboard
- 5
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 4
- FireWire (IEEE 1394)
- No
- COM connector / port
- Yes
- LPT connector / port
- No

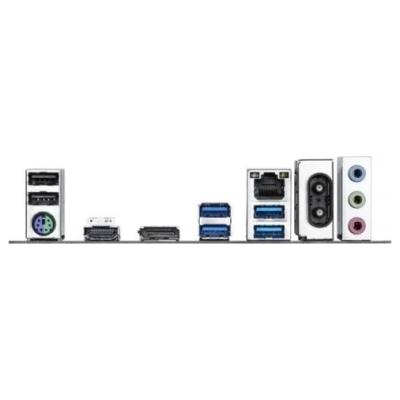

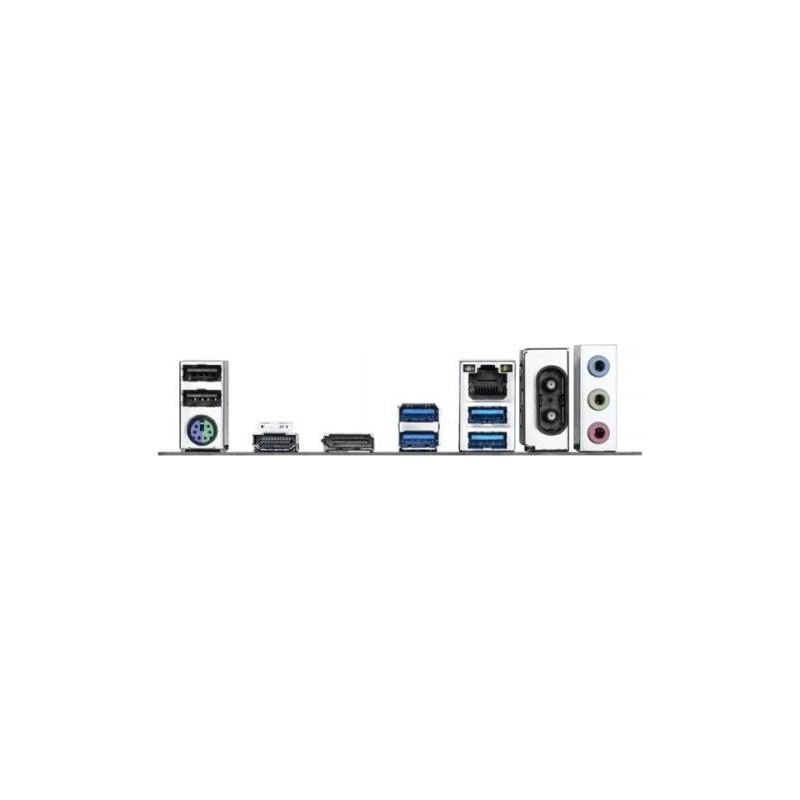

- External connectors
- 2 x SMA
- External connectors
- 2 x USB 2.0
- External connectors
- 4 x USB 3.0
- External connectors
- 1 x PS/2 Keyboard/MouseCombo
- External connectors
- 1 x DisplayPort
- External connectors
- 1 x HDMI
- External connectors
- 1 x Line In
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 1 x RJ-45
- Onboard connectors
- 1 x Clear CMOS jumper
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x Q-Flash Plus button
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 2 x M.2
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 1 x USB 2.0/1.1 header
- Onboard connectors
- 1 x USB 3.2 Gen 1 Type-A
- Onboard connectors
- 1 x USB C
- Onboard connectors
- 1 x System panel header
- BIOS
- 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Form factor
- micro ATX
- Dimensions
- 24.4 x 17.4 cm
- Supported operating systems
- Windows 11
- Supported operating systems
- Windows 10
- Software
- Norton Internet Security (wersja OEM) LAN bandwidth management software
- Designation
- CE+WEEE
B550M DS3H AC R2
30 Items
Specific References
- EAN13
- 4719331869908
- MPN
- B550M DS3H AC R2
