Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Ultra Processors (Series 2)* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Graphics
1 x DisplayPort 1 x HDMI port
Sound card
Realtek 7.1 Surround Sound High Definition Audio CODEC*: Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Features: Audio Shielding Premium audio capacitors Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
1 x Realtek 2.5Gb Ethernet ASUS LANGuard
USB ports at back panel
6
USB ports on motherboard
7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
1
FireWire (IEEE 1394)
No
COM connector / port
Yes
LPT connector / port
No
External connectors
2 x USB 3.2 Gen 1 Type-A
External connectors
1 x USB 3.2 Gen 2 Type-A
External connectors
1 x Line In
External connectors
1 x HDMI
External connectors
1 x DisplayPort
External connectors
1 x MIC
External connectors
1 x RJ-45
External connectors
3 x USB 2.0
External connectors
1 x Line Out
External connectors
1 x PS/2 Keyboard/MouseCombo
Onboard connectors
2 x Addressable LED
Onboard connectors
1 x USB 3.2 Gen 1 Type-C
Onboard connectors
1 x Serial port header
Onboard connectors
1 x TPM header
Onboard connectors
1 x System panel header
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x Clear CMOS button
Onboard connectors
1 x RGB LED strip header
Onboard connectors
2 x USB 3.2 Gen 1 Type-A
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
2 x 4pin Chassis fan
Onboard connectors
1 x 8pin 12V power
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
2 x M.2
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
4 x USB 2.0/1.1
BIOS
256(128+128) Mb Flash ROM, UEFI AMI BIOS
Form factor
micro ATX
Dimensions
24.4 x 22.2 cm
Accessories included

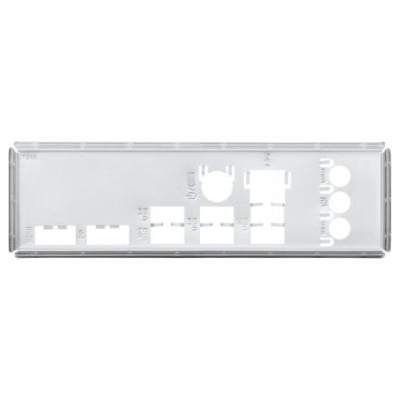

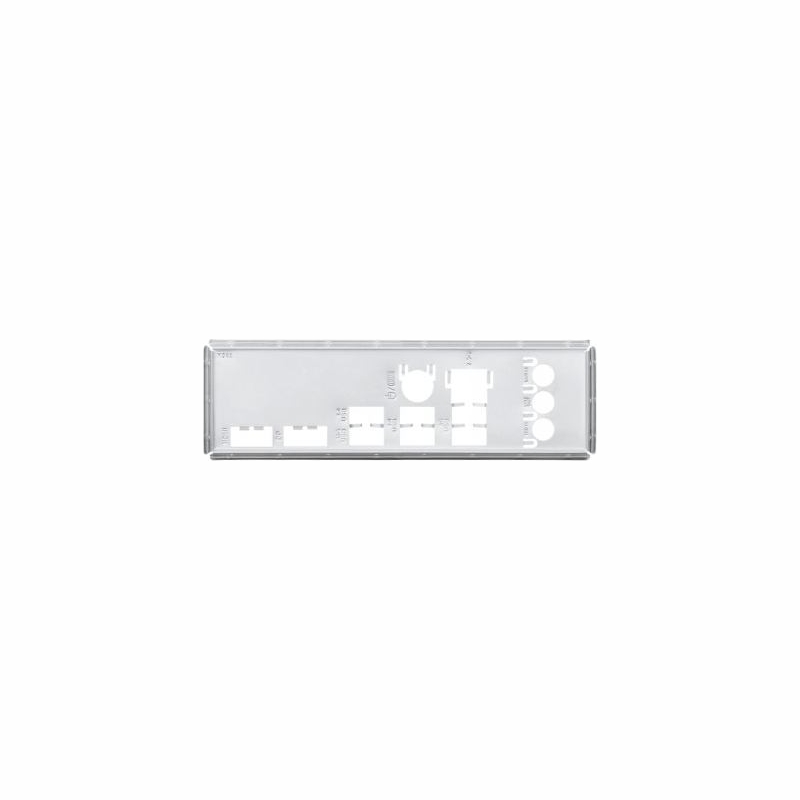

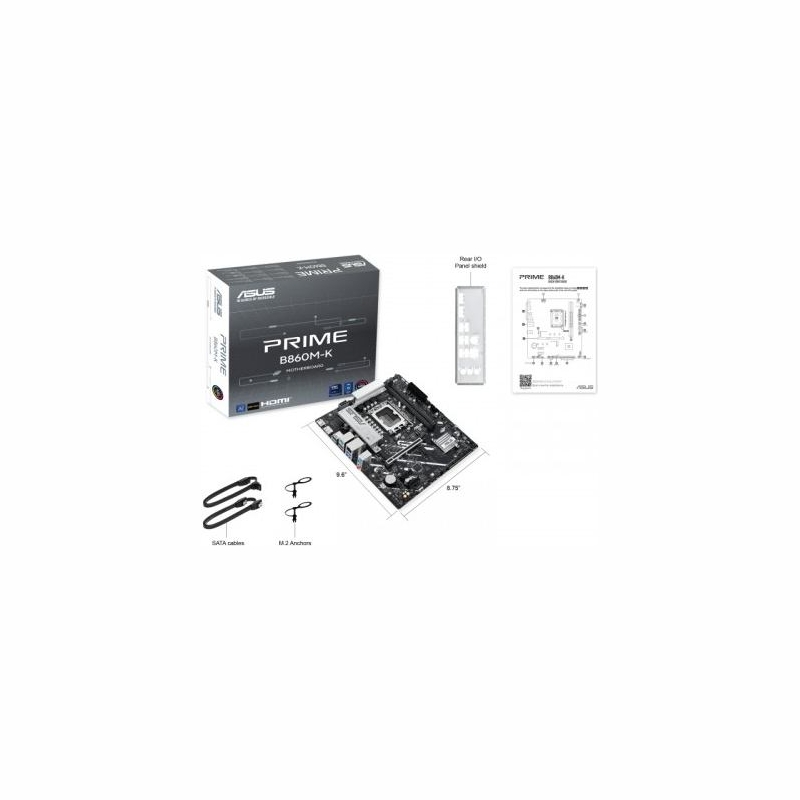

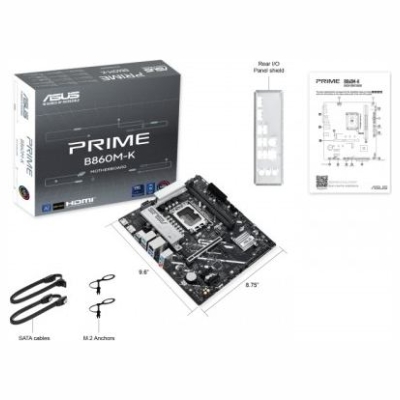

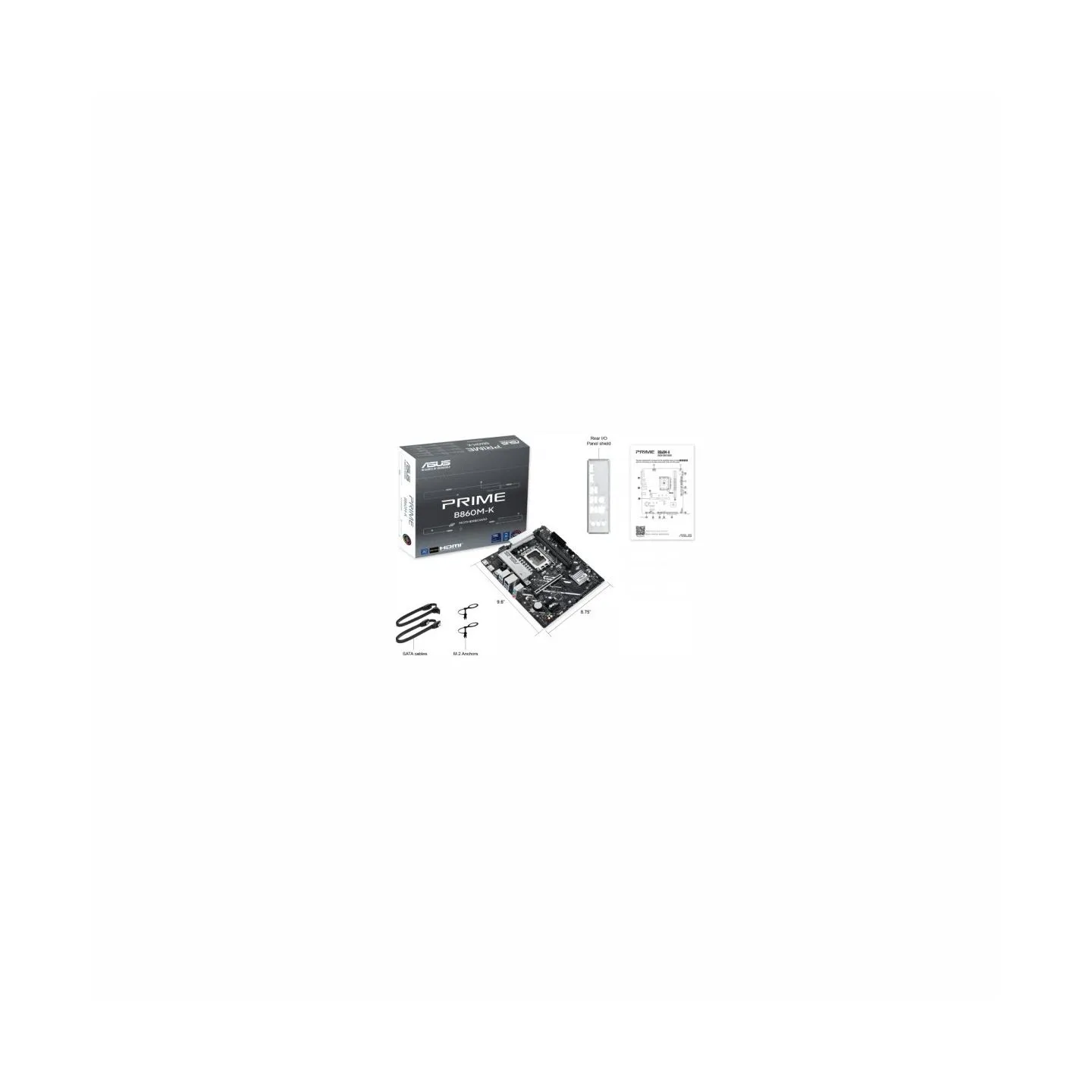

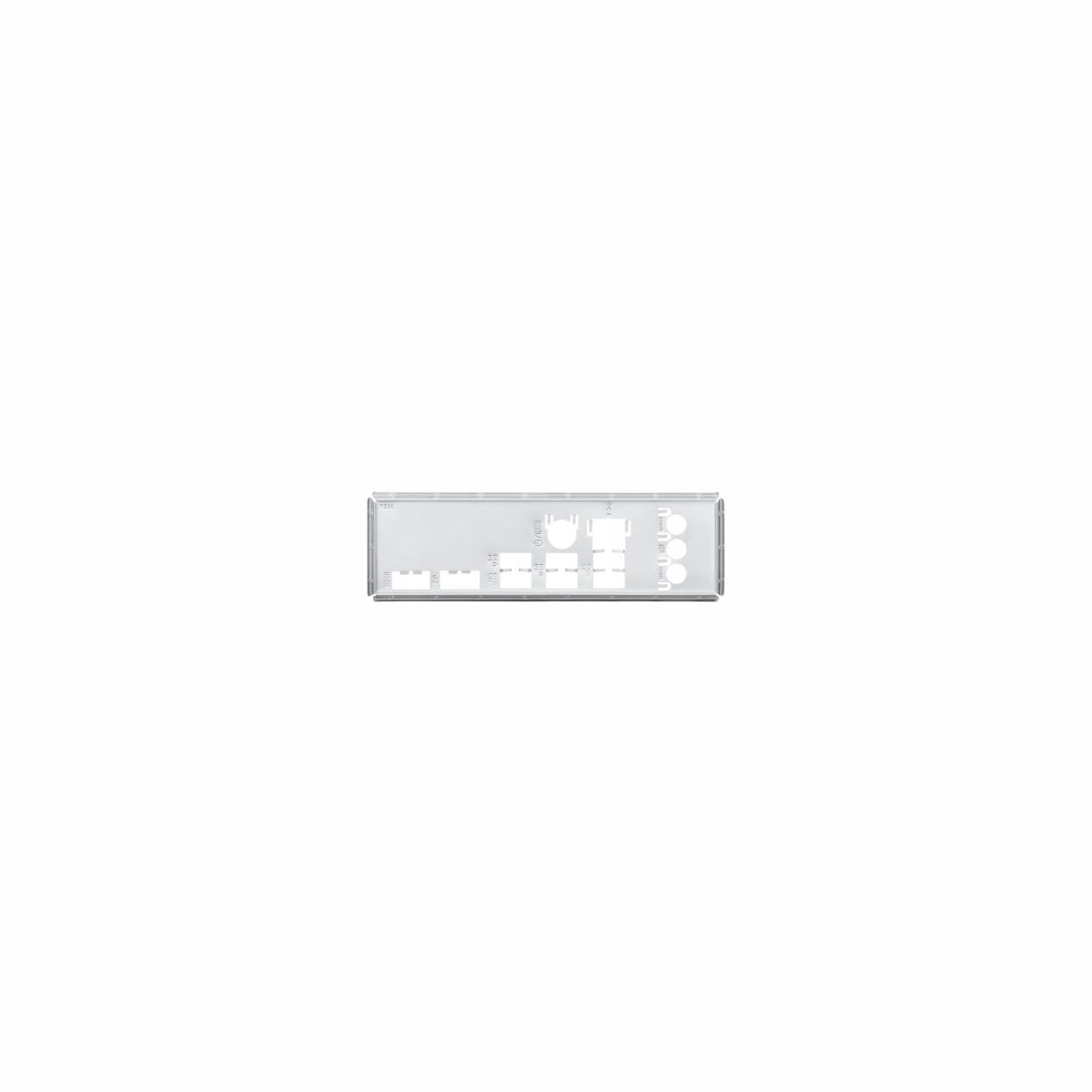

2 x SATA 6Gb/s cable I/O Shield M.2 anchor package Quick start guide
