1 x M.2 (M2B_SB), integrated in the chipset, supporting Socket 3, M Key, 2242/2260/2280 SSDs: Support for SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the chipset: Support for RAID 0, RAID 1 and RAID 10 1 x M.2 (M2A_CPU), integrated into the CPU, supporting Socket 3, M Key, 2242/2260/2280/22110 SSDs: AMD Ryzen 5000 series and Ryzen 3000 series processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen Ryzen 5000 G-Series and Ryzen 4000 G-Series processors support SATA and PCIe 3.0 x4/x2 SSDs
Graphics
1 x DVI-D port supporting a maximum resolution of 1920x1200 @ 60Hz The DVI-D port does not support D-Sub connection via an adapter. 1 x HDMI port supporting a maximum resolution of 4096x2160 @ 60Hz Supports HDMI 2.1, HDCP 2.3 and HDR.
Sound card
Realtek audio codec Support for High Definition Audio Number of audio channels 2/4/5.1/7.1
Network interface
1 x 10/100/1000 Mbit/s
Network interface
Realtek GbE LAN chip (10/100/1000 Mbit)
USB ports at back panel
8
USB ports on motherboard
4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
4
FireWire (IEEE 1394)
No
COM connector / port
Yes
LPT connector / port
No

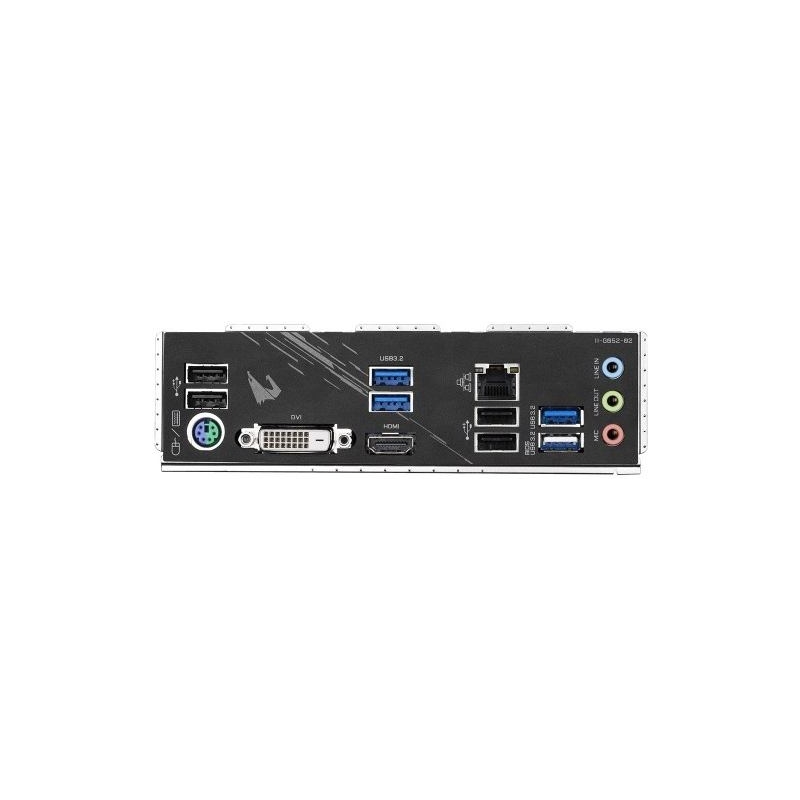

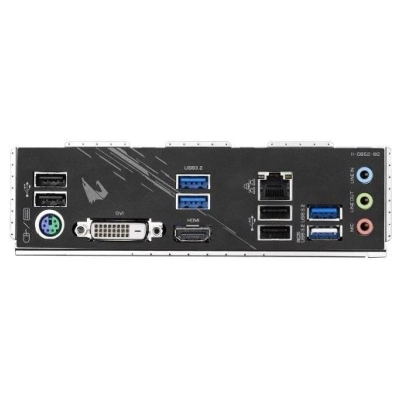

External connectors
1 x PS/2 Keyboard/MouseCombo
External connectors
4 x USB 2.0
External connectors
4 x USB 3.0
External connectors
1 x DVI-D
External connectors
1 x HDMI
External connectors
1 x Line In
External connectors
1 x Line Out
External connectors
1 x MIC
External connectors
1 x RJ-45
Onboard connectors
1 x Clear CMOS jumper
Onboard connectors
1 x System panel header
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x Serial port header
Onboard connectors
1 x TPM header
Onboard connectors
1 x 8pin 12V power
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
2 x M.2
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
1 x USB 2.0/1.1 header
Onboard connectors
1 x USB 3.0 header
Onboard connectors
1 x Q-Flash Plus button
Onboard connectors
1 x 4pin CPU fan
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
micro ATX
Dimensions
24.4 x 17.4 cm
Supported operating systems
Windows 11
Supported operating systems
Windows 10
Software
Norton Internet Security (OEM version) LAN bandwidth management software
