Expansion Slot 1 x PCI Express x16 slot (PCIEX16), integrated with the processor AMD Ryzen 9000/7000 Series processors support PCIe 5.0 x16 mode AMD Ryzen 8000-Phoenix 1 Series processors support PCIe 4.0 x8 mode AMD Ryzen 8000-Phoenix 2 Series processors support PCIe 4.0 x4 mode (The PCIEX16 slot can only support a graphics card or NVMe SSD. If only one graphics card is installed, it must be installed in the PCIEX16 slot.) Chipset 2 x PCI Express x16 slots, supporting PCIe 3.0 and operating at x1 speed (PCIEX1_1/2) SATA Connectors 1 x M.2 connector (M2A_CPU), integrated with the processor, supporting Socket 3, M Key, Type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs. AMD Ryzen 8000-Phoenix 1 Series Processors support PCIe 4.0 x4/x2 SSDs. AMD Ryzen 8000-Phoenix 2 Series Processors support PCIe 4.0 x4/x2 SSDs. 1 M.2 connector (M2C_SB), integrated into the chipset, supports Socket 3, M Key, Type 25110/22110/2580/2280 PCIe 4.0 x2. 1 M.2 connector (M2B_SB), integrated into the chipset, supports Socket 3, M Key, Type 25110/22110/2580/2280 PCIe 4.0 Drives. SSD x4/x2 * The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2C_SB connector becomes unavailable when a PCIe 4.0 x4 SSD is installed in the M2B_SB connector. 4 x SATA 6 Gb/s connectors Supports RAID 0, RAID 1, RAID 5, and RAID 10 for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 series processors. Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Graphics
Integrated graphics processor with AMD Radeon Graphics support + ASMedia USB4 controller 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz Supports DisplayPort 1.4 and HDR.Integrated graphics processor - AMD Radeon Graphics support 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Supports HDMI 2.1, HDCP 2.3, and HDR.** Supports native HDMI 2.1 TMDS-compliant ports.(Graphics specifications may vary depending on processor support.)
Sound card
Realtek audio codec High Definition Audio Support 2/4/5.1/7.1 audio channels *Audio jack functionality can be changed using your audio software. To configure 7.1-channel audio, you must access your audio software's audio settings.
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax
Network interface
Bluetooth
Network interface
LAN Realtek 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication Module Realtek Wi-Fi 6 RTL8851BE (PCB rev. 1.0) Wi-Fi a, b, g, n, ac, and ax, supporting 2.4/5 GHz carrier frequency bands BLUETOOTH 5.3 Supports the 11ax 80MHz wireless standard (Actual data transfer rate may vary depending on environment and hardware.)
USB ports at back panel
10
USB ports on motherboard
11
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
4
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No

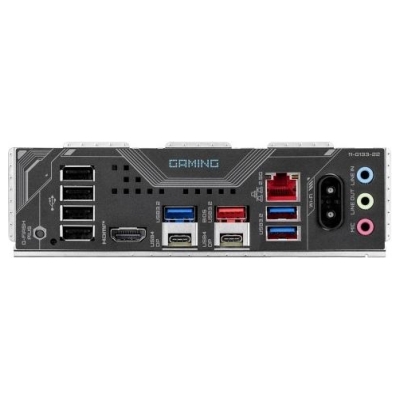

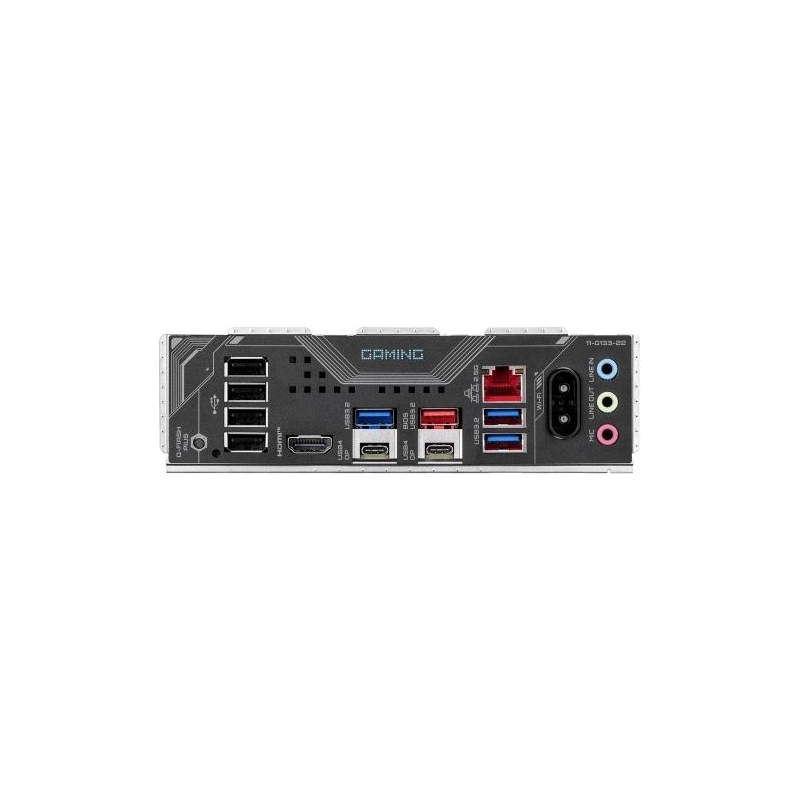

External connectors
1 x Line In
External connectors
1 x Line Out
External connectors
1 x MIC
External connectors
1 x RJ-45
External connectors
4 x USB 2.0
External connectors
3 x USB 3.2 Gen 1 Type-A
External connectors
1 x HDMI
External connectors
2 x USB4 Type-C
External connectors
2 x SMA
External connectors
1 x USB 3.2 Gen 2 Type-A
External connectors
1 x Q-Flash Plus button
Onboard connectors
1 x Reset jumper
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x USB 3.2 Gen 1 Type-A
Onboard connectors
1 x USB C
Onboard connectors
1 x TPM header
Onboard connectors
1 x System panel header
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
4 x USB 2.0/1.1
Onboard connectors
3 x M.2
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors
4 x 4pin Chassis fan
Onboard connectors
1 x 4pin 12V power
Onboard connectors
1 x RGB LED strip header
Onboard connectors
1 x Clear CMOS jumper
Onboard connectors
1 x 8pin 12V power
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
3 x Addressable LED
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
ATX
Dimensions
30.5 cm x 24.4 cm
Supported operating systems
Windows 10
Supported operating systems
Windows 11
Software
Norton Internet Security (OEM version) LAN bandwidth management software
