Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports* AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD X870 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)** M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*** M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)**** 2 x SATA 6Gb/s ports**** * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supportted by AMD Ryzen 9000 series CPU. ** PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs. *** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs. **** M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2. M.2_4 will be disabled when SATA6G_1 or SATA6G_2 runs.
Graphics
1 x HDMI port** 2 x USB4 (40Gbps) ports support USB Type-C display outputs*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1. ***Supports max. 4K@60Hz as specified in DisplayPort 1.4a. ****VGA resolution support depends on processors' or graphic cards' resolution.
Sound card
Realtek 7.1 Surround Sound High Definition Audio CODEC* Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Features Audio Shielding Premium audio capacitors Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Network interface
Bluetooth
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
1 x Realtek 2.5Gb Ethernet ASUS LANGuard Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz band, up to 2.9Gbps transfer speed. Bluetooth v5.4*** *Wi-Fi features may vary by OS For Windows 11, Wi-Fi 7 will require version 24H2 or later for full functionality, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, please note that there is no driver available, please refer to the Wi-Fi chipset vendor's website for details. ** The Wi-Fi 6GHz frequency band and bandwidth regulations may vary by country. *** Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB ports at back panel
10
USB ports on motherboard
7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
4
FireWire (IEEE 1394)
No
COM connector / port
Yes
LPT connector / port
No
External connectors
1 x MIC
External connectors
1 x Line In
External connectors
1 x USB 3.1
External connectors
4 x USB 2.0
External connectors
3 x USB 3.0
External connectors
1 x RJ-45
External connectors
1 x Line Out
External connectors
1 x 6,3 mm jack
External connectors
1 x HDMI
External connectors
2 x USB 3.1 Type-C
External connectors
1 x USB BIOS Flashback button
Onboard connectors
1 x System panel header
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors
1 x TPM header
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
1 x USB 3.0 header
Onboard connectors
1 x USB C
Onboard connectors
1 x 4pin wentylator OPT CPU
Onboard connectors
4 x 4pin Chassis fan
Onboard connectors
1 x Serial port header
Onboard connectors
1 x 8pin 12V power
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
4 x M.2
Onboard connectors
2 x SATA III 6Gb/s
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x S/PDIF Out header
Onboard connectors
1 x Clear CMOS jumper
Onboard connectors
3 x Addressable LED
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form factor
ATX
Dimensions
30.5 cm x 24.4 cm
Accessories included

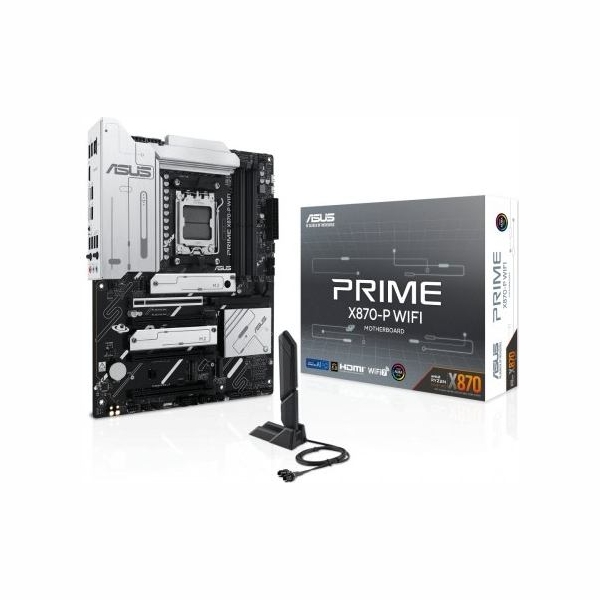

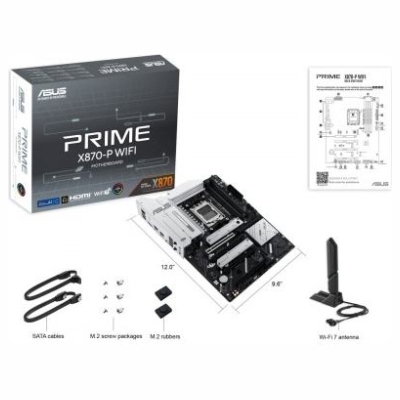

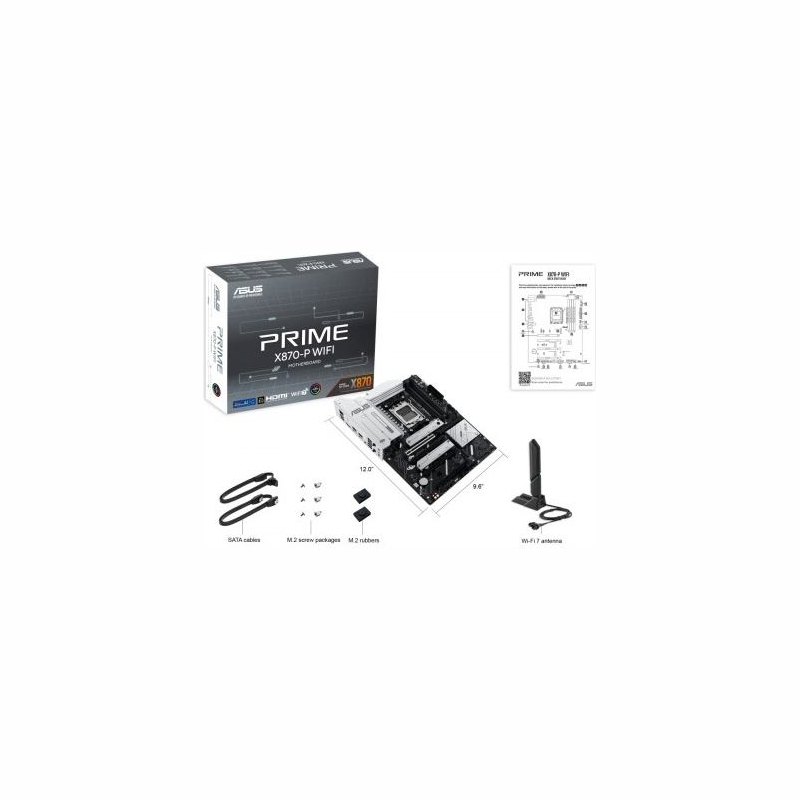

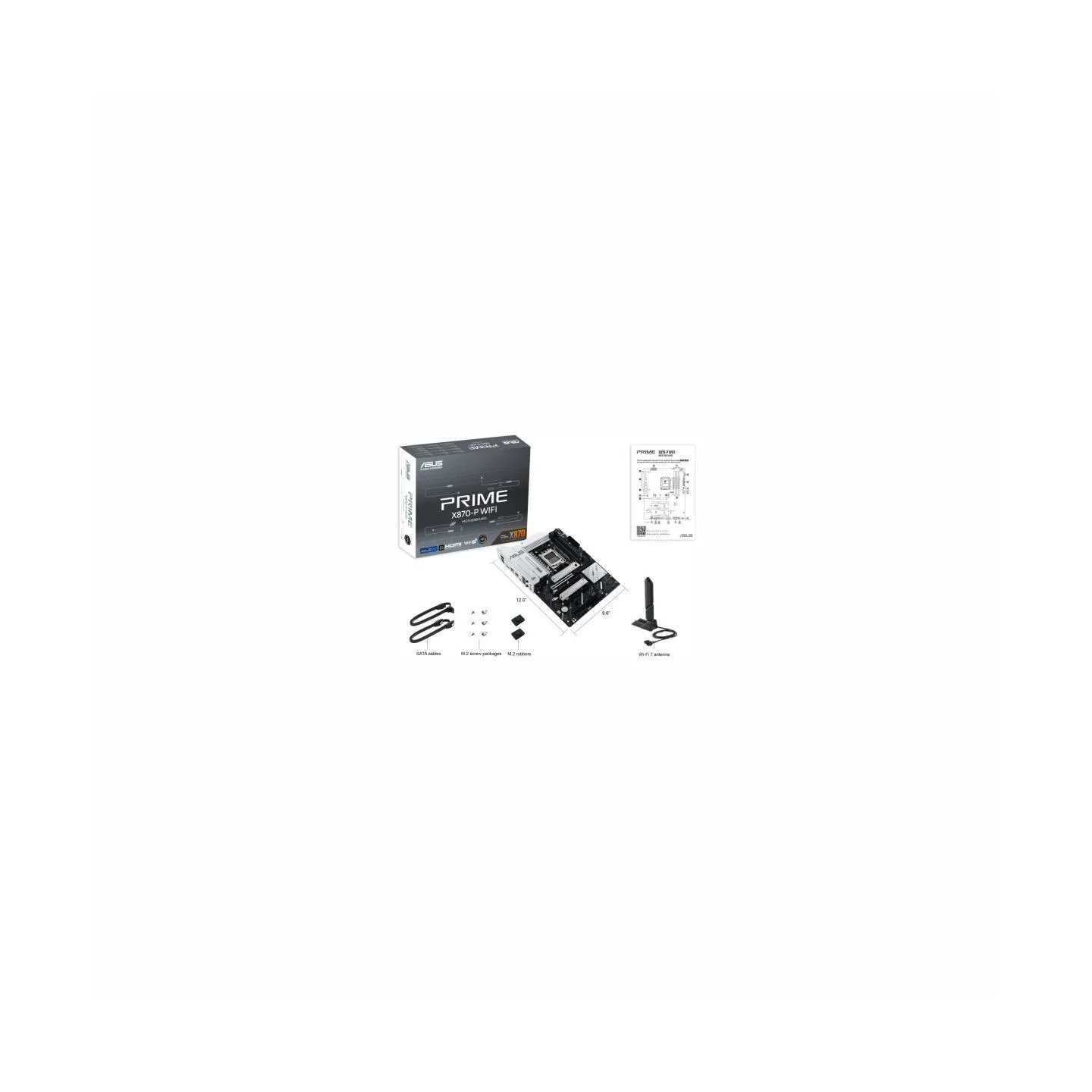

2 x SATA 6Gb/s cables 1 x ASUS WiFi Q-Antenna 1 x M.2 rubber package 2 x Screw packages for M.2 SSD 1 x Quick start guide
Supported operating systems
Windows 11
Software
ASUS Exclusive Software Armoury Crate- Aura Creator- Aura Sync- Fan Xpert 4 (with AI Cooling II)- Power Saving ASUS DriverHub ASUS GlideX TurboV Core ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode- ASUS MyHotkey
