- SKU
- KBMSIAA7B550A08
- Barcode
- 4711377376143
- Model

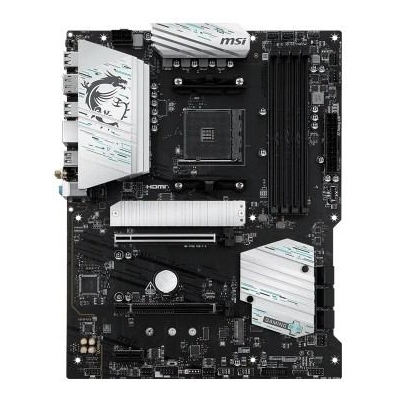

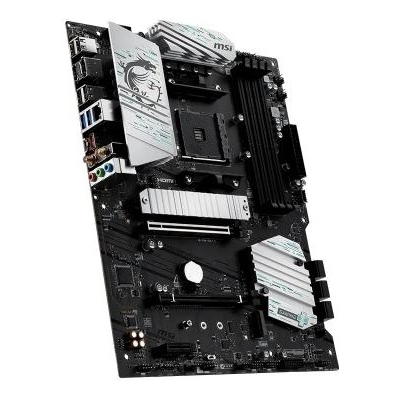

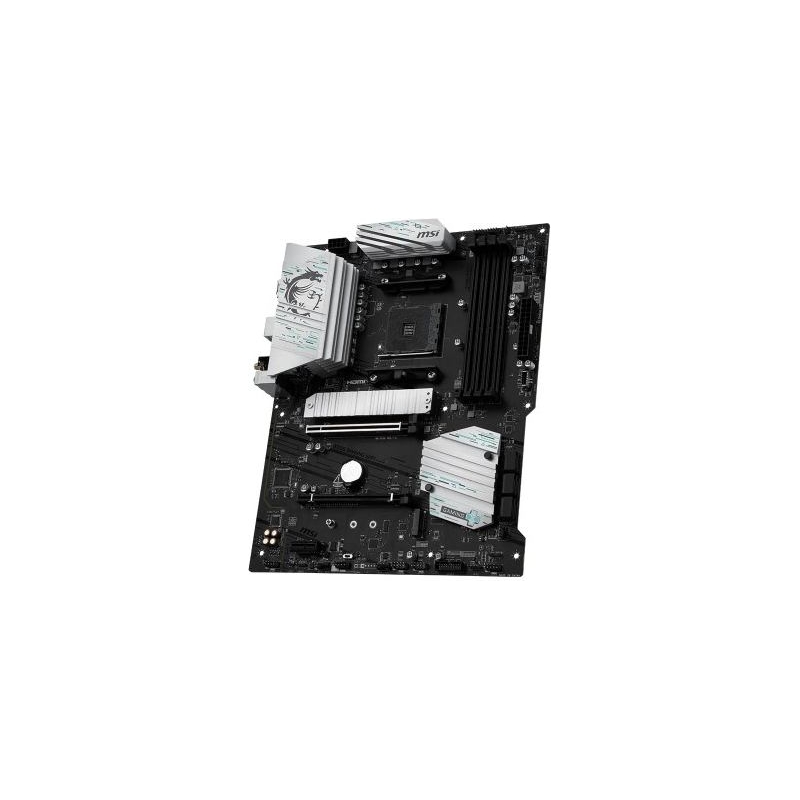

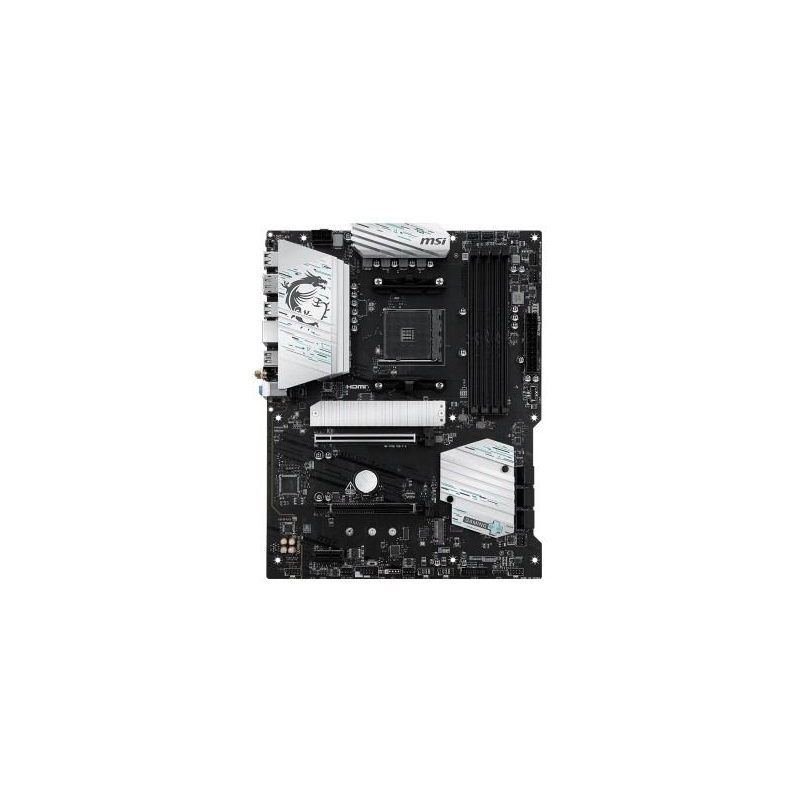

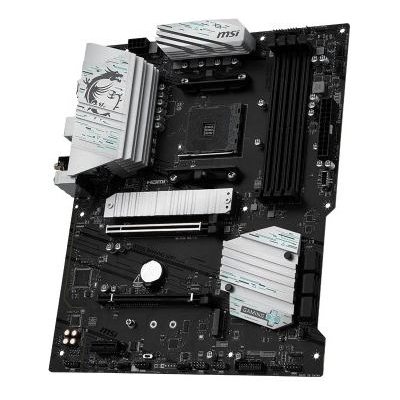

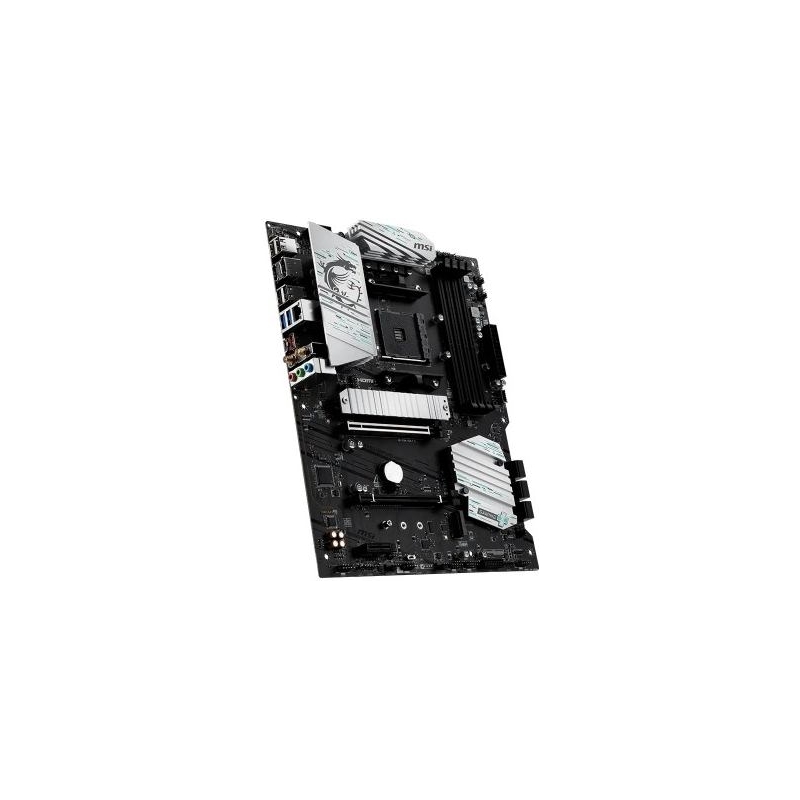

- B550 GAMING WIFI
- CPU socket
- Socket AM4
- Processor family
- AMD Ryzen
- Integrated CPU
- No
- Chipset manufacturer
- AMD
- Chipset type
- AMD B550
- Memory type
- DDR4
- Number of DDR4 slots
- 4
- Memory bus frequency
- 4533 MHz
- Memory bus frequency
- 3466 MHz
- Memory bus frequency
- 3200 MHz
- Memory bus frequency
- 4800 MHz
- Memory bus frequency
- 3866 MHz
- Memory bus frequency
- 4000 MHz
- Memory bus frequency
- 4600 MHz
- Memory bus frequency
- 2800 MHz
- Memory bus frequency
- 3000 MHz
- Memory bus frequency
- 4133 MHz
- Memory bus frequency
- 4266 MHz
- Memory bus frequency
- 4733 MHz
- Memory bus frequency
- 4866 MHz
- Memory bus frequency
- 3066 MHz
- Memory bus frequency
- 2933 MHz
- Memory bus frequency
- 3733 MHz
- Memory bus frequency
- 2667 MHz
- Memory bus frequency
- 3600 MHz
- Memory bus frequency
- 4400 MHz
- Max memory size
- 128
- Expansion slots
- 2 x PCIe x 16
- Expansion slots
- 1 x PCIe x 1
- Max. number of SATA devices
- 6
- RAID
- No
- Detailed data on disk/drive interfaces
- Storage 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280 devices 6x SATA 6G Multi-GPU AMD MULTI-GPU Support
- Graphics
- 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.2, maximum resolution of 4K 60Hz
- Sound card
- Realtek ALC897 7.1-Channel High Definition Audio
- Network interface
- 1 x 10/100/1000 Mbit/s
- Network interface
- Wi-Fi 802.11a/b/g/n/ac
- Network interface
- Bluetooth
- Network interface
- Realtek 8111H 1G LAN Wi-Fi 5 Solution Supports Bluetooth 5.0
- USB ports at back panel
- 8
- USB ports on motherboard
- 7
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 5
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 2
- FireWire (IEEE 1394)
- No
- COM connector / port
- Yes
- LPT connector / port
- No

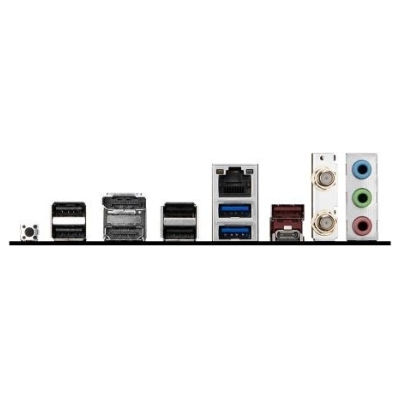

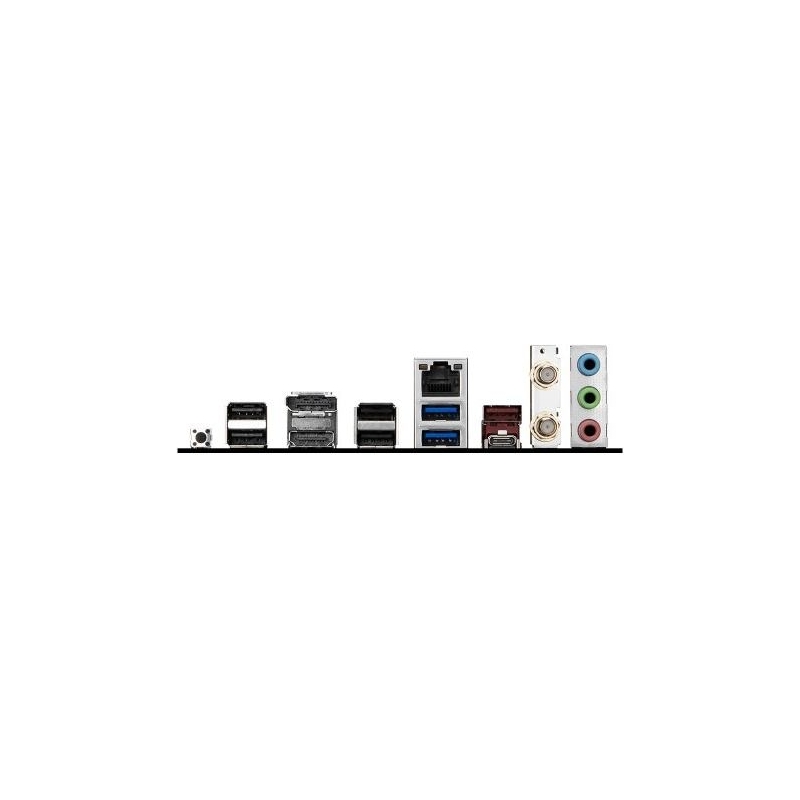

- External connectors
- 1 x DisplayPort
- External connectors
- 1 x MIC
- External connectors
- 1 x Line In
- External connectors
- 1 x Line Out
- External connectors
- 1 x HDMI
- External connectors
- 1 x Flash BIOS Button
- External connectors
- 1 x USB 3.2 Gen 2 Type-C
- External connectors
- 2 x USB 3.2 Gen 1 Type-A
- External connectors
- 1 x USB 3.2 Gen 2 Type-A
- External connectors
- 2 x SMA
- External connectors
- 4 x USB 2.0
- External connectors
- 1 x RJ-45
- Onboard connectors
- 1 x Chassis intrusion header
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 6 x 4pin wentylator obudowy
- Onboard connectors
- 2 x Addressable LED
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x 4pin CPU/Water Pump Fan Connector
- Onboard connectors
- 4 x USB 2.0/1.1
- Onboard connectors
- 1 x RGB LED strip header
- Onboard connectors
- 1 x Serial port header
- Onboard connectors
- 1 x USB 3.2 Gen 1 Type-A
- Onboard connectors
- 2 x System panel header
- Onboard connectors
- 4 x EZ Debug LED
- Onboard connectors
- 1 x USB 3.2 Gen 1 Type-C
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Form factor
- ATX
- Dimensions
- 243.84 mm x 304.8 mm
- Accessories included

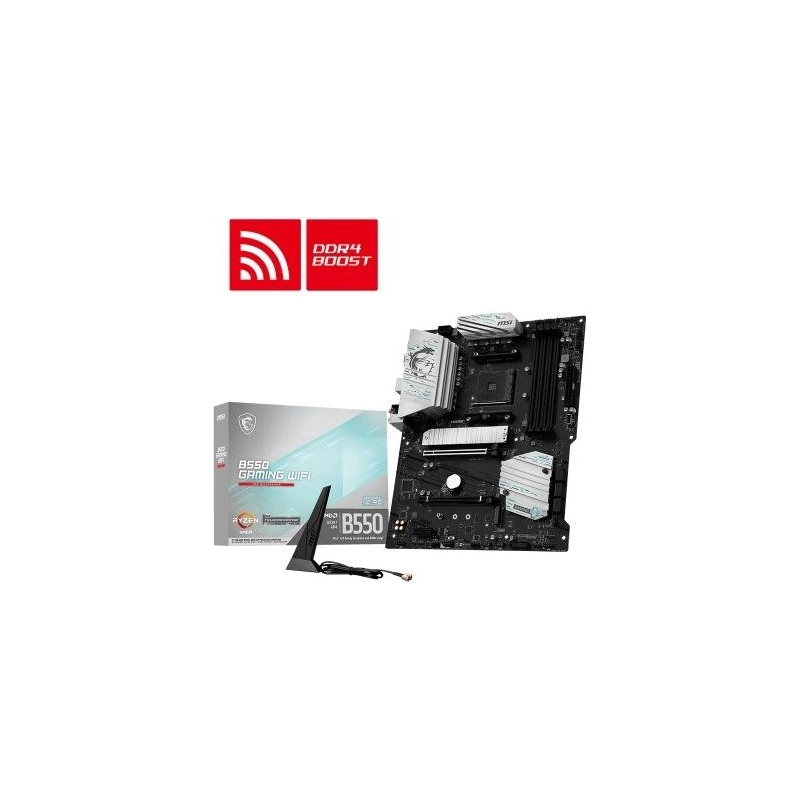

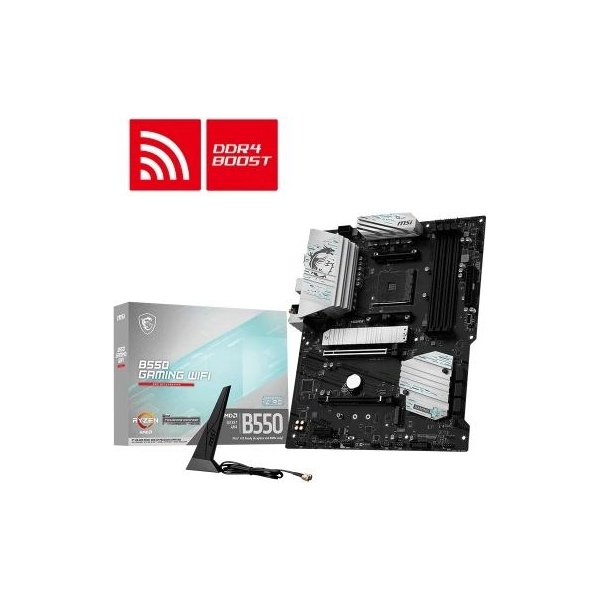

- M.2 Screw Kit I/O Panel Wi-Fi Antenna Quick Start Guide European Union Regulatory Information
- Supported operating systems
- Windows 11
- Designation
- CE+WEEE
B550 GAMING WIFI
30 Items
Specific References
- EAN13
- 4711377376143
- MPN
- B550 GAMING WIFI
