- SKU
- KBGBAIIEB760U15
- Barcode
- 4719331862848
- Model
- B760M D3HP
- CPU socket
- LGA1700
- Processor family
- Intel Celeron
- Processor family
- Intel Core
- Processor family
- Intel Pentium
- Generation
- Fourteenth
- Generation
- Thirteenth
- Generation
- Twelve
- Integrated CPU
- No
- Chipset manufacturer
- Intel
- Chipset type
- Intel B760 Express Chipset
- Memory type
- DDR4
- Number of DDR4 slots
- 4
- Memory bus frequency
- 2133 MHz
- Memory bus frequency
- 2400 MHz
- Memory bus frequency
- 2666 MHz
- Memory bus frequency
- 5000 MHz
- Memory bus frequency
- 4500 MHz
- Memory bus frequency
- 2933 MHz
- Memory bus frequency
- 3000 MHz
- Memory bus frequency
- 3200 MHz
- Memory bus frequency
- 3333 MHz
- Memory bus frequency
- 3400 MHz
- Memory bus frequency
- 3466 MHz
- Memory bus frequency
- 3600 MHz
- Memory bus frequency
- 3666 MHz
- Memory bus frequency
- 3733 MHz
- Memory bus frequency
- 3800 MHz
- Memory bus frequency
- 3866 MHz
- Memory bus frequency
- 4000 MHz
- Memory bus frequency
- 4133 MHz
- Memory bus frequency
- 4266 MHz
- Memory bus frequency
- 4300 MHz
- Memory bus frequency
- 4400 MHz
- Memory bus frequency
- 4600 MHz
- Memory bus frequency
- 4700 MHz
- Memory bus frequency
- 4800 MHz
- Memory bus frequency
- 4933 MHz
- Memory bus frequency
- 5133 MHz
- Memory bus frequency
- 5333 MHz
- Max memory size
- 128
- Expansion slots
- 1 x PCIe 4.0 x 16
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- CPU: 1 × M.2 slot (Socket 3, M key, supports 2280 PCIe 4.0 x4/x2 SSDs) (M2A_CPU) Chipset: 1 × M.2 slot (Socket 3, M key, supports 2280 PCIe 4.0 x4/x2 SSDs) (M2P_SB) 4 × SATA 6 Gb/s ports
- Graphics
- Integrated Graphics Support: Intel HD Graphics 1 × D-Sub port, supporting up to 1920×1200 @ 60 Hz 1 × HDMI port, supporting up to 4096×2160 @ 60 Hz Supports native HDMI 2.1 TMDS ports Supports HDMI 2.1 and HDCP 2.3 1 × DisplayPort, supporting up to 4096×2304 @ 60 Hz Supports DisplayPort 1.2 and HDCP 2.3
- Sound card
- Realtek audio codec High Definition Audio support Audio channels: 2/4/5.1/7.1 Supports S/PDIF Out
- Network interface
- 1 x 10/100/1000 Mbit/s
- Network interface
- Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
- USB ports at back panel
- 5
- USB ports on motherboard
- 2
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 3
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No

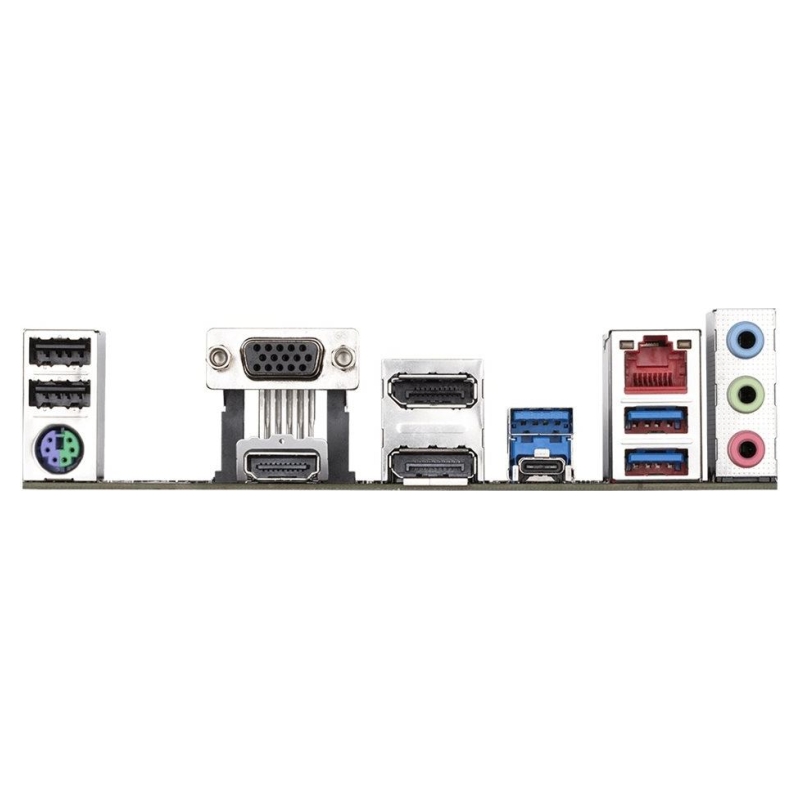

- External connectors
- 1 x RJ-45
- External connectors
- 1 x MIC
- External connectors
- 2 x USB 2.0
- External connectors
- 1 x Line In
- External connectors
- 1 x Line Out
- External connectors
- 1 x DisplayPort
- External connectors
- 1 x HDMI
- External connectors
- 1 x PS/2 Keyboard/MouseCombo
- External connectors
- 1 x D-Sub
- External connectors
- 3 x USB 3.0
- Onboard connectors
- 1 x Reset jumper
- Onboard connectors
- 1 x Q-Flash Plus button
- Onboard connectors
- 2 x M.2
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 1 x USB 3.0 header
- Onboard connectors
- 1 x USB 3.2 Gen 1 Type-C
- Onboard connectors
- 1 x Serial port header
- Onboard connectors
- 1 x Parallel port header
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x S/PDIF Out header
- Onboard connectors
- 1 x Clear CMOS jumper
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x 24pin ATX zasilanie
- BIOS
- 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Form factor
- micro ATX
- Dimensions
- 24.4 x 17.4 cm
- Supported operating systems
- Windows 10
- Supported operating systems
- Windows 11
- Software
- Norton Internet Security (wersja OEM) LAN bandwidth management software
- Designation
- CE+WEEE

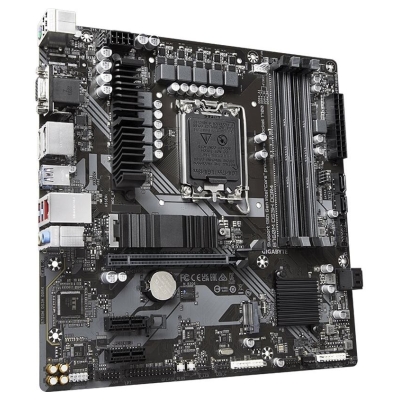

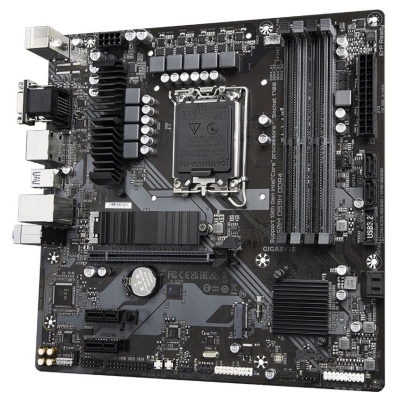

B760M D3HP DDR4
30 Items
Specific References
- EAN13
- 4719331862848
- MPN
- B760M D3HP DDR4
