Expansion Slots Intel Core Ultra Processors(series 2)* 1 x PCIe 5.0 x16 slot Intel Z890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x4 slot 2 x PCIe 4.0 x1 slots * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.Storage Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Ultra Processors(series 2) * M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel Z890 Chipset M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5.
Graphics
1 x DisplayPort**1 x HDMI port***1 x Intel Thunderbolt 4 (USB Type-C) port supports DisplayPort and Thunderbolt video output****1 x 20 Gbps USB port supports USB Type-C display output****** Graphics specifications may vary depending on processor type. For updates, please visit www.intel.com.** Supports up to 4K@60Hz as per DisplayPort 1.4 specification.*** Supports 4K@60Hz as per HDMI 2.1 specification.**** Supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8 Gbps. For supported resolutions, see DisplayPort 2.1 specification.***** Supports up to 4K@60Hz as per DisplayPort 1.4 specification. ******VGA resolution support depends on the resolution of the processors or graphics cards.
Sound card
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC Impedance sensing for front and rear headphone outputs Internal audio amplifier to enhance premium sound quality for headphones and speakers Supports: jack detection, streaming, and front panel jack remapping High-quality stereo playback output with a SNR of 120 dB and recording input with a SNR of 113 dB (line-in) Supports playback up to 32-bit/192 kHz* Audio Features Audio Shielding Rear optical S/PDIF output Premium audio capacitors Dedicated audio PCB layers Audio Cover Unique De-Pop circuit *Due to HDA bandwidth limitations, 32-bit/192 kHz is not supported for 7.1 Surround Sound.
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
Bluetooth
Network interface
Ethernet: 1 x Intel 2.5Gb Ethernet TUF LANGuard Wireless and Bluetooth Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6 GHz frequency bands** Supports Wi-Fi 7 160 MHz band, up to 2.9 Gbps transfer speeds. Bluetooth v5.4*** *Wi-Fi features may vary by operating system.For Windows 11, Wi-Fi 7 will require version 24H2 or later for full functionality. Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.For Windows 10, please note that there is no driver available; please refer to the Wi-Fi chipset vendor's website for details. **6 GHz Wi-Fi frequency band and bandwidth regulations may vary by country. ***Bluetooth version may vary; please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB ports at back panel
8
USB ports on motherboard
7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
6
FireWire (IEEE 1394)
No
COM connector / port
Yes
LPT connector / port
No

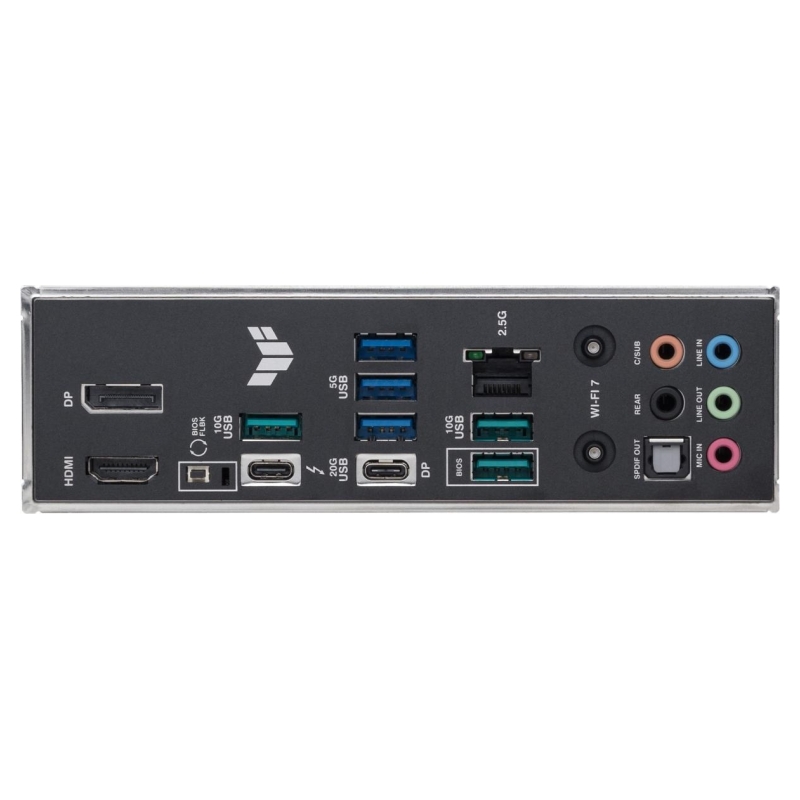

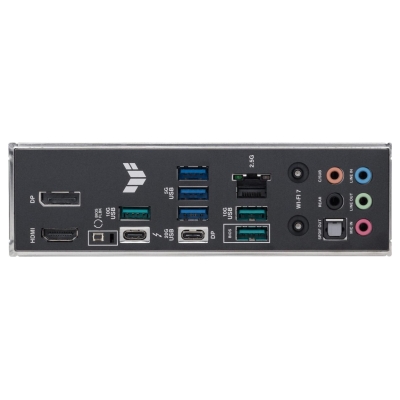

External connectors
1 x DisplayPort
External connectors
1 x USB4 Type-C
External connectors
1 x Thunderbolt 4
External connectors
1 x S/PDIF
External connectors
1 x MIC
External connectors
1 x RJ-45
External connectors
3 x USB 3.0
External connectors
3 x USB 3.1
External connectors
1 x Line Out
External connectors
1 x Rear Speaker
External connectors
1 x Line In
External connectors
1 x Central Speaker / Subwoofer
External connectors
1 x HDMI
External connectors
1 x Wi-Fi Module
External connectors
1 x USB BIOS Flashback button
Onboard connectors
1 x Thunderbolt header
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x System panel header
Onboard connectors
1 x USB C
Onboard connectors
1 x Serial port header
Onboard connectors
1 x 4-pin water-pump-fan
Onboard connectors
2 x 8pin 12V
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
4 x M.2
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
1 x USB 3.0 header
Onboard connectors
1 x 4pin wentylator OPT CPU
Onboard connectors
4 x 4pin Chassis fan
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x Chassis intrusion header
Onboard connectors
1 x Clear CMOS jumper
Onboard connectors
3 x Addressable LED
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form factor
ATX
Dimensions
30.5 cm x 24.4 cm
Accessories included

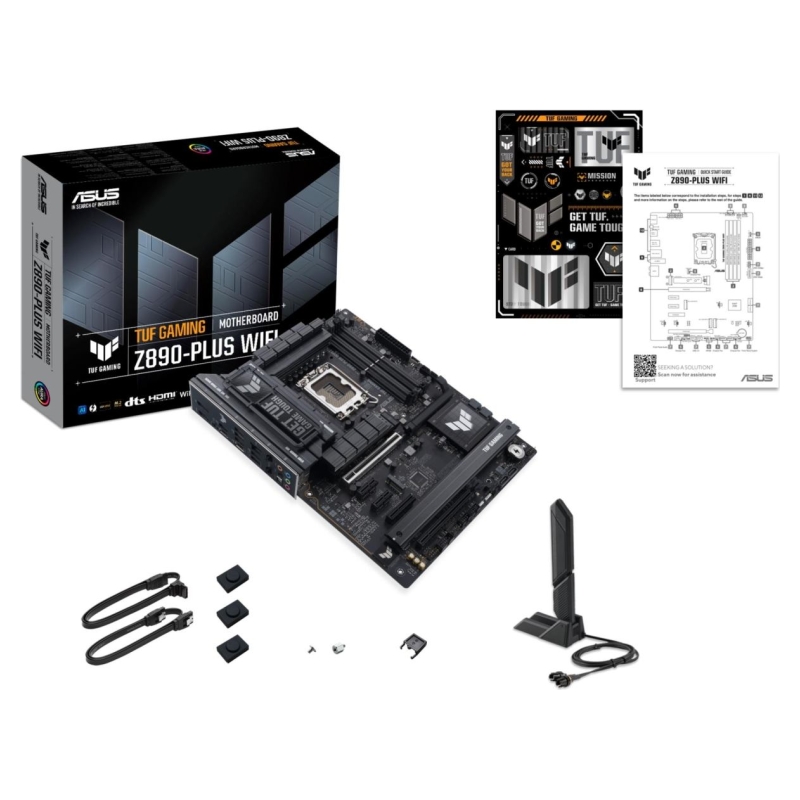

2 x SATA 6Gb/s Cable ASUS WiFi Q-Antenna M.2 Q-Slide Pack 2 x M.2 Rubber Packs M.2 SSD Screw Pack TUF GAMING Sticker Quick Start Guide
Supported operating systems
Windows 11
Software
ASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura Sync- Fan Xpert 4 (with AI Cooling II)- Power SavingASUS DriverHubASUS GlideXTurboV Core TUF GAMING CPU-ZDTS Audio ProcessingNorton 360 for Gamers (60 Days Free Trial)WinRAR (40 Days Free Trial)UEFI BIOSAI Overclocking GuideASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode- ASUS MyHotkeyFlexKeyNPU Boost
