Expansion SlotsCPU:- 1 PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)* The PCIEX16 slot only supports a graphics card or NVMe SSD. If you only want to install one graphics card, you must install it in the PCIEX16 slot.Chipset:- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 speed (PCIEX4)Storage InterfaceCPU:- 1 x M.2 connector (Socket 3, M-key, supports 2580/2280 PCIe 5.0 x4/x2 SSDs) (M2A_CPU)- 1 x M.2 connector (Socket 3, M-key, supports 2580/2280 PCIe 4.0 x4/x2 SSDs) (M2B_CPU)Chipset:- 1 x M.2 connector (Socket 3, M-key, supports 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs) (M2Q_SB)- 4 x SATA 6 Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Graphics
Integrated graphics processor - Intel HD Graphics support: 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support DisplayPort 2.1 version 1 x DisplayPort port, supporting a maximum resolution of 3840x2160@144 Hz * Support DisplayPort 2.1 version 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support HDMI 1.4 version (Graphics specifications may vary depending on CPU support.) Supports up to 3 displays simultaneously
Sound card
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * Audio jack functionality can be changed via audio software. To configure 7.1-channel audio, you must access the audio software for audio settings. S/PDIF output support
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface
Bluetooth
Network interface
LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
USB ports at back panel
10
USB ports on motherboard
6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
5
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No

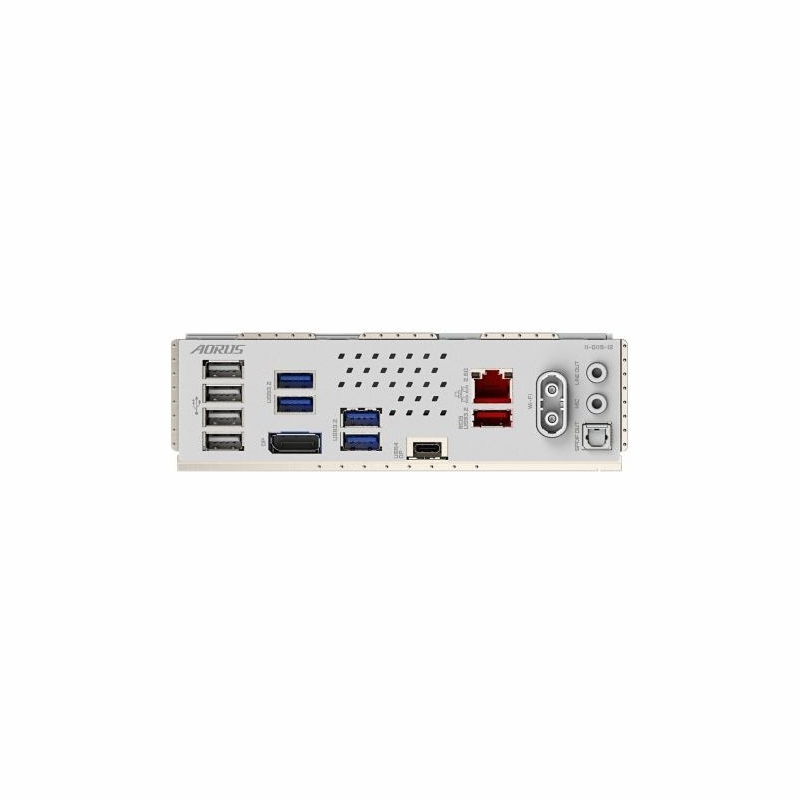

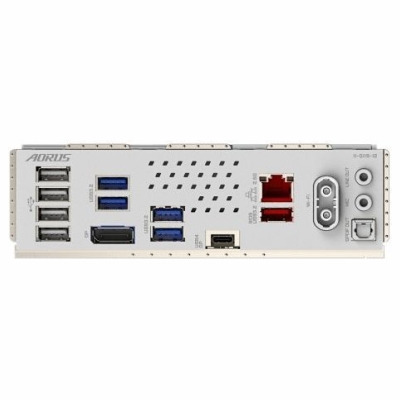

External connectors
1 x USB4 Type-C
External connectors
2 x SMA
External connectors
1 x S/PDIF
External connectors
4 x USB 2.0
External connectors
4 x USB 3.2 Gen 1 Type-A
External connectors
1 x USB 3.2 Gen 2 Type-A
External connectors
1 x MIC
External connectors
1 x DisplayPort
External connectors
1 x Line Out
External connectors
1 x RJ-45
Onboard connectors
1 x RGB LED strip header
Onboard connectors
3 x Addressable LED
Onboard connectors
1 x HDMI
Onboard connectors
2 x Thunderbolt
Onboard connectors
1 x TPM header
Onboard connectors
1 x System panel header
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x Clear CMOS jumper
Onboard connectors
1 x Power button
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors
3 x 4pin Chassis fan
Onboard connectors
1 x 4-pin water-pump-fan
Onboard connectors
2 x 8pin 12V
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
3 x M.2
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
1 x USB 3.2 Gen 1 Type-A
Onboard connectors
1 x USB 3.2 Gen 2 Type-C
Onboard connectors
1 x Reset button
Onboard connectors
1 x Reset jumper
Onboard connectors
1 x Q-Flash Plus button
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
micro ATX
Dimensions
24.4 cm x 24.4 cm
Supported operating systems
Windows 11
Software
Norton Internet Security (OEM version) LAN bandwidth management software
