Teltonika Switch|TELTONIKA|Switch type Unmanaged|Form factor DIN rail|5xRJ-45 ports|RJ-45 Ports Type Fast Ethernet (10/100)|5xFa
- Write a review
€45.38
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout

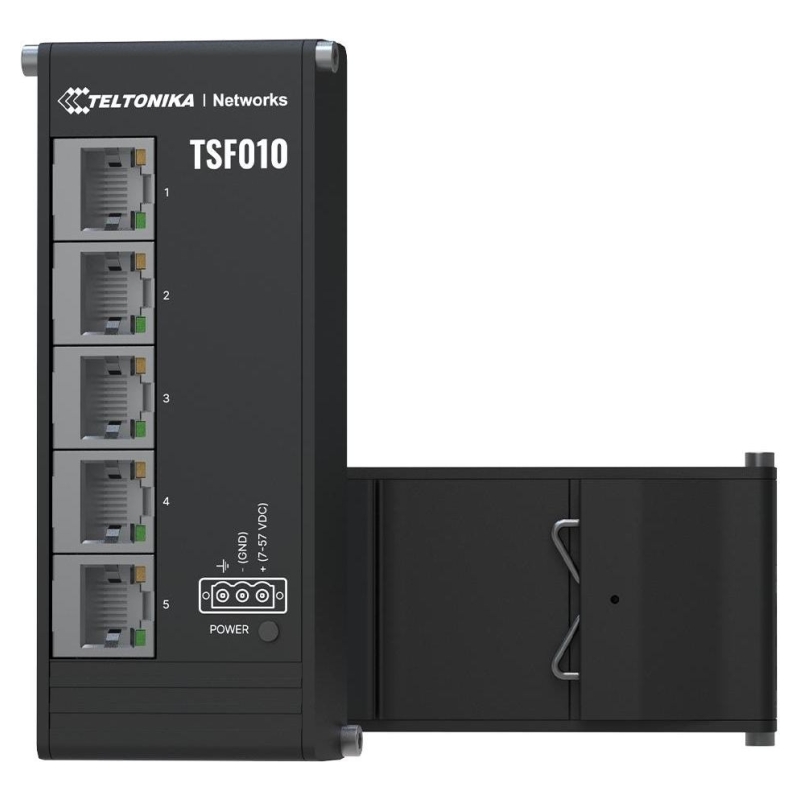

The TSF010 is an unmanaged Ethernet switch featuring a flat design and integrated DIN rail mounting for plug-and-play deployment in industrial cabinet applications. This Ethernet switch is compact and lightweight, measuring 113 x 28 x 50 mm and weighing only 142 g. Its 3-pin power input and 7-57 VDC voltage range make it a flexible unmanaged switch tailor-made for industrial use. The TSF010 is equipped with five 10/100 Mbps RJ45 ports for reliable connectivity.
- 3-PIN POWER INPUT
- Flexible and tailor-made for industrial use
- FLAT & COMPACT
- Flat and compact design weighing only 142 g
- INTEGRATED DIN RAIL BRACKET
- Easy mounting for plug-and-play deployment
- 7-57 VDC
- Suitable voltage range for industrial applications
Manufacturer Website:
https://teltonika-networks.com/products/ethernet-switches/TSF010/
- Category Code
- SWI
- CnCode
- 85176200
- Unit Box Height
- 0.031
- Unit Box Length
- 0.139
- Unit Box Width
- 0.055
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Basic switching RJ-45 Ethernet ports type
- Fast Ethernet (10/100)
- Fast Ethernet (copper) ports quantity
- 5
- 10G support
- No
- Auto MDI/MDI-X
- Yes
- Full duplex
- Yes
- Networking standards
- IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x
- Jumbo frames
- 9216
- Jumbo frames support
- Yes
- MAC address table
- 2048 entries
- Switching capacity
- 10 Gbit/s
- DIN rail mounting
- Yes
- Form factor
- DIN rail
- Housing material
- Aluminium
- International Protection (IP) code
- IP30
- Product colour
- Black
- Rack mounting
- No
- Stackable
- No
- Input voltage
- 7 - 57 V
- Power consumption (max)
- 1.5 W
- Power consumption (typical)
- 1 W
- Power source
- DC
- Power supply included
- No
- Power over Ethernet (PoE)
- No
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- -40 - 75 °C
- Depth
- 50 mm
- Height
- 28 mm
- Weight
- 142 g
- Width
- 113 mm
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.000237 cubm
- Unit Calculated Weight
- 0.15 kg
TSF010000000
12 Items
Specific References
- EAN13
- 4779051841356
- MPN
- TSF010000000
