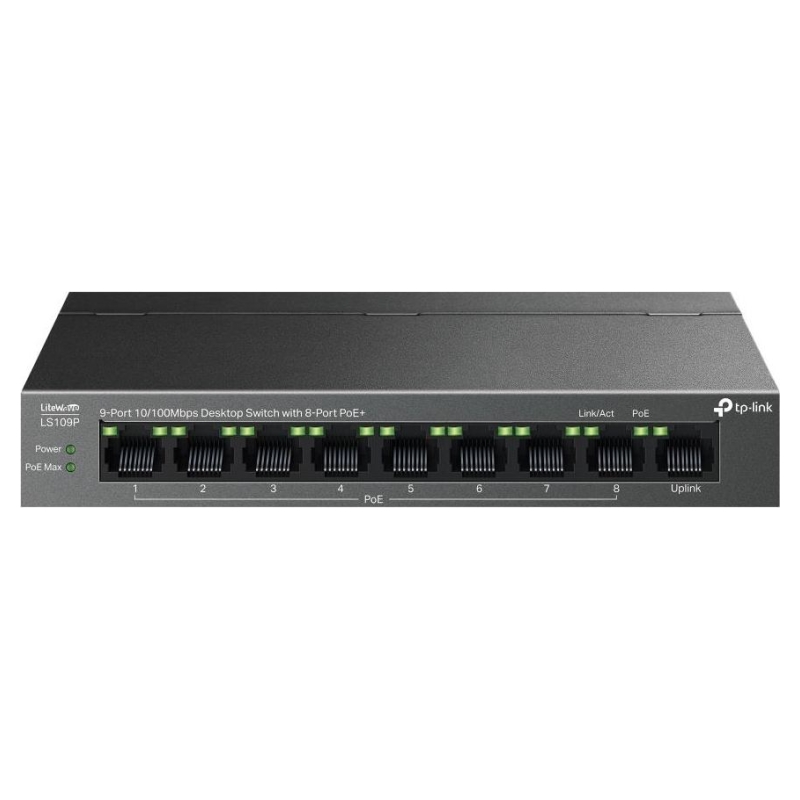

    Tp-Link Switch|TP-LINK|LS109P|PoE+ ports 8|LS109P

Tp-Link Switch|TP-LINK|LS109P|PoE+ ports 8|LS109P

€33.15
Tax included
Quantity
Add to wishlist

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

Switch de sobremesa de 9 puertos a 10/100 Mbps con 8 puertos PoE+

- 63 W de potencia PoE. 8 puertos PoE+ Gigabit compatibles con 802.3af/at alimentan fácilmente dispositivos como cámaras IP, puntos de acceso y teléfonos IP a través de un único cable. Cada puerto PoE admite hasta 30 W de salida.
- Hasta 250 m de transmisión PoE. Con el modo de extensión, la distancia de transmisión PoE alcanza hasta 250 m, ideal para el despliegue de cámaras de vigilancia en grandes áreas.
- Recuperación automática PoE. Reinicia automáticamente los dispositivos alimentados por PoE que no respondan.
- Separación de tráfico. El modo de aislamiento permite separar el tráfico de clientes con un solo clic para evitar el snooping y tampering, además de aislar el broadcast storm.
- Plug and Play. Conectividad instantánea sin necesidad de configuración.
- Funcionamiento silencioso. El diseño sin ventilador reduce el consumo de energía y garantiza un funcionamiento silencioso, ideal para hogares o empresas.
- Hardware fiable. Carcasa metálica duradera y diseño para montaje en sobremesa o pared adaptado a distintos entornos.

Alimentación a Través de Ethernet, Despliegue a Medida
Cumple con el estándar 802.3af/at PoE+, 61 W disponibles para todos los puertos PoE+, 30 W máx. por puerto.

Transmisiones de Hasta 250 m

Seguridad y Estabilidad en tu Red

Modo Aislamiento
Divide fácilmente el tráfico para evitar el snooping/tampering y broadcast storm.

Recuperación Automática PoE
Detecta y reinicia automáticamente los dispositivos que no responden.

  • 63 W de Potencia PoE
  • PoE+ de Largo Alcance (250 m)
  • Gestión Inteligente de Energía
  • Recuperación Automática PoE
  • Montaje de Sobremesa o en Pared
  • Plug and Play
  • Funcionamiento Silencioso
  • Carcasa de Metal



Manufacturer Website:
https://www.tp-link.com/es/business-networking/soho-switch-poe/ls109p/#highlights

Summary
TP-Link LiteWave LS109P. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 9. MAC address table: 2000 entries, Switching capacity: 1.8 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 53.5 V. Power over Ethernet (PoE). Wall mountable
Category Code
SWI
CnCode
85176200
Unit Box Height
0.225
Unit Box Length
0.28
Unit Box Width
0.07
Quality of Service (QoS) support
Yes
Switch type
Unmanaged
Basic switching RJ-45 Ethernet ports quantity
9
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
10G support
No
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Cable types supported
Cat3/Cat4/Cat5/Cat5e
Copper ethernet cabling technology
100BASE-TX/10BASE-T
Flow control support
Yes
Networking standards
IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
Forwarding rate
1.3392 Mpps
Jumbo frames support
Yes
MAC address table
2000 entries
Store-and-forward
Yes
Switching capacity
1.8 Gbit/s
LED indicators
Yes
Number of fans
0 fan(s)
Product colour
Black
Wall mountable
Yes
Fanless
Yes
AC input frequency
50 Hz
AC input voltage
220 V
DC input voltage
53.5 V
Input current
1.31 A
Power consumption (max)
73.24 W
Power source
DC/PoE
Power supply included
Yes
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
8
Heat dissipation
249 BTU/h
Operating relative humidity (H-H)
10 - 90 %
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
5 - 90 %
Storage temperature (T-T)
-40 - 70 °C
Depth
98 mm
Height
27 mm
Width
171 mm
User guide
Yes
Package type
Box
Certification
CE, FCC, RoHS
Model
TP-LINK LS109P
Model name
LS109P
Units per Shipping Box
12
Unit Calculated Volume
0.00518 cubm
Unit Calculated Weight
0.9 kg
LS109P
6 Items

Specific References

EAN13
4895252504620
MPN
LS109P
New
