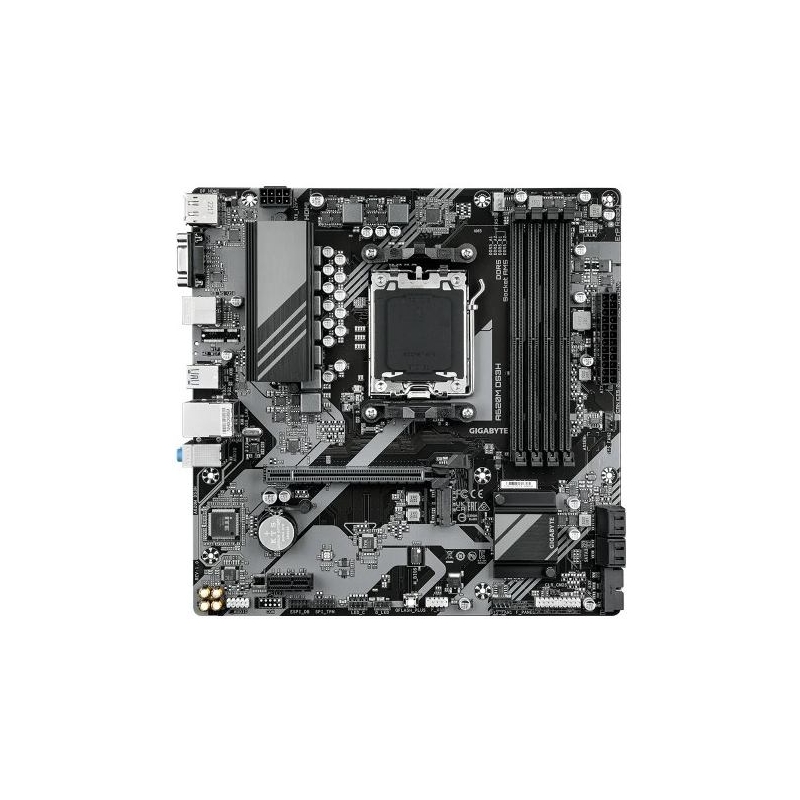

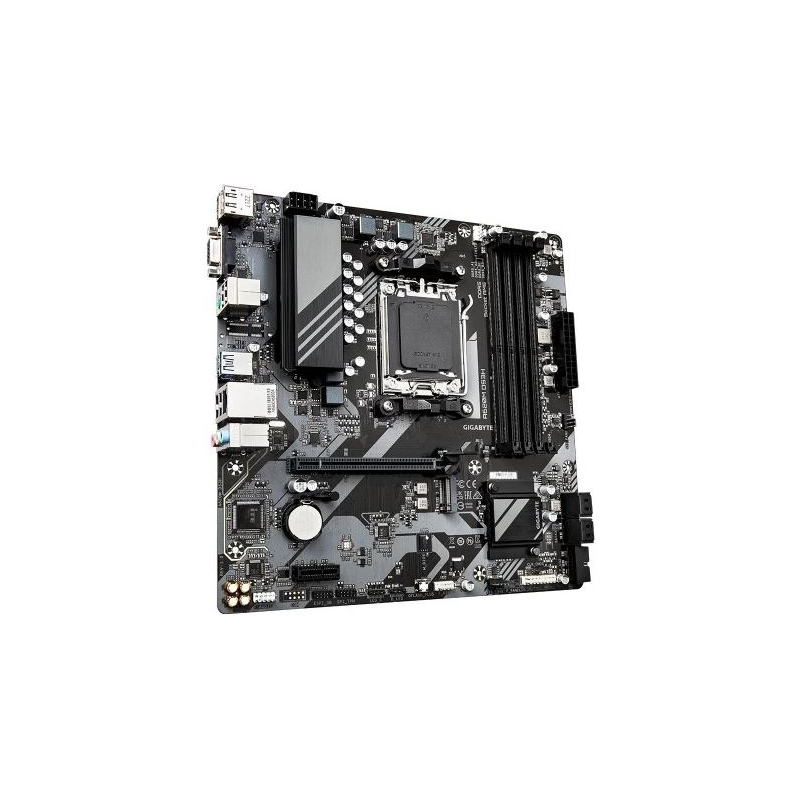

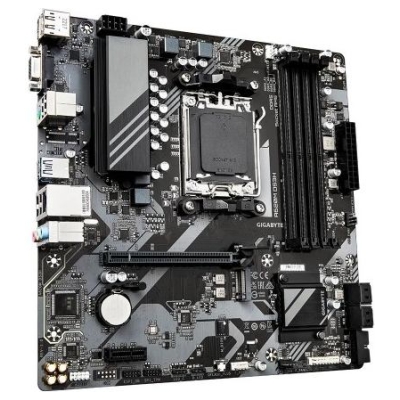

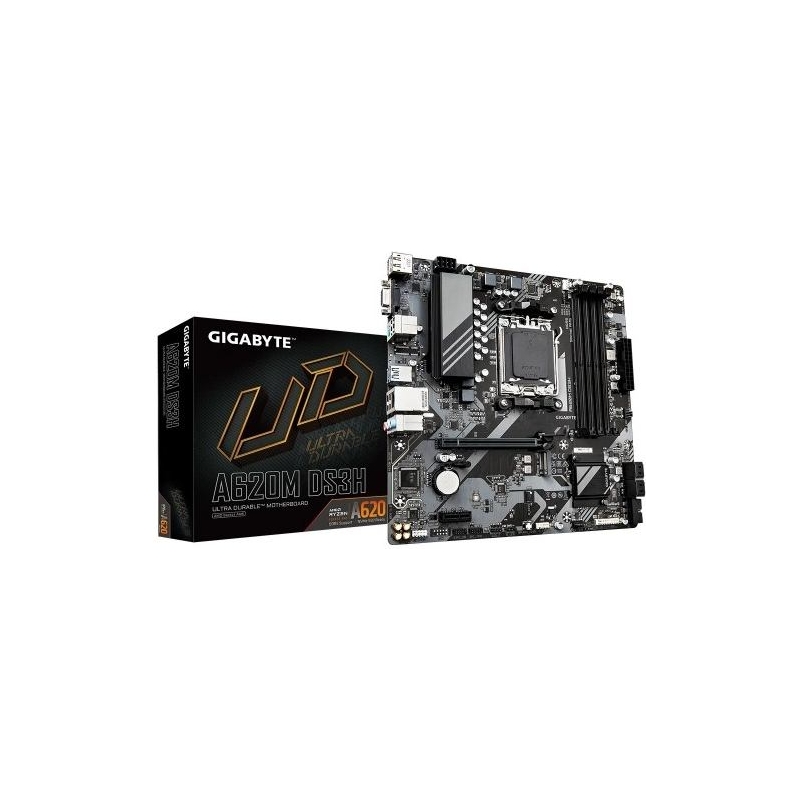

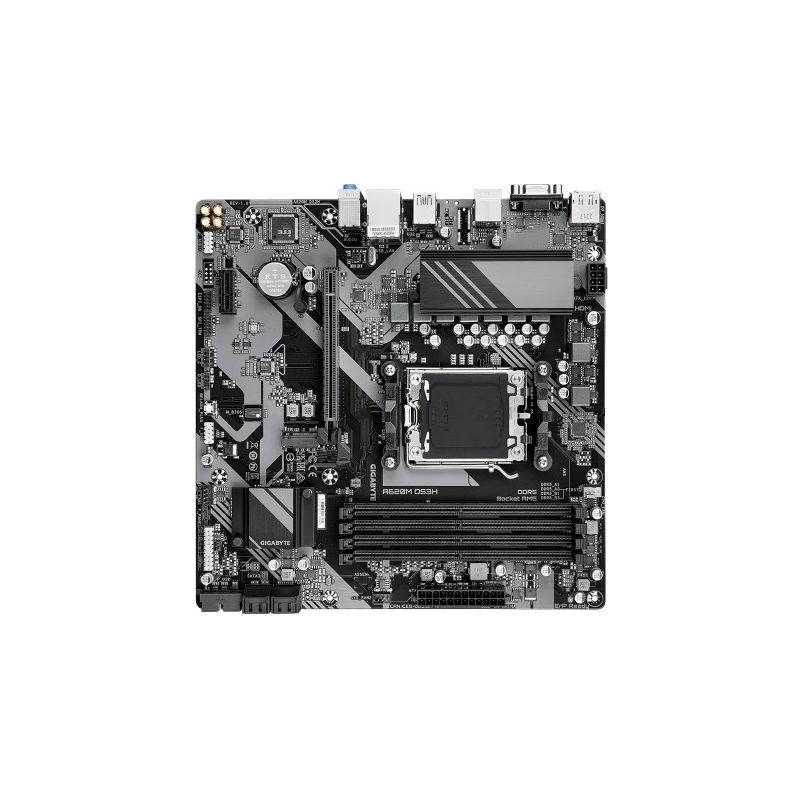

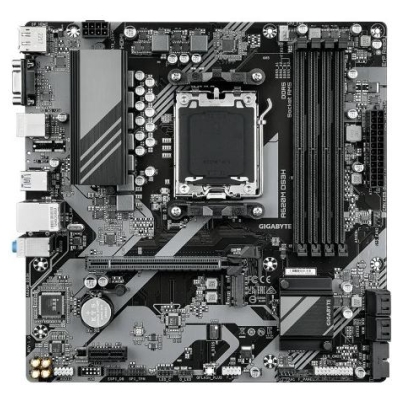

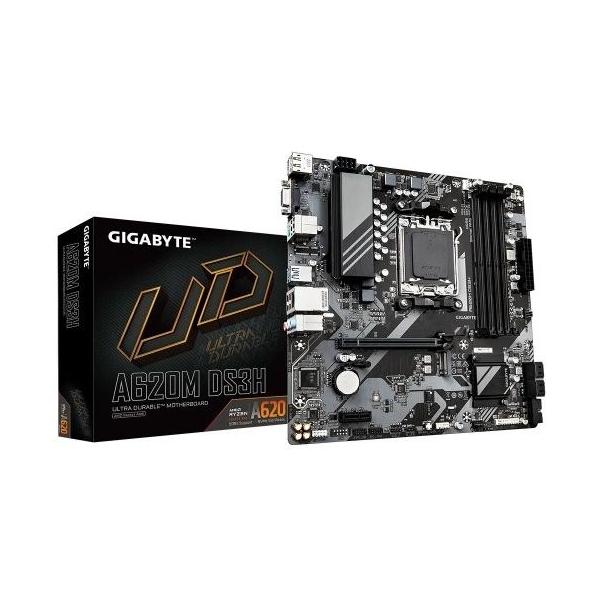

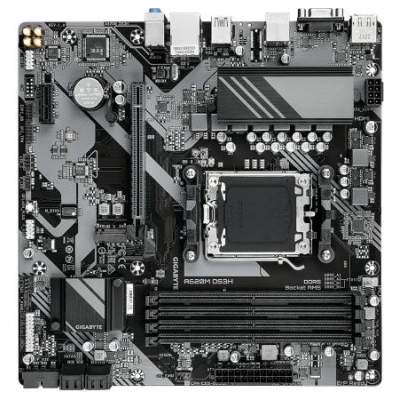

Gigabyte Mainboard|GIGABYTE|AMD A620|Socket AM5|micro ATX|RAM DDR5-SDRAM|4xSlots|1xPCI Express x1 slots|1xPCI Express x16 slots|

Datu lapa

Designation

CE+WEEE

Batteries included

yes

Processor family

AMD Ryzen

CPU socket

Socket AM5

Memory type

DDR5

Memory bus frequency

4400 MHz
4800 MHz
5200 MHz
5600 MHz
6000 MHz
6200 MHz
6400 MHz

Integrated CPU

No

Chipset manufacturer

AMD

Chipset type

AMD A620

Max memory size

192

Expansion slots

1 x M.2
1 x PCIe 4.0 x 16
1 x PCIe 4.0 x 4

Max. number of SATA devices

4

RAID

Yes

Detailed data on disk/drive interfaces

CPU 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Graphics

1 x DisplayPort, supporting a maximum resolution of 3840 x 2160 at 144 Hz Support for DisplayPort version 1.4. 1 x HDMI port supporting a maximum resolution of 4096x2160 at 60 Hz Support for HDMI 2.1 and HDCP 2.3 versions. Supports native HDMI 2.1 TMDS co

Sound card

Realtek audio codec High Definition Audio Support Number of audio channels 2/4/5.1/7.1

Network interface

1 x 10/100/1000 Mbit/s
Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

USB ports at back panel

6

USB ports on motherboard

4

Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports

2

FireWire (IEEE 1394)

No

COM connector / port

No

LPT connector / port

No

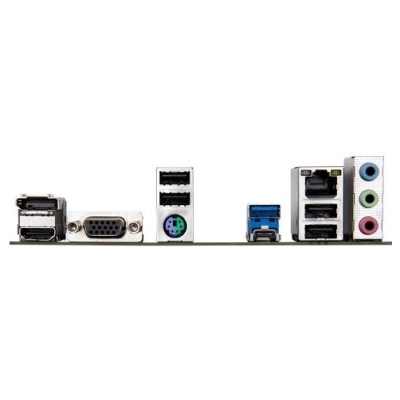

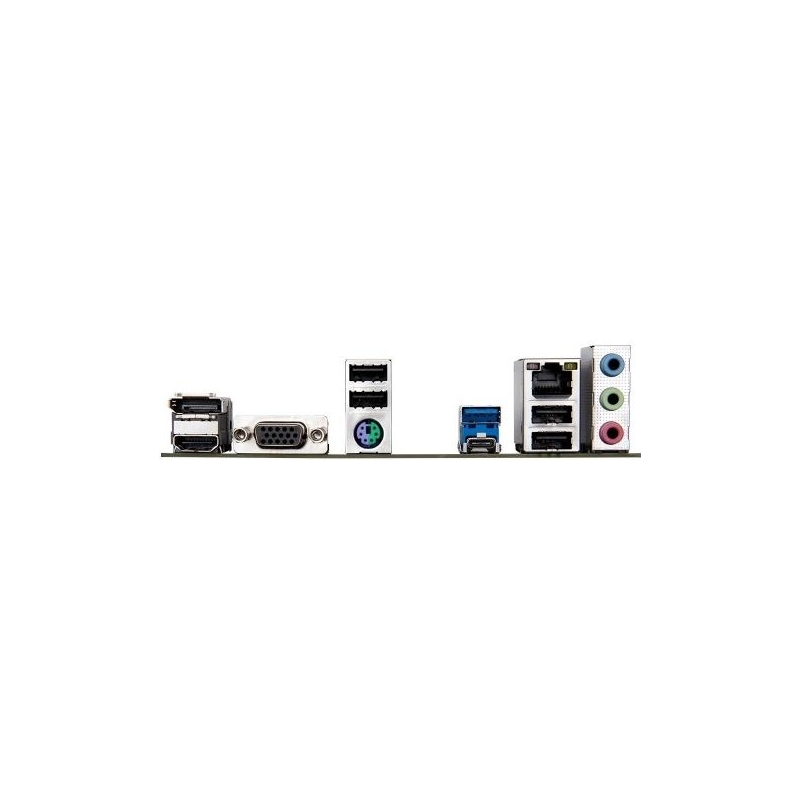

External connectors

1 x D-Sub
1 x DisplayPort
1 x HDMI
1 x Line In
1 x Line Out
1 x MIC
1 x PS/2 Keyboard/MouseCombo
1 x RJ-45
1 x USB 3.0
1 x USB 3.1 Type-C
4 x USB 2.0

Onboard connectors

1 x 24pin ATX zasilanie
1 x 4pin CPU fan
1 x 8pin 12V power
1 x Clear CMOS jumper
1 x Front panel audio header
1 x M.2
1 x System panel header
1 x TPM header
1 x USB 3.0 header
2 x USB 2.0/1.1 header
4 x SATA III 6Gb/s

BIOS

1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form factor

micro ATX

Supported operating systems

Windows 10
Windows 11

Number of DDR5 slots

4

RAID levels

0/1/10

Windows operating systems supported

Windows 10 x64/Windows 11 x64

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

USB 2.0 ports quantity

4

Audio output channels

7.1 channels

Microphone in

Yes

Headphone outputs

3

Number of storage drives supported

4

Supported storage drive interfaces

M.2,SATA III

Ethernet LAN (RJ-45) ports

1

Bundled software

Norton® Internet Security (OEM version)
LAN bandwidth management software

Battery type

CR2032

Country of origin

China

Cables included

SATA

Component for

PC

Maximum resolution

4096 x 2160 pixels

Ethernet LAN

Yes

Ethernet interface type

Gigabit Ethernet

VGA (D-Sub) ports quantity

1

DirectX version

12.0

HDMI ports quantity

1

RAID support

Yes

Wi-Fi

No

DisplayPorts quantity

1

HDCP

Yes

USB connector type

USB Type-A/USB Type-C

Compatible processor series

AMD Ryzen 7000 Series

Motherboard form factor

Micro ATX

Supported memory types

DDR5-SDRAM

Processor socket

Socket AM5

EPS power connector (8-pin)

Yes

Supported processor sockets

Socket AM5

Number of battery cells

1

Maximum internal memory

192 GB

Supported storage drive types

HDD & SSD

HDMI version

2.1

Category Code

MBA

CnCode

84733020

Units per Shipping Box

10

Product colour

Brown

Warranty period

3 year(s)

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

DisplayPort version

1.4

Battery weight

3 g

Products per shipping (inner) case

1 pc(s)

Memory channels

Dual-channel

Processor manufacturer

AMD

Motherboard chipset

AMD A620

Motherboard chipset family

AMD

ECC сompatibility

Non-ECC

Memory slots type

DIMM

Number of memory slots

4

Unbuffered memory

Yes

Number of HDDs supported

1

Parallel processing technology support

Not supported

12V power connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Front panel connector

Yes

Number of SATA III connectors

4

USB 2.0 connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of M.2 (M) slots

1

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

Supported memory clock speed (max)

7600 MHz

RGB LED pin header

Yes

Maximum internal memory supported by processor

192 GB

PC health monitoring

Fan/Temperature/Voltage/Water cooling

TPM connector

Yes

PS/2 ports quantity

1

Clear CMOS jumper

Yes

Supported memory clock speeds

4800/5200/5600/6000/6200/6400/6800/7000/7200/7600 MHz

Supported memory module capacities

12GB/16GB/1GB/2GB/32GB/48GB/4GB/8GB

PCI Express x16 slots

1

PCI Express x1 slots

1

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Lithium weight per battery

0.07 g

Total number of SATA connectors

4

Specifiskas norādes

ean13

4719331855567

MPN

A620M DS3H 2.0
