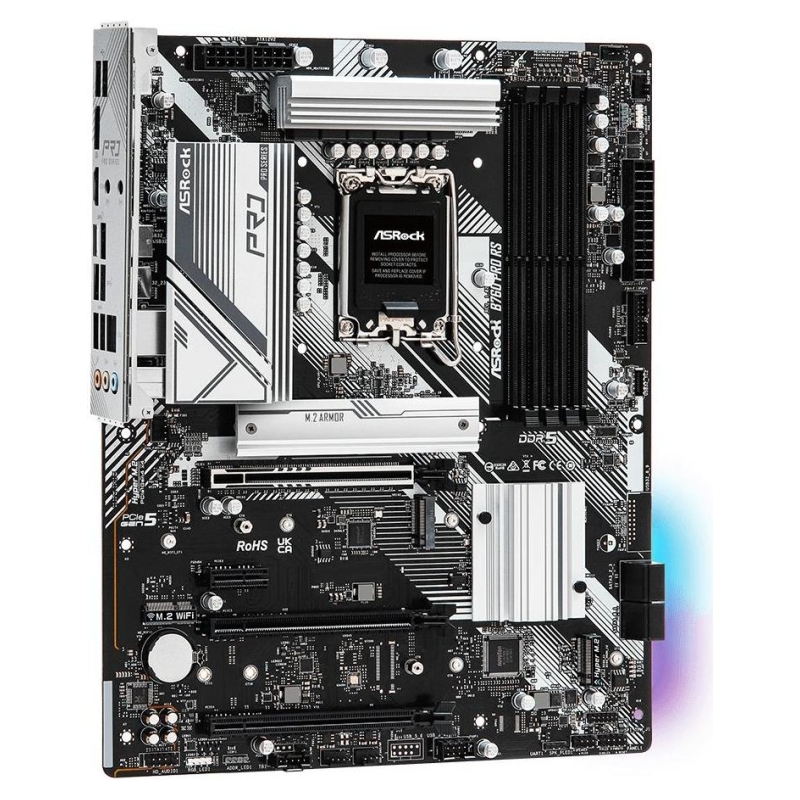

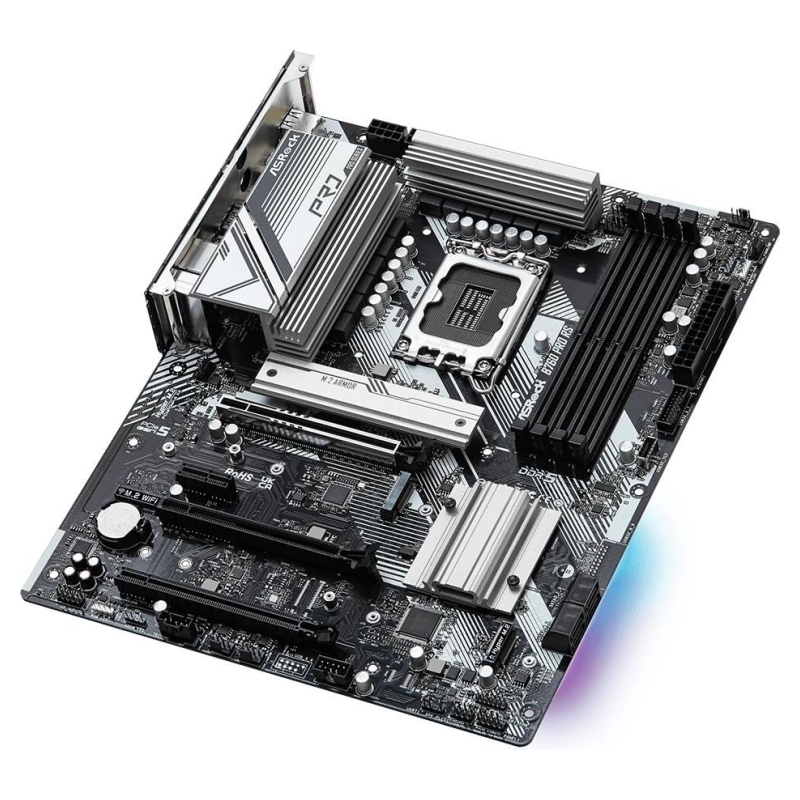

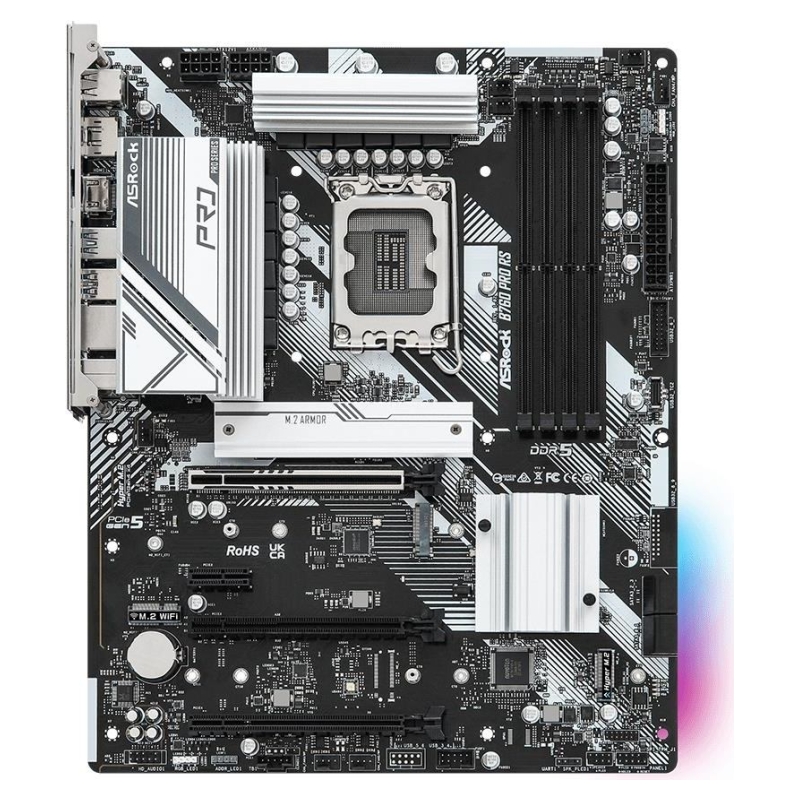

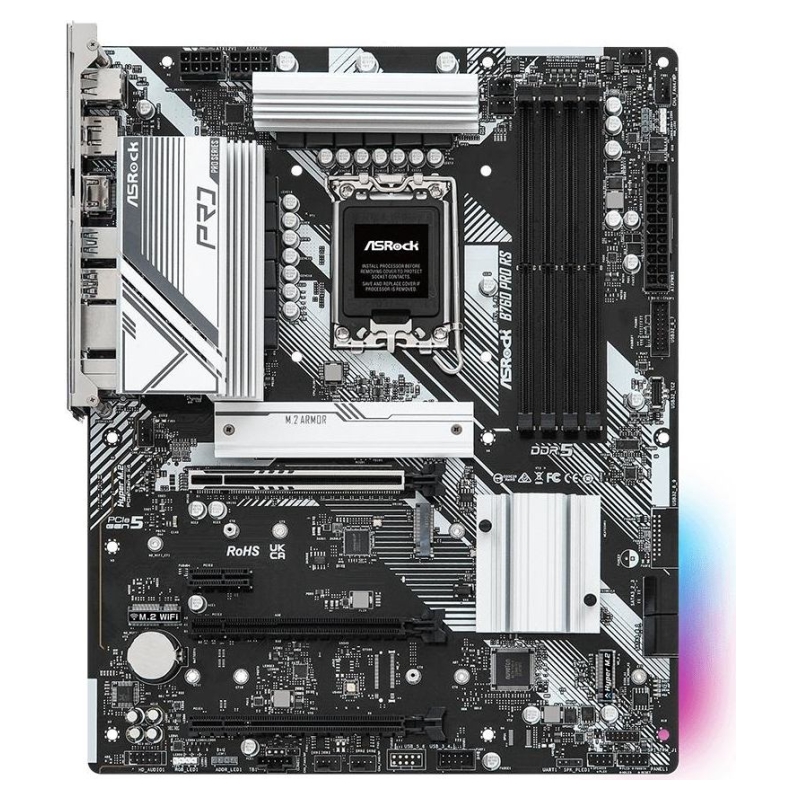

Asrock Mainboard|ASROCK|Intel B760 Express|LGA1700|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xP

Asrock Mainboard|ASROCK|Intel B760 Express|LGA1700|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xP

Write a review

144,24 €

AR PVN

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

Norāde B760PRORS

Pieejamās vispirms 30 vienības:

Datu lapa

RAID levels: 0/1/10/5
Windows operating systems supported: Windows 10 x64/Windows 11 x64
USB 2.0 ports quantity: 4
Audio output channels: 7.1 channels
Microphone in: Yes
Supported storage drive interfaces: M.2,PCI Express 4.0,SATA III
Power source type: ATX
Ethernet LAN (RJ-45) ports: 1
Component for: PC
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
HDMI ports quantity: 1
RAID support: Yes
Wi-Fi: No
DisplayPorts quantity: 1
HDCP: Yes
Compatible processor series: Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9
Motherboard form factor: ATX
Supported memory types: DDR5-SDRAM
Processor socket: LGA 1700
Supported processor sockets: LGA 1700
Maximum internal memory: 128 GB
Supported storage drive types: SSD
Category Code: MBI
CnCode: 84733020
Units per Shipping Box: 5
Compliance certificates: CE/Federal Communications Commission (FCC)
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6
Sustainability certificates: ErP
DisplayPort version: 1.4
LAN controller: Realtek RTL8125-BG
Line-in: Yes
Number of displays supported: 1
Memory channels: Dual-channel
Processor manufacturer: Intel
On-board graphics card: Yes
On-board graphics card model: Intel Iris Xe Graphics
Motherboard chipset: Intel B760
Motherboard chipset family: Intel
ECC сompatibility: Non-ECC
Memory slots type: DIMM
Number of memory slots: 4
Number of HDDs supported: 1
12V power connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Front panel audio connector: Yes
Front panel connector: Yes
Number of SATA III connectors: 4
S/PDIF out connector: Yes
Thunderbolt headers: 1
USB 2.0 connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 6
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
WiFi-AP antenna jack: 2
BIOS memory size: 128 Mbit
BIOS type: UEFI AMI
Audio chip: Realtek ALC897
Supported memory clock speed (max): 7200 MHz
RGB LED pin header: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
Graphics card family: Intel
Audio connector: Yes
Supported memory clock speeds: 3600/4000/4400/4800/5600/6000/7200 MHz
Power fan connector: Yes
Discrete graphics support: Yes
Rack-Friendly board: Yes
