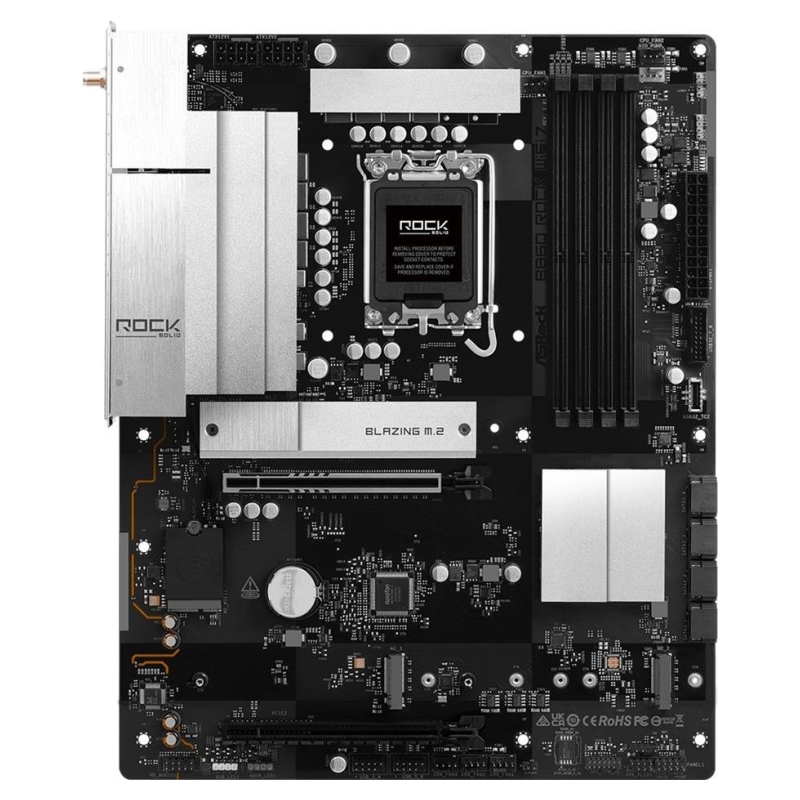

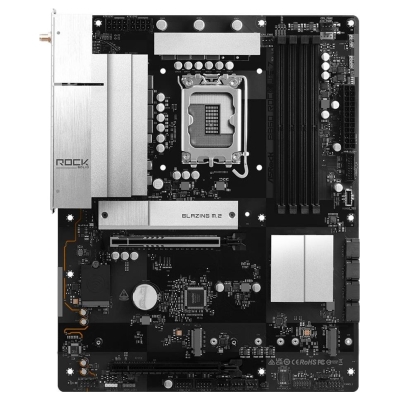

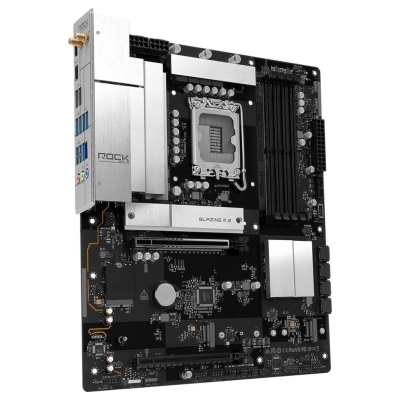

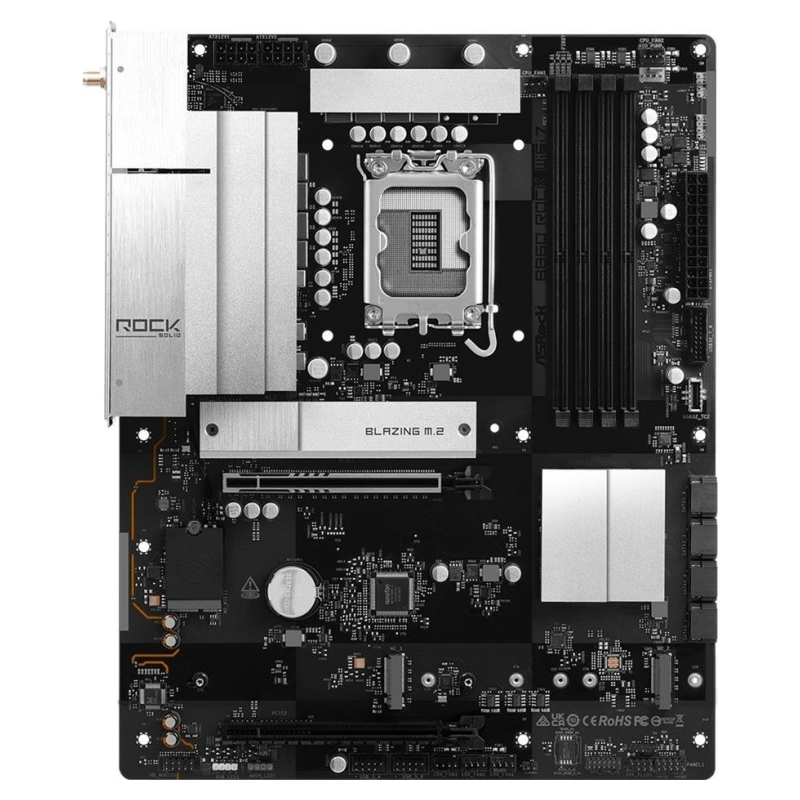

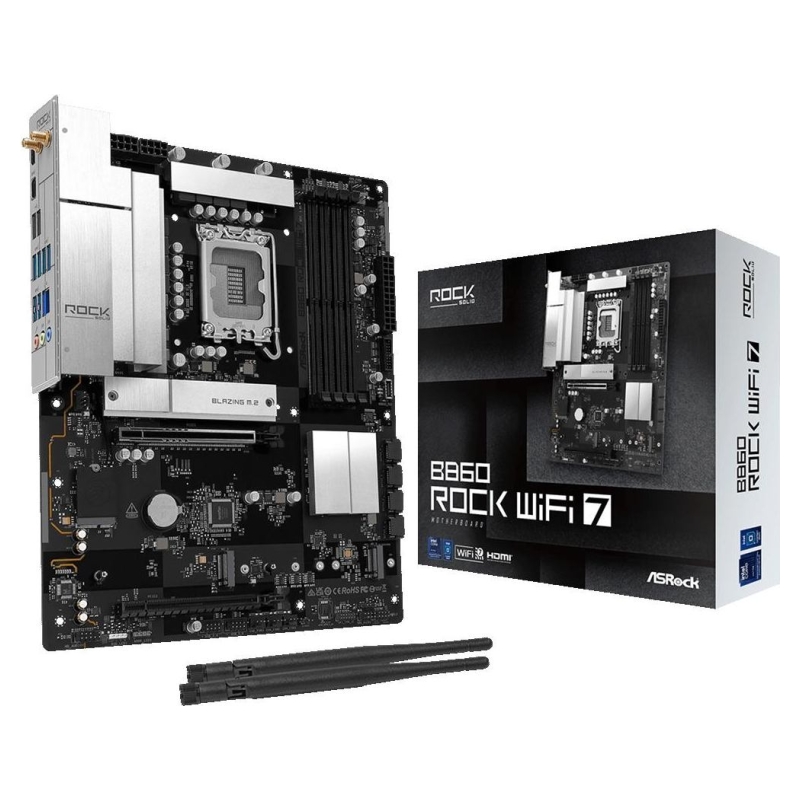

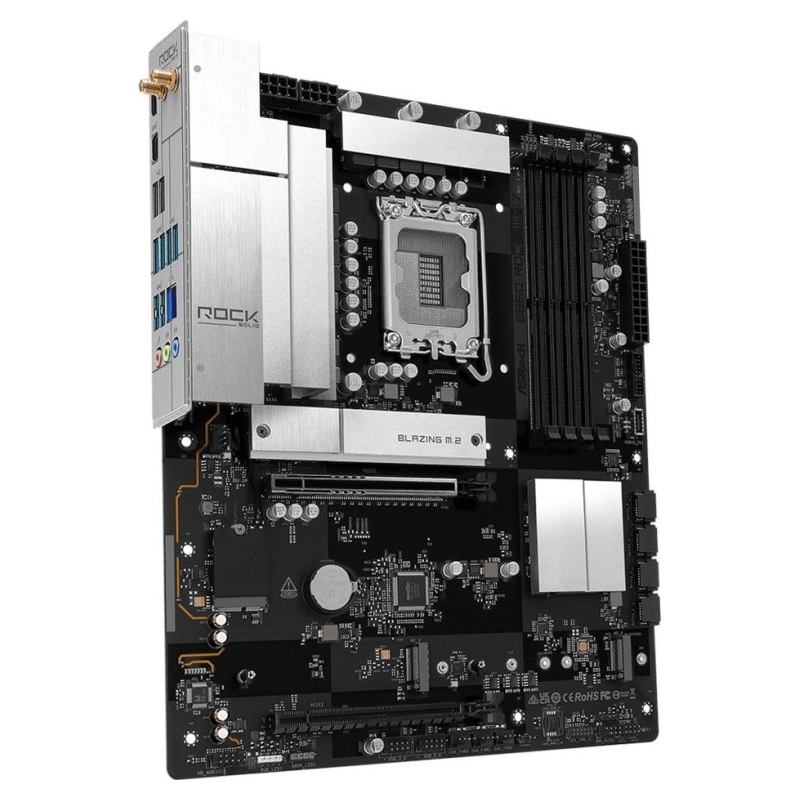

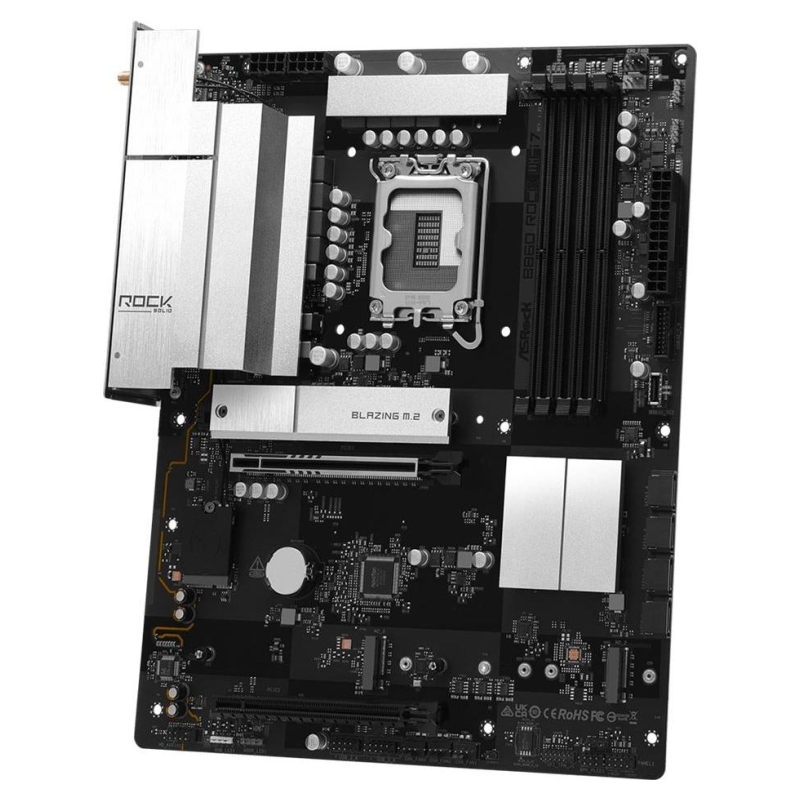

Asrock Mainboard|ASROCK|B860 Rock WiFi 7|Intel B860|LGA 1851 (Socket V1)|ATX|RAM DDR5-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|3xNu

Datu lapa

Designation

CE+WEEE

Bluetooth

Yes

Processor family

Intel Core Ultra

CPU socket

LGA1851

Memory type

DDR5

Memory bus frequency

4400 MHz
4800 MHz
5600 MHz
6533 MHz
6800 MHz
8666 MHz

Integrated CPU

No

Chipset manufacturer

Intel

Chipset type

Intel B860

Max memory size

256

Expansion slots

1 x PCIe 4.0 x 16
1 x PCIe 5.0 x 16
3 x M.2

Max. number of SATA devices

4

RAID

Yes

Detailed data on disk/drive interfaces

CPU: 1 x PCIe 5.0 x16 slot (PCIE1), supports x16 mode Chipset: 1 x PCIe 4.0 x16 slot (PCIE2), supports x4 mode 1 x M.2 socket (Key E), supports type 2230 WiFi/BT PCIe module and Intel CNVio/CNVio2 (integrated WiFi/BT) Storage CPU: 1 x Blazing M.2 socket (

Graphics

Intel Xe LPG Graphics Architecture 1 x HDMI 2.1 TMDS/FRL 8G compatible, supports HDR, HDCP 2.3, and a maximum resolution of up to 4K at 120 Hz

Sound card

7.1 CH HD Audio (Realtek ALC897 Audio Codec)

Network interface

1 x 10/100/1000/2500 Mbit/s
Bluetooth
LAN 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User
Wi-Fi 802.11a/b/g/n/ac/ax/be

USB ports at back panel

9

USB ports on motherboard

7

Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports

10

FireWire (IEEE 1394)

No

COM connector / port

No

LPT connector / port

No

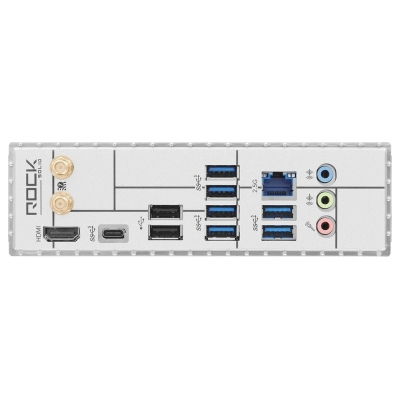

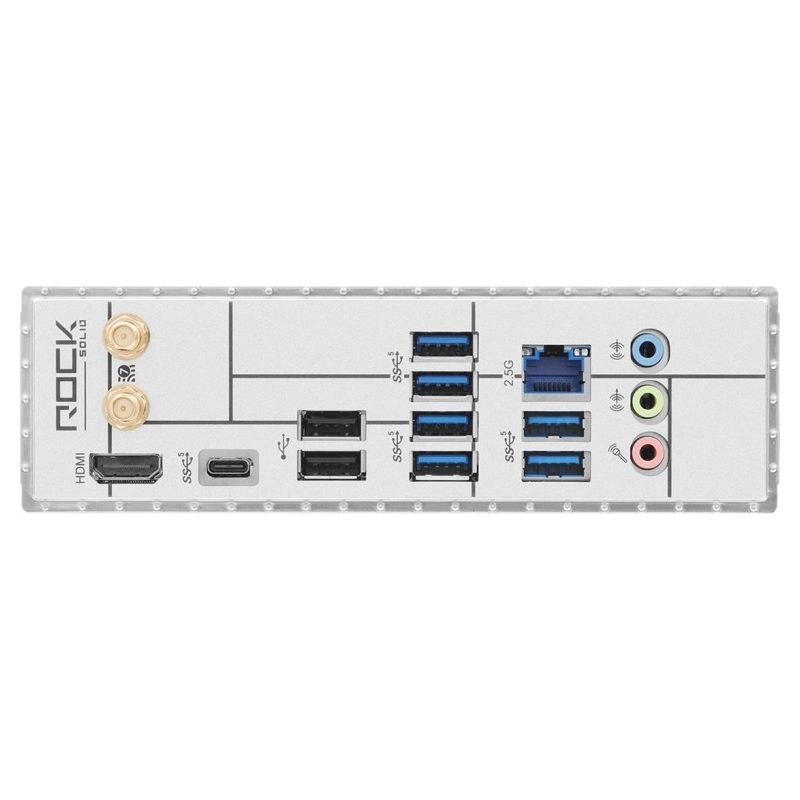

External connectors

1 x HDMI
1 x Line In
1 x Line Out
1 x MIC
1 x RJ-45
1 x USB 3.2 Gen 1 Type-C
2 x SMA
2 x USB 2.0
6 x USB 3.2 Gen 1 Type-A

Onboard connectors

1 x 24pin ATX zasilanie
1 x 4pin CPU/Water Pump Fan Connector
1 x Front panel audio header
1 x Power LED and Speaker Header
1 x RGB LED strip header
1 x TPM header
1 x USB 3.2 Gen 1 Type-A
1 x USB 3.2 Gen 1 Type-C
2 x 4pin wentylator CPU
2 x 8pin 12V
2 x USB 2.0/1.1 header
3 x Addressable LED
4 x 4pin Chassis fan

BIOS

256Mb AMI UEFI Legal BIOS with GUI support

Form factor

ATX

Supported operating systems

Windows 11

Software

ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC

Number of DDR5 slots

4

RAID levels

0/1/10/5

Windows operating systems supported

Windows 11 x64

USB 2.0 ports quantity

2

Audio output channels

7.1 channels

Microphone in

Yes

Headphone outputs

3

Number of storage drives supported

7

Supported storage drive interfaces

PCI Express 4.0,PCI Express 5.0,SATA III

Ethernet LAN (RJ-45) ports

1

Wi-Fi standards

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)

Cables included

SATA

Component for

PC

Maximum resolution

3840 x 2160 pixels

Ethernet LAN

Yes

Ethernet interface type

2.5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet

HDMI ports quantity

1

RAID support

Yes

Wi-Fi

Yes

HDCP

Yes

Bluetooth version

5.4

USB connector type

USB Type-A/USB Type-C

Compatible processor series

Intel Core Ultra (Series 2)

Motherboard form factor

ATX

Supported memory types

DDR5-SDRAM

Processor socket

LGA 1851 (Socket V1)

EPS power connector (8-pin)

Yes

Supported processor sockets

LGA 1851

Maximum internal memory

256 GB

Supported storage drive types

HDD & SSD

HDMI version

2.1

Category Code

MBI

CnCode

84733020

Units per Shipping Box

5

Product colour

Black

Compliance certificates

CE/Federal Communications Commission (FCC)

High Dynamic Range (HDR) supported

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

6

HDCP version

2.3

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

LAN controller

Dragon RTL8125BG

Line-in

Yes

Memory channels

Dual-channel

Processor manufacturer

Intel

Antenna included

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Motherboard chipset

Intel B860

Motherboard chipset family

Intel

ECC сompatibility

Non-ECC

Memory slots type

DIMM

Number of memory slots

4

Unbuffered memory

Yes

Parallel processing technology support

Not supported

12V power connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Number of chassis fan connectors

4

Number of SATA III connectors

4

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

WiFi-AP antenna jack

2

1st M.2 highest PCI Express generation

5.0

1st M.2 largest key size

2280

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

2280

3rd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

2280

Number of M.2 (M) slots

3

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

Audio chip

Realtek ALC897

Supported memory clock speed (max)

8666 MHz

RGB LED pin header

Yes

Number of CPU fan connectors

2

Number of EPS power connectors (8-pin)

2

TPM connector

Yes

Number of RGB LED pin headers

1

Number of water pump connectors

1

Specifiskas norādes

ean13

4711581494176

MPN

B860 ROCK WIFI 7
