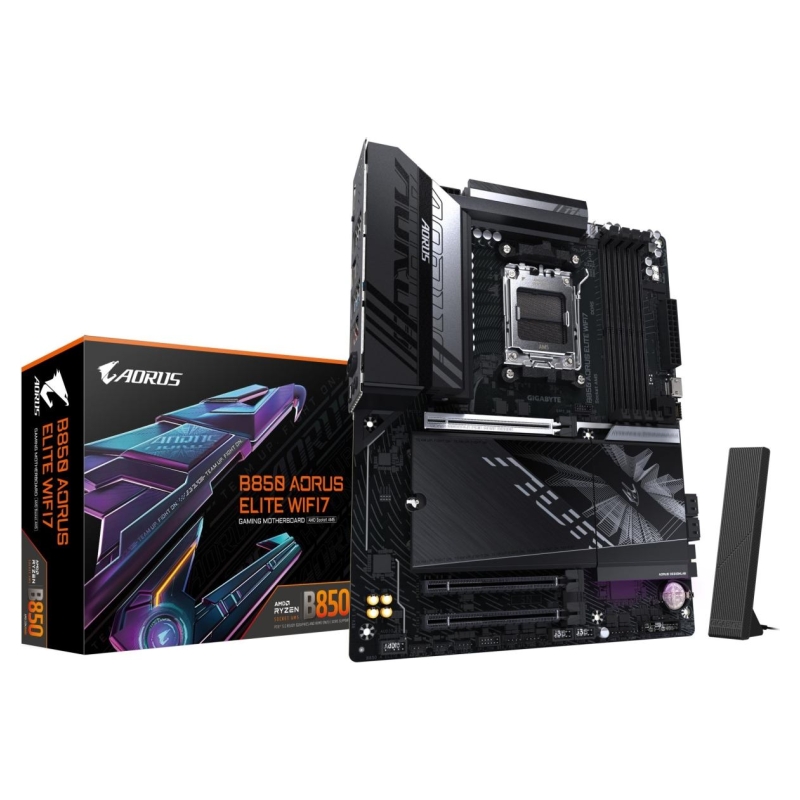

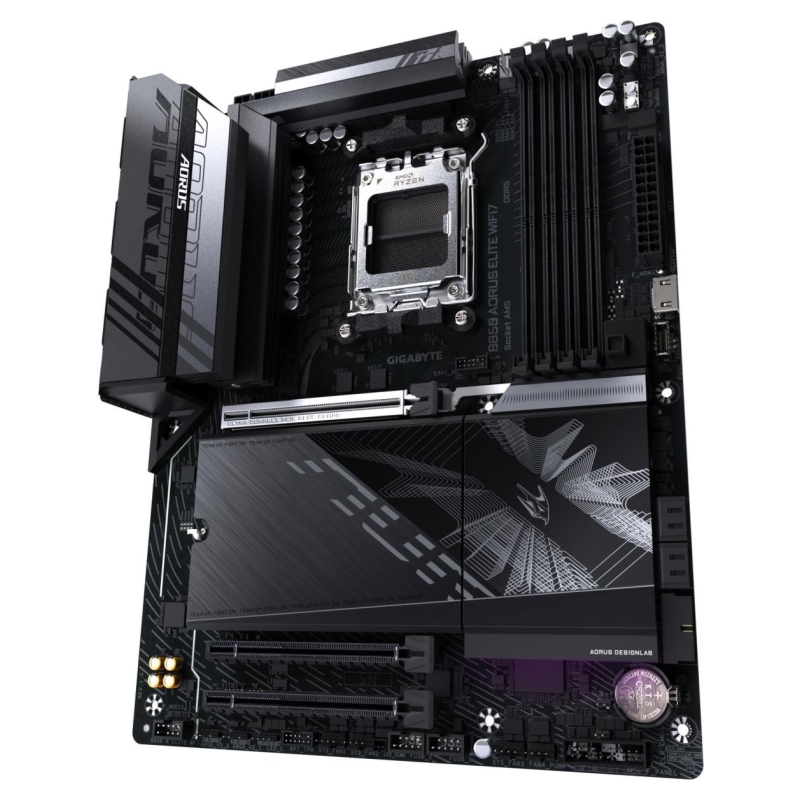

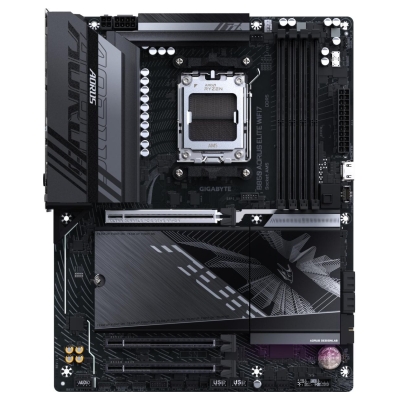

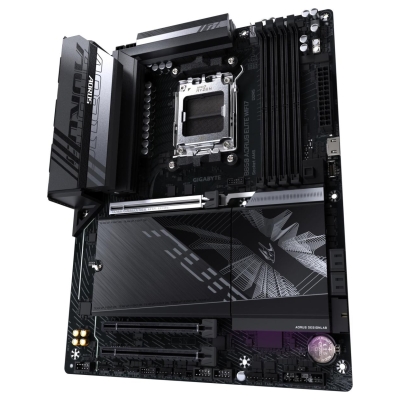

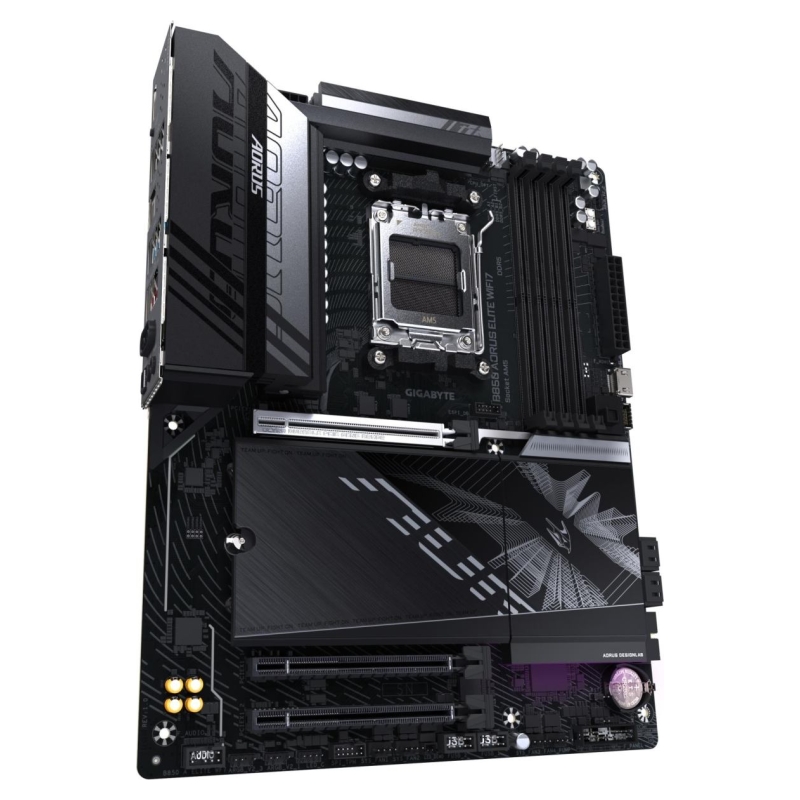

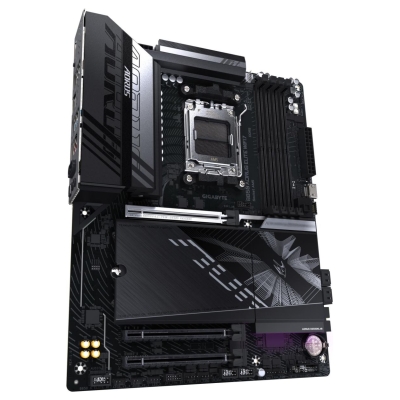

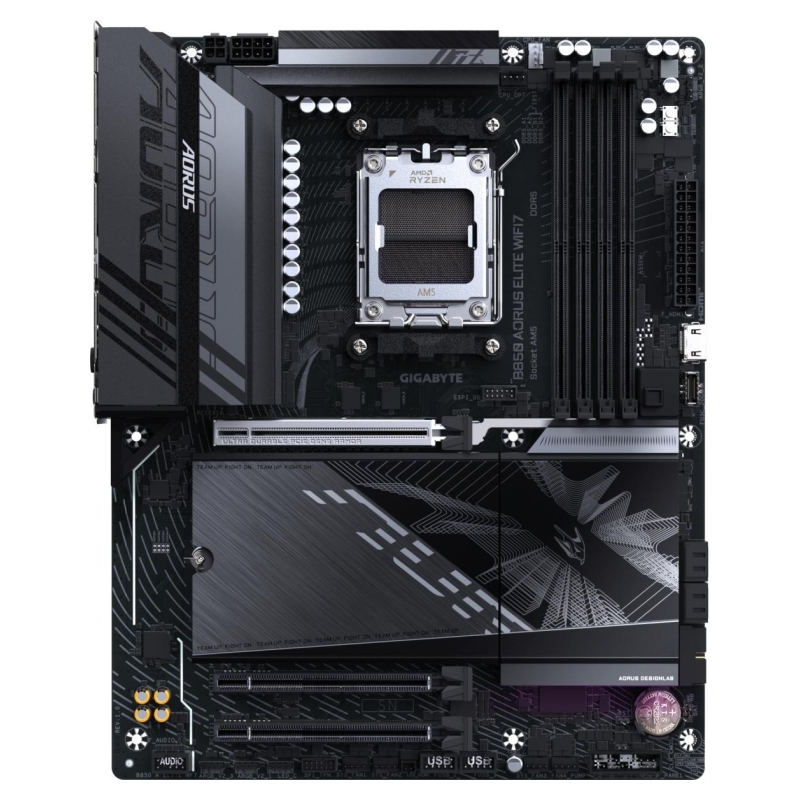

Gigabyte Mainboard|GIGABYTE|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|B850AELITEWF71.1

Datu lapa

Batteries included

yes

Bluetooth

Yes

RAID levels

0/1/10

Windows operating systems supported

Windows 10 x64/Windows 11 x64

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

USB 2.0 ports quantity

4

Audio output channels

7.1 channels

Microphone in

Yes

Headphone outputs

1

Number of storage drives supported

7

Supported storage drive interfaces

M.2,SATA III

Power source type

ATX

Ethernet LAN (RJ-45) ports

1

Wi-Fi standards

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)

Bundled software

Norton Internet Security (OEM version)
LAN bandwidth management software

Battery type

CR2032

Country of origin

China

Component for

PC

Maximum resolution

4096 x 2160 pixels

Ethernet LAN

Yes

Ethernet interface type

2.5 Gigabit Ethernet

DirectX version

12.0

HDMI ports quantity

1

RAID support

Yes

Wi-Fi

Yes

DisplayPorts quantity

1

HDCP

Yes

Bluetooth version

5.4

Compatible processor series

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Motherboard form factor

ATX

Supported memory types

DDR5-SDRAM

Processor socket

Socket AM5

EPS power connector (8-pin)

Yes

Supported processor sockets

Socket AM5

Number of battery cells

1

Maximum internal memory

256 GB

Supported storage drive types

HDD & SSD

HDMI version

1.4

Category Code

MBA

CnCode

84733020

Units per Shipping Box

6

Product colour

Black/Brown

Warranty period

3 year(s)

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

5

DisplayPort version

1.4

Screws included

Yes

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Battery weight

3 g

Products per shipping (inner) case

1 pc(s)

Memory channels

Dual-channel

Peripheral (Molex) power connectors (4-pin)

1

Processor manufacturer

AMD

Antenna included

Yes

On-board graphics card

No

Motherboard chipset

AMD B850

Motherboard chipset family

AMD

ECC сompatibility

Non-ECC

Memory slots type

DIMM

Number of memory slots

4

Unbuffered memory

Yes

Number of HDDs supported

4

Parallel processing technology support

Not supported

12V power connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Front panel connector

Yes

Number of chassis fan connectors

3

Number of SATA III connectors

4

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

WiFi-AP antenna jack

2

1st M.2 highest PCI Express generation

5.0

1st M.2 largest key size

25110

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

22110

3rd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

22110

Number of M.2 (M) slots

3

PCI Express x16 (Gen 4.x) slots

2

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

Audio chip

Realtek ALC897

Supported memory clock speed (max)

8200 MHz

RGB LED pin header

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

PC health monitoring

Fan/Temperature/Voltage/Water cooling

Number of CPU fan connectors

2

Number of EPS power connectors (8-pin)

1

TPM connector

Yes

Clear CMOS jumper

Yes

Supported memory clock speeds

4400/4800/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200 MHz

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Lithium weight per battery

0.07 g

Clear CMOS button

Yes

Serial port headers

1

Total number of SATA connectors

4

Maximum internal memory per slot

64 GB

Number of RGB LED pin headers

4

WLAN controller model

Realtek RTL8922AE

Number of water pump connectors

2

USB 3.2 Gen 2x2 connectors

1

Specifiskas norādes

ean13

4719331866105

MPN

B850 A ELITE WF7 1.1
