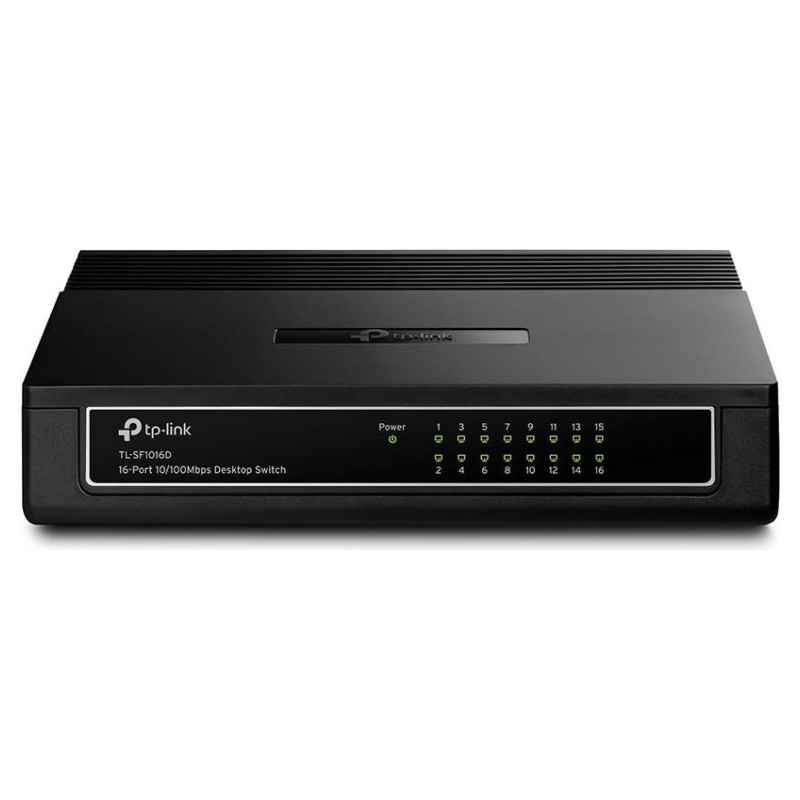

    Tp-Link Switch|TP-LINK|16x10Base-T / 100Base-TX|TL-SF1016D

Tp-Link Switch|TP-LINK|16x10Base-T / 100Base-TX|TL-SF1016D

€28.68
Tax included
Quantity
Add to wishlist
Last items in stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

What This Product Does
The TL-SF1016D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016D can save the power consumption and 70% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

High Performance
TL-SF1016D Fast Ethernet Switch provides 16 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1016D forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1016D work reliably.

TP-LINK Green Technology
This new generation TL-SF1016D Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.

Easy to Use
The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

  • 16 10/100Mbps Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
  • Green Ethernet technology saves power consumption
  • IEEE 802.3x flow control provides reliable data transfer
  • Plastic case, desktop or wall-mounting design
  • Plug and play, no configuration required



Manufacturer Website:
https://www.tp-link.com/uk/business-networking/unmanaged-switch/tl-sf1016d/

Category Code
SWI
CnCode
85176200
Unit Box Height
0.067
Unit Box Length
0.287
Unit Box Width
0.225
Switch type
Unmanaged
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity
16
Power connector
DC-in jack
10G support
No
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Copper ethernet cabling technology
100BASE-TX/10BASE-T
Ethernet LAN data rates
10,100 Mbit/s
Flow control support
Yes
Full duplex
Yes
Half duplex
Yes
MAC address auto-learning supported
Yes
Networking standards
IEEE 802.3u/IEEE 802.3x
MAC address table
2000 entries
Store-and-forward
Yes
Switching capacity
3.2 Gbit/s
LED indicators
Yes
Product colour
Black
Rack mounting
Yes
Stackable
No
Wall mountable
Yes
Fanless
Yes
Minimum system requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7, MAC OS, NetWare, UNIX, Linux
DC input voltage
9 V
Input current
0.6 A
Power consumption (max)
3.23 W
Power source
DC
Power supply included
Yes
Power over Ethernet (PoE)
No
Heat dissipation
11.01 BTU/h
Operating relative humidity (H-H)
10 - 90 %
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
5 - 90 %
Storage temperature (T-T)
-40 - 70 °C
Depth
142 mm
Height
40 mm
Width
200 mm
User guide
Yes
AC adapter included
Yes
Package depth
285 mm
Package height
68 mm
Package type
Box
Package weight
590 g
Package width
223 mm
Sustainability compliance
Yes
Compliance certificates
CE/Federal Communications Commission (FCC)/RoHS
Units per Shipping Box
1
Unit Calculated Volume
0.004327 cubm
Unit Calculated Weight
0.6 kg
TL-SF1016D
1 Item

Specific References

MPN
TL-SF1016D
New
