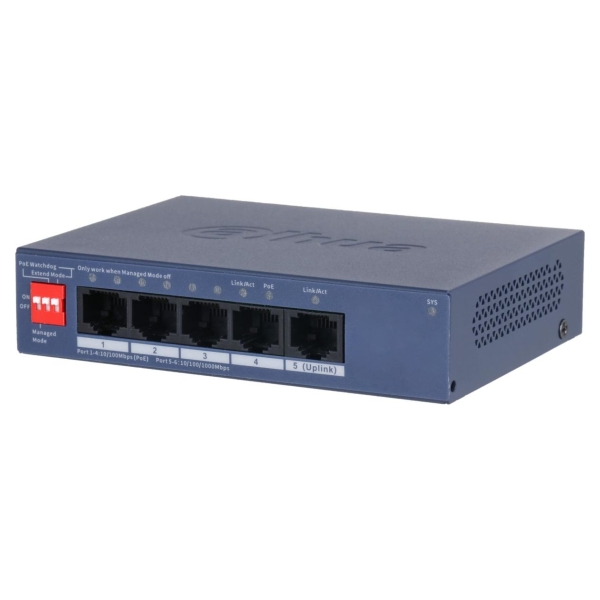

Dahua Switch|DAHUA|DH-CS4005-4ET1GT-36|Switch layer L2|4xRJ-45 ports|RJ-45 Ports Type Fast Ethernet (10/100)|1xGigabit Ethernet
    Dahua Switch|DAHUA|DH-CS4005-4ET1GT-36|Switch layer L2|4xRJ-45 ports|RJ-45 Ports Type Fast Ethernet (10/100)|1xGigabit Ethernet

Dahua Switch|DAHUA|DH-CS4005-4ET1GT-36|Switch layer L2|4xRJ-45 ports|RJ-45 Ports Type Fast Ethernet (10/100)|1xGigabit Ethernet

€37.66
Tax included
Quantity
Add to wishlist

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

  • 4 × RJ45 10/100 Mbps PoE ports, 1 × RJ45 Gigabit ports
  • 36 W total PoE budget, 802.3af/at on all PoE ports
  • DIP switch to fast turn on/off working mode of Cloud-Managed, PoE Watchdog, Long Distance PoE
  • Wide operating temperature ranging from –10 °C to 55 °C
  • Supports VLAN and loop protection
  • WEB-managed and centralized cloud management through the DoLynk App and performs real-time monitoring of the network
  • Easy config to auto detect and set up network and systems



Manufacturer Website:
https://transmission.dahuasecurity.com/en/product-list/business/cloudmanagementsolution/networkswitch/cs4005-4et1gt-36

Summary
Dahua Technology CS4005-4ET1GT-36. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 2.8 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3az, IEEE.... DC input voltage: 53 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable
Category Code
SWI
CnCode
85176200
Unit Box Height
0.085
Unit Box Length
0.195
Unit Box Width
0.115
Cloud-managed
Yes
Switch layer
L2
Switch type
Managed
Web-based management
Yes
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Fast Ethernet (copper) ports quantity
4
Gigabit Ethernet (copper) ports quantity
1
Power connector
DC-in jack
10G support
No
Broadcast storm control
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Flow control support
Yes
Networking standards
IEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x
Number of VLANs
32
Port mirroring
Yes
VLAN support
Yes
Forwarding rate
2.08 Mpps
Jumbo frames
9216
Jumbo frames support
Yes
MAC address table
2000 entries
Packet buffer memory
4 MB
Switching capacity
2.8 Gbit/s
DHCP features
DHCP client
IP-MAC-Port binding
Yes
Loop protection
Yes
Multicast support
Yes
Housing material
Metal
LED indicators
Yes
Product colour
Blue
Rack mounting
No
Reset button
Yes
Wall mountable
Yes
Mean time between failures (MTBF)
2037751.2 h
DC input voltage
53 V
Input current
0.8 A
Power source
DC/PoE
Power supply included
Yes
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
4
Total Power over Ethernet (PoE) budget
36 W
Operating relative humidity (H-H)
10 - 90 %
Operating temperature (T-T)
-10 - 55 °C
Storage relative humidity (H-H)
5 - 95 %
Storage temperature (T-T)
-40 - 70 °C
Depth
115 mm
Height
27 mm
Weight
200 g
Width
84 mm
Cables included
AC
Quick start guide
Yes
Package depth
195 mm
Package height
83 mm
Package weight
720 g
Package width
114 mm
Model name
CS4005-4ET1GT-36
Units per Shipping Box
12
Unit Calculated Volume
0.00273 cubm
Unit Calculated Weight
0.75 kg
CS4005-4ET1GT-36
18 Items

Specific References

EAN13
6939554913051
MPN
CS4005-4ET1GT-36
