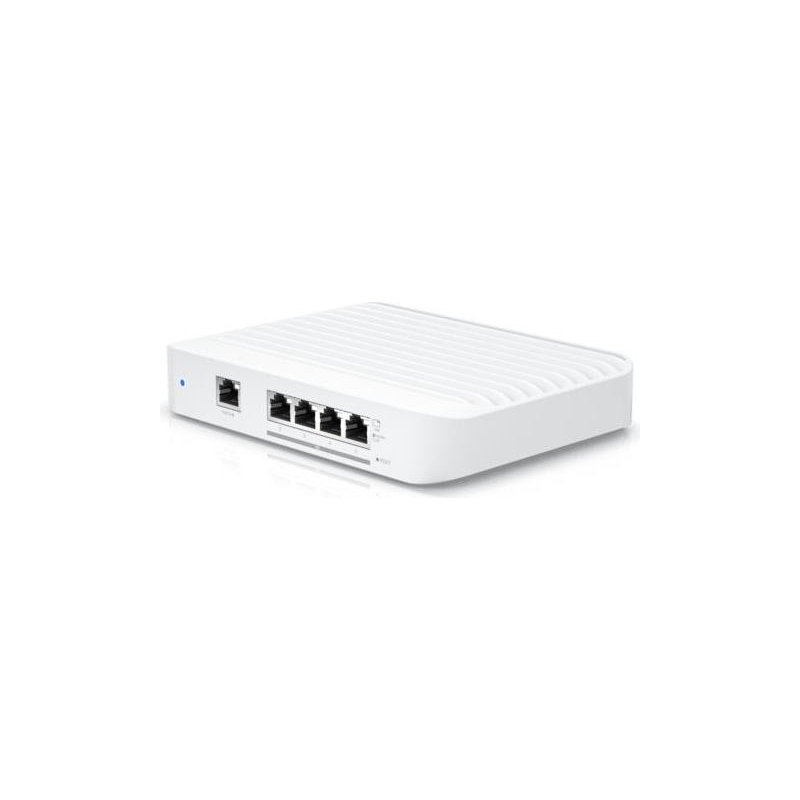

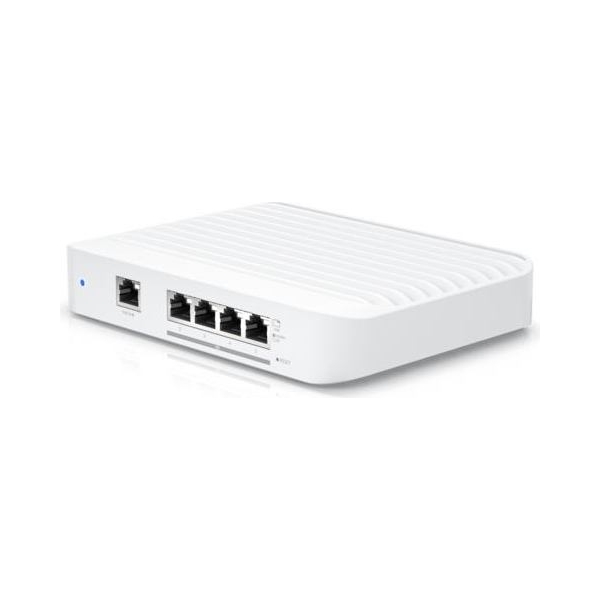

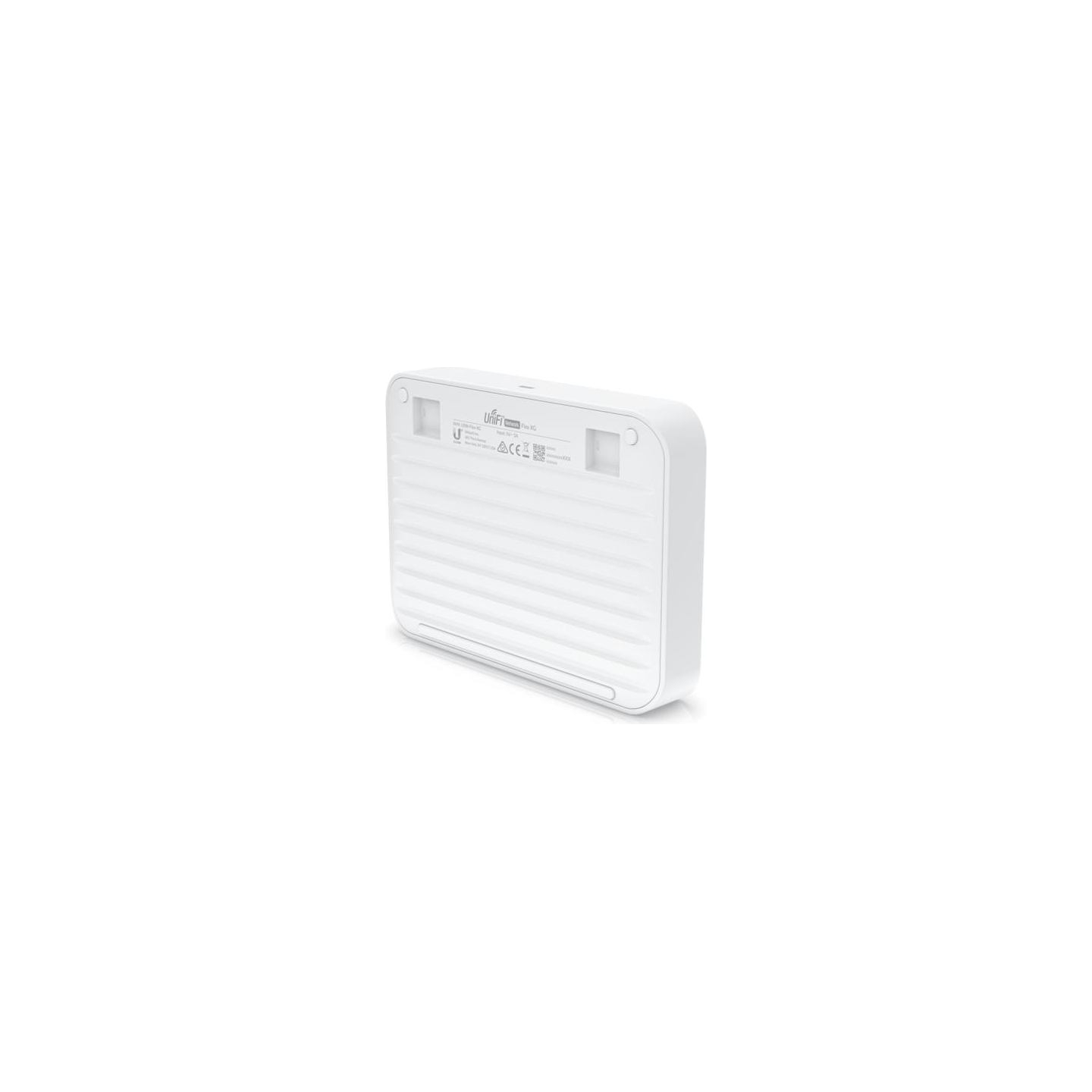

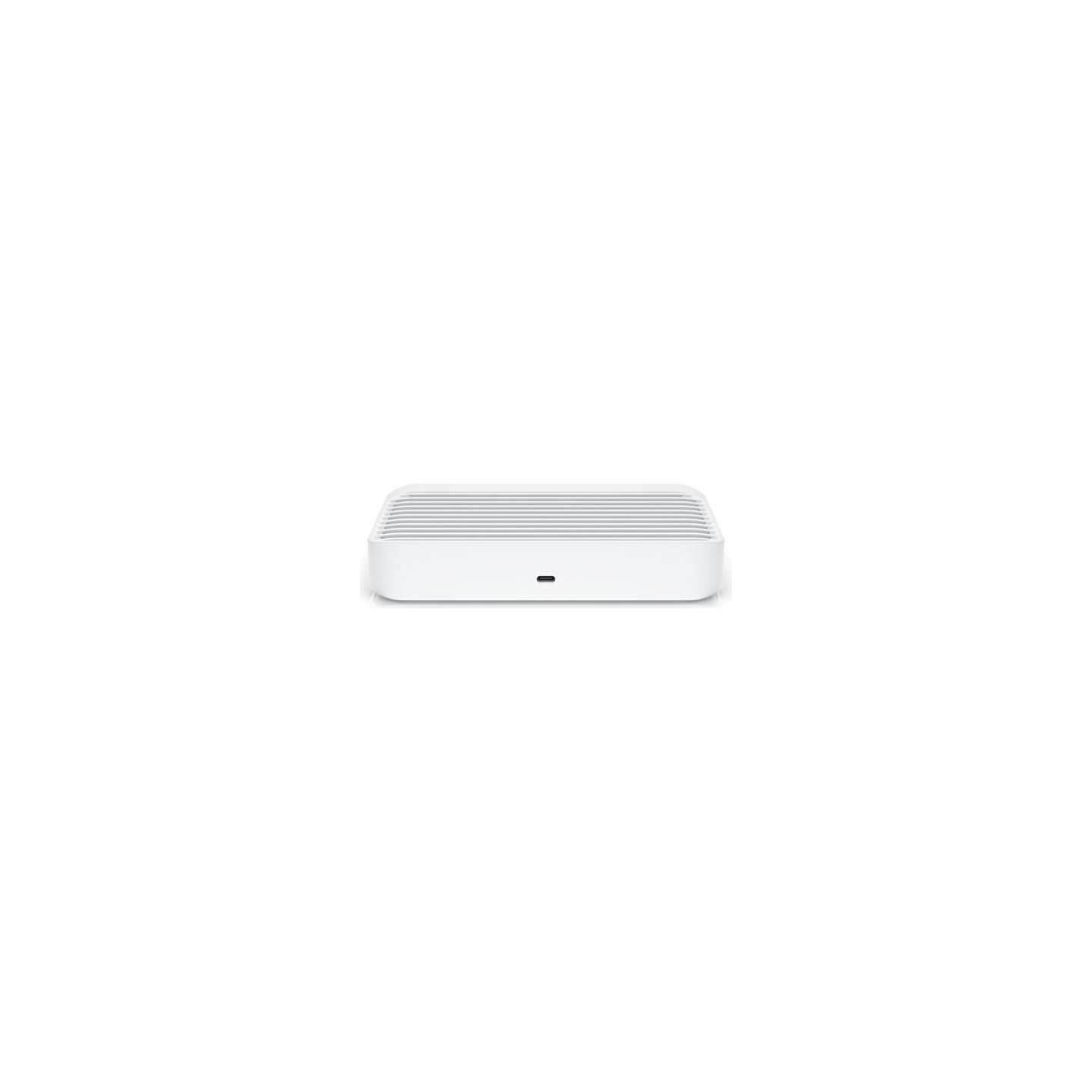

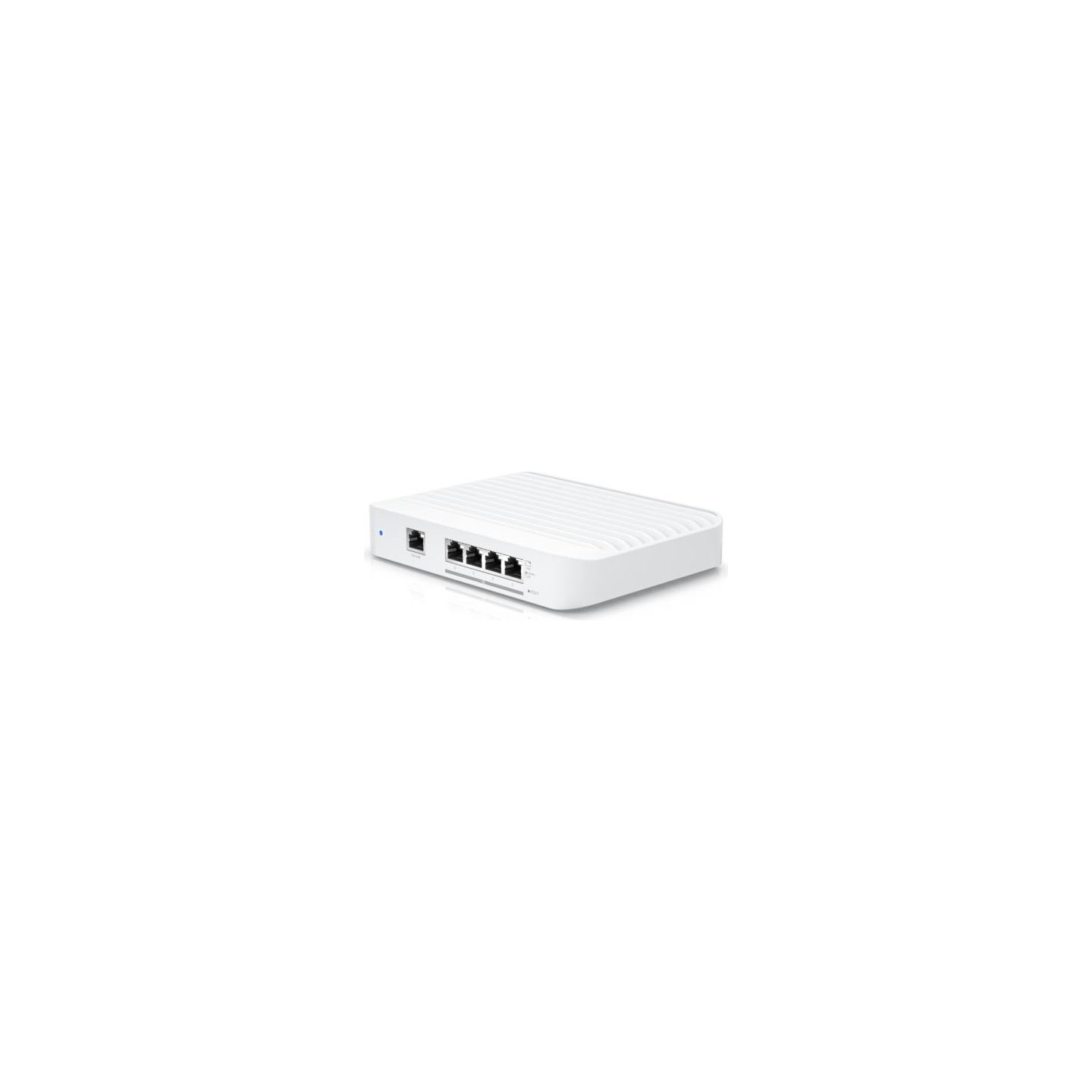

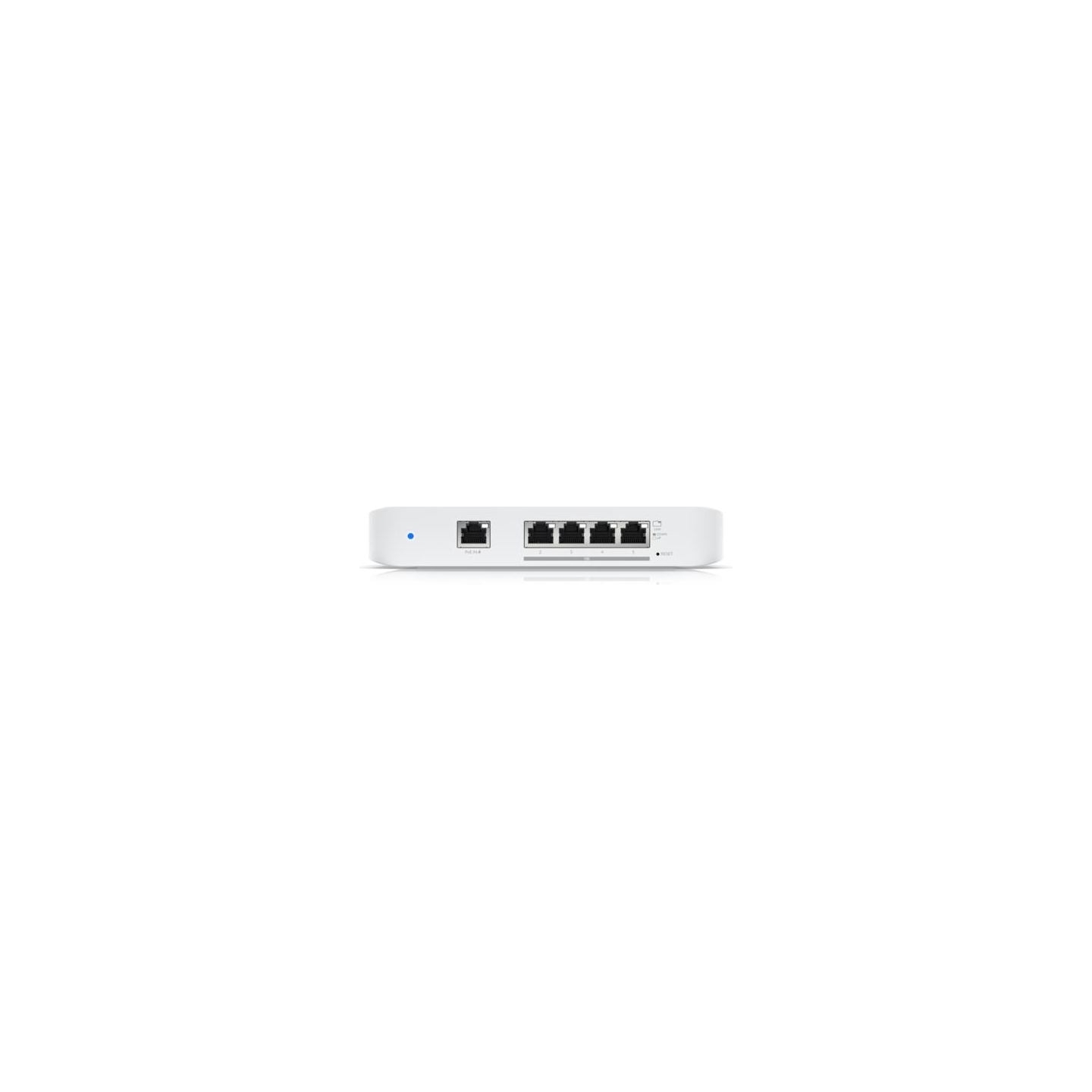

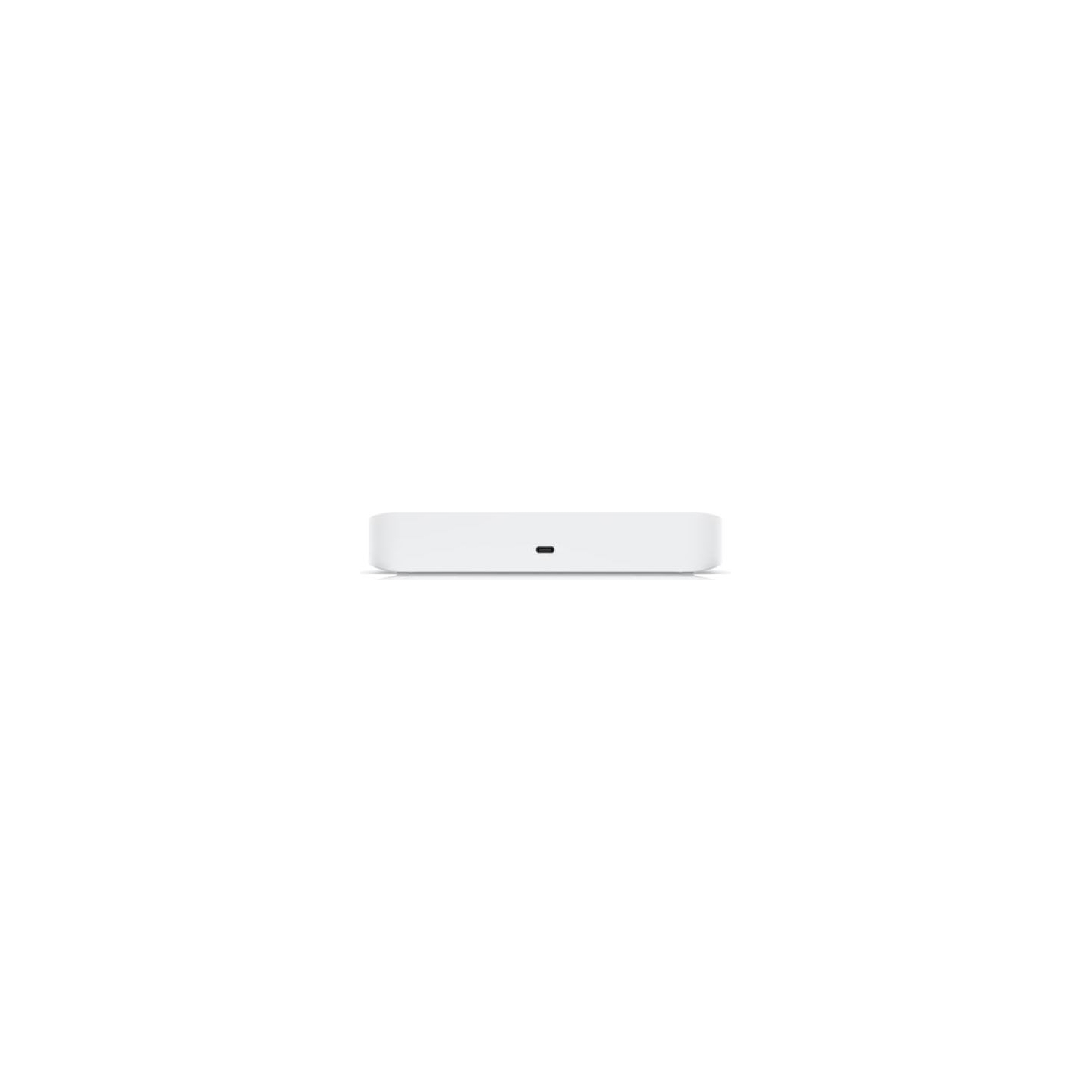

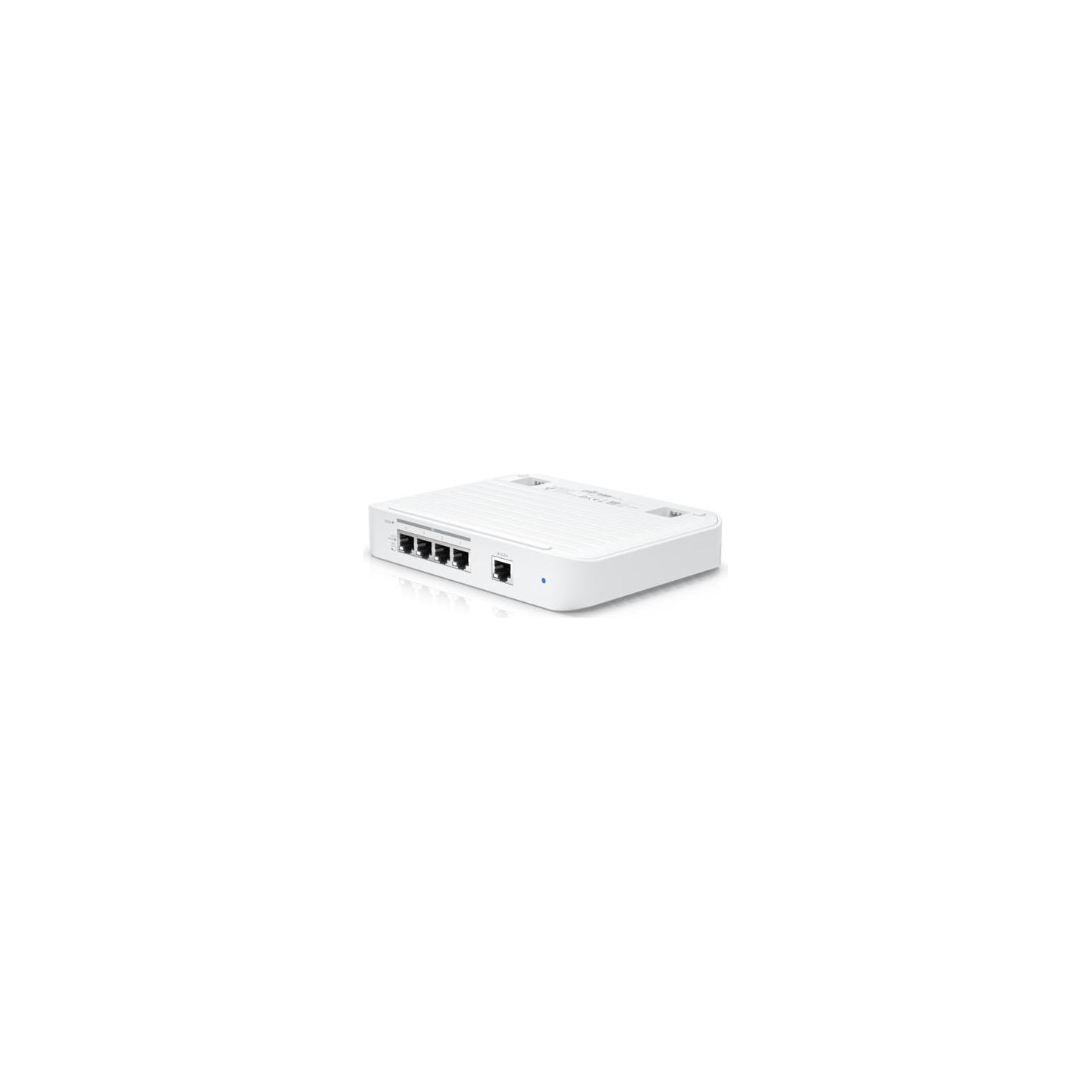

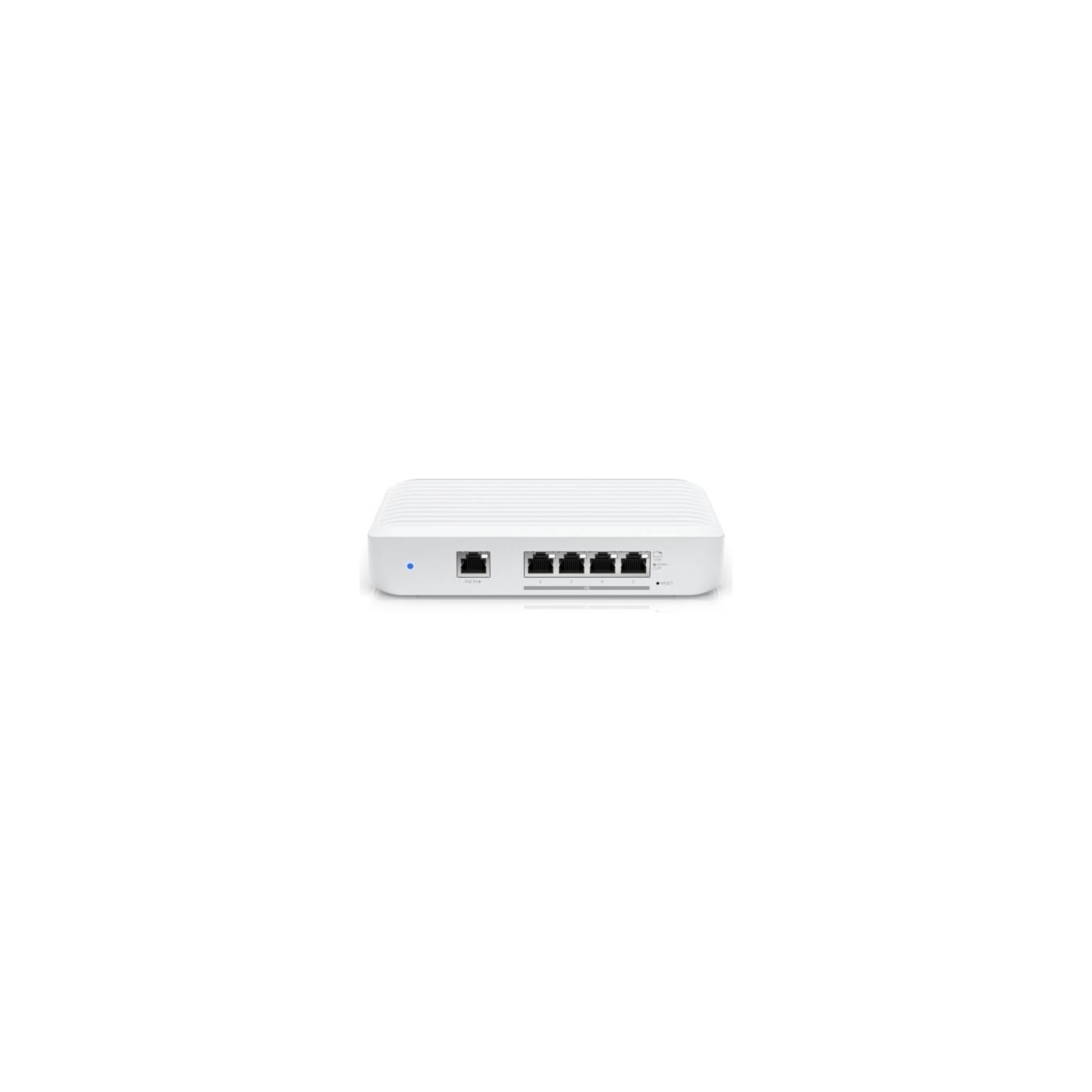

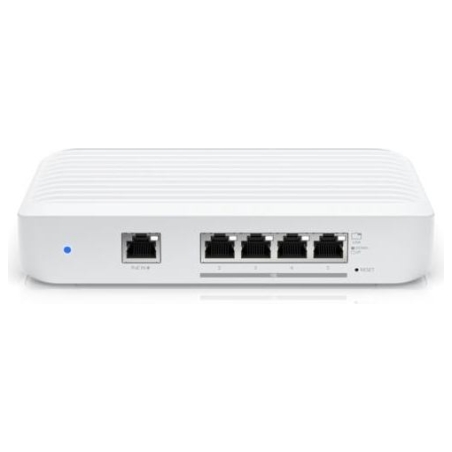

The Switch Flex XG (USW Flex XG) is a fully managed, mult-gigabit, Layer 2 switch with (4) 10GbE RJ45 ports and (1) GbE PoE input. The USW Flex XG sports slim, compact housing and can be mounted on a desktop*. This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
- (1) GbE, 802.3at PoE+ RJ45 input
- (4) 10GbE RJ45 ports
- Compact, slim housing
Manufacturer Website:https://store.ui.com/collections/unifi-network-switching/products/unifi-flex-xg- Category Code
- SWI
- CnCode
- 85176200
- Unit Box Height
- 0.075
- Unit Box Length
- 0.285
- Unit Box Width
- 0.175
- Switch layer
- L2
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 4
- Basic switching RJ-45 Ethernet ports type
- 10G Ethernet (100/1000/10000)
- 10G support
- Yes
- Ethernet LAN data rates
- 10,100,1000,2500,5000,10000 Mbit/s
- Networking standards
- IEEE 802.3at
- Forwarding rate
- 61.012 Mpps
- Switching capacity
- 82 Gbit/s
- Throughput
- 41 Gbit/s
- Housing material
- Polycarbonate (PC)
- LED indicators
- Yes
- Product colour
- White
- Rack mounting
- No
- Reset button
- Yes
- AC input voltage
- 90 - 264 V
- DC input voltage
- 5 V
- Input current
- 5 A
- Power consumption (max)
- 25 W
- Power supply included
- Yes
- Power over Ethernet (PoE)
- Yes
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- -5 - 45 °C
- Depth
- 185 mm
- Height
- 32 mm
- Weight
- 1200 g
- Width
- 135 mm
- Harmonized System (HS) code
- 85176990
- Model
- UBIQUITI Switch Flex XG (USW-FLEX-XG)
- Model name
- Switch Flex XG
- Units per Shipping Box
- 10
- Unit Calculated Volume
- 0.004563 cubm
- Unit Calculated Weight
- 1.59 kg
