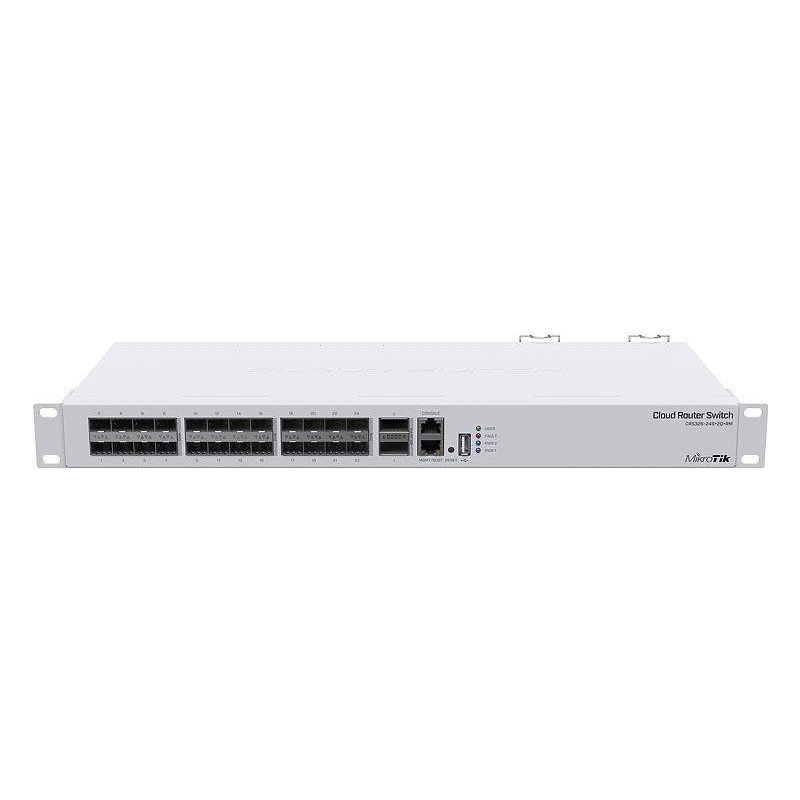

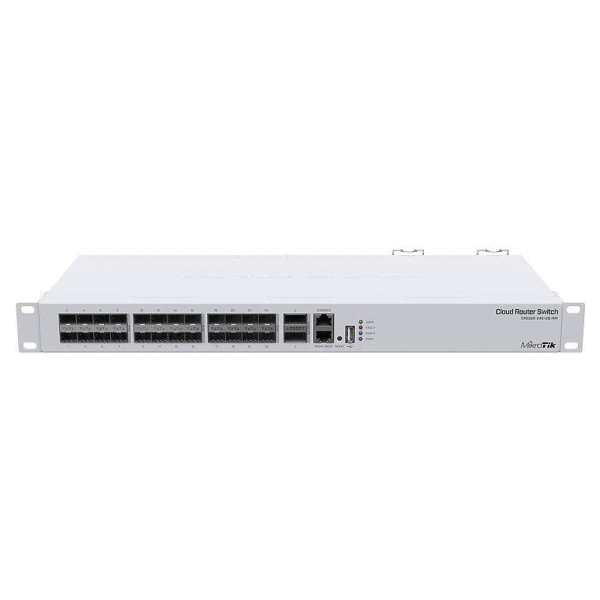

    Mikrotik Switch|MIKROTIK|Rack|1x10Base-T / 100Base-TX|24xSFP+|2xQSFP+|1xRJ45|CRS326-24S+2Q+RM

Mikrotik Switch|MIKROTIK|Rack|1x10Base-T / 100Base-TX|24xSFP+|2xQSFP+|1xRJ45|CRS326-24S+2Q+RM

€620.77
Tax included
Quantity
Add to wishlist

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

If you are working with substantial amount of data – like providing Internet access or maintaining a huge data center – this is the perfect upgrade for your setup. CRS326-24S+2Q+RM is our first product with 40 Gbps QSFP+ ports for remarkably fast and stable fiber connection.

Overall it has two 40 Gbps QSFP+ ports and twenty four 10 Gbps SFP+ ports, which provides total nonblocking throughput of 320 Gbps and switching capacity of 640 Gbps with forwarding rate of 252 Mpps with most common packets.

CRS326-24S+2Q+RM is easy to manage – it has a full size USB port for configuration and dual power supply for redundancy – no unexpected downtime, your clients and colleagues will be thankful!

You can choose between our legendary feature-packed RouterOS for booting or a simpler, but still powerful SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS



Manufacturer Website:
https://mikrotik.com/product/crs326_24s_2q_rm#fndtn-specifications

Category Code
SWI
CnCode
85176200
Unit Box Height
0.065
Unit Box Length
0.49
Unit Box Width
0.275
Switch layer
L3
Switch type
Managed
Console port
RJ-45
Power connector
AC-in jack
QSFP+ module slots quantity
2
SFP+ module slots quantity
24
USB 2.0 ports quantity
1
10G support
Yes
Forwarding rate
252 Mpps
Switching capacity
640 Gbit/s
Throughput
320 Mpps
Form factor
1U
LED indicators
Yes
Product colour
White
Rack mounting
Yes
Reset button
Yes
Built-in processor
Yes
Flash memory
16 MB
Internal memory
64 MB
Memory type
RAM
Processor frequency
650 MHz
AC input voltage
100 - 240 V
Power consumption (max)
69 W
Redundant power supply (RPS) support
Yes
Power over Ethernet (PoE)
No
Operating temperature (T-T)
-20 - 60 °C
Depth
183 mm
Height
44 mm
Width
443 mm
Cables included
AC
Rack mount kit
Yes
Harmonized System (HS) code
85176990
Units per Shipping Box
10
Unit Calculated Volume
0.003773 cubm
Unit Calculated Weight
2.75 kg
CRS326-24S+2Q+RM
6 Items

Specific References

MPN
CRS326-24S+2Q+RM
