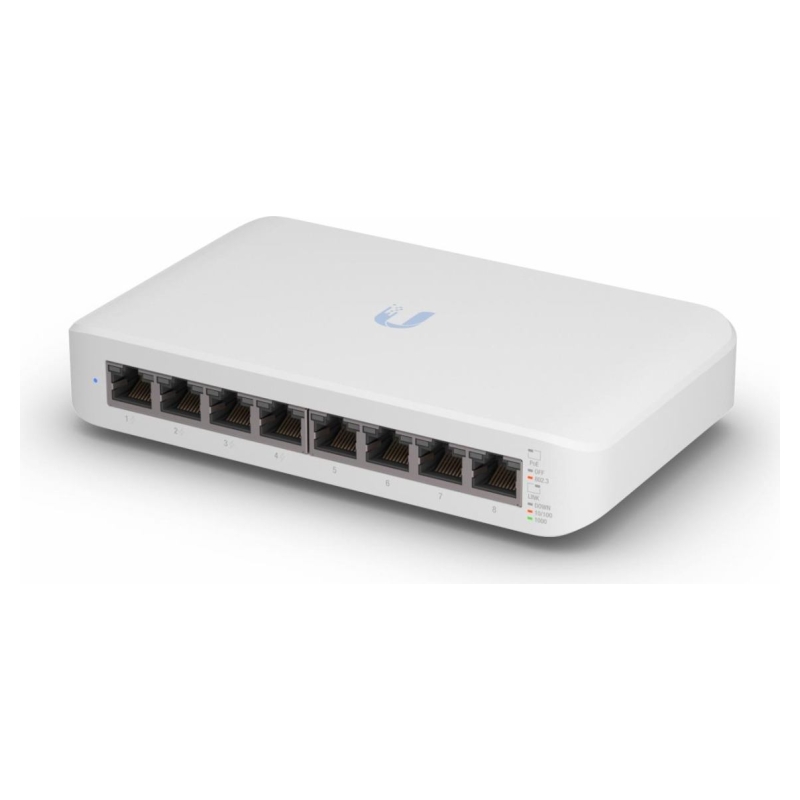

The USW-Lite-8-PoE is a fully managed Layer 2 switch with eight Gigabit Ethernet ports for your RJ45 Ethernet devices. Four ports also offer auto-sensing 802.3at PoE+ that provide up to a total PoE wattage of 52W for UniFi Access Points or other PoE devices.
Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-Lite-8-PoE offers Layer 2 switching protocols and features. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
- (8) Gigabit RJ45 ports including (4) 802.3at PoE+ ports
- Managed by UniFi Controller (5.13.10 or later)
- External 60W power adapter
- Wall-mountable (Kit included)
Manufacturer Website:https://store.ui.com/collections/unifi-network-routing-switching/products/unifi-switch-lite-8-poe- Category Code
- SWI
- CnCode
- 85176200
- Unit Box Height
- 0.13
- Unit Box Length
- 0.19
- Unit Box Width
- 0.105
- Switch layer
- L2
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Power connector
- DC-in jack
- 10G support
- No
- Networking standards
- IEEE 802.3at
- Switching capacity
- 8 Gbit/s
- LED indicators
- Yes
- Product colour
- White
- Rack mounting
- No
- Stackable
- No
- Wall mountable
- Yes
- DC input voltage
- 54 V
- Number of power supply units
- 1
- Power consumption (typical)
- 60 W
- Power supply included
- Yes
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) power per port
- 30 W
- Power over Ethernet (PoE) type supported
- PoE+
- Power over Ethernet plus (PoE+) ports quantity
- 4
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- -15 - 40 °C
- Depth
- 99.6 mm
- Height
- 31.7 mm
- Weight
- 450 g
- Width
- 163.7 mm
- Harmonized System (HS) code
- 85176990
- Model name
- Lite 8 PoE
- Units per Shipping Box
- 9
- Unit Calculated Volume
- 0.003531 cubm
- Unit Calculated Weight
- 0.867 kg
