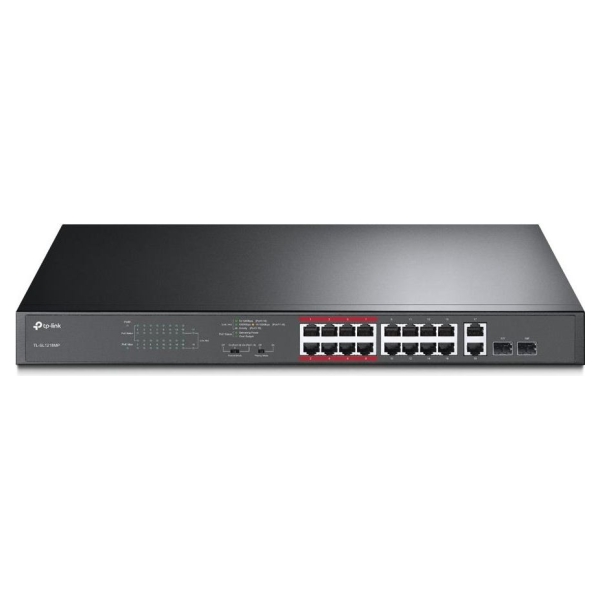

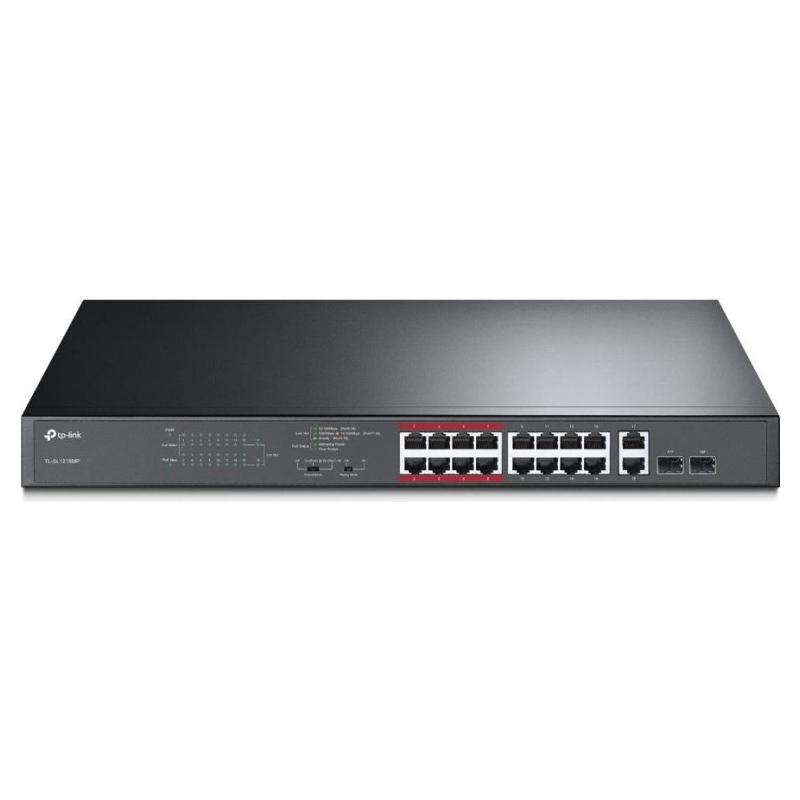

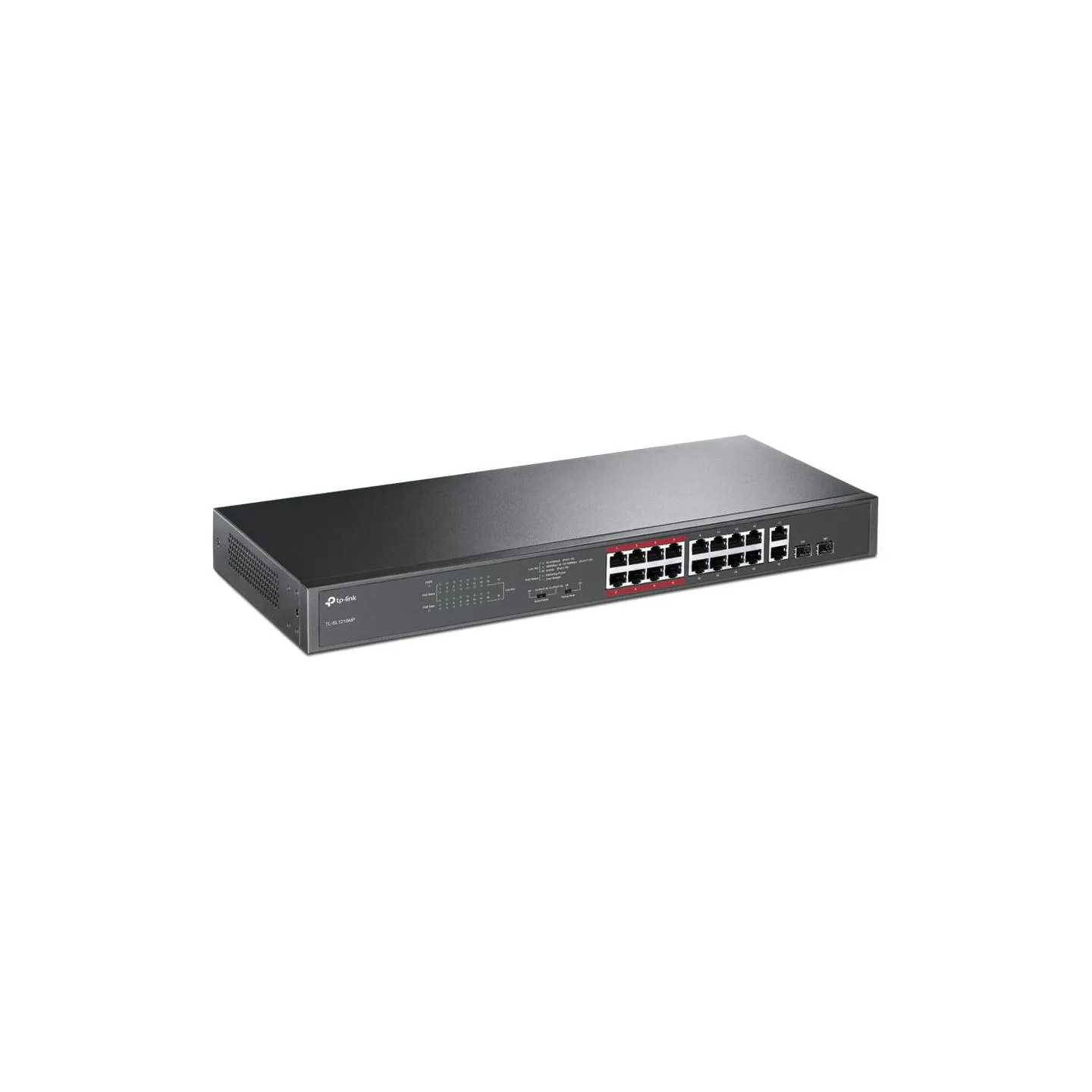

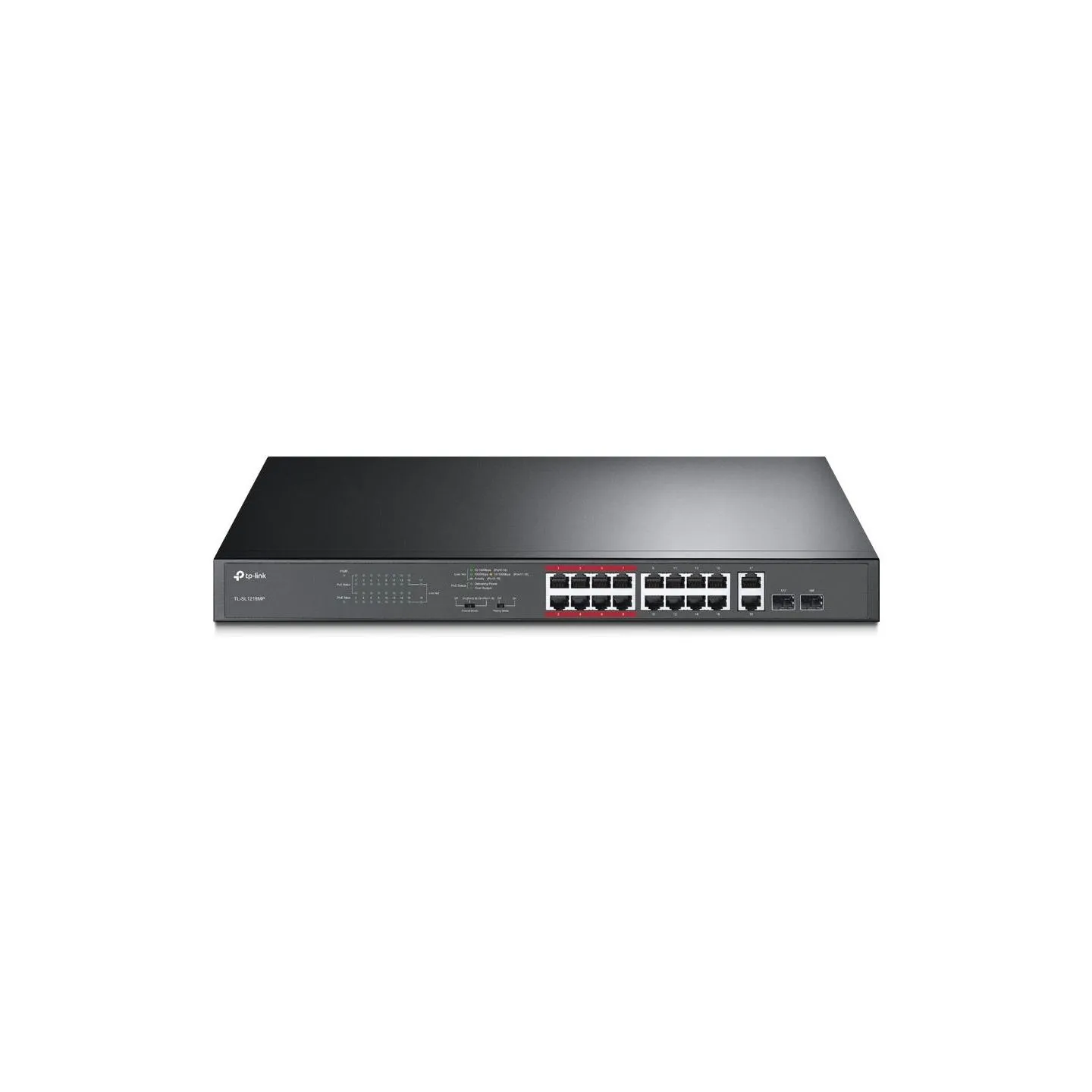

    Tp-Link Switch|TP-LINK|Desktop/pedestal|16x10Base-T / 100Base-TX|2x10/100/1000BASE-T/SFP combo|PoE+ ports 16|192 Watts|TL-SL1218

Tp-Link Switch|TP-LINK|Desktop/pedestal|16x10Base-T / 100Base-TX|2x10/100/1000BASE-T/SFP combo|PoE+ ports 16|192 Watts|TL-SL1218

€182.35
Tax included
Quantity
Add to wishlist
Last items in stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

Easy to Use PoE Switch with Innovative Design
Up To 250m Data and Power Transmission for Surveillance

High PoE Power Budget
TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.

Up to 250m Transmission for Surveillance
TL-SL1218MP is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend mode, the PoE transmission distance reaches up to 250m* which makes it perfect for IP Camera deployment in large area coverage.

Video Quality Guaranteed
Priority mode guarantees the important data, such as video surveillance, delivered with the best priority passing the data fabric even when the traffic load is heavy. Hardware switch for easy configuration with no login required.

  • 16 PoE+ 10/100Mbps RJ45 ports, 2 Gigabit RJ45 ports and 2 combo Gigabit SFP slots
  • Up to 250m data and power transmission under extend mode specially designed for surveillance system
  • Priority mode for port1-8 to guarantees the quality of sensitive applications like video monitor
  • High PoE power budget with up to 30W for each PoE port and 194W for all PoE ports
  • Easy to use, with no configuration and installation needed



Manufacturer Website:
https://www.tp-link.com/us/business-networking/unmanaged-switch/tl-sl1218mp/

Category Code
SWI
CnCode
85176200
Unit Box Height
0.08
Unit Box Length
0.525
Unit Box Width
0.25
Switch type
Unmanaged
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Combo SFP ports quantity
2
Fast Ethernet (copper) ports quantity
16
Gigabit Ethernet (copper) ports quantity
2
10G support
No
Auto MDI/MDI-X
Yes
Copper ethernet cabling technology
1000BASE-T/100BASE-TX/10BASE-T
Flow control support
Yes
Networking standards
IEEE 802.3af/IEEE 802.3at
Jumbo frames
10000
Jumbo frames support
Yes
MAC address table
8000 entries
Packet buffer memory
4.1 MB
Store-and-forward
Yes
Switching capacity
7.2 Gbit/s
MAC address filtering
Yes
LED indicators
LAN/PoE/Status
Number of fans
2 fan(s)
Product colour
Black
Rack mounting
Yes
Stackable
No
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power consumption (typical)
18.7 W
Power source
AC
Power supply included
Yes
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
16
Total Power over Ethernet (PoE) budget
192 W
Heat dissipation
741.15 BTU/h
Operating relative humidity (H-H)
10 - 90 %
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
5 - 90 %
Storage temperature (T-T)
-40 - 70 °C
Depth
180 mm
Height
44 mm
Width
440 mm
Cables included
LAN (RJ-45)
Manual
Yes
Quick start guide
Yes
User guide
Yes
Harmonized System (HS) code
85176990
Model name
16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch
Units per Shipping Box
1
Unit Calculated Volume
0.0105 cubm
Unit Calculated Weight
3 kg
TL-SL1218MP
1 Item

Specific References

EAN13
6935364099824
MPN
TL-SL1218MP
New
