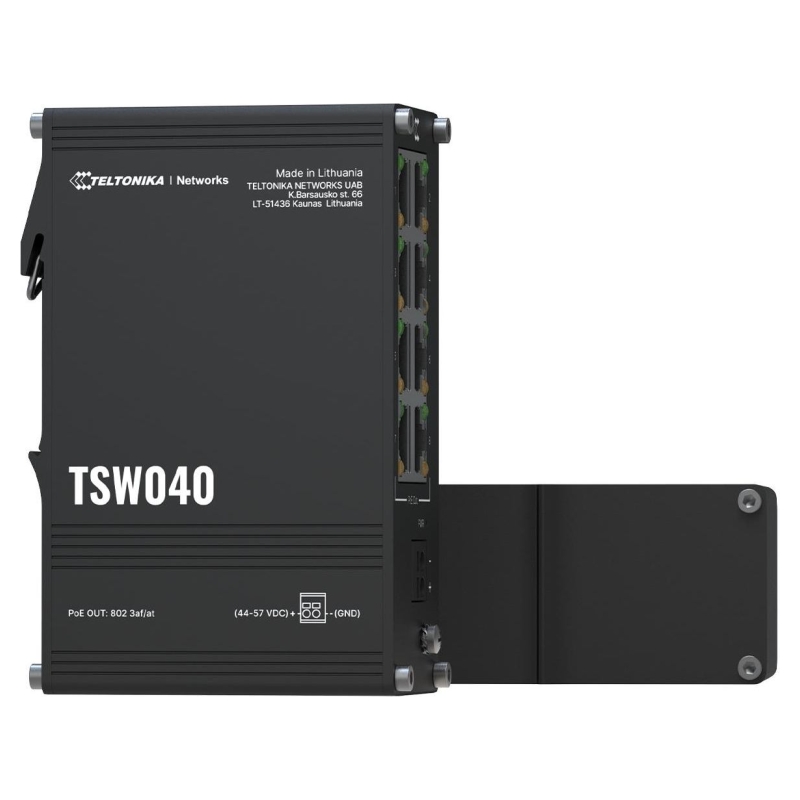

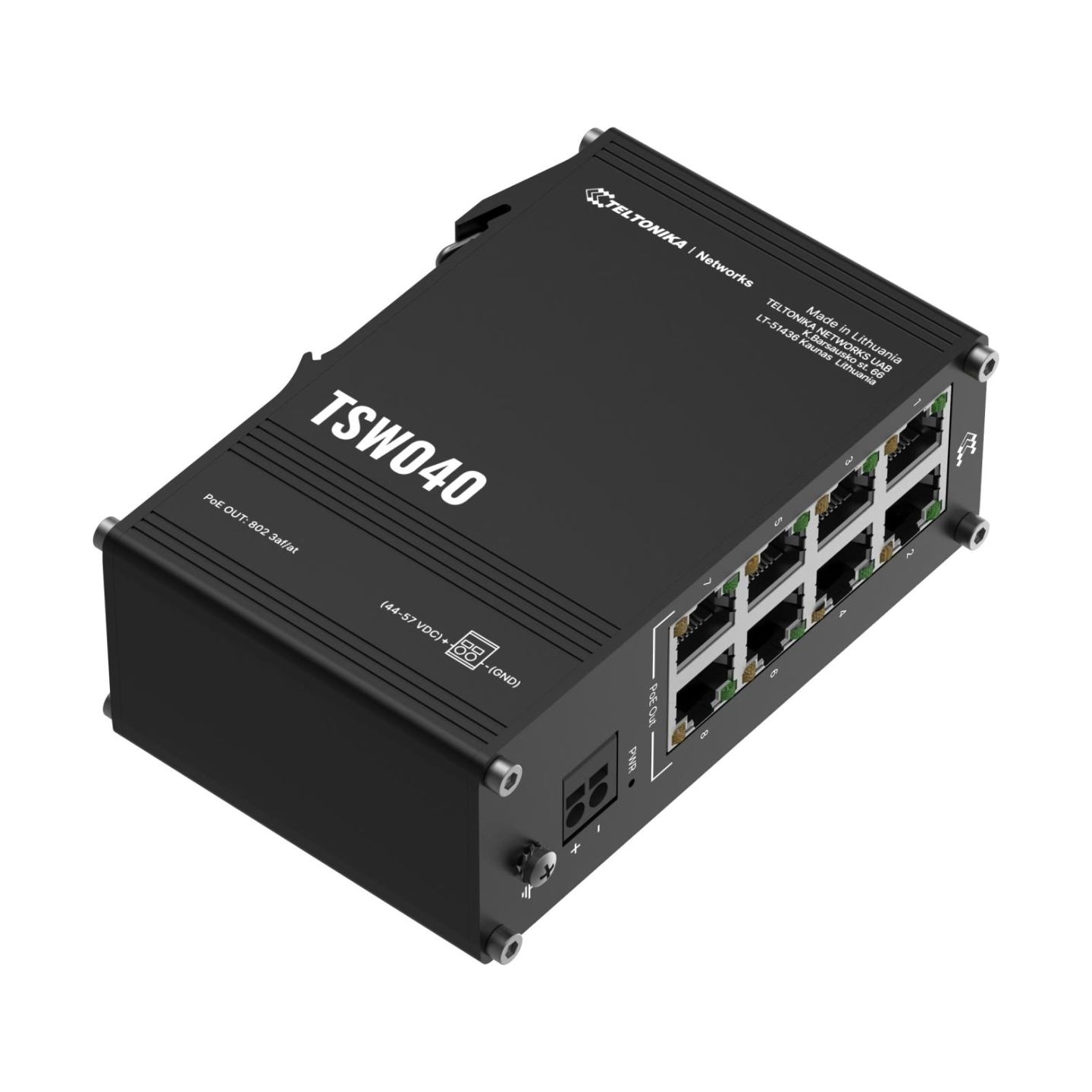

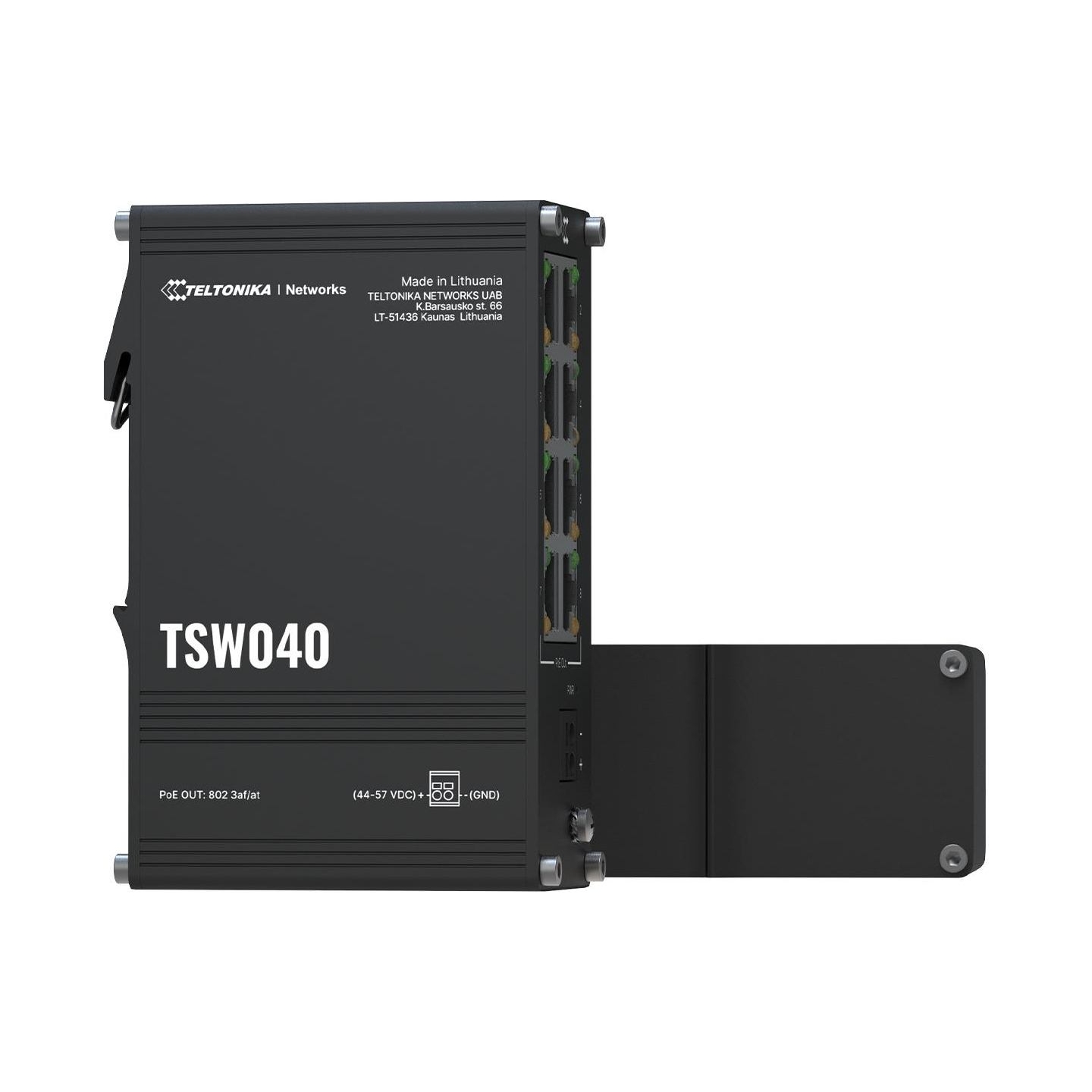

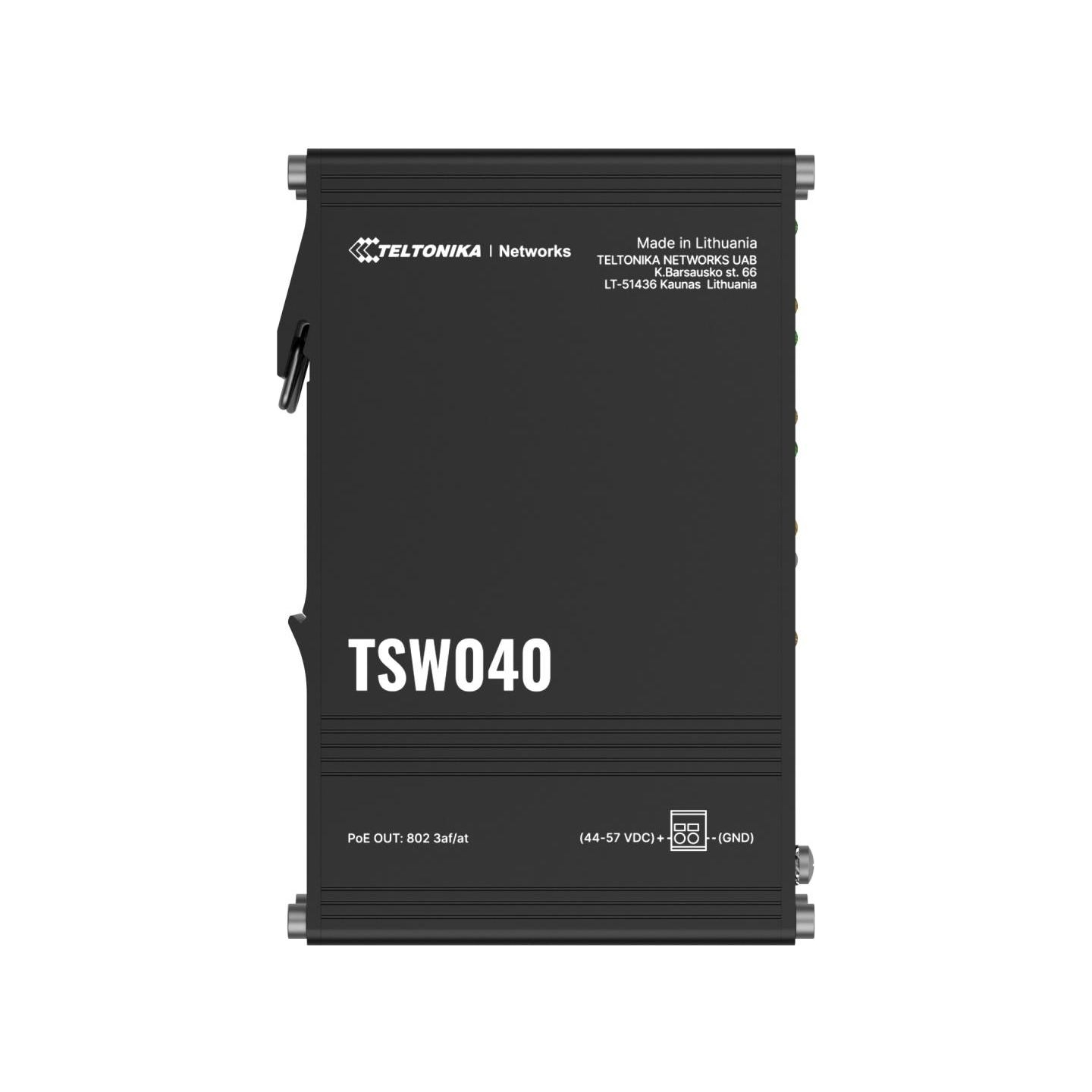

The TSW040 is an unmanaged 8-port PoE+ switch by Teltonika, featuring eight RJ45 ports with a total power budget of 240 W, or up to 30 W per port. This compact and rugged 8-port switch also features a 2-pin power input and an integrated DIN rail for easy mounting, making it ideal for industrial applications. The TSW040 has a wide voltage range of 7-57 VDC and a PoE-out voltage range of 44-57 VDC.

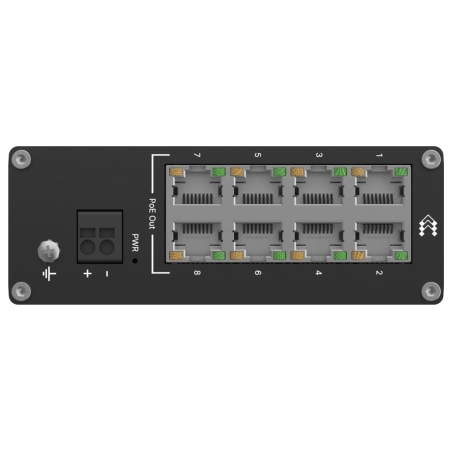

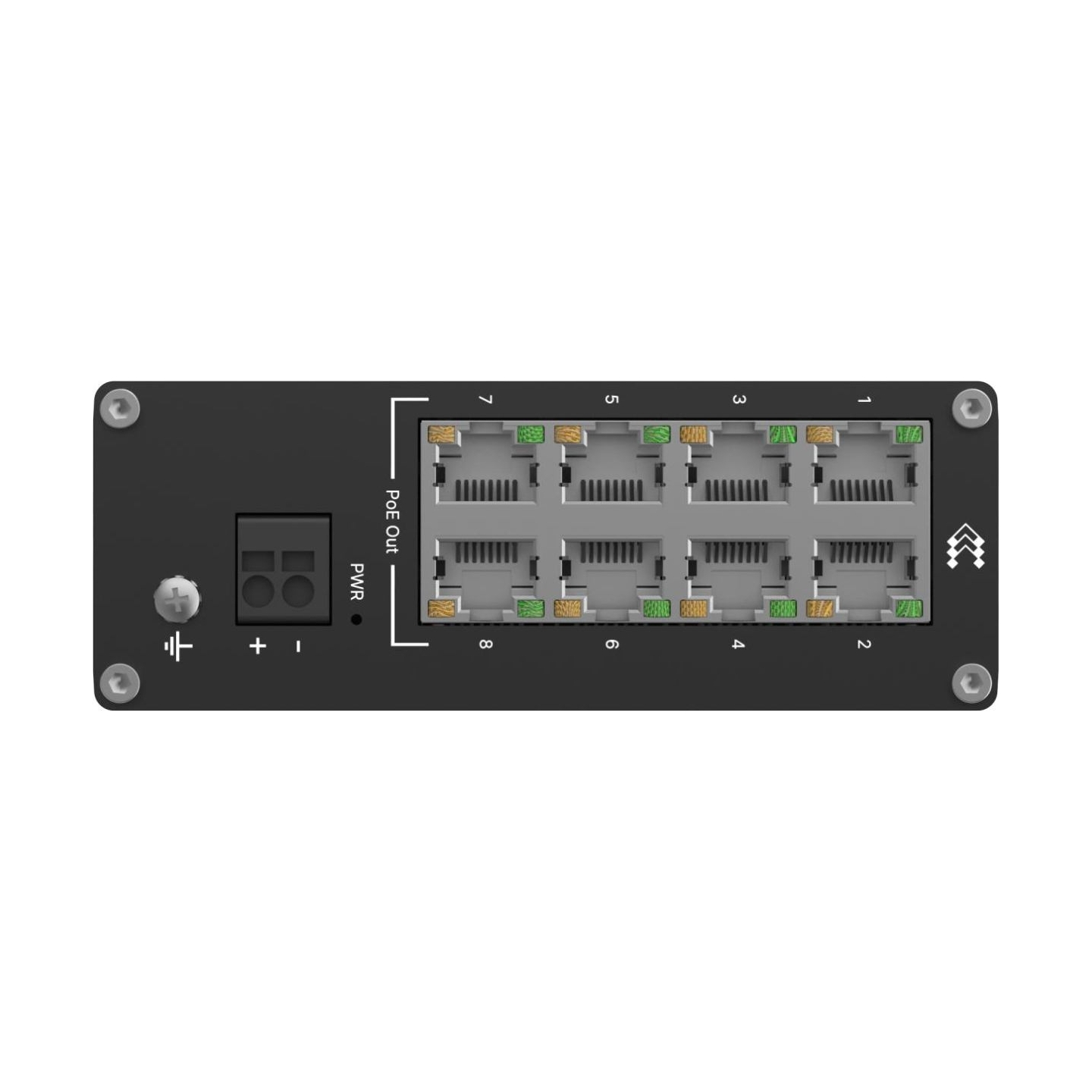

- 8 X POE-OUT RJ45
- Eight PoE-out Ethernet ports with a total power budget of 240 W
- 2-PIN POWER INPUT
- Simple and suitable for industrial applications

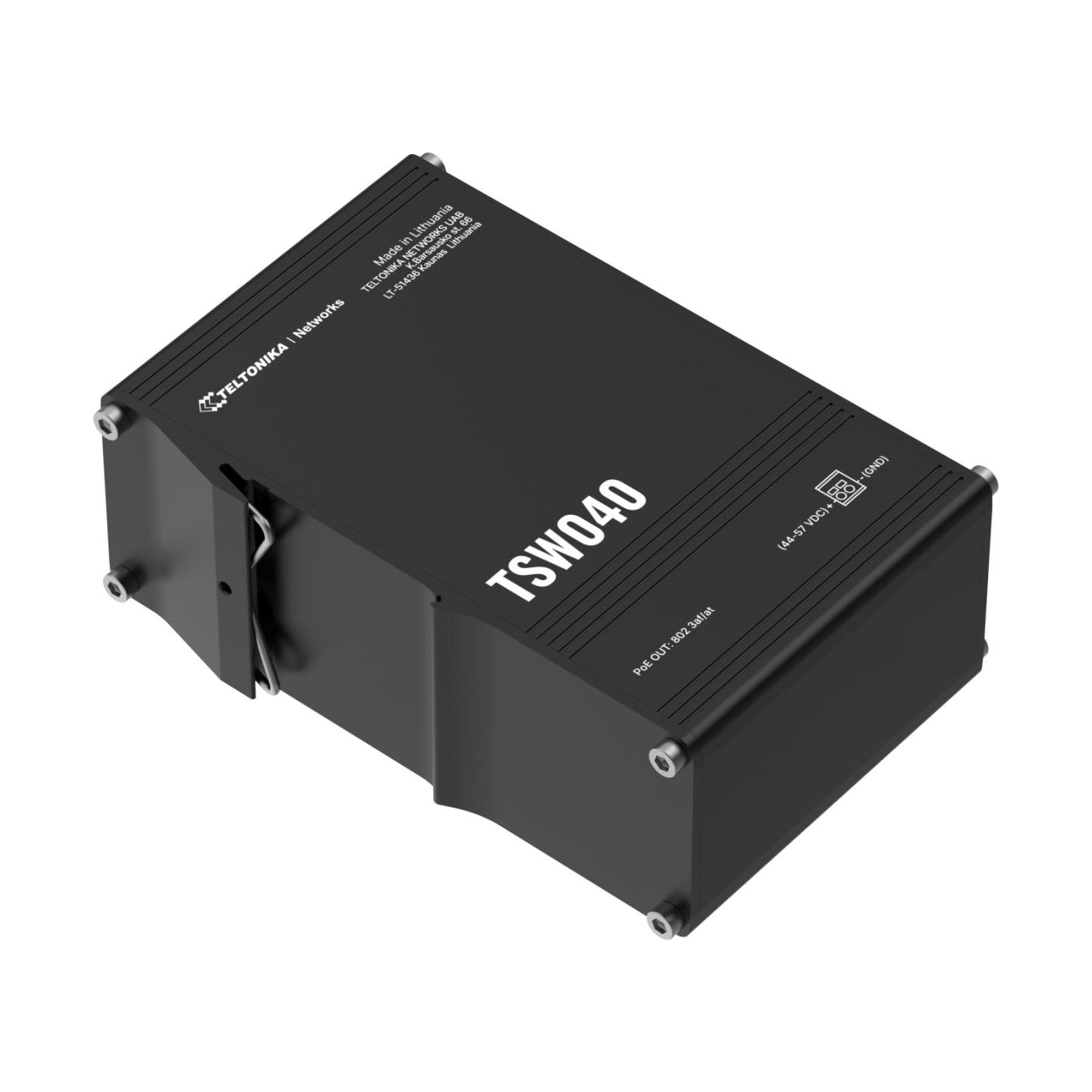

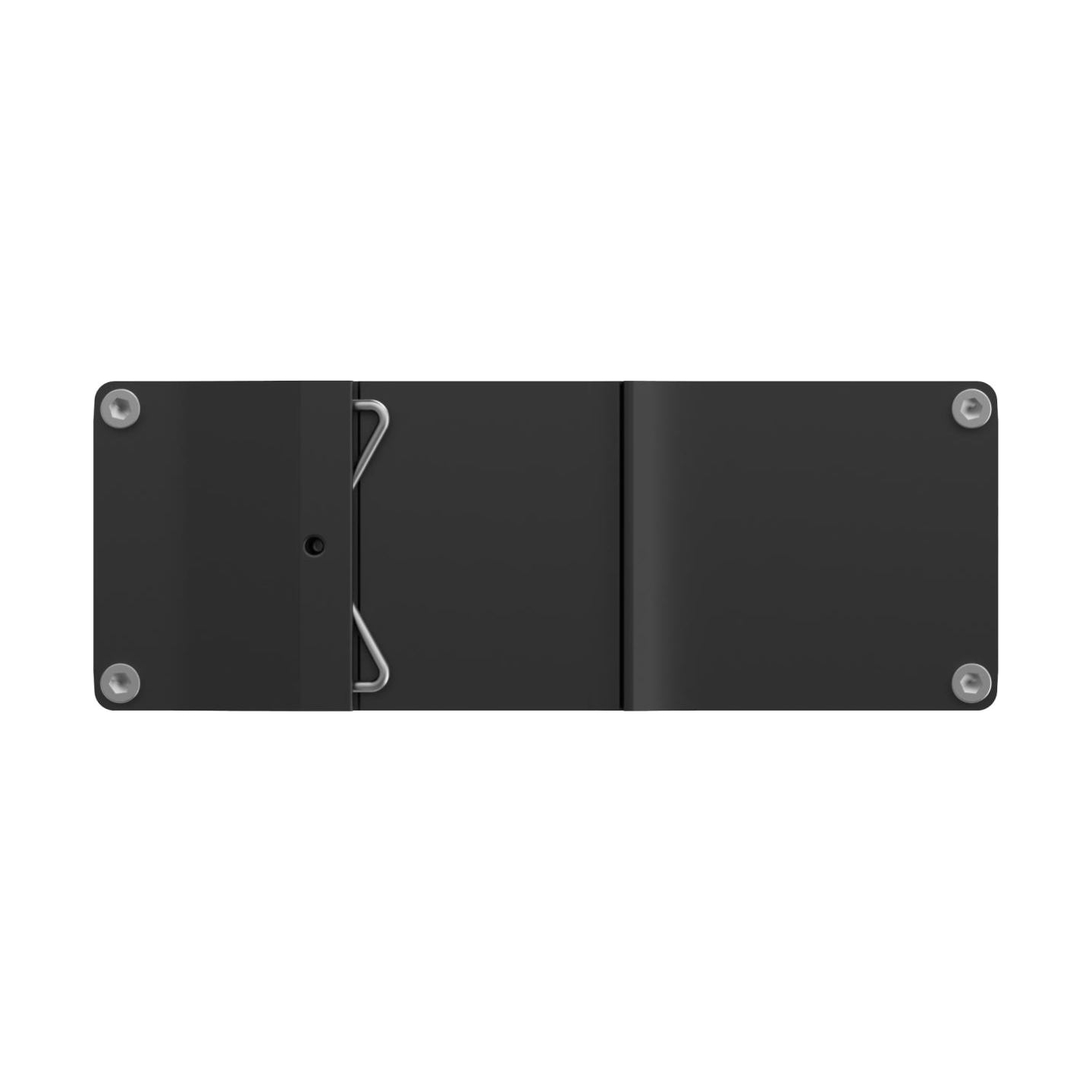

- INTEGRATED DIN RAIL
- Easy mounting for plug-and-play deployment
- WIDE VOLTAGE RANGE
- 7-57 VDC, or 44-57 VDC for PoE-out
Manufacturer Website:https://teltonika-networks.com/products/ethernet-switches/TSW040/- Category Code
- SWI
- CnCode
- 85176200
- Unit Box Height
- 0.08
- Unit Box Length
- 0.13
- Unit Box Width
- 0.05
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Basic switching RJ-45 Ethernet ports type
- Fast Ethernet (10/100)
- Fast Ethernet (copper) ports quantity
- 8
- 10G support
- No
- Networking standards
- IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
- MAC address table
- 2048 entries
- Switching capacity
- 20 Gbit/s
- Housing material
- Aluminium
- LED indicators
- Link/Power/Status
- Product colour
- Black
- Rack mounting
- No
- Reset button
- No
- Stackable
- No
- DC input voltage
- 7 - 57 V
- Power source
- DC
- Power supply included
- No
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) ports quantity
- 8
- Power over Ethernet (PoE) power per port
- 30 W
- Power over Ethernet (PoE) type supported
- Active PoE
- Power over Ethernet (PoE) voltage
- 48 V
- Total Power over Ethernet (PoE) budget
- 240 W
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- -40 - 75 °C
- Depth
- 74.6 mm
- Height
- 41.2 mm
- Weight
- 280 g
- Width
- 113.1 mm
- Quick start guide
- Yes
- Model
- TSW040
- Model name
- TSW040000000
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.00052 cubm
- Unit Calculated Weight
- 0.28 kg
