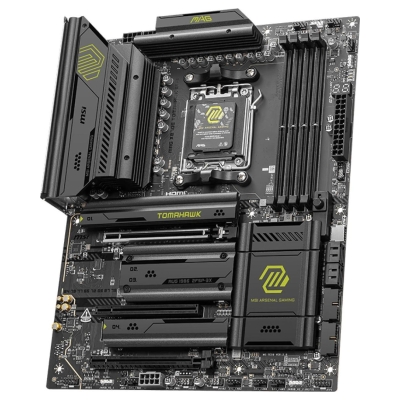

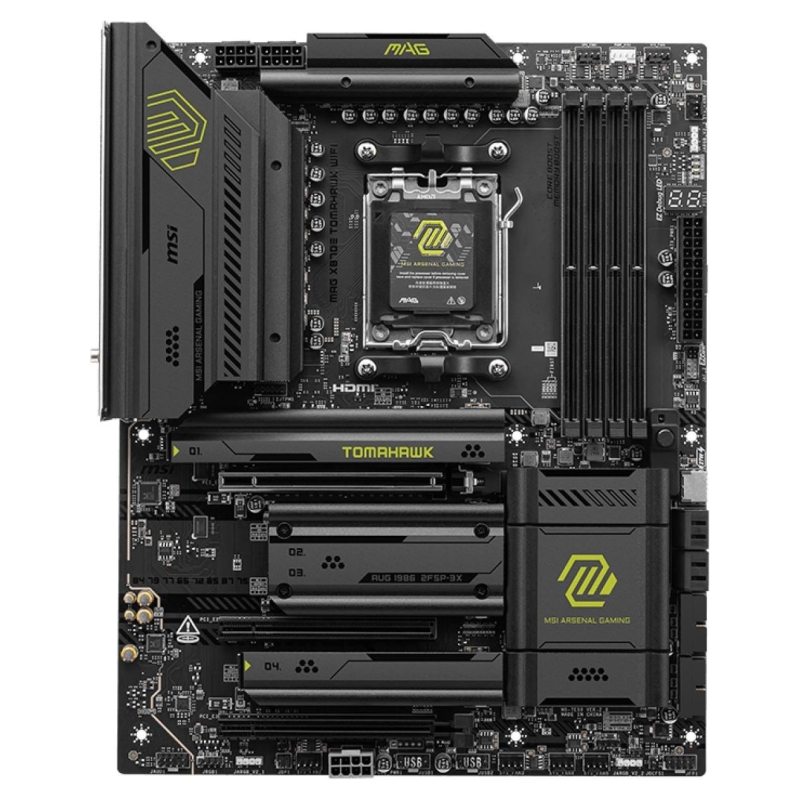

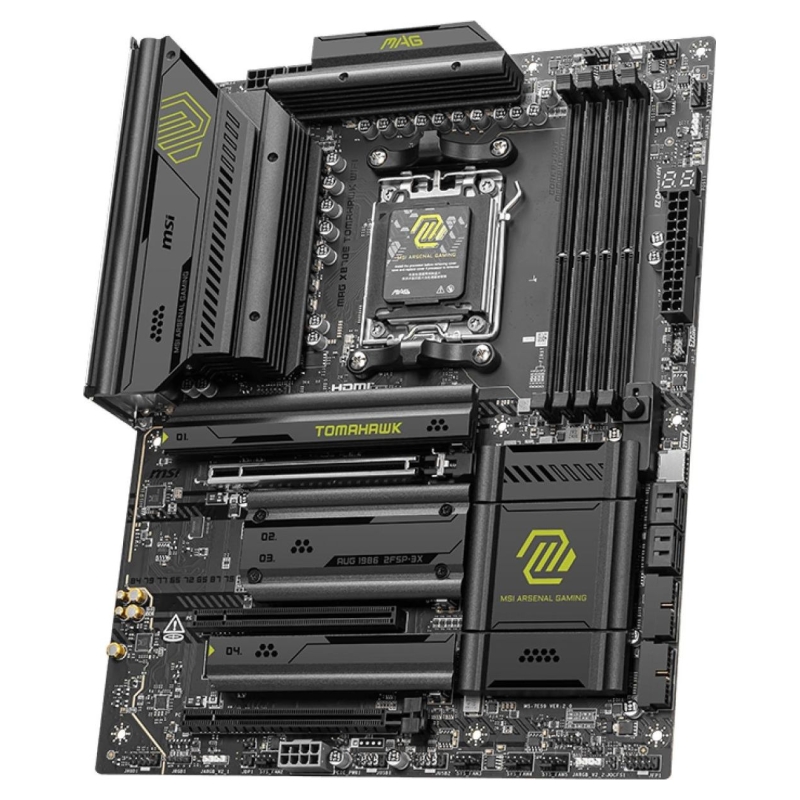

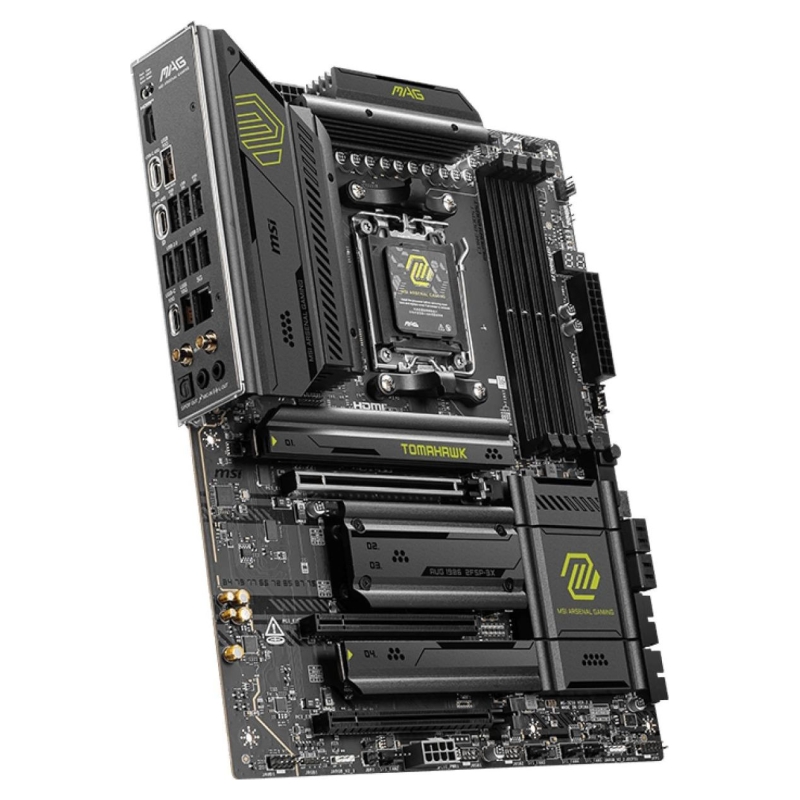

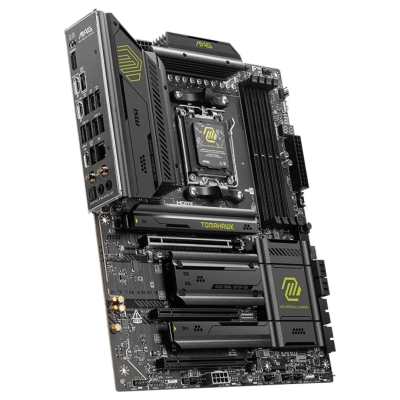

MSI Motherboard MAG X870E TOMAHAWK WIFI AM5 4DDR5 ATX

Data sheet

Designation

CE+WEEE

Bluetooth

Yes

Processor family

AMD Ryzen 5
AMD Ryzen 7
AMD Ryzen 9

CPU socket

Socket AM5

Memory type

DDR5

Memory bus frequency

4800 MHz
5600 MHz
6400 MHz
8400 MHz

Integrated CPU

No

Chipset manufacturer

AMD

Chipset type

AMD X870E

Max memory size

256

Expansion slots

1 x PCIe 3.0 x 1
1 x PCIe 4.0 x 4
1 x PCIe 5.0 x 16
4 x M.2

Max. number of SATA devices

4

RAID

Yes

Detailed data on disk/drive interfaces

4x M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devicesM.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devicesM.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_4 S

Graphics

1x HDMI Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz

Sound card

Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-bit/384kHz playback on front panel Supports S/PDIF output

Network interface

1 x 10/100/1000/2500/5000 Mbit/s
Bluetooth
LAN      1x Realtek 8126 5G LAN WIRELESS LAN & BLUETOOTH     Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth
Wi-Fi 802.11a/b/g/n/ac/ax/be

USB ports at back panel

12

USB ports on motherboard

9

Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports

7

FireWire (IEEE 1394)

No

COM connector / port

No

LPT connector / port

No

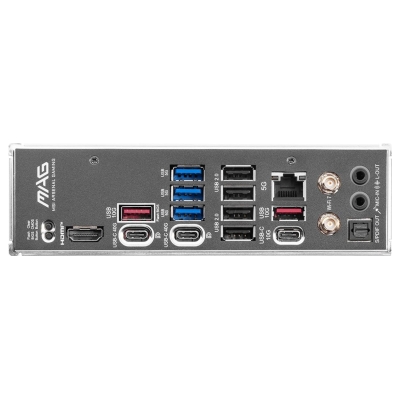

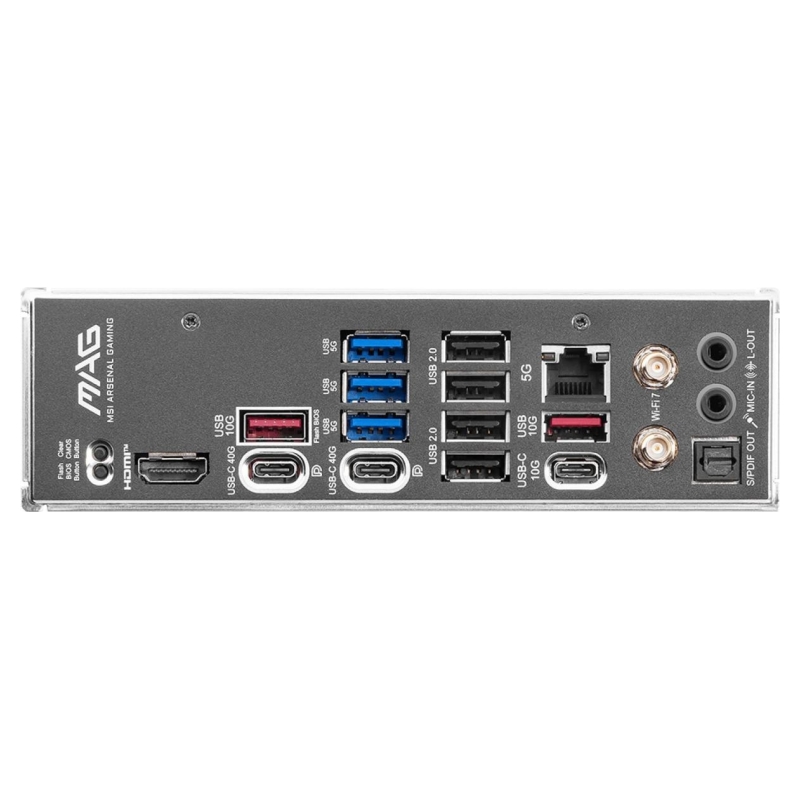

External connectors

1 x Flash BIOS Button
1 x HDMI
1 x Line Out
1 x MIC
1 x Przycisk Clear CMOS
1 x RJ-45
1 x S/PDIF
1 x USB 3.2 Gen 2 Type-C
2 x SMA
2 x Thunderbolt 4
2 x USB 3.2 Gen 2 Type-A
3 x USB 3.2 Gen 1 Type-A
4 x USB 2.0

Onboard connectors

1 x 24pin ATX zasilanie
1 x 4-pin water-pump-fan
1 x 8pin 12V power
1 x Chassis intrusion header
1 x EZ Conn-header
1 x Front panel audio header
1 x RGB LED strip header
1 x TPM header
1 x USB 3.2 Gen 2x2 Type-C
2 x 4pin wentylator CPU
2 x System panel header
3 x Addressable LED
4 x USB 2.0/1.1
4 x USB 3.2 Gen 1 Type-A
6 x 4pin wentylator obudowy

Form factor

ATX

Supported operating systems

Windows 11

Number of DDR5 slots

4

Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports

6

USB 2.0 ports quantity

4

Audio output channels

7.1 channels

Microphone in

Yes

Number of storage drives supported

8

Supported storage drive interfaces

M.2,SATA III

Ethernet LAN (RJ-45) ports

1

Wi-Fi standards

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)

Component for

PC

Ethernet LAN

Yes

Ethernet interface type

5 Gigabit Ethernet

HDMI ports quantity

1

Wi-Fi

Yes

DisplayPorts quantity

2

Bluetooth version

5.4

Compatible processor series

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Motherboard form factor

ATX

Supported memory types

DDR5-SDRAM

Processor socket

Socket AM5

EPS power connector (8-pin)

Yes

Supported processor sockets

Socket AM5

Maximum internal memory

256 GB

Supported storage drive types

HDD & SSD

HDMI version

2.1

Category Code

MBA

CnCode

84733020

Units per Shipping Box

5

Product colour

Black

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

DisplayPort version

1.4

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

LAN controller

Realtek RTL8126

Memory channels

Dual-channel

Processor manufacturer

AMD

On-board graphics card

No

Motherboard chipset

AMD X870E

Motherboard chipset family

AMD

ECC сompatibility

Non-ECC

Memory slots type

DIMM

Number of memory slots

4

Number of HDDs supported

4

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Number of SATA III connectors

4

USB 2.0 connectors

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

4

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

S/PDIF out port

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

1st M.2 highest PCI Express generation

5.0

1st M.2 largest key size

22110

2nd M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

2280

3rd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

2280

Number of M.2 (M) slots

4

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

Supported memory clock speed (max)

8400 MHz

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Maximum internal memory supported by processor

256 GB

PC health monitoring

CPU/Fan/Temperature/Voltage

Supported memory clock speeds

4800/5600/8400 MHz

PCI Express x16 (Gen 3.x) slots

1

Total number of SATA connectors

4

USB4 Gen 2x2 ports quantity

1

4th M.2 highest PCI Express generation

4.0

4th M.2 largest key size

2280

Specific References

EAN13

4711377291927

MPN

MAG X870E TOMAHAWK WIFI
