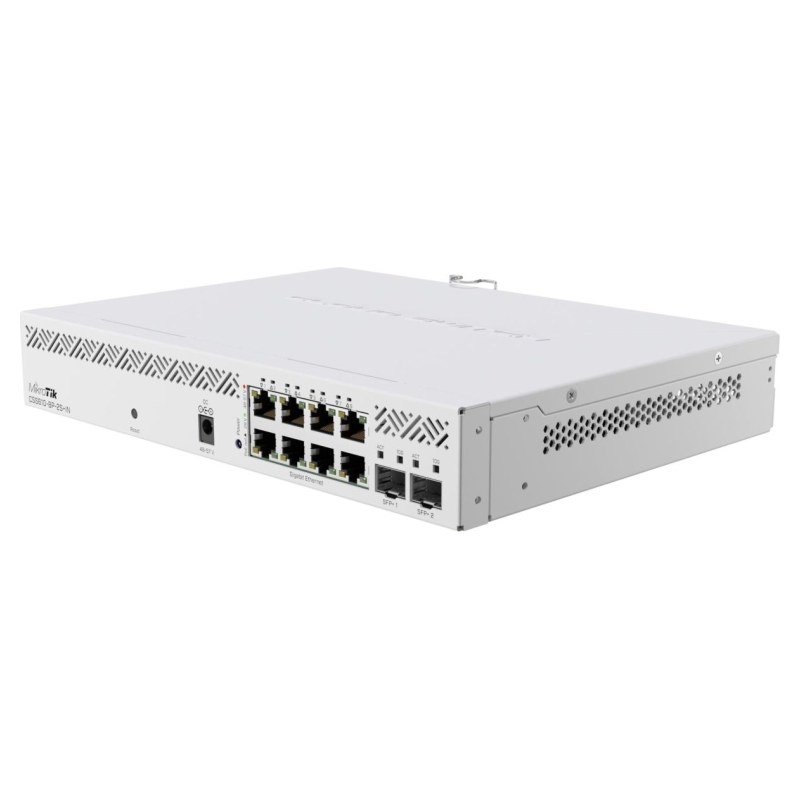

    Mikrotik Switch|MIKROTIK|8x10Base-T / 100Base-TX / 1000Base-T|2xSFP+|CSS610-8P-2S+IN

Mikrotik Switch|MIKROTIK|8x10Base-T / 100Base-TX / 1000Base-T|2xSFP+|CSS610-8P-2S+IN

€233.24
Tax included
Quantity
Add to wishlist

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

CSS610-8P-2S+IN is one of the most well-rounded switches on the market. It is a perfect fit for the most diverse setups: from home networks and small offices to hotels, call centers and so on. The unique combination of size, features, and price offers unbelievable scalability potential.

There are two SFP+ ports for 10 Gigabit fiber connectivity and eight Gigabit Ethernet ports with 802.3af/at PoE-out.

This switch is all about nice and easy setups. The compact form-factor means easier shipping and handling, while the lightweight SwOS means easier configuration. You can even configure this switch from your web browser! It gives you all the core functionality of a managed switch, and even more: you can manage port-to-port forwarding, broadcast storm control, apply MAC filters, configure VLANs, mirror traffic, apply bandwidth limitations, and even adjust some MAC and IP header fields.

But the real blessing is the combination of SFP+ and PoE-out Ethernet ports. With this setup, you can do all kinds of things on a tight budget. CSS610 has an impressive total PoE-out budget of 140 W, so you can use even in the most intense scenarios – like hotels, conference halls, or call centers! Use the PoE-out ports to connect the IP-phones while the SFP+ ports connect your primary server to the ISP. Or power a bunch of network cameras and instantly upload the footage to the cloud. And manage a cluster of wireless access points at the same time. Also, scalability is no longer a problem. With our pricing, you can afford a switch on every floor!

Like every toolbox needs screwdrivers and pliers, every network can use a solid PoE switch.



Manufacturer Website:
https://mikrotik.com/product/css610_8p_2s_in#fndtn-downloads

Category Code
SWI
CnCode
85176200
Unit Box Height
0.25
Unit Box Length
0.38
Unit Box Width
0.065
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity
2
10G support
Yes
Broadcast storm control
Yes
Networking standards
IEEE 802.3af/IEEE 802.3at
VLAN support
Yes
Switching capacity
56 Gbit/s
MAC address filtering
Yes
International Protection (IP) code
IP20
LED indicators
Yes
Product colour
White
Rack mounting
Yes
Reset button
Yes
Fanless
Yes
Flash memory
0.064 MB
Mean time between failures (MTBF)
200000 h
Operating system installed
SwitchOS Lite
Processor model
Marvell 88E6193X
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
DC input voltage
48 - 57 V
Input current
2.2 A
Power consumption (max)
162 W
Power source
AC/DC
Power supply included
Yes
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
8
Power over Ethernet (PoE) type supported
Passive PoE
Total Power over Ethernet (PoE) budget
140 W
Storage temperature (T-T)
-40 - 70 °C
Depth
216 mm
Height
50 mm
Width
272 mm
Cables included
AC
Rack mount kit
Yes
Sustainability compliance
Yes
Certification
EAC
Compliance certificates
CE/RoHS
Model
CSS610-8P-2S+IN
Units per Shipping Box
5
Unit Calculated Volume
0.00741 cubm
Unit Calculated Weight
2.2 kg
CSS610-8P-2S+IN
9 Items

Specific References

EAN13
4752224007216
MPN
CSS610-8P-2S+IN
New
