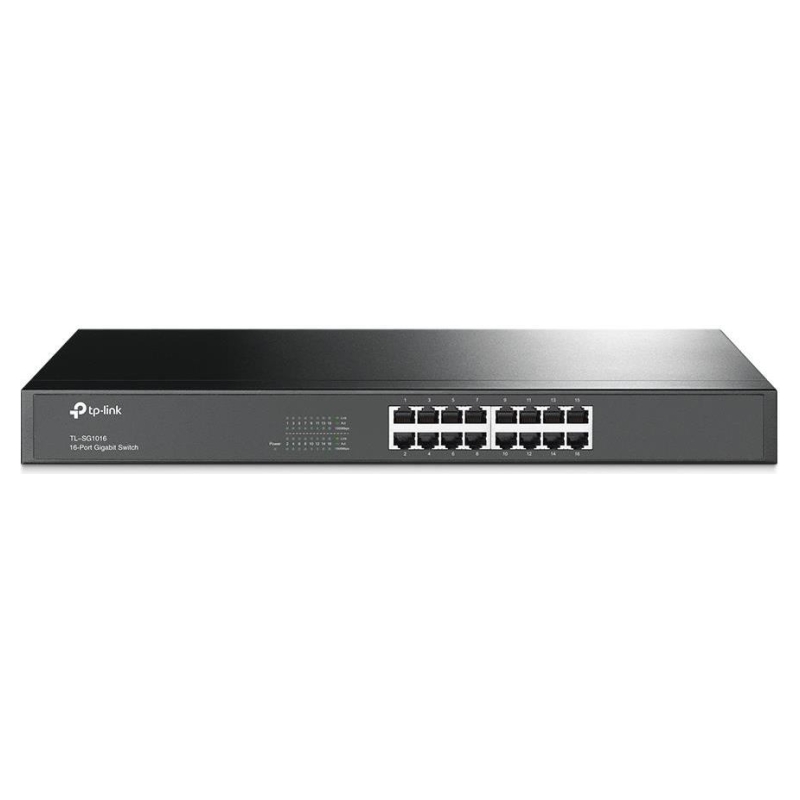

    Tp-Link Switch|TP-LINK|16x10Base-T / 100Base-TX / 1000Base-T|TL-SG1016

Tp-Link Switch|TP-LINK|16x10Base-T / 100Base-TX / 1000Base-T|TL-SG1016

€74.59
Tax included
Quantity
Add to wishlist
Last items in stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

The TL-SG1016 Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016 can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

TP-Link Green Technology
This new generation TL-SG1016 Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance
All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016 forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the tra­ffic congestion and make The TL-SG1016 work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.

Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

  • 16 10/100/1000Mbps RJ45 ports
  • Innovative energy-efficient technology saves power consumption
  • Supports MAC address self-learning and auto MDI/MDIX
  • Standard 19-inch rack-mountable steel case



Manufacturer Website:
https://www.tp-link.com/hk/business-networking/unmanaged-switch/tl-sg1016/v12/#specifications

Category Code
SWI
CnCode
85176200
Unit Box Height
0.08
Unit Box Length
0.53
Unit Box Width
0.22
Quality of Service (QoS) support
Yes
Switch type
Unmanaged
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
16
Power connector
AC-in jack
10G support
No
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Cable types supported
Cat3/Cat4/Cat5/Cat5e
Copper ethernet cabling technology
1000BASE-T/100BASE-TX/10BASE-T
Flow control support
Yes
Full duplex
Yes
Half duplex
Yes
Networking standards
IEEE 802.3ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
Forwarding rate
23.8 Mpps
Jumbo frames
10000
Jumbo frames support
Yes
MAC address table
8000 entries
Store-and-forward
Yes
Switching capacity
32 Gbit/s
Form factor
1U
Housing material
Metal
LED indicators
Yes
Product colour
Black
Rack mounting
Yes
Compatible operating systems
Microsoft Windows 2000/XP/2003/Vista/2008/7/2012/8/10 MacOS NetWare UNIX Linux
Fanless
Yes
Maximum cable length
100 m
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Power consumption (max)
10.44 W
Power source
AC
Power supply included
Yes
Power over Ethernet (PoE)
No
Heat dissipation
35.6 BTU/h
Operating relative humidity (H-H)
10 - 90 %
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
5 - 90 %
Storage temperature (T-T)
-40 - 70 °C
Depth
180 mm
Height
44 mm
Width
440 mm
Cables included
AC
Rack mount kit
Yes
User guide
Yes
Package depth
528 mm
Package height
80 mm
Package type
Box
Package weight
2040 g
Package width
250 mm
Sustainability compliance
Yes
Compliance certificates
CE/Federal Communications Commission (FCC)/RoHS
Harmonized System (HS) code
85176990
Model name
16-Port Gigabit Rackmount Network Switch
Units per Shipping Box
6
Unit Calculated Volume
0.01174 cubm
Unit Calculated Weight
2.33 kg
TL-SG1016
3 Items

Specific References

EAN13
6935364020095
MPN
TL-SG1016
