Latvija
- New
Availability:
20 In Stock
Teltonika Switch|TELTONIKA|4xRJ-45 ports|RJ-45 Ports Type Gigabit Ethernet (10/100/1000)|Power over Ethernet (PoE) Yes|TSW304
- Write a review
€92.53
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout

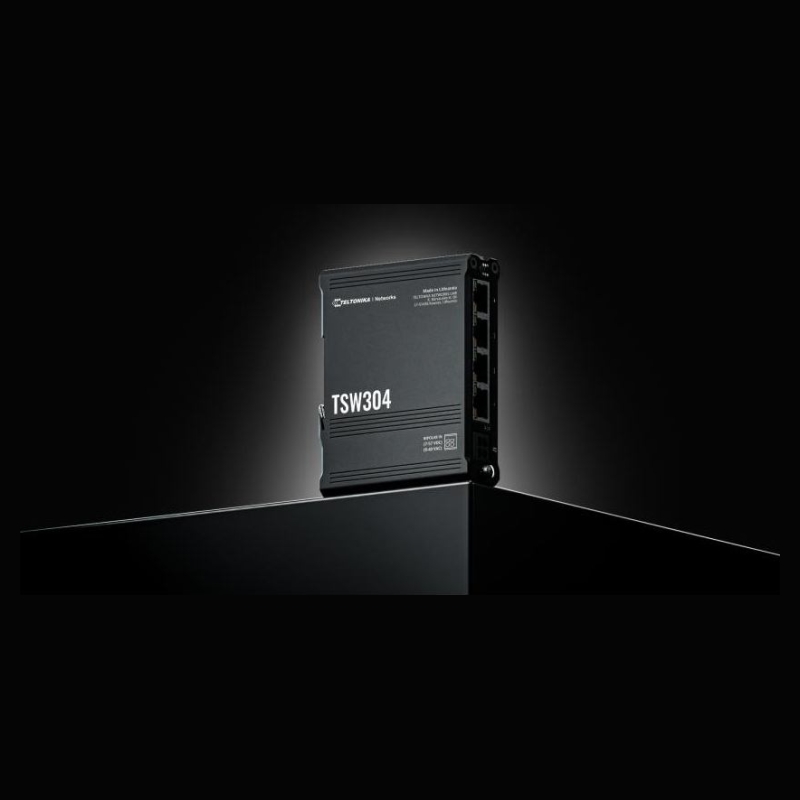

DIN RAIL SWITCH
TSW304 is the tiniest switch in the Teltonika Networks portfolio, made with the industrial application scenarios in mind. This ultra-small device comes with an integrated DIN rail mounting option and will easily find its place in any server cabinet. Durable design and shock-resistant casing make it perfect for even the most challenging industrial environments.
MOUNTING
Integrated DIN rail bracket and surface mounting options
COMPACT
102 x 25 x 81.5 mm
GIGABIT ETHERNET
4 x Gigabit Ethernet with speeds of up to 1000 Mbps
7-57 V
Wide range of supported power supply voltages
Manufacturer Website:
https://teltonika-networks.com/products/switches/tsw304
- Category Code
- SWI
- CnCode
- 85176200
- Unit Box Height
- 0.03
- Unit Box Length
- 0.1
- Unit Box Width
- 0.11
- Basic switching RJ-45 Ethernet ports quantity
- 4
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- 10G support
- No
- Auto MDI/MDI-X
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Networking standards
- IEEE 802.3/IEEE 802.3az/IEEE 802.3u
- Jumbo frames
- 9216
- Jumbo frames support
- Yes
- MAC address table
- 2000 entries
- Packet buffer memory
- 0.128 MB
- Switching capacity
- 8 Gbit/s
- DIN rail mounting
- Yes
- Housing material
- Aluminium
- International Protection (IP) code
- IP30
- LED indicators
- Power/Status
- Product colour
- Black
- Wall mountable
- Yes
- DC input voltage
- 7 - 57 V
- Input voltage
- 9 - 40 V
- Power consumption (max)
- 1.44 W
- Power consumption (typical)
- 0.26 W
- Power source
- AC/DC
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) type supported
- Passive PoE
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- -40 - 75 °C
- Depth
- 81.5 mm
- Height
- 25 mm
- Weight
- 210 g
- Width
- 102 mm
- Certification
- CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM
- Model
- TSW304
- Model name
- TSW304
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.00033 cubm
- Unit Calculated Weight
- 0.23 kg
TSW304
19 Items
Specific References
- EAN13
- 4779051840144
- MPN
- TSW304
New
