Teltonika Switch|TELTONIKA|4xRJ-45 ports|RJ-45 Ports Type Gigabit Ethernet (10/100/1000)|Power over Ethernet (PoE) Yes|TSW304
Price:
€92.53
Tax included
Product Comments module (productcomments) must be installed!
Share on

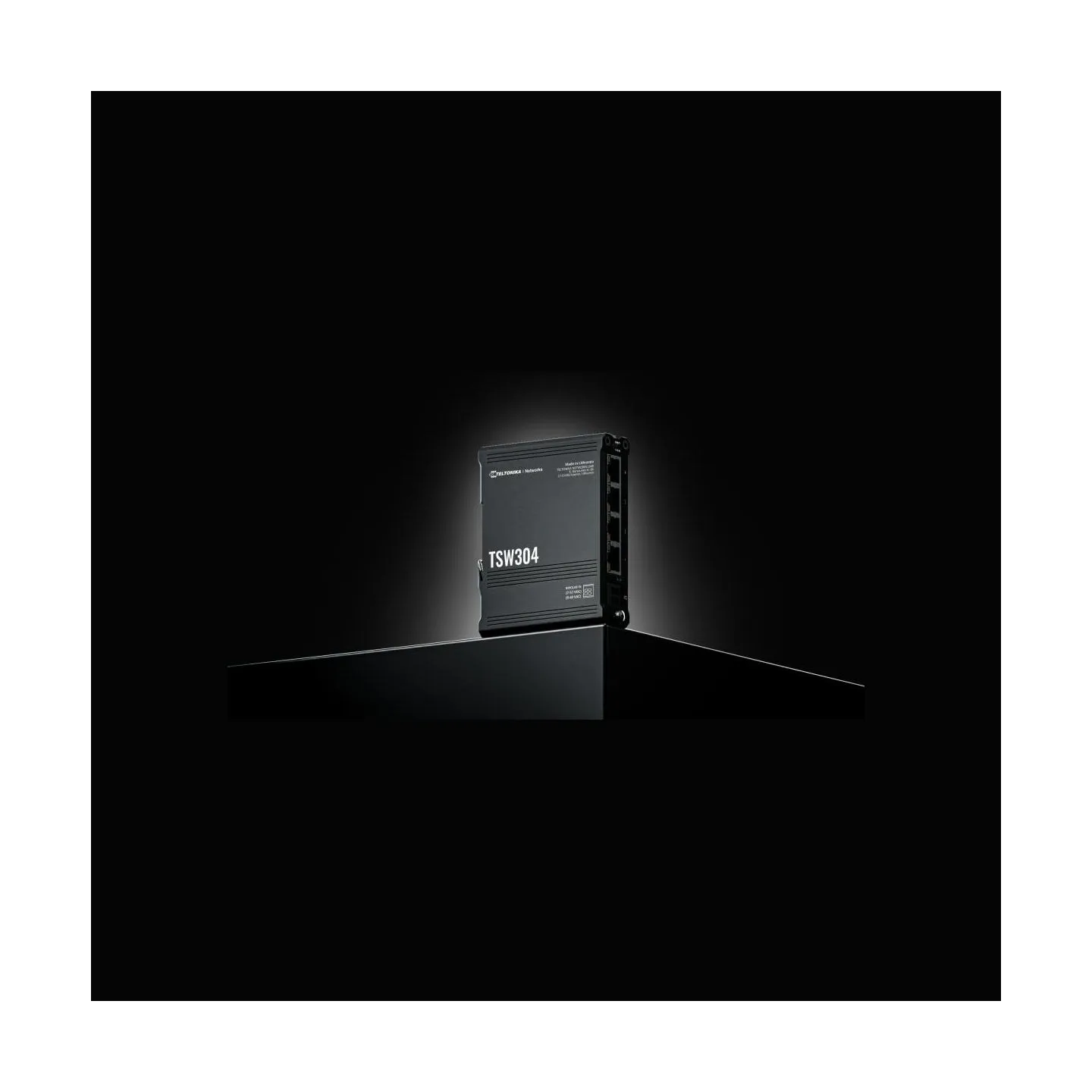

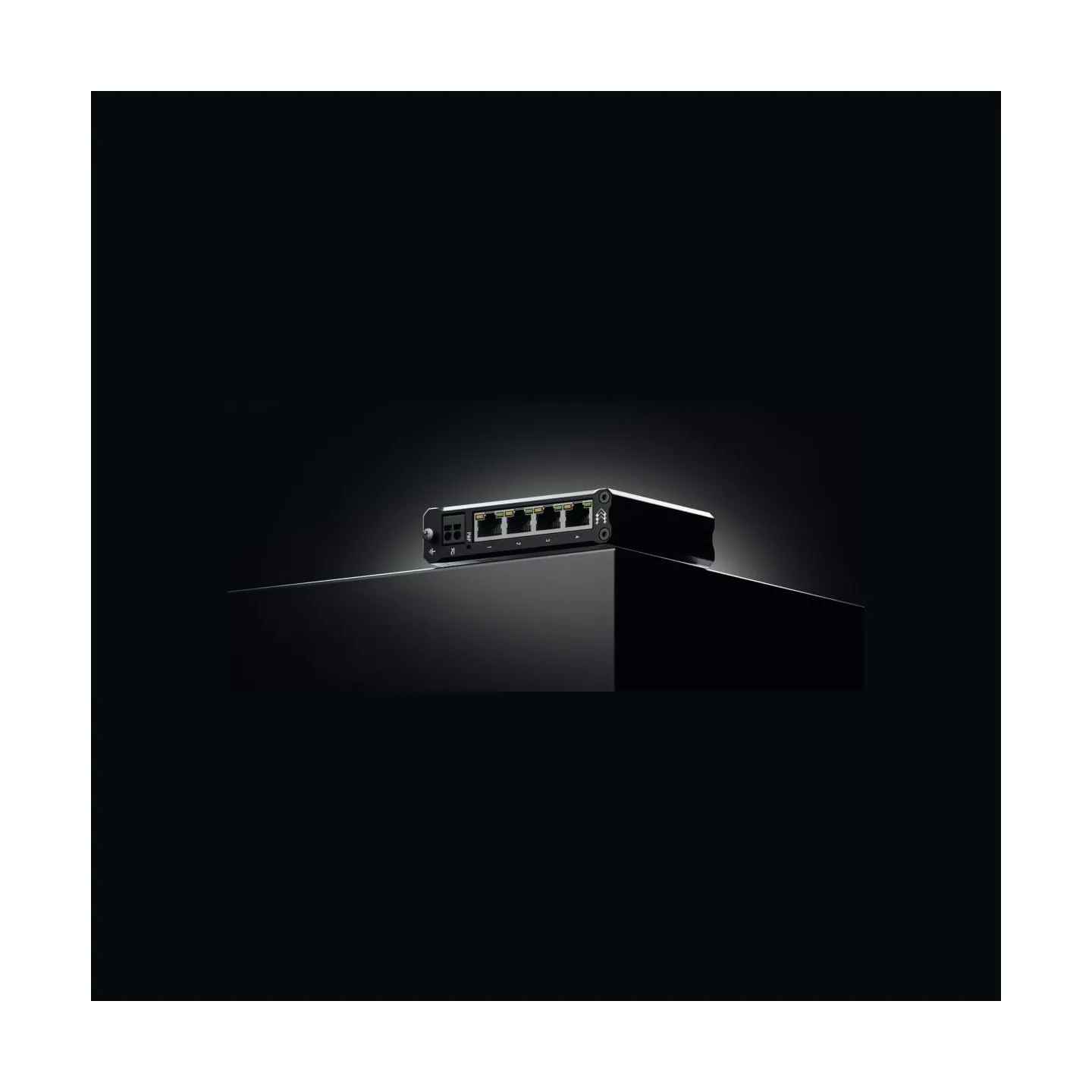

DIN RAIL SWITCH
TSW304 is the tiniest switch in the Teltonika Networks portfolio, made with the industrial application scenarios in mind. This ultra-small device comes with an integrated DIN rail mounting option and will easily find its place in any server cabinet. Durable design and shock-resistant casing make it perfect for even the most challenging industrial environments.
MOUNTING
Integrated DIN rail bracket and surface mounting options
COMPACT
102 x 25 x 81.5 mm
GIGABIT ETHERNET
4 x Gigabit Ethernet with speeds of up to 1000 Mbps
7-57 V
Wide range of supported power supply voltages
Manufacturer Website:
https://teltonika-networks.com/products/switches/tsw304
- Category Code
- SWI
- CnCode
- 85176200
- Unit Box Height
- 0.03
- Unit Box Length
- 0.1
- Unit Box Width
- 0.11
- Basic switching RJ-45 Ethernet ports quantity
- 4
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- 10G support
- No
- Auto MDI/MDI-X
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Networking standards
- IEEE 802.3/IEEE 802.3az/IEEE 802.3u
- Jumbo frames
- 9216
- Jumbo frames support
- Yes
- MAC address table
- 2000 entries
- Packet buffer memory
- 0.128 MB
- Switching capacity
- 8 Gbit/s
- DIN rail mounting
- Yes
- Housing material
- Aluminium
- International Protection (IP) code
- IP30
- LED indicators
- Power/Status
- Product colour
- Black
- Wall mountable
- Yes
- DC input voltage
- 7 - 57 V
- Input voltage
- 9 - 40 V
- Power consumption (max)
- 1.44 W
- Power consumption (typical)
- 0.26 W
- Power source
- AC/DC
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) type supported
- Passive PoE
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- -40 - 75 °C
- Depth
- 81.5 mm
- Height
- 25 mm
- Weight
- 210 g
- Width
- 102 mm
- Certification
- CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM
- Model
- TSW304
- Model name
- TSW304
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.00033 cubm
- Unit Calculated Weight
- 0.23 kg
