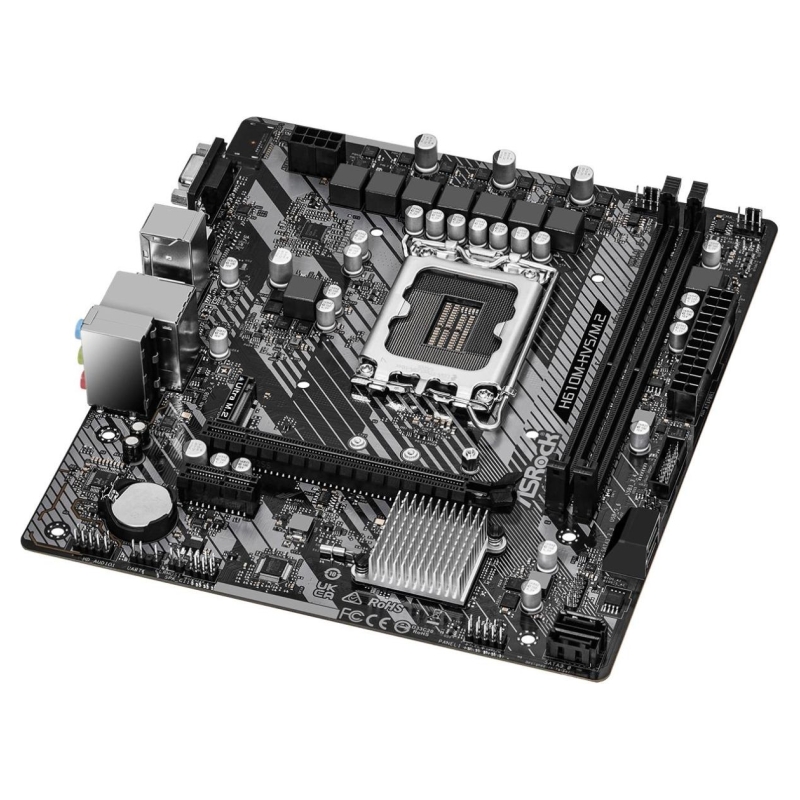

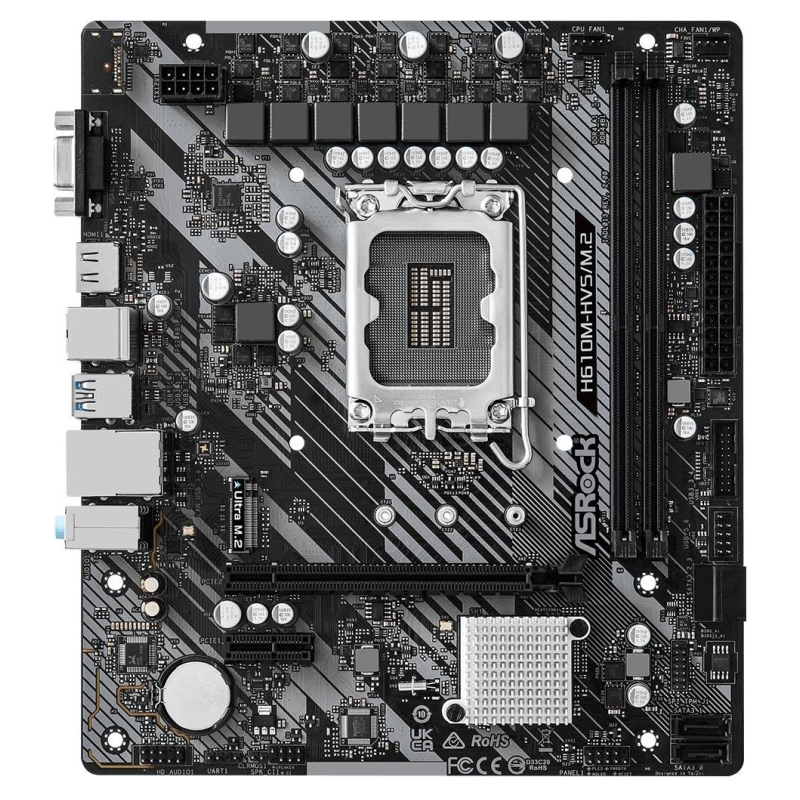

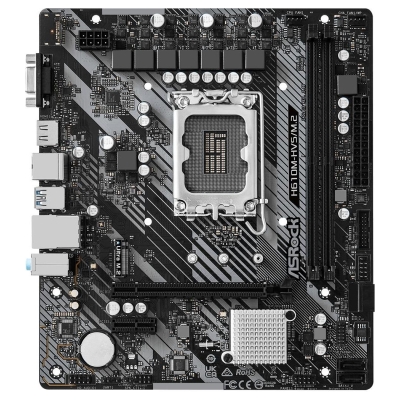

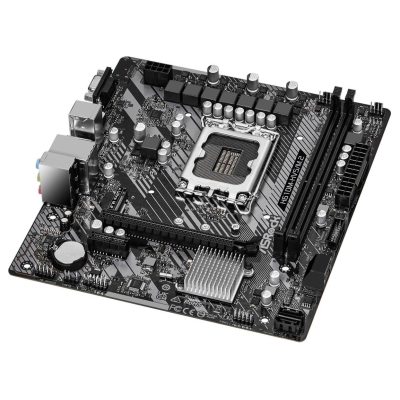

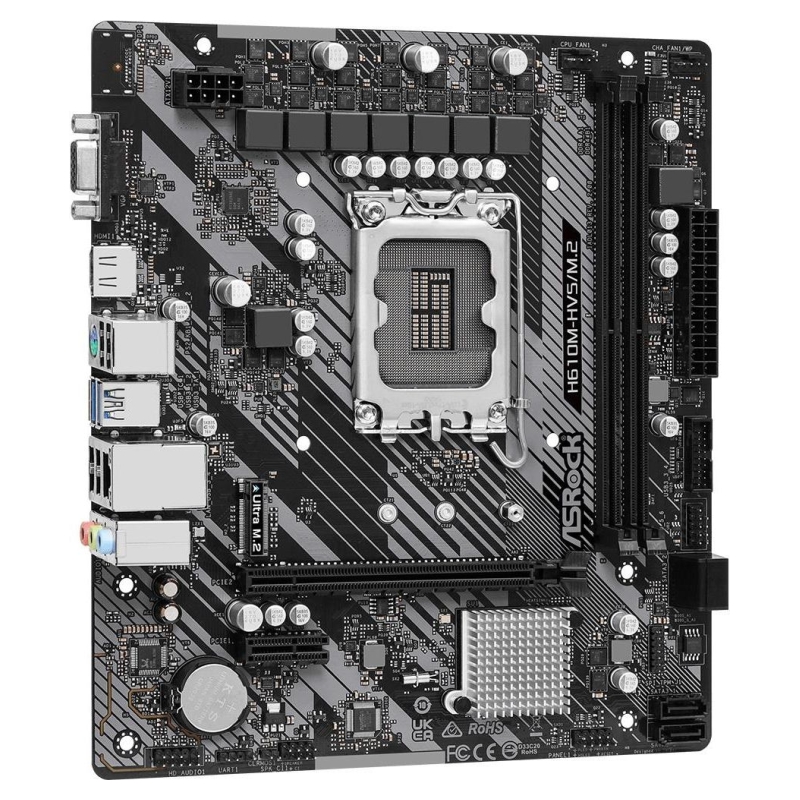

Asrock Mainboard|ASROCK|Intel H610|LGA1700|Micro-ATX|Memory DDR4|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2

Datu lapa

Designation

CE+WEEE

Processor family

Intel Core

CPU socket

LGA1700

Memory type

DDR4

Memory bus frequency

3200 MHz

Integrated CPU

No

Chipset manufacturer

Intel

Chipset type

Intel H610

Number of DDR4 slots

2

Max memory size

64

Expansion slots

1 x M.2
1 x PCIe 3.0 x 1
1 x PCIe 4.0 x 16

Max. number of SATA devices

4

RAID

No

Detailed data on disk/drive interfaces

Supports 13th, 12th and next generation Intel Core processors (LGA1700) 6+1+1 power phase design Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 technology

Graphics

Intel Xe Graphics Architecture (Gen 12) Dual graphics output: support HDMI and D-Sub ports by independent display controllers Support Compatible HDMI 2.1 TMDS with maximum resolution of 4K x 2K (4096x2160) @ 60Hz Supports D-Sub with max. Resolution up to

Sound card

7.1 CH HD Audio (Realtek ALC897 Audio Codec) Supports Surge Protection

Network interface

1 x 10/100/1000 Mbit/s
PCIE x1 Gigabit LAN 10/100/1000 Mb/s 1 x Realtek RTL8111H Supports Wake-on-LAN function Supports lightning/ESD protection Supports energy-saving 802.3az Ethernet Supports PXE

USB ports at back panel

6

USB ports on motherboard

4

Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports

5

FireWire (IEEE 1394)

No

COM connector / port

No

LPT connector / port

No

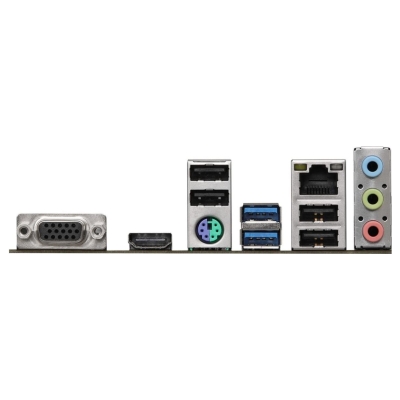

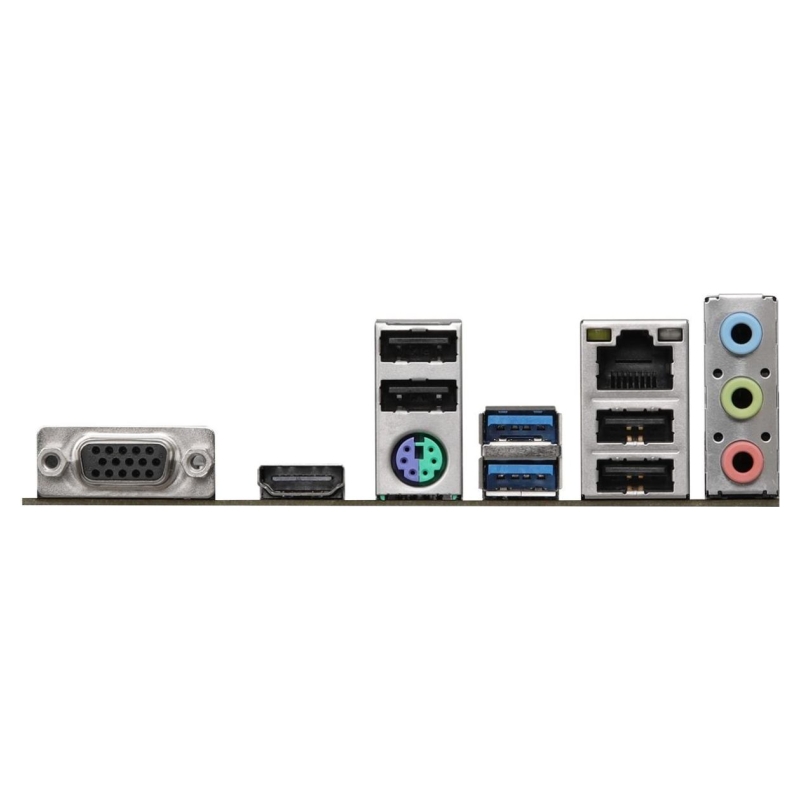

External connectors

1 x D-Sub
1 x HDMI
1 x Line In
1 x Line Out
1 x MIC
1 x PS/2 Keyboard/MouseCombo
1 x RJ-45
2 x USB 3.0
4 x USB 2.0

Onboard connectors

1 x 24pin ATX zasilanie
1 x 4pin CPU fan
1 x 4pin CPU/Water Pump Fan Connector
1 x 8pin 12V power
1 x Front panel audio header
1 x TPM header
1 x USB 2.0/1.1 header
1 x USB 3.0 header

BIOS

Legal AMI UEFI 28Mb BIOS with multilingual GUI support ACPI 6.0 compliant wake-up events SMBIOS 2.7 support CPU Core/Cache, CPU Core/Cache Load Line, CPU GT, CPU GT Load Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1 .05 V PROC Voltage regu

Form factor

micro ATX

Supported operating systems

Windows 10
Windows 11

Windows operating systems supported

Windows 10 Education x64/Windows 11 x64

USB 2.0 ports quantity

4

Audio output channels

7.1 channels

Microphone in

Yes

Headphone outputs

1

Wake-on-LAN ready

Yes

Supported storage drive interfaces

M.2,SATA III

Ethernet LAN (RJ-45) ports

1

Cables included

SATA

Component for

PC

Maximum resolution

4096 x 2160 pixels

Ethernet LAN

Yes

Ethernet interface type

Gigabit Ethernet

VGA (D-Sub) ports quantity

1

HDMI ports quantity

1

Wi-Fi

No

HDCP

Yes

Compatible processor series

Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7

Motherboard form factor

Micro ATX

Supported memory types

DDR4-SDRAM

Processor socket

LGA 1700

EPS power connector (8-pin)

Yes

Maximum internal memory

64 GB

Supported storage drive types

HDD & SSD

Category Code

MBI

CnCode

84733020

Units per Shipping Box

20

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

LAN controller

Realtek RTL8111H

Line-in

Yes

Memory channels

Dual-channel

Processor manufacturer

Intel

Motherboard chipset

Intel H610

Motherboard chipset family

Intel

ECC сompatibility

Non-ECC

Memory slots type

DIMM

Number of memory slots

2

Unbuffered memory

Yes

Parallel processing technology support

Not supported

ATX Power connector (24-pin)

Yes

Chassis intrusion connector

Yes

CPU fan connector

Yes

Front panel connector

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Number of M.2 (M) slots

1

PCI Express x16 (Gen 4.x) slots

1

BIOS memory size

128 Mbit

BIOS type

UEFI AMI

Audio chip

Realtek ALC897

PC health monitoring

CPU/Fan/Voltage/Water cooling

TPM connector

Yes

PS/2 ports quantity

1

PCI Express x1 (Gen 3.x) slots

1

Supported memory clock speeds

3200 MHz

System Management BIOS (SMBIOS) version

2.7

Maximum number of SMP processors

1

Specifiskas norādes

ean13

4710483939914

MPN

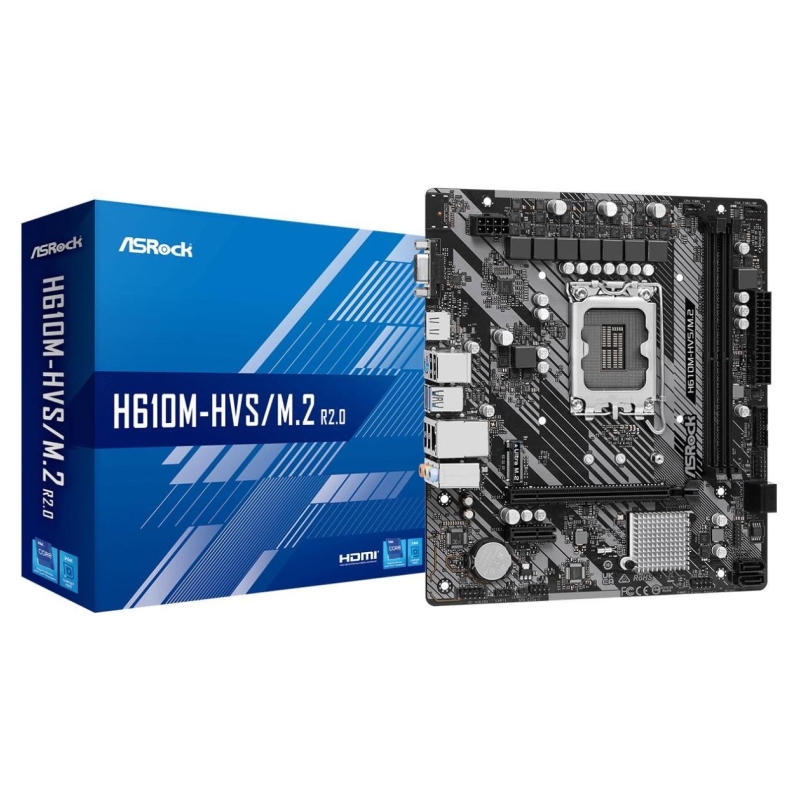

H610M-HVS/M.2R2.0
