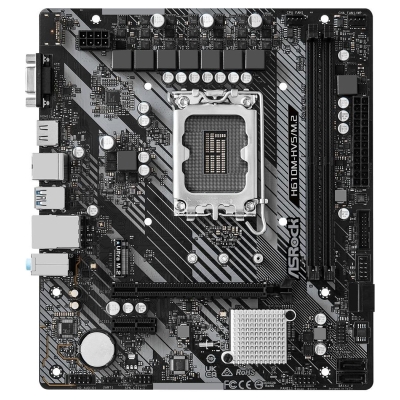

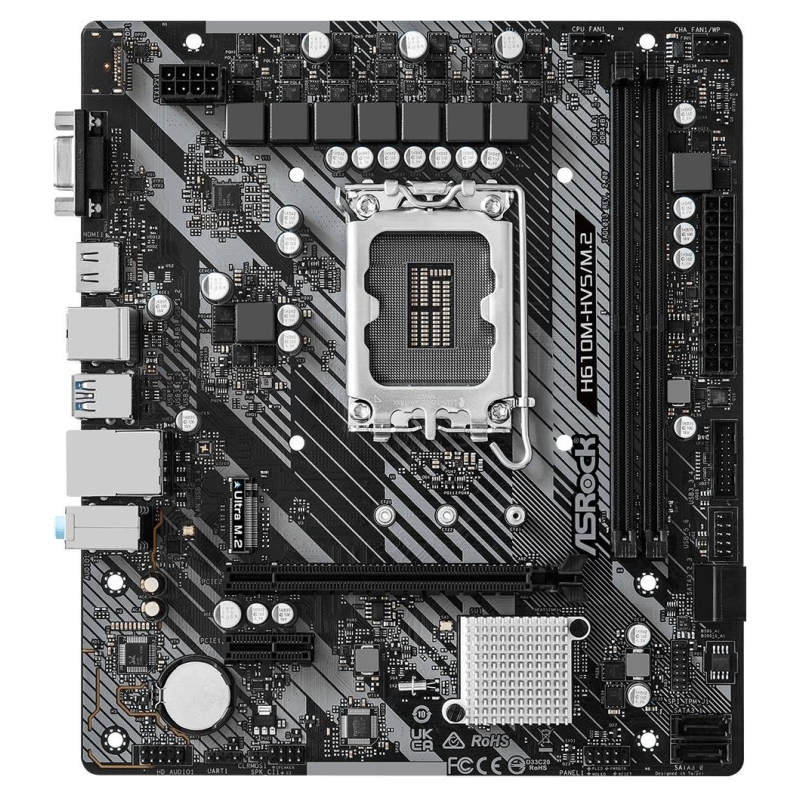

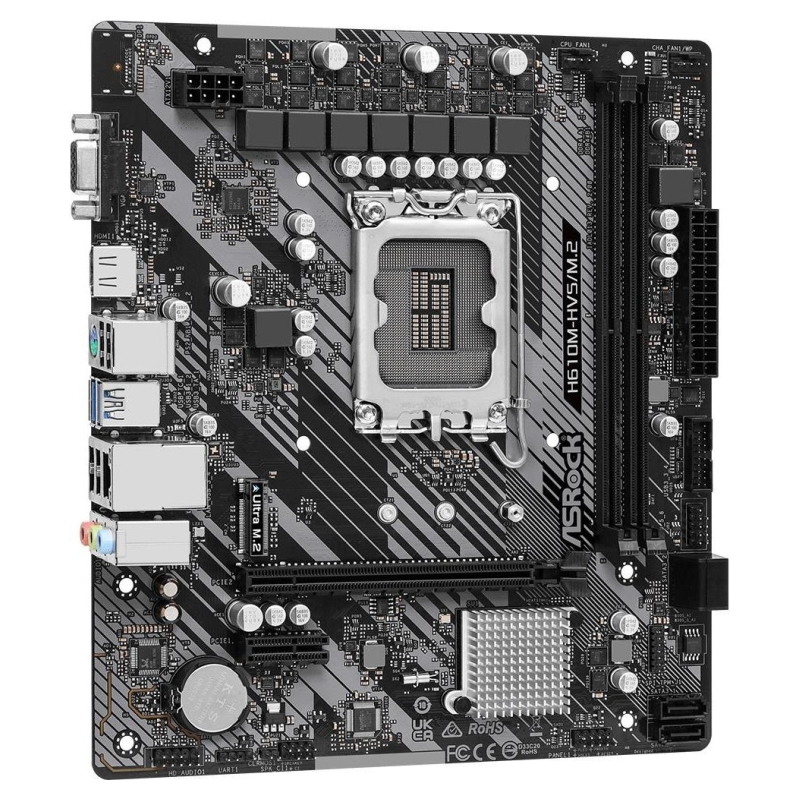

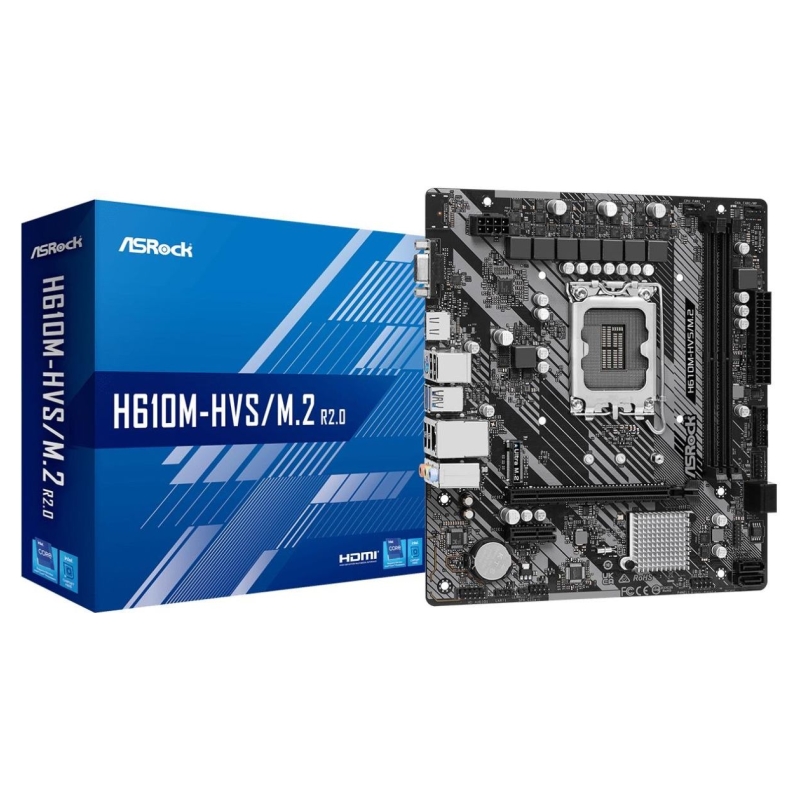

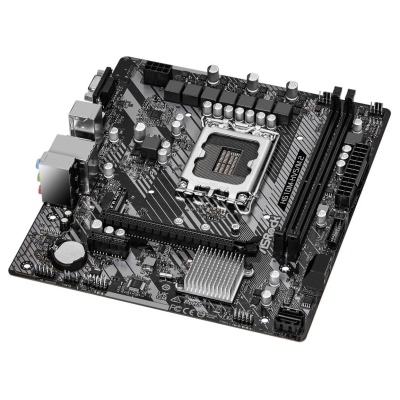

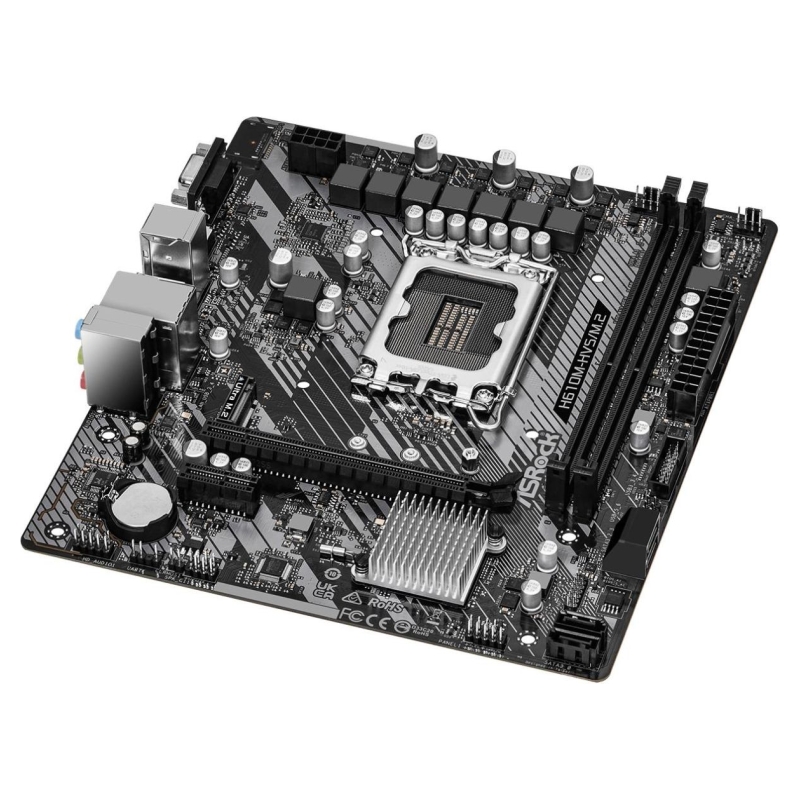

Asrock Motherboard H610M-HVS/M.2 R2.0 s1700 2DDR4 D-Sub/HDMI mATX
- Write a review
€71.50
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
Premium Power Choke
Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
- Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
- 7 Phase Power Design
- Supports DDR4 3200MHz
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: HDMI, D-Sub
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3
- 1 Ultra M.2 (PCIe Gen3 x4)
- 4 USB 3.2 Gen1 (2 Rear, 2 Front)
- 6 USB 2.0 (4 Rear, 2 Front)
- Realtek Gigabit LAN
Manufacturer Website:
https://www.asrock.com/MB/Intel/H610M-HVSM.2%20R2.0/index.asp#Specification
- Category Code
- MBI
- CnCode
- 84733020
- Unit Box Height
- 0.06
- Unit Box Length
- 0.275
- Unit Box Width
- 0.24
- Audio chip
- Realtek ALC897
- Audio output channels
- 7.1 channels
- Certification
- - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
- Component for
- PC
- Motherboard chipset
- Intel H610
- Motherboard chipset family
- Intel
- Motherboard form factor
- micro ATX
- PC health monitoring
- CPU/Fan/Voltage/Water cooling
- Windows operating systems supported
- Windows 10 Education x64/Windows 11 x64
- Compatible processor series
- Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7
- Maximum number of SMP processors
- 1
- Processor manufacturer
- Intel
- Processor socket
- LGA 1700
- ECC сompatibility
- Non-ECC
- Maximum internal memory
- 64 GB
- Memory channels
- Dual-channel
- Memory slots type
- DIMM
- Number of memory slots
- 2
- Supported memory clock speeds
- 3200 MHz
- Supported memory types
- DDR4-SDRAM
- Unbuffered memory
- Yes
- Supported storage drive interfaces
- M.2,SATA III
- Supported storage drive types
- HDD & SSD
- HDCP
- Yes
- Maximum resolution
- 4096 x 2160 pixels
- Parallel processing technology support
- Not supported
- ATX Power connector (24-pin)
- Yes
- Chassis intrusion connector
- Yes
- CPU fan connector
- Yes
- EPS power connector (8-pin)
- Yes
- Front panel connector
- Yes
- TPM connector
- Yes
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- Headphone outputs
- 1
- Line-in
- Yes
- Microphone in
- Yes
- PS/2 ports quantity
- 1
- USB 2.0 ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- VGA (D-Sub) ports quantity
- 1
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN
- Yes
- LAN controller
- Realtek RTL8111H
- Wake-on-LAN ready
- Yes
- Wi-Fi
- No
- Number of M.2 (M) slots
- 1
- PCI Express x1 (Gen 3.x) slots
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- BIOS memory size
- 128 Mbit
- BIOS type
- UEFI AMI
- System Management BIOS (SMBIOS) version
- 2.7
- Depth
- 188 mm
- Width
- 223 mm
- Cables included
- SATA
- Model
- H610M-HVS/M.2 R2.0
- Units per Shipping Box
- 20
- Unit Calculated Volume
- 0.004511 cubm
- Unit Calculated Weight
- 0.876 kg
H610M-HVS/M.2R2.0
2 Items
Data sheet
- Designation
- CE+WEEE
- Processor family
- Intel Core
- CPU socket
- LGA1700
- Memory type
- DDR4
- Memory bus frequency
- 3200 MHz
- Integrated CPU
- No
- Chipset manufacturer
- Intel
- Chipset type
- Intel H610
- Number of DDR4 slots
- 2
- Max memory size
- 64
- Expansion slots
- 1 x M.2
1 x PCIe 3.0 x 1
1 x PCIe 4.0 x 16 - Max. number of SATA devices
- 4
- RAID
- No
- Detailed data on disk/drive interfaces
- Supports 13th, 12th and next generation Intel Core processors (LGA1700) 6+1+1 power phase design Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 technology
- Graphics
- Intel Xe Graphics Architecture (Gen 12) Dual graphics output: support HDMI and D-Sub ports by independent display controllers Support Compatible HDMI 2.1 TMDS with maximum resolution of 4K x 2K (4096x2160) @ 60Hz Supports D-Sub with max. Resolution up to
- Sound card
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Supports Surge Protection
- Network interface
- 1 x 10/100/1000 Mbit/s
PCIE x1 Gigabit LAN 10/100/1000 Mb/s 1 x Realtek RTL8111H Supports Wake-on-LAN function Supports lightning/ESD protection Supports energy-saving 802.3az Ethernet Supports PXE - USB ports at back panel
- 6
- USB ports on motherboard
- 4
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 5
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No

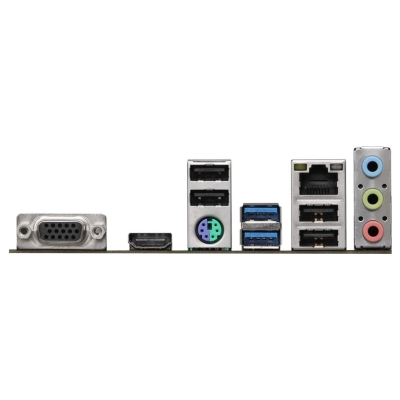

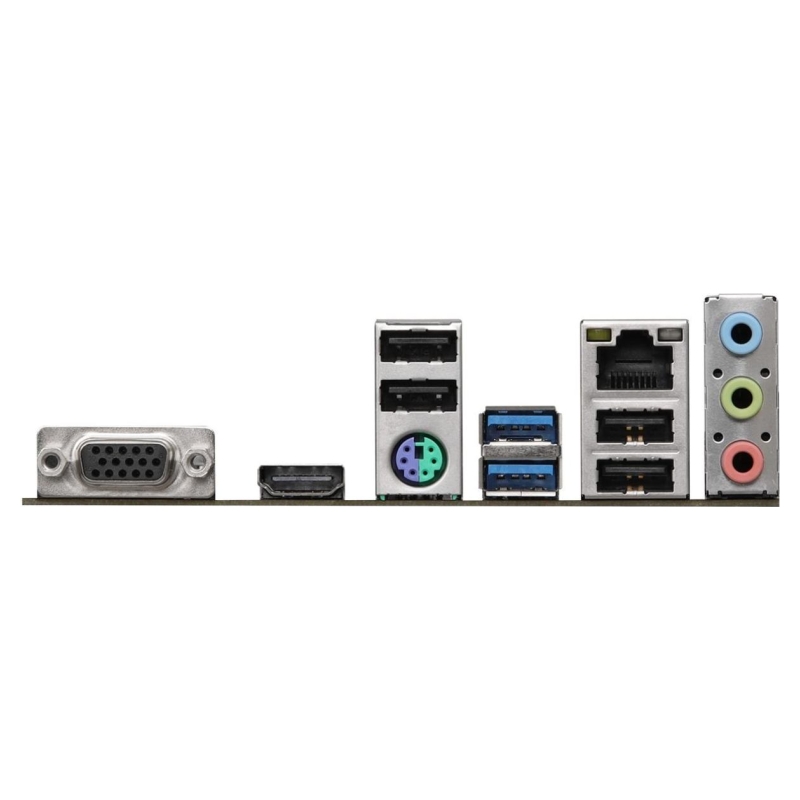

- External connectors
- 1 x D-Sub
1 x HDMI
1 x Line In
1 x Line Out
1 x MIC
1 x PS/2 Keyboard/MouseCombo
1 x RJ-45
2 x USB 3.0
4 x USB 2.0 - Onboard connectors
- 1 x 24pin ATX zasilanie
1 x 4pin CPU fan
1 x 4pin CPU/Water Pump Fan Connector
1 x 8pin 12V power
1 x Front panel audio header
1 x TPM header
1 x USB 2.0/1.1 header
1 x USB 3.0 header - BIOS
- Legal AMI UEFI 28Mb BIOS with multilingual GUI support ACPI 6.0 compliant wake-up events SMBIOS 2.7 support CPU Core/Cache, CPU Core/Cache Load Line, CPU GT, CPU GT Load Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1 .05 V PROC Voltage regu
- Form factor
- micro ATX
- Supported operating systems
- Windows 10
Windows 11 - Windows operating systems supported
- Windows 10 Education x64/Windows 11 x64
- USB 2.0 ports quantity
- 4
- Audio output channels
- 7.1 channels
- Microphone in
- Yes
- Headphone outputs
- 1
- Wake-on-LAN ready
- Yes
- Supported storage drive interfaces
- M.2,SATA III
- Ethernet LAN (RJ-45) ports
- 1
- Cables included
- SATA
- Component for
- PC
- Maximum resolution
- 4096 x 2160 pixels
- Ethernet LAN
- Yes
- Ethernet interface type
- Gigabit Ethernet
- VGA (D-Sub) ports quantity
- 1
- HDMI ports quantity
- 1
- Wi-Fi
- No
- HDCP
- Yes
- Compatible processor series
- Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7
- Motherboard form factor
- Micro ATX
- Supported memory types
- DDR4-SDRAM
- Processor socket
- LGA 1700
- EPS power connector (8-pin)
- Yes
- Maximum internal memory
- 64 GB
- Supported storage drive types
- HDD & SSD
- Category Code
- MBI
- CnCode
- 84733020
- Units per Shipping Box
- 20
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- LAN controller
- Realtek RTL8111H
- Line-in
- Yes
- Memory channels
- Dual-channel
- Processor manufacturer
- Intel
- Motherboard chipset
- Intel H610
- Motherboard chipset family
- Intel
- ECC сompatibility
- Non-ECC
- Memory slots type
- DIMM
- Number of memory slots
- 2
- Unbuffered memory
- Yes
- Parallel processing technology support
- Not supported
- ATX Power connector (24-pin)
- Yes
- Chassis intrusion connector
- Yes
- CPU fan connector
- Yes
- Front panel connector
- Yes
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- Number of M.2 (M) slots
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- BIOS memory size
- 128 Mbit
- BIOS type
- UEFI AMI
- Audio chip
- Realtek ALC897
- PC health monitoring
- CPU/Fan/Voltage/Water cooling
- TPM connector
- Yes
- PS/2 ports quantity
- 1
- PCI Express x1 (Gen 3.x) slots
- 1
- Supported memory clock speeds
- 3200 MHz
- System Management BIOS (SMBIOS) version
- 2.7
- Maximum number of SMP processors
- 1
Specific References
- EAN13
- 4710483939914
- MPN
- H610M-HVS/M.2R2.0
