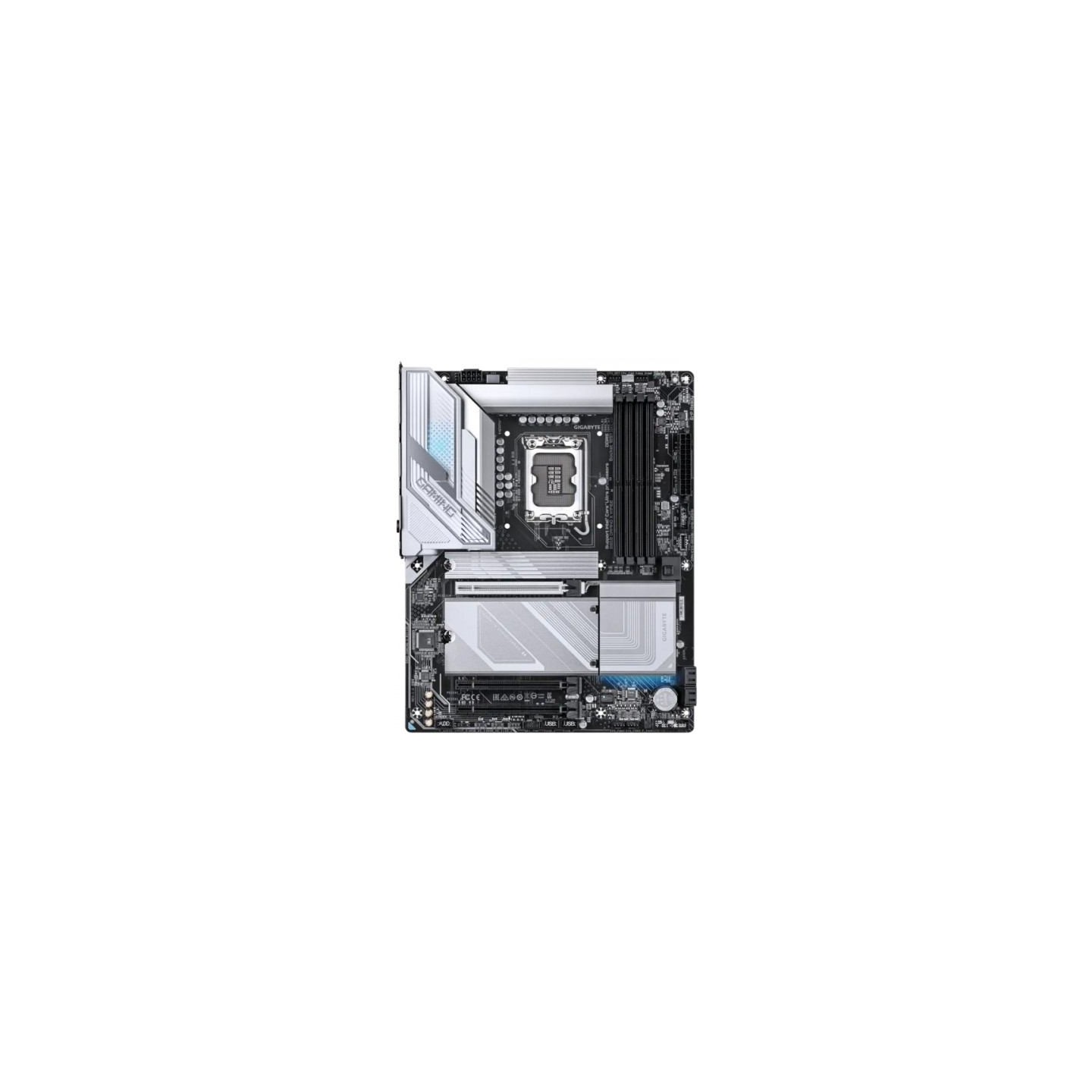

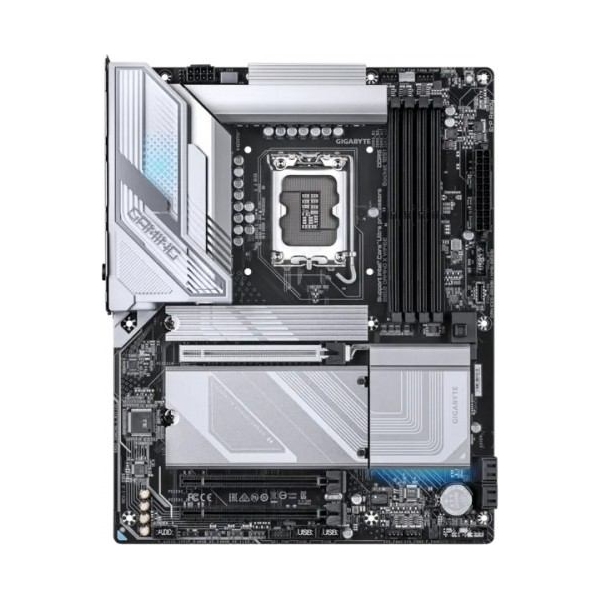

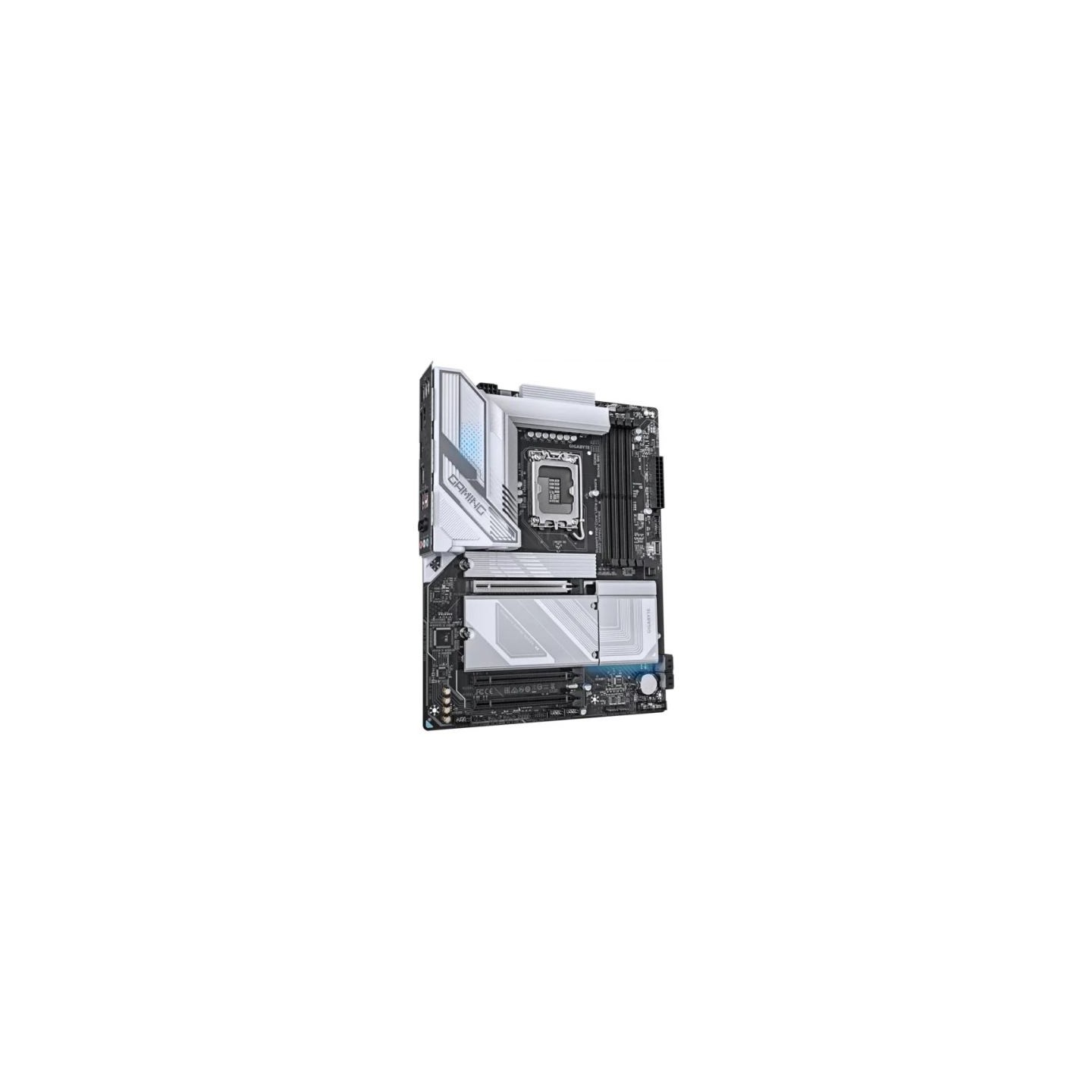

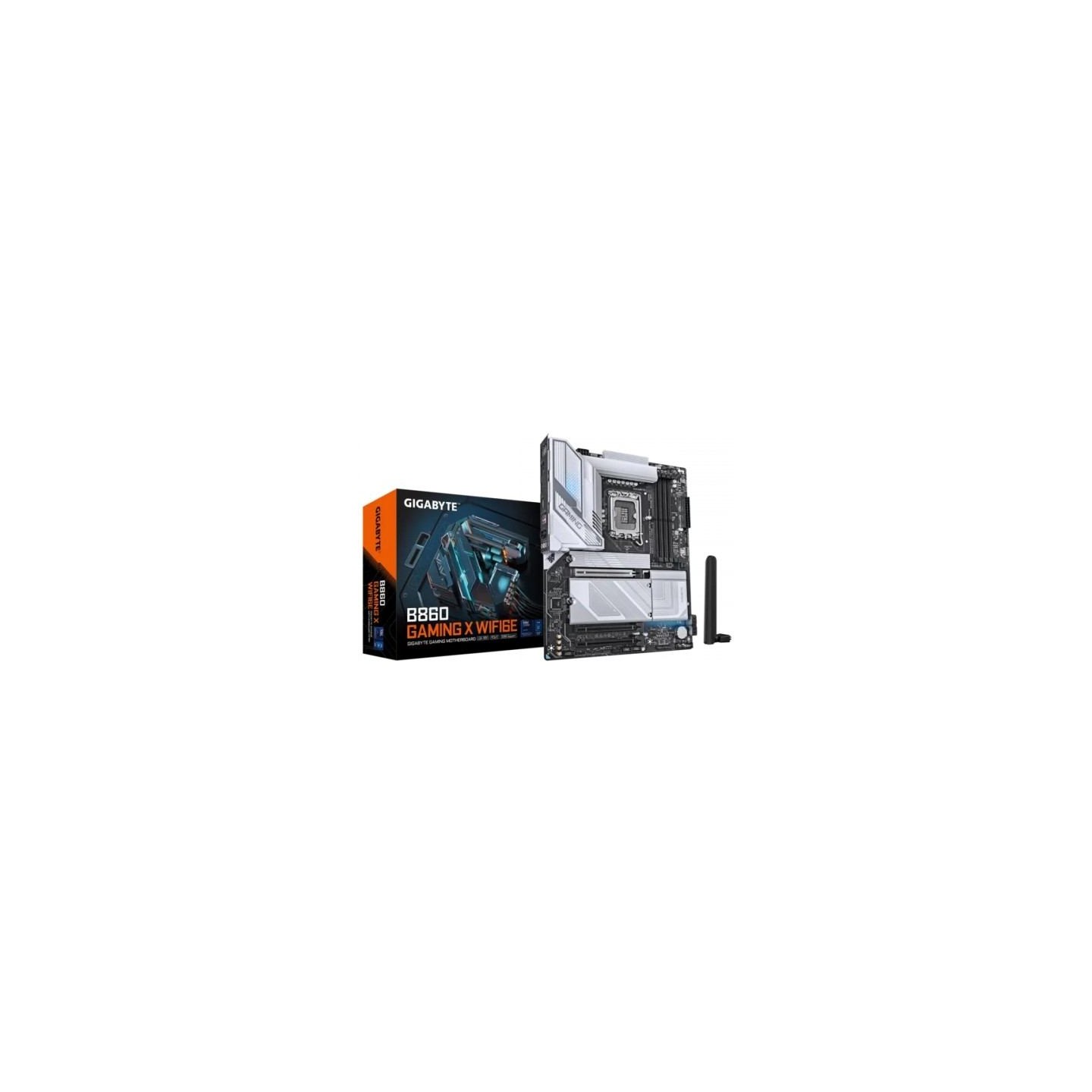

Gigabyte B860 GAMING X WIFI6E LGA1851 MB

Gigabyte B860 GAMING X WIFI6E LGA1851 MB

Write a review

€218.40

Tax included

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

SKU: KBGBAIIFB860A01
Barcode: 4719331866532
Model: B860 GAMING X WIFI6E
CPU socket: LGA1851
Processor family: Intel Core Ultra
Integrated CPU: No
Chipset manufacturer: Intel
Chipset type: Intel B860 Express Chipset
Memory type: DDR5
Number of DDR5 slots: 4
Memory bus frequency: 5600 MHz
Memory bus frequency: 6800 MHz
Memory bus frequency: 8800 MHz
Memory bus frequency: 9066 MHz
Memory bus frequency: 8600 MHz
Memory bus frequency: 8400 MHz
Memory bus frequency: 8266 MHz
Memory bus frequency: 8000 MHz
Memory bus frequency: 8200 MHz
Memory bus frequency: 7950 MHz
Memory bus frequency: 7900 MHz
Memory bus frequency: 7800 MHz
Memory bus frequency: 7600 MHz
Memory bus frequency: 7400 MHz
Memory bus frequency: 7000 MHz
Memory bus frequency: 7200 MHz
Memory bus frequency: 6400 MHz
Memory bus frequency: 6600 MHz
Max memory size: 256
Expansion slots: 2 x PCIe 4.0 x 1
Expansion slots: 1 x PCIe 5.0 x 16
Expansion slots: 3 x M.2
Max. number of SATA devices: 4
RAID: Yes
Detailed data on disk/drive interfaces: Expansion Slot CPU 1 PCI Express x16 slot, supporting PCIe 5.0 and operating at x16 mode (PCIEX16) * The PCIEX16 slot can only support a graphics card or NVMe SSD. If only one graphics card is to be installed, it must be installed in the PCIEX16 slot. Chipset 2 x PCI Express x16 slots, supporting PCIe 4.0 and operating at x1 speed (PCIEX1_1, PCIEX1_2) SATA Connectors CPU 1 x M.2 connector (Socket 3, M-key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset 2 x M.2 connectors (Socket 3, M-key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 4 x SATA 6 Gb/s connectors Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
Graphics: Integrated graphics processor - Intel HD Graphics support 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160 @ 144 Hz * Supports DisplayPort 2.1 1 x HDMI port, supporting a maximum resolution of 4096x2160 @ 60 Hz * Supports HDMI 2.1 and HDCP 2.3 1 x DisplayPort, supporting a maximum resolution of 3840x2160 @ 144 Hz * Supports DisplayPort 2.1
Network interface: 1 x 10/100/1000/2500 Mbit/s
Network interface: Wi-Fi 802.11a/b/g/n/ax
Network interface: Bluetooth
Network interface: LAN Realtek 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication Module Intel Wi-Fi 6E AX211 (For PCB rev. 1.0) Wi-Fi a, b, g, n, ac, and ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Supports the 11ax 160MHz wireless standard and data rates up to 2.4 Gbps Realtek Wi-Fi 6E RTL8852CE (For PCB rev. 1.1) Wi-Fi a, b, g, n, ac, and ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Supports the 11ax 160MHz wireless standard and data rates up to 2.4 Gbps
USB ports at back panel: 9
USB ports on motherboard: 7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports: 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports: 3
FireWire (IEEE 1394): No
COM connector / port: No
LPT connector / port: No

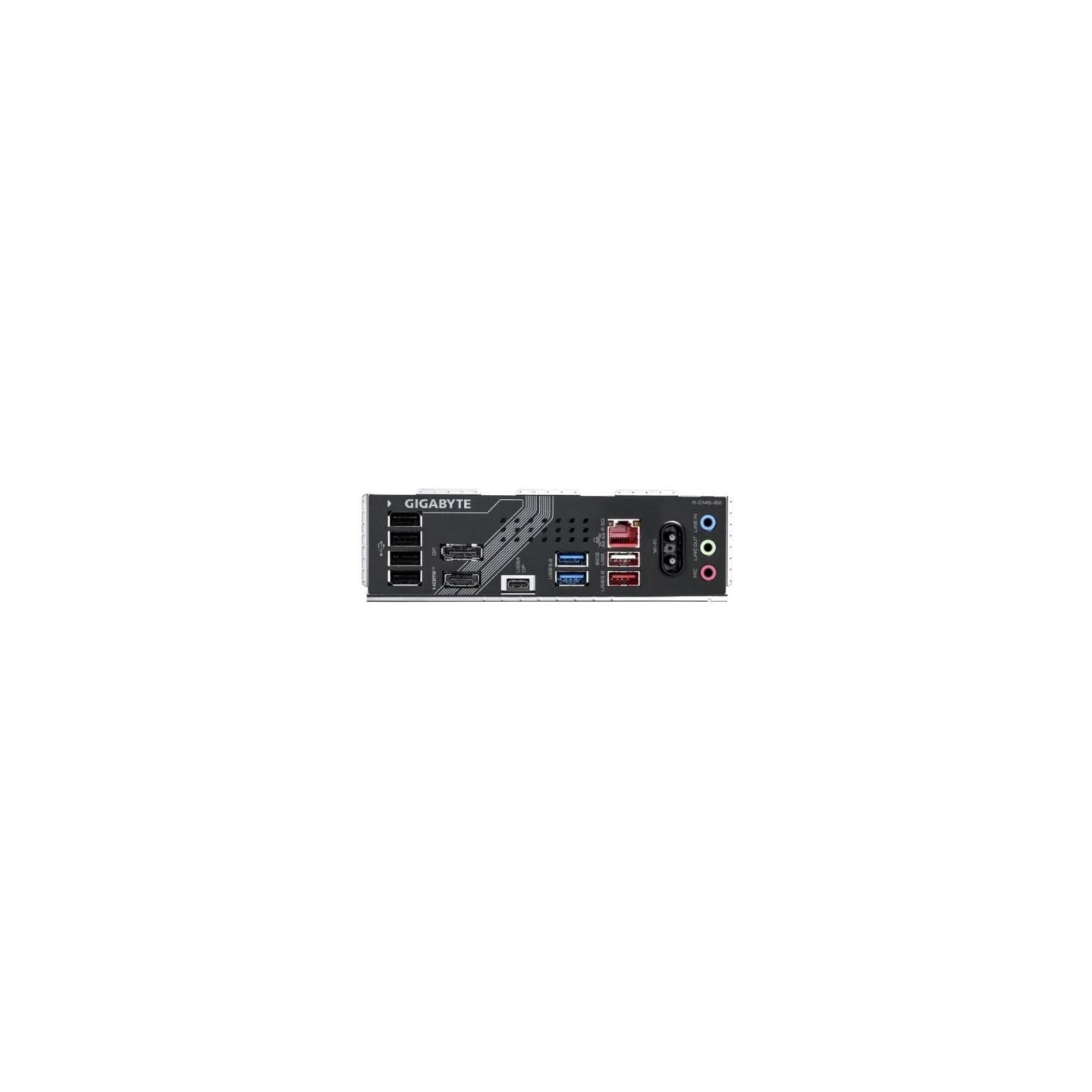

External connectors: 2 x SMA
External connectors: 1 x USB4 Type-C
External connectors: 2 x USB 3.2 Gen 1 Type-A
External connectors: 1 x USB 3.2 Gen 2 Type-A
External connectors: 5 x USB 2.0
External connectors: 1 x Line Out
External connectors: 2 x DisplayPort
External connectors: 1 x HDMI
External connectors: 1 x Line In
External connectors: 1 x MIC
External connectors: 1 x RJ-45
Onboard connectors: 1 x Reset jumper
Onboard connectors: 1 x RGB LED strip header
Onboard connectors: 3 x Addressable LED
Onboard connectors: 2 x USB 2.0/1.1 header
Onboard connectors: 1 x USB 3.2 Gen 1 Type-A
Onboard connectors: 1 x USB 3.2 Gen 2 Type-C
Onboard connectors: 1 x TPM header
Onboard connectors: 1 x System panel header
Onboard connectors: 1 x Front panel audio header
Onboard connectors: 1 x S/PDIF Out header
Onboard connectors: 1 x Clear CMOS jumper
Onboard connectors: 1 x 8pin 12V power
Onboard connectors: 1 x 4pin CPU fan
Onboard connectors: 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors: 3 x 4pin Chassis fan
Onboard connectors: 1 x 4-pin water-pump-fan
Onboard connectors: 1 x Q-Flash Plus button
Onboard connectors: 1 x 24pin ATX zasilanie
Onboard connectors: 3 x M.2
Onboard connectors: 4 x SATA III 6Gb/s
BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor: ATX
Dimensions: 30.5 cm x 24.4 cm
Supported operating systems: Windows 11
Software: Norton Internet Security (OEM version) LAN bandwidth management software
Designation: CE+WEEE

Reference B860 GAMING X WIFI6E

In stock 3 Items

Data sheet

Designation: CE+WEEE
Processor family: Intel Core Ultra
CPU socket: LGA1851
Memory type: DDR5
Memory bus frequency: 5600 MHz
6400 MHz
6600 MHz
6800 MHz
7000 MHz
7200 MHz
7400 MHz
7600 MHz
7800 MHz
7900 MHz
7950 MHz
8000 MHz
8200 MHz
8266 MHz
8400 MHz
8600 MHz
8800 MHz
9066 MHz
Integrated CPU: No
Chipset manufacturer: Intel
Chipset type: Intel B860 Express Chipset
Max memory size: 256
Expansion slots: 1 x PCIe 5.0 x 16
2 x PCIe 4.0 x 1
3 x M.2
Max. number of SATA devices: 4
RAID: Yes
Detailed data on disk/drive interfaces: Expansion Slot CPU 1 PCI Express x16 slot, supporting PCIe 5.0 and operating at x16 mode (PCIEX16) * The PCIEX16 slot can only support a graphics card or NVMe SSD. If only one graphics card is to be installed, it must be installed in the PCIEX16 slot. Chi
Graphics: Integrated graphics processor - Intel HD Graphics support 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160 @ 144 Hz * Supports DisplayPort 2.1 1 x HDMI port, supporting a maximum resolution of 4
Network interface: 1 x 10/100/1000/2500 Mbit/s
Bluetooth
LAN Realtek 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication Module Intel Wi-Fi 6E AX211 (For PCB rev. 1.0) Wi-Fi a, b, g, n, ac, and ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Supports the 11ax 160MHz wireless standard a
Wi-Fi 802.11a/b/g/n/ax
USB ports at back panel: 9
USB ports on motherboard: 7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports: 4
FireWire (IEEE 1394): No
COM connector / port: No
LPT connector / port: No
External connectors: 1 x HDMI
1 x Line In
1 x Line Out
1 x MIC
1 x RJ-45
1 x USB 3.2 Gen 2 Type-A
1 x USB4 Type-C
2 x DisplayPort
2 x SMA
2 x USB 3.2 Gen 1 Type-A
5 x USB 2.0
Onboard connectors: 1 x 24pin ATX zasilanie
1 x 4-pin water-pump-fan
1 x 4pin CPU fan
1 x 4pin CPU/Water Pump Fan Connector
1 x 8pin 12V power
1 x Clear CMOS jumper
1 x Front panel audio header
1 x Q-Flash Plus button
1 x Reset jumper
1 x RGB LED strip header
1 x S/PDIF Out header
1 x System panel header
1 x TPM header
1 x USB 3.2 Gen 1 Type-A
1 x USB 3.2 Gen 2 Type-C
2 x USB 2.0/1.1 header
3 x 4pin Chassis fan
3 x Addressable LED
3 x M.2
4 x SATA III 6Gb/s
BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor: ATX
Supported operating systems: Windows 11
Software: Norton Internet Security (OEM version) LAN bandwidth management software
Number of DDR5 slots: 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports: 3
