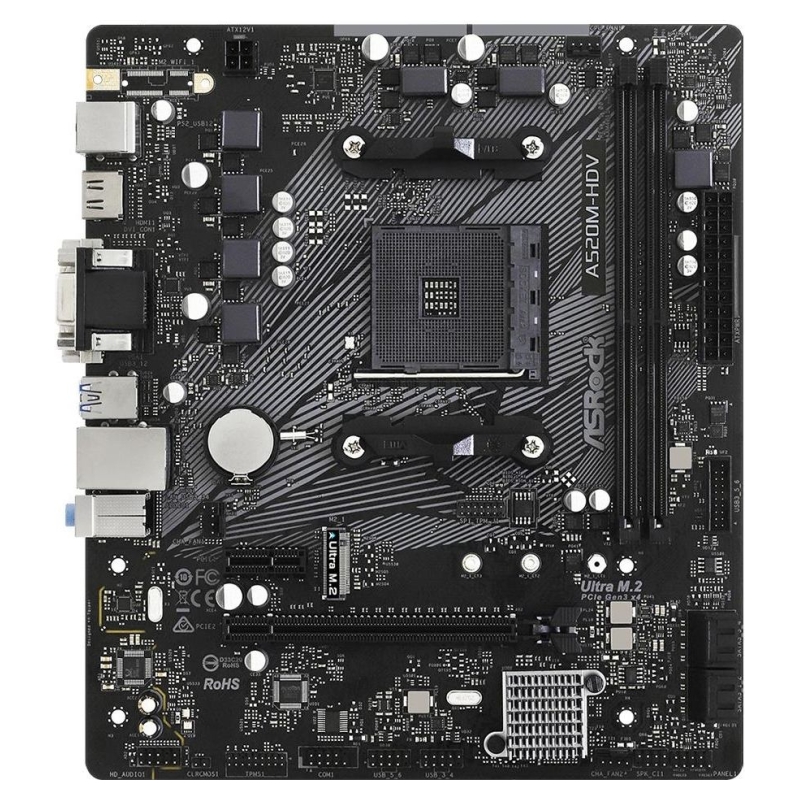

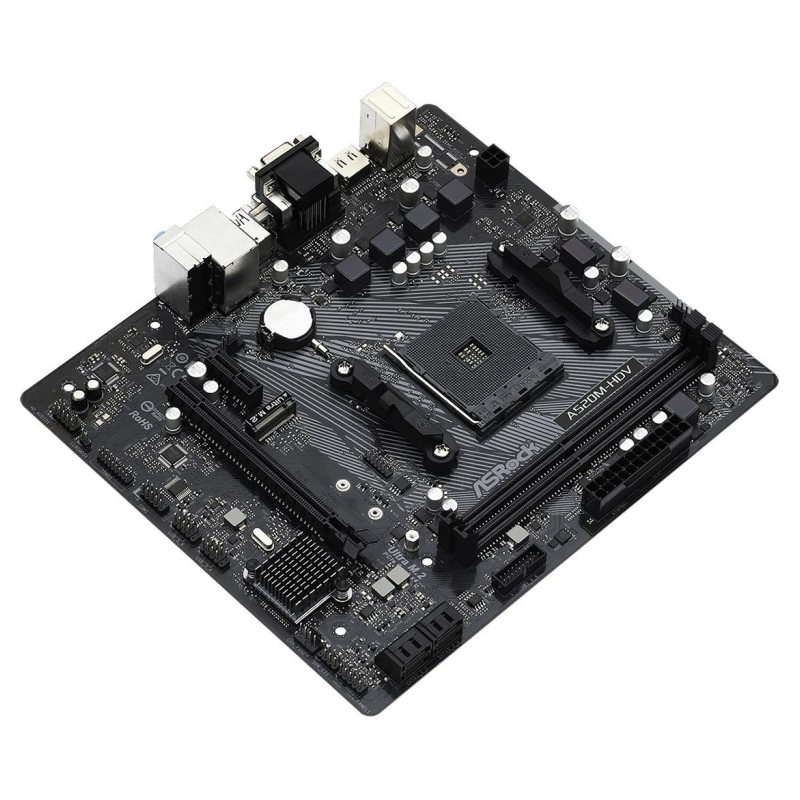

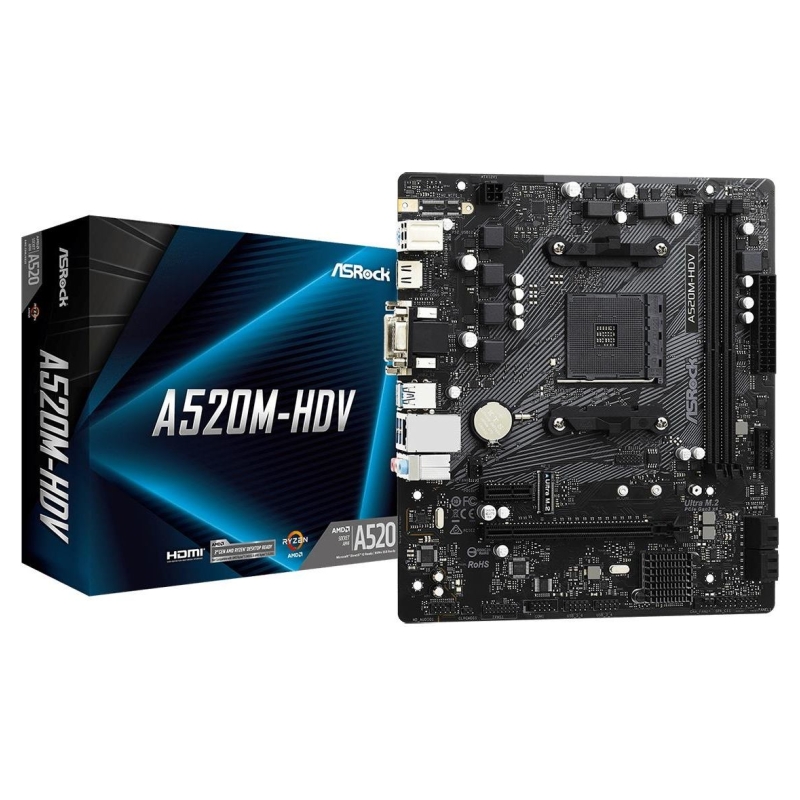

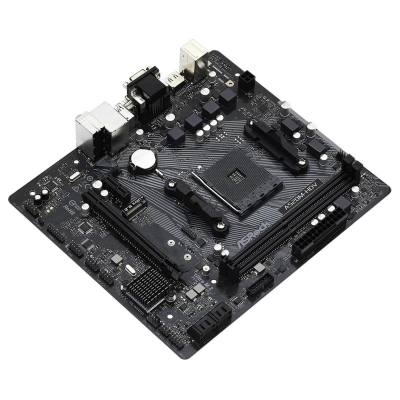

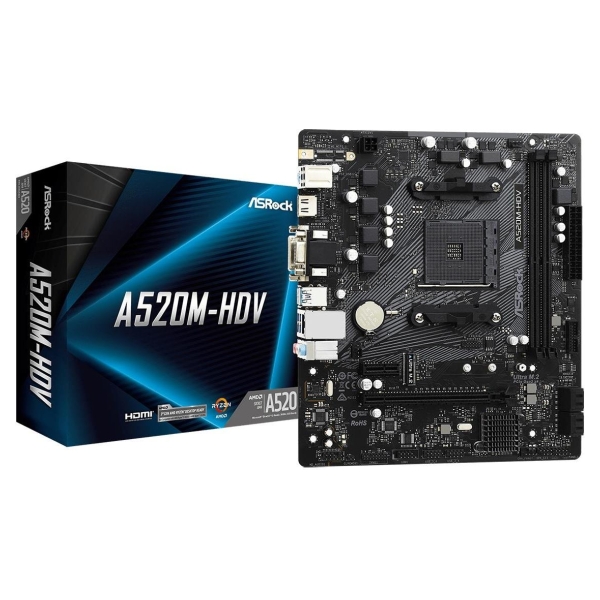

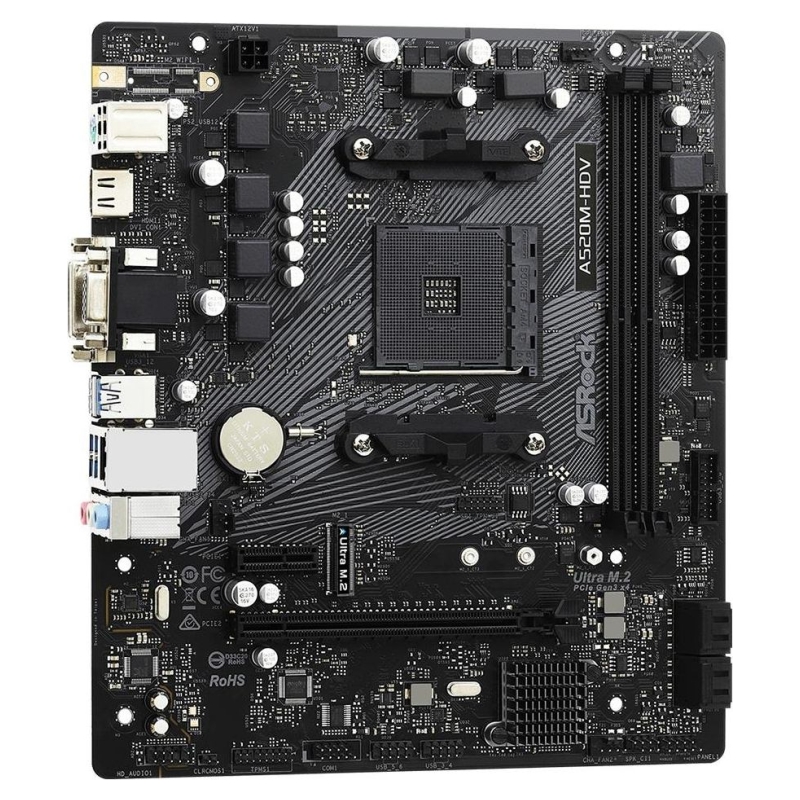

Asrock Mainboard|ASROCK|AMD A520|SAM4|Micro-ATX|Memory DDR4|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|1x15

Datu lapa

Designation

CE+WEEE

Processor family

AMD Ryzen

CPU socket

Socket AM4

Memory type

DDR4

Memory bus frequency

2133 MHz
2400 MHz
2667 MHz
2933 MHz
3200 MHz
3466 MHz
3600 MHz
3733 MHz
3800 MHz
3866 MHz
4000 MHz
4133 MHz
4200 MHz
4266 MHz
4333 MHz
4400 MHz
4533 MHz
4600 MHz
4666 MHz
4733 MHz

Chipset manufacturer

AMD

Number of DDR4 slots

2

Max memory size

64

Expansion slots

1 x PCIe 3.0 x 1
1 x PCIe 3.0 x 16

Max. number of SATA devices

4

RAID

Yes

Network interface

1 x 10/100/1000 Mbit/s

USB ports at back panel

6

USB ports on motherboard

3

Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports

5

FireWire (IEEE 1394)

No

COM connector / port

Yes

LPT connector / port

No

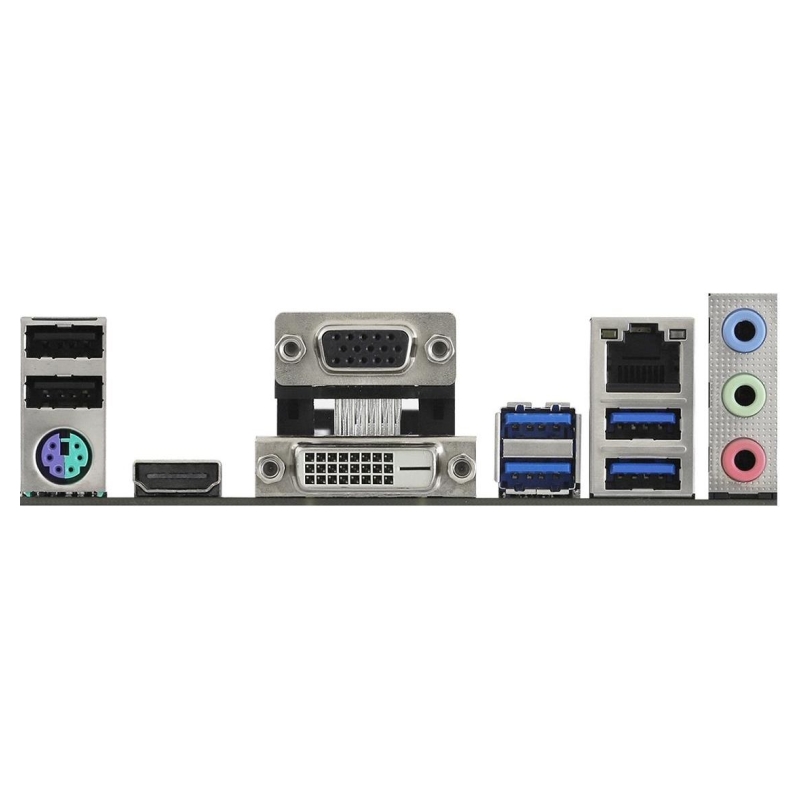

External connectors

1 x D-Sub
1 x DVI-D
1 x HDMI
1 x Line In
1 x Line Out
1 x MIC
1 x PS/2 Keyboard/MouseCombo
1 x RJ-45
2 x USB 2.0
4 x USB 3.0

Onboard connectors

1 x 24pin ATX zasilanie
1 x 4pin 12V power
1 x 4pin CPU fan
1 x Chassis intrusion header
1 x Front panel audio header
1 x Serial port header
1 x TPM header
1 x USB 3.0 header
2 x 4pin Chassis fan
2 x USB 2.0/1.1 header

Form factor

micro ATX

Supported operating systems

Windows 10

Graphics card

Radeon Vega

USB 2.0 ports quantity

2

Audio output channels

7.1 channels

Microphone in

Yes

Wake-on-LAN ready

Yes

Supported storage drive interfaces

M.2,SATA III

Ethernet LAN (RJ-45) ports

1

Component for

PC

Ethernet LAN

Yes

Ethernet interface type

Gigabit Ethernet

VGA (D-Sub) ports quantity

1

HDMI ports quantity

1

Wi-Fi

No

Compatible processor series

AMD Ryzen 3000 Series

Motherboard form factor

Micro ATX

Supported memory types

DDR4-SDRAM

Processor socket

Socket AM4

Maximum internal memory

64 GB

Category Code

MBA

CnCode

84733020

Units per Shipping Box

20

Harmonized System (HS) code

84733020

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

LAN controller

Realtek RTL8111H

Memory channels

Dual-channel

Processor manufacturer

AMD

Motherboard chipset family

AMD

ECC сompatibility

Non-ECC

Memory slots type

DIMM

Number of memory slots

2

Unbuffered memory

Yes

Number of HDDs supported

5

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Number of chassis fan connectors

2

Number of COM connectors

1

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Graphics card family

AMD

PS/2 ports quantity

1

PCI Express x1 (Gen 3.x) slots

1

Supported memory clock speeds

2133/2400/2666/2933/3200/3466/3600/3733/3800/3866/4000/4133/4200/4266/4333/4400/4466/4500/4533 MHz

PCI Express x16 (Gen 3.x) slots

1

Specifiskas norādes

ean13

4710483932267

MPN

A520M-HDV
