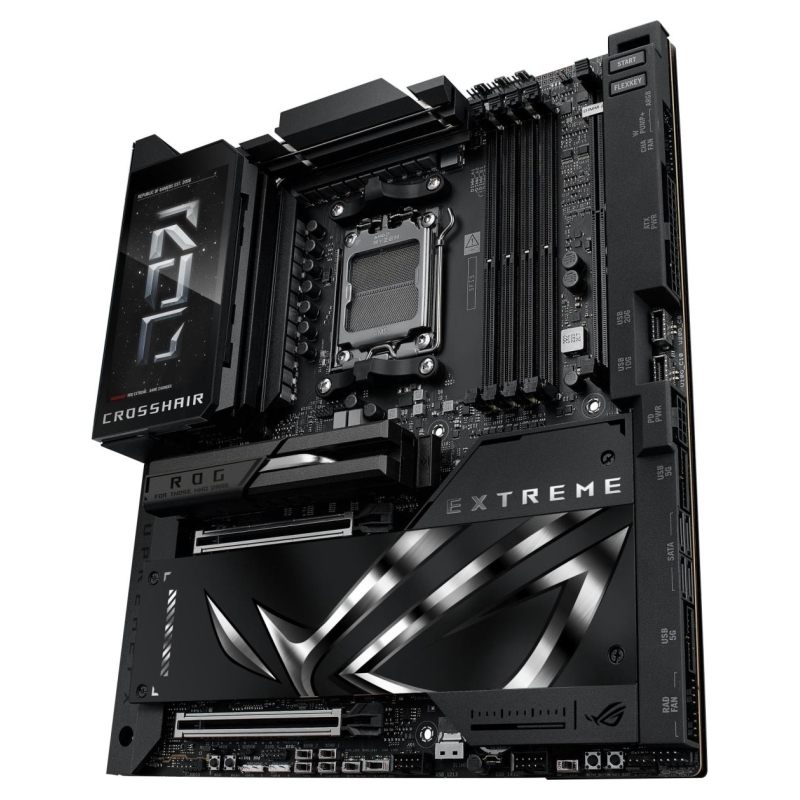

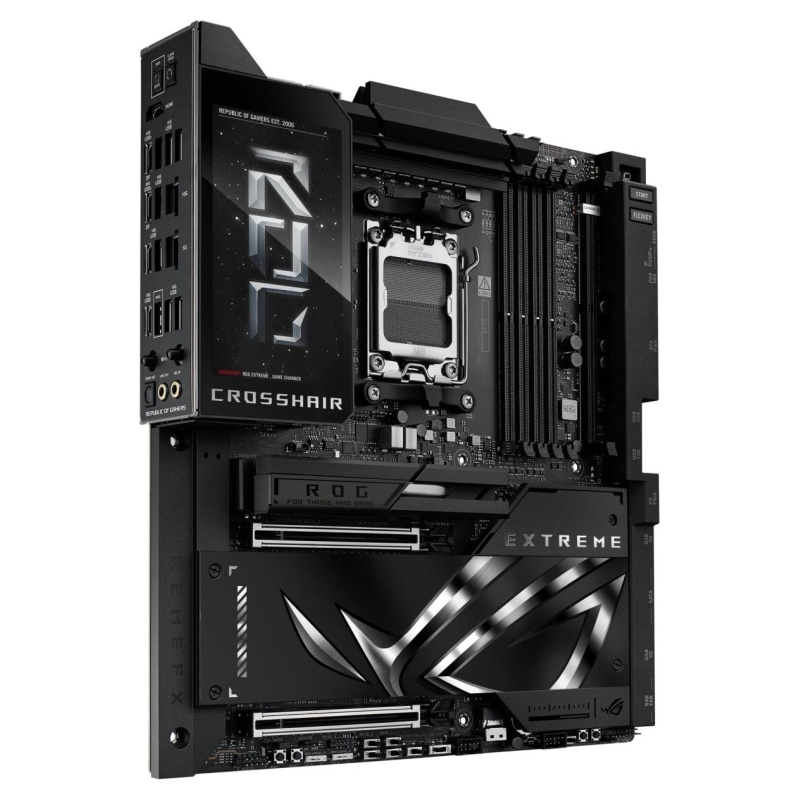

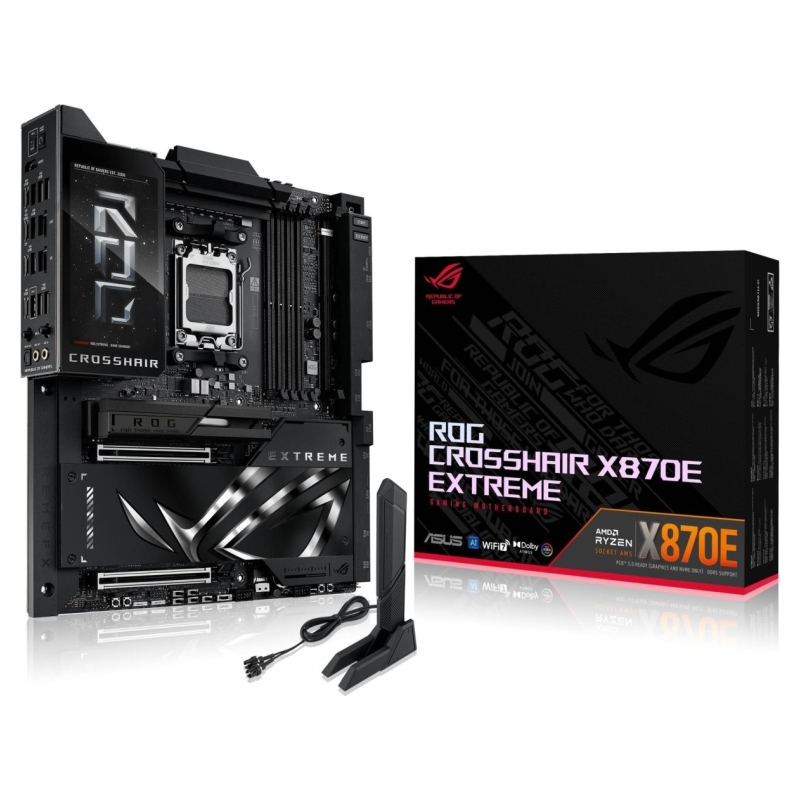

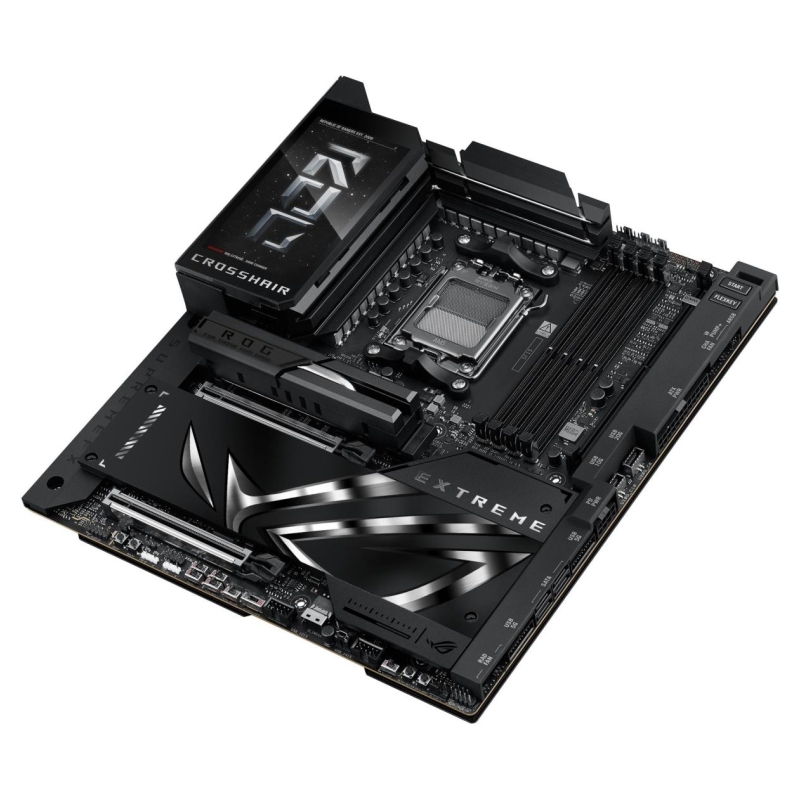

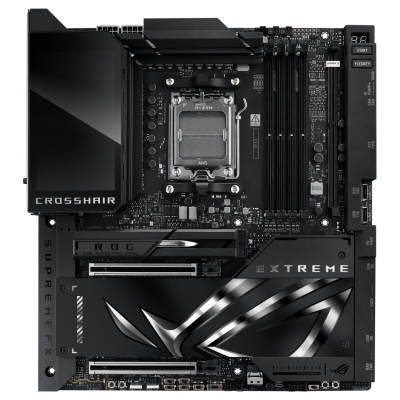

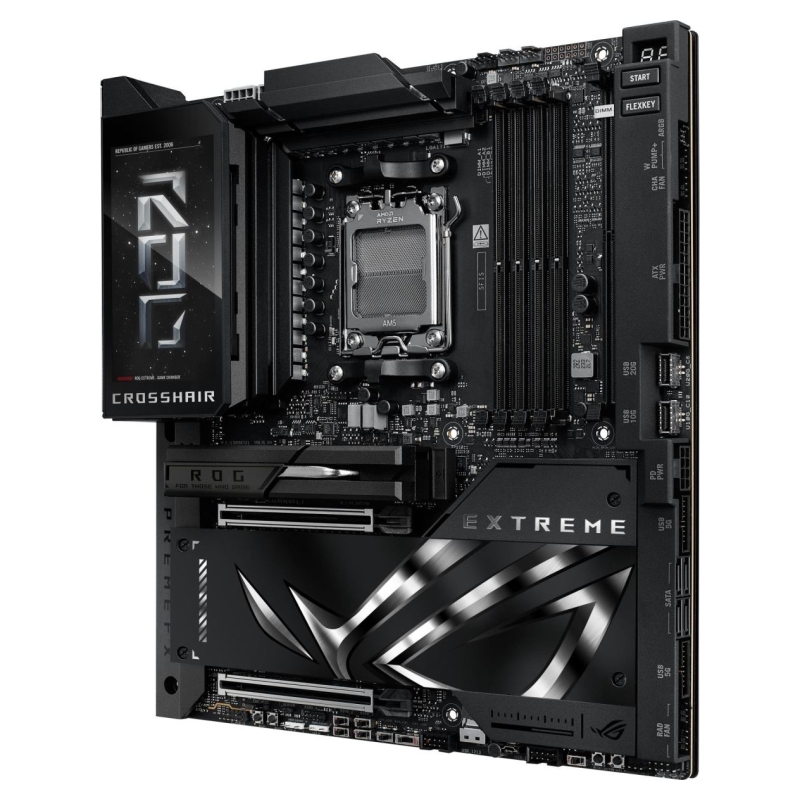

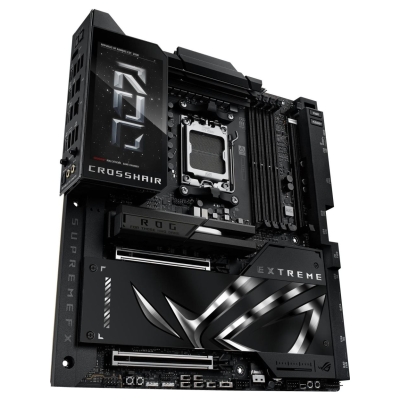

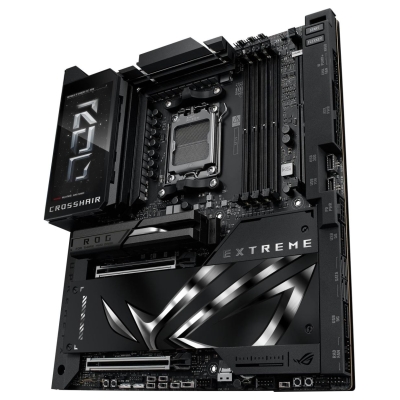

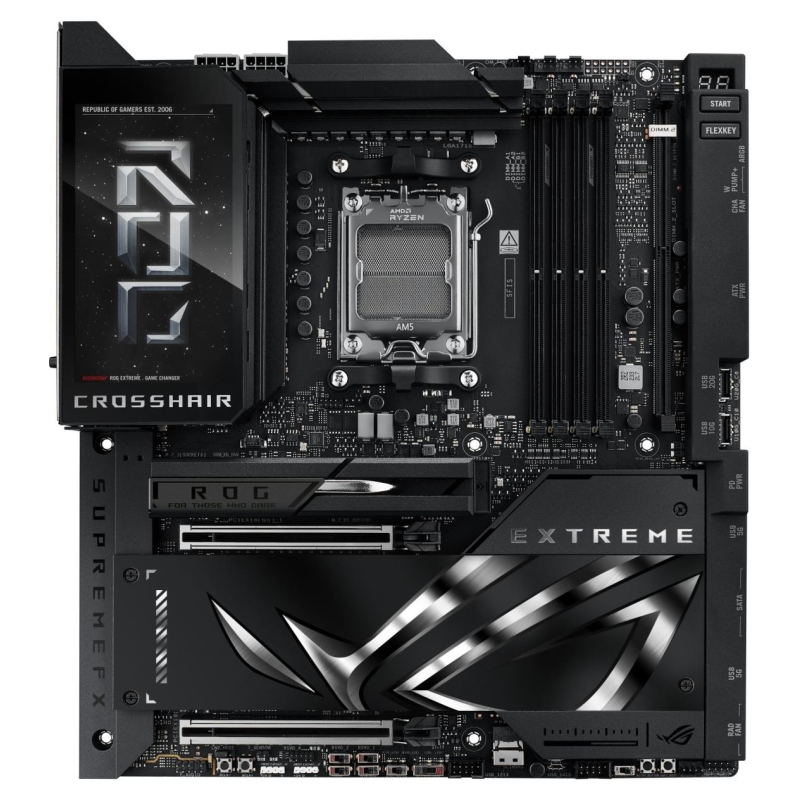

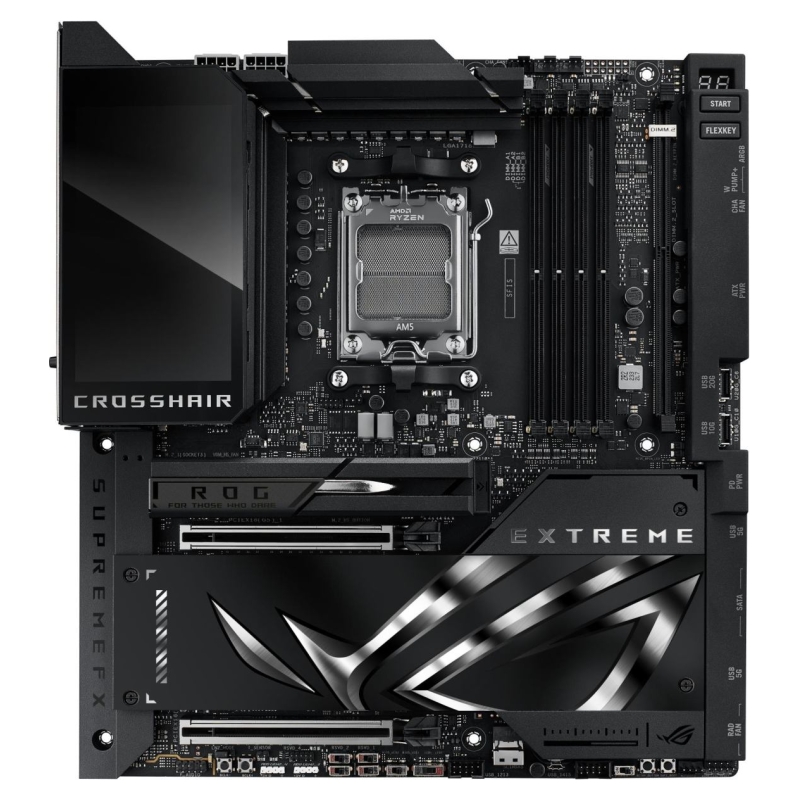

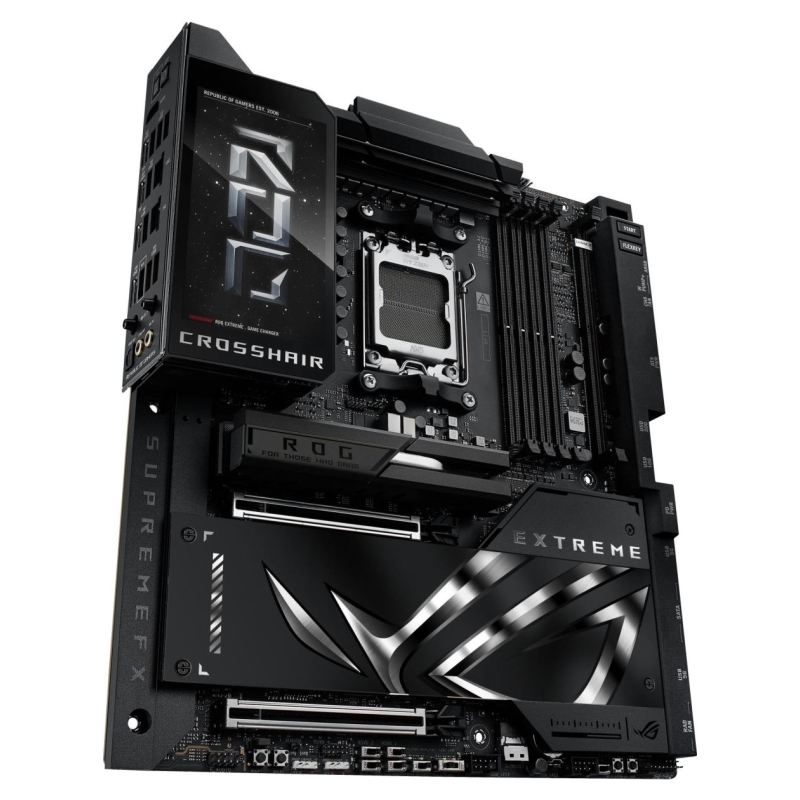

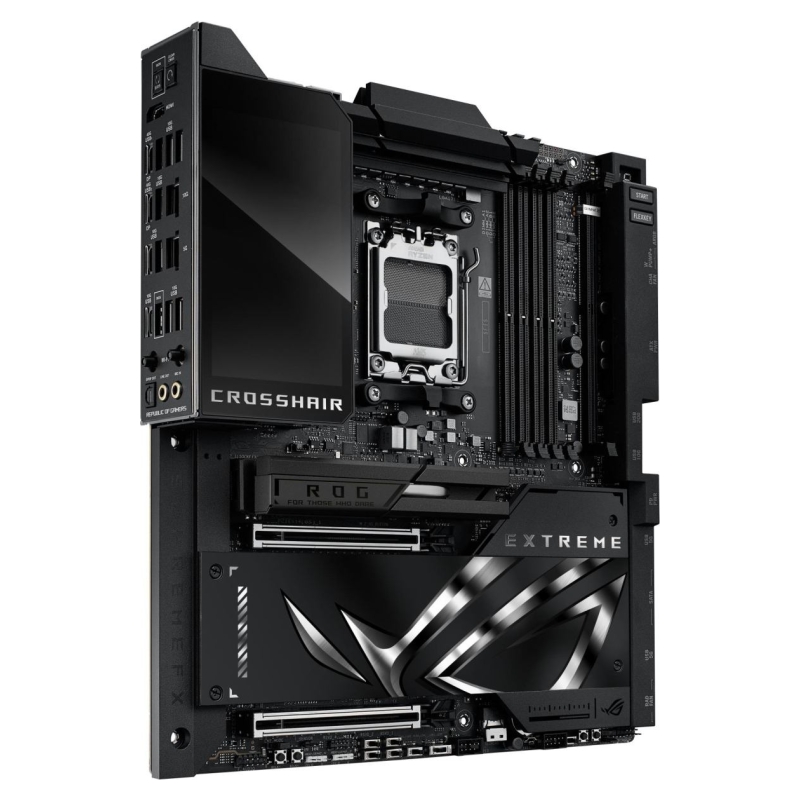

Asus Mainboard|ASUS|AMD X870E|SAM5|EATX|Memory DDR5|Memory slots 4|CROSSHAIRX870EEXTREME

Datu lapa

Designation

CE+WEEE

Bluetooth

Yes

Processor family

AMD Ryzen

CPU socket

Socket AM5

Memory type

DDR5

Memory bus frequency

9000 MHz

Integrated CPU

No

Chipset manufacturer

AMD

Chipset type

AMD X870E

Max memory size

256

Expansion slots

2 x PCIe x 16

Max. number of SATA devices

4

RAID

Yes

Detailed data on disk/drive interfaces

Supports up to 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCI

Graphics

1 x HDMITM port 2 x USB4 (40Gbps) ports support USB Type-C display outputs

Sound card

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 Impedance sense for front and rear headphone outputs Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking High quality 120 dB SNR stereo playback output and 110 dB S

Network interface

1 x 10/100/1000/2500/5000 Mbit/s
1 x 10Gbit/s 10GBase-T
Ethernet: 1 x Realtek 5Gb Ethernet 1 x Marvell AQtion 10Gb Ethernet ASUS LANGuard   Wireless & Bluetooth Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate Bluetooth v5.4

USB ports at back panel

12

USB ports on motherboard

10

Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports

4

FireWire (IEEE 1394)

No

COM connector / port

No

LPT connector / port

No

External connectors

1 x Flash BIOS Button
1 x HDMI
1 x Line Out
1 x MIC
1 x Przycisk Clear CMOS
1 x S/PDIF
1 x Wi-Fi Module
2 x RJ-45
2 x USB 3.2 Gen 2 Type-C
2 x USB4 Type-C
8 x USB 3.2 Gen 2 Type-A

Onboard connectors

1 x 24pin ATX zasilanie
1 x 4pin CPU fan
1 x 4pin wentylator OPT CPU
1 x 8-pin PCIe
1 x Flex Key pin
1 x Front panel audio header
1 x LN2 Mode jumper
1 x OC PCIe switch
1 x Pause switch
1 x Power button
1 x Przycisk USB BIOS
1 x ReTry button
1 x RSVD header
1 x Safe Boot button
1 x SlimSAS
1 x Slow mode switch
1 x System panel header
1 x Thermal sensor connector
1 x USB 3.2 Gen 2 Type-C
1 x USB 3.2 Gen 2x2 Type-C
1 x VRM Heatsink Fan header
12 x ProbeIt Measurement Points
2 x 4pin case fan liquid cooling
2 x 4pin Chassis fan
2 x 4pin Radiator Fan headers
2 x 8pin 12V
2 x Addressable LED
2 x ARGB Gen 2 headers
2 x BCLK button
2 x RSVD switchs
4 x SATA III 6Gb/s
4 x USB 2.0/1.1
4 x USB 3.2 Gen 1 Type-A
5 x M.2

BIOS

2 x 256 Mb Flash ROM, UEFI AMI BIOS

Form factor

E-ATX

Supported operating systems

Windows 11

Software

ROG Exclusive Software ROG CPU-Z Dolby Atmos Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate AIDA64 Extreme (1 year full version) Aura Creator Aura Sync Fan Xpert 4 (with AI Cooling II) GameFirst HWiNFO Power Saving LCD Displ

Number of DDR5 slots

4

Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports

11

RAID levels

0/1/10/5

Windows operating systems supported

Windows 11

Audio output channels

7.1 channels

Number of storage drives supported

10

Supported storage drive interfaces

M.2,SATA III,SlimSAS

Ethernet LAN (RJ-45) ports

2

Wi-Fi standards

Wi-Fi 7 (802.11be)

Cables included

SATA

Component for

PC

Ethernet LAN

Yes

Ethernet interface type

10 Gigabit Ethernet/5 Gigabit Ethernet

HDMI ports quantity

1

RAID support

Yes

Wi-Fi

Yes

Drivers included

Yes

Bluetooth version

5.4

Compatible processor series

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Motherboard form factor

Extended ATX

Supported memory types

DDR5-SDRAM

Processor socket

Socket AM5

EPS power connector (8-pin)

Yes

Supported processor sockets

Socket AM5

Maximum internal memory

256 GB

Supported storage drive types

HDD & SSD

Category Code

MBA

CnCode

84733020

Units per Shipping Box

4

Product colour

Black

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Memory channels

Dual-channel

Processor manufacturer

AMD

Antenna included

Yes

On-board graphics card

No

Motherboard chipset

AMD X870E

Motherboard chipset family

AMD

ECC сompatibility

ECC & Non-ECC

Memory slots type

DIMM

Number of memory slots

4

Unbuffered memory

Yes

Parallel processing technology support

Not supported

12V power connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Front panel audio connector

Yes

Front panel connector

Yes

Number of chassis fan connectors

2

Number of SATA III connectors

4

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

S/PDIF out port

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

8

WiFi-AP antenna jack

1

1st M.2 highest PCI Express generation

5.0

1st M.2 largest key size

22110

2nd M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

2280

3rd M.2 highest PCI Express generation

5.0

3rd M.2 largest key size

22110

Number of M.2 (M) slots

5

PCI Express x16 (Gen 4.x) slots

2

PCI Express x16 (Gen 5.x) slots

2

BIOS memory size

512 Mbit

BIOS type

UEFI AMI

Audio chip

Realtek ALC4082

RGB LED pin header

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

2

USB4 Gen 3x2 ports quantity

2

PS/2 ports quantity

1

USB 3.2 Gen 2x2 connectors

1

4th M.2 highest PCI Express generation

4.0

4th M.2 largest key size

22110

5th M.2 highest PCI Express generation

4.0

5th M.2 largest key size

22110

Specifiskas norādes

ean13

4711387984963

MPN

ROG CROSSHAIR X870E EXTREME
