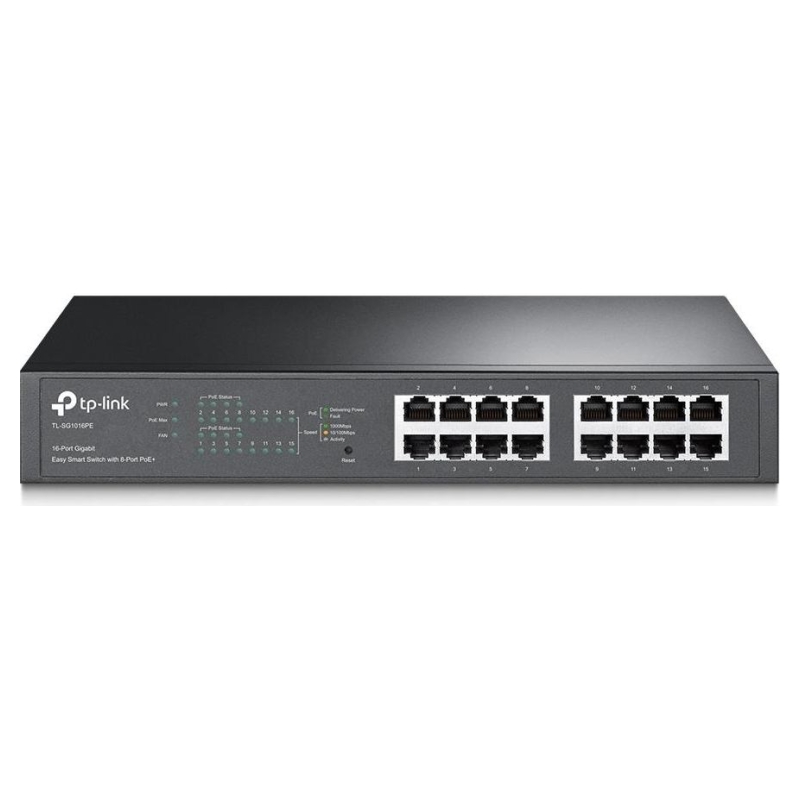

Tp-Link Switch|TP-LINK|Desktop/pedestal|16x10Base-T / 100Base-TX / 1000Base-T|PoE+ ports 8|TL-SG1016PE

Write a review

€160.79

Tax included

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

What This Product Does

The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 110W, up to 30W per port, TL-SG1016PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.

16 10/100/1000Mbps RJ45 ports
Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
Works with IEEE 802.3af/at compliant devices, expanding home and office networks
Simple network set-up on top of plug-and-play connectivity
Web-based user interface and management utility simplify configuration

Manufacturer Website:
https://www.tp-link.com/us/products/details/cat-41_TL-SG1016PE.html

Category Code: SWI
CnCode: 85176200
Unit Box Height: 0.25
Unit Box Length: 0.4
Unit Box Width: 0.08
Quality of Service (QoS) support: Yes
Switch layer: L2
Switch type: Managed
Web-based management: Yes
Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 16
Power connector: AC-in jack
10G support: No
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes
Broadcast storm control: Yes
Cable types supported: Cat3/Cat4/Cat5/Cat5e/Cat6
Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T
Flow control support: Yes
Link aggregation: Yes
Networking standards: IEEE 802.1p/IEEE 802.1Q/IEEE 802.3ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
Number of VLANs: 4000
Port mirroring: Yes
Virtual LAN features: Port-based VLAN/Tagged VLAN
VLAN support: Yes
Forwarding rate: 23.8 Mpps
Jumbo frames: 10000
Jumbo frames support: Yes
MAC address table: 8000 entries
Number of queues: 4
Packet buffer memory: 4.1 MB
Store-and-forward: Yes
Switching capacity: 32 Gbit/s
IGMP snooping: Yes
Form factor: 1U
Housing material: Metal
LED indicators: Yes
Number of fans: 1 fan(s)
Product colour: Black
Rack mounting: Yes
Stackable: No
Compatible operating systems: Windows
Maximum cable length: 100 m
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Power consumption (max): 124.4 W
Power source: AC/PoE
Power supply included: Yes
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) power per port: 30 W
Power over Ethernet plus (PoE+) ports quantity: 8
Total Power over Ethernet (PoE) budget: 110 W
Operating relative humidity (H-H): 10 - 90 %
Operating temperature (T-T): 0 - 40 °C
Storage relative humidity (H-H): 5 - 90 %
Storage temperature (T-T): -40 - 70 °C
Depth: 180 mm
Height: 44 mm
Width: 294 mm
Cables included: AC
Rack mount kit: Yes
User guide: Yes
Package depth: 400 mm
Package height: 80 mm
Package type: Box
Package weight: 2280 g
Package width: 250 mm
Resource CD: Yes
Sustainability compliance: Yes
Compliance certificates: CE/Federal Communications Commission (FCC)/RoHS
Units per Shipping Box: 8
Unit Calculated Volume: 0.01026 cubm
Unit Calculated Weight: 2.44 kg

Reference TL-SG1016PE

In stock 1 Item

Specific References

MPN: TL-SG1016PE

Condition New
